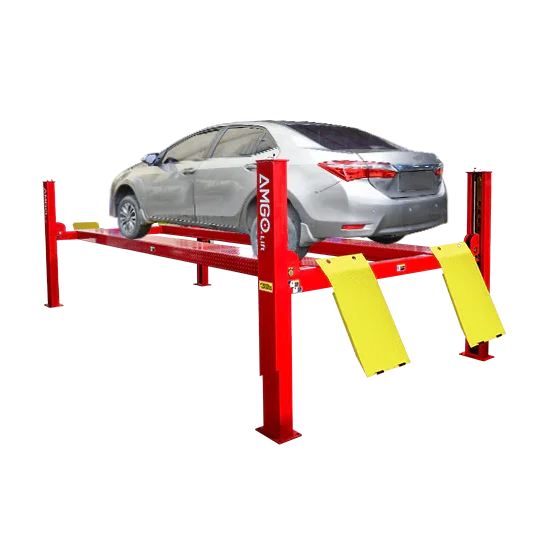

-Amgo PRO-12SX 12,000 lb 4 Post Lift
4 Post Vehicle Lift - Step up your shop’s capabilities with the AMGO Pro-12SX 12,000 lb 4-Post Lift, a powerhouse solution for garages and professional service bays. This 4 post lift combines heavy-duty performance with advanced safety features, making it a reliable choice for lifting cars, SUVs, and light trucks with ease.
With a robust 12,000 lb lifting capacity, this unit raises vehicles in approximately 45 seconds, keeping your workflow fast and efficient. The spacious 104" drive-thru clearance makes loading simple, while adjustable runway widths ensure compatibility with a wide range of vehicle sizes.
Safety is at the heart of the Pro-12SX. It comes equipped with air-released safety locks, a mechanical self-locking system, and cable-break protection for multiple layers of security. The skid-proof diamond runways keep vehicles stable during service, while heavy-duty hydraulic cylinders with flow restrictors guarantee smooth, controlled lowering every time.
Designed for durability, this 4 post car lift features rugged steel construction and is backed by a strong warranty that protects structural, hydraulic, and electrical components. Whether you’re performing maintenance, inspections, or storage, it delivers both confidence and convenience.
Why Choose the AMGO Pro-12SX
-
High Capacity & Speed – Lifts up to 12,000 lbs in under a minute.
-
Versatile Fit – Adjustable runways and wide clearance handle a variety of vehicles.
-
Maximum Safety – Built-in locks and redundant protection systems ensure secure operation.
-
Smooth Operation – Hydraulic cylinders and flow controls provide stability and precision.
-
Shop-Ready Build – Heavy-duty construction designed for daily use in demanding environments.

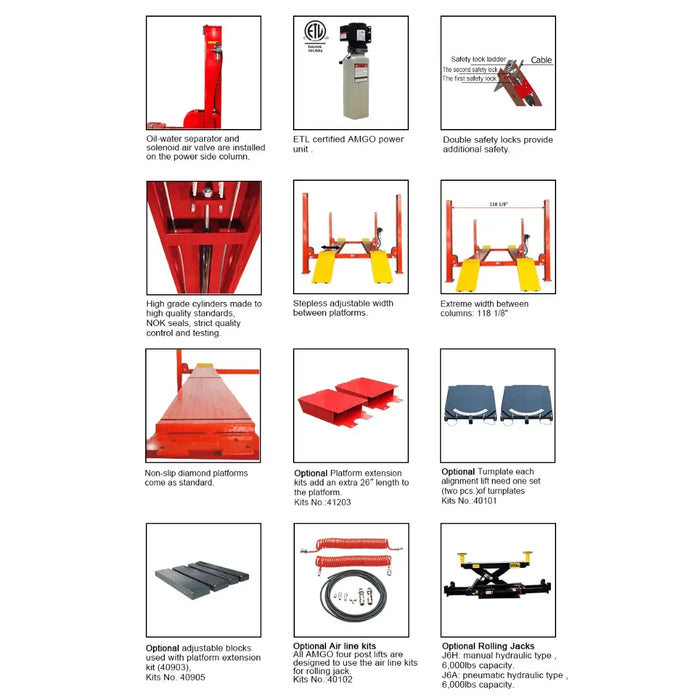

Product Features
- 12,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.

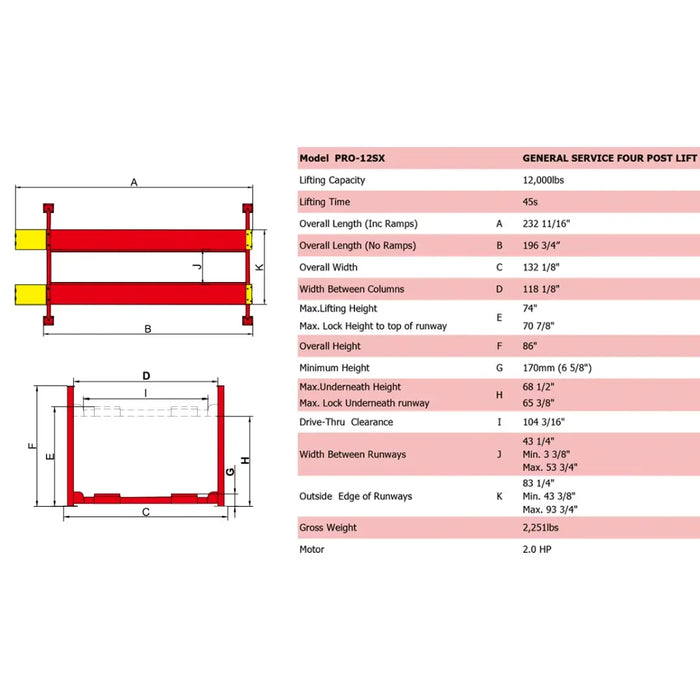

Product Specifications
| Model | PRO-12SX |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 45S |
| A: Overall Length (Inc.Ramps) | 232 11/16″ |
| B: Overall Length (No.Ramps) | 196 3/4″ |
| C: Overall Width | 132 1/8″ |
| D: Width Between Columns | 118 1/8″ |
| E: Max. Lifting Height | 74″ |
| E: Max. Lock Height to Top of Runway | 70 7/8″ |
| F: Overall Height | 86″ |
| G: Minimum Height | 6 5/8″ |
| H: Max. Underneath Height | 68 1/2″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 104 3/16″ |
| J: Width Between Runways | 43 1/4″, Min. 3 3/8″, Max. 53 3/4″ |
| K: Outside Edge of Runways | 83 1/4″, Min. 43 3/4″, Max. 93 3/4″ |
| Gross Weight | 2,251 lbs |
| Motor | 2.0HP |

Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Specifications
-| Drive thru width | 8.5 ft |
|---|---|
| Drive thru between carriage | 104" |
| Height | 29 |
| Inside columns | 118" |
| Length | 200 |
| Lifting capacity | 12000 lbs |
| Lifting height top of runway | 6 ft |
| Lifting height top of pad | 74" |
| Lifting height top of runway | 70" |
| Max rise under runway | 5.5 ft |
| Max rise under runway | 65" |
| Modal | Amgo PRO-12SX |
| Motor | 220V |
| Outside edge of runways | 7.75 ft |
| Outside edge of runways | 83"43"93" |
| Overall length | 16.25 ft |
| Overall width | 11 ft |
| Overall heights | 86" |
| Overall length | 232" |
| Overall weight | 2,251 lbs |
| Overall width | 132" |
| Runway length | 15.5 ft |
| Runway length | 186" |
| Width | 23 |
| Width between columns | 9.75 ft |
