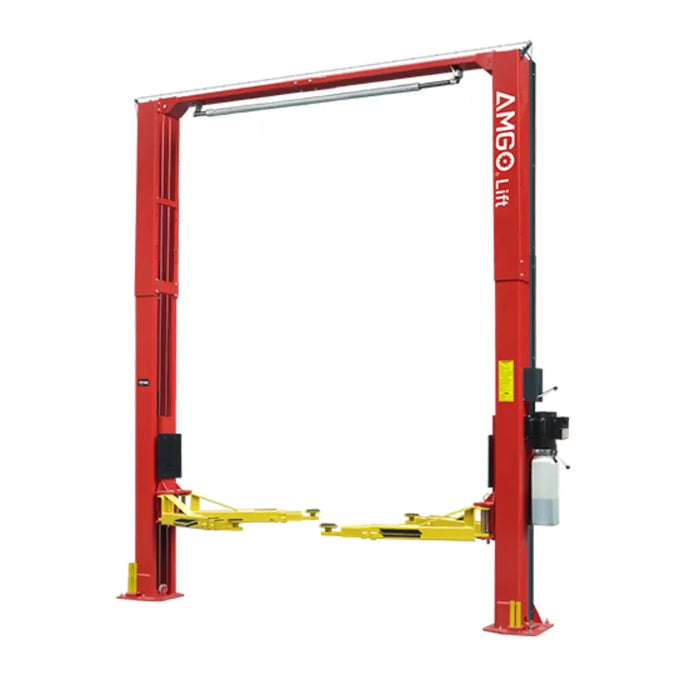

-Amgo OH-12S (Short) 12,000 lb 2 Post Lift
Elevate your automotive service capabilities with the AMGO OH-12S 2 Post Car Lift, a robust and versatile lifting solution designed to handle vehicles of up to 12,000 lbs. This lift is engineered to accommodate a broad range of automotive servicing needs, from routine maintenance to extensive repairs, making it an ideal choice for professional workshops and dedicated hobbyists alike. With its impressive capacity and advanced features, the OH-12S stands as a pinnacle of lifting technology, available exclusively through Mechanic Superstore.
The OH-12S is distinguished by its single-point safety lock release, a feature that enhances efficiency by allowing for quick and simultaneous disengagement of safety locks from both columns. This lift is uniquely adaptable to your workspace, featuring an exclusive adjustable three-height setting that accommodates varying service ceiling heights, ensuring that even shops with low ceilings can benefit from its powerful lifting capabilities.
Innovation continues with the OH-12S’s four three-stage arm design, which provides the flexibility needed to lift vehicles with short to long wheelbases. This versatility is complemented by automatic arm restraints that secure the arms in their proper positions once a vehicle is lifted, enhancing safety and stability. The lift's construction includes self-lubricating UHMW Polyethylene sliders and bronze bushings, ensuring smooth operation and reduced wear over time.
The OH-12S doesn’t just excel in functionality; it’s also designed for durability and longevity. Aviation-standard durable cables are used for synchronization, minimizing the risk of uneven lifting. Additionally, the lift features a detachable foot guard and tool tray, promoting a clutter-free workspace and enhancing operational efficiency. With its comprehensive 5-3-2 warranty covering steel construction, hydraulic parts, and electrical components, the AMGO OH-12S assures reliability and peace of mind.
CE approved and certified, the OH-12S not only meets but exceeds the standards prescribed by European Standard EN-1493. Whether you're running a busy professional garage or are a passionate car enthusiast seeking to upgrade your home garage, the AMGO OH-12S 2 Post Car Lift from Mechanic Superstore represents the ultimate in lifting performance and safety, designed to elevate your automotive servicing to the next level.

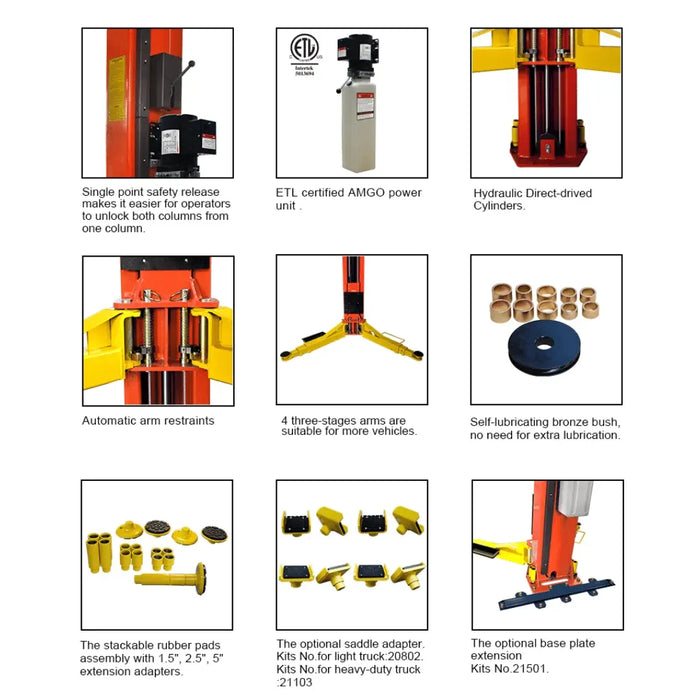

Product Features
- 12,000 lbs capacity
- Single-point safety lock release
- Exclusive: adjustable three height setting accommodates varying service ceiling heights
- 4 three-stage arm design allows to lift vehicles from short to long wheel base
- Automatic arm restraints keep the arms locked in their proper positions
- Self-lubricating UHMW Polyethylene sliders and bronze bushings
- Aviation standard durable cables used for synchronization
- Detachable foot guard and tool tray to allow for a clutter free work spaces
- 5-3-2 warranty: 5 years for steel construction, 3 years for hydraulic parts,and 2 years for electrical components.
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493

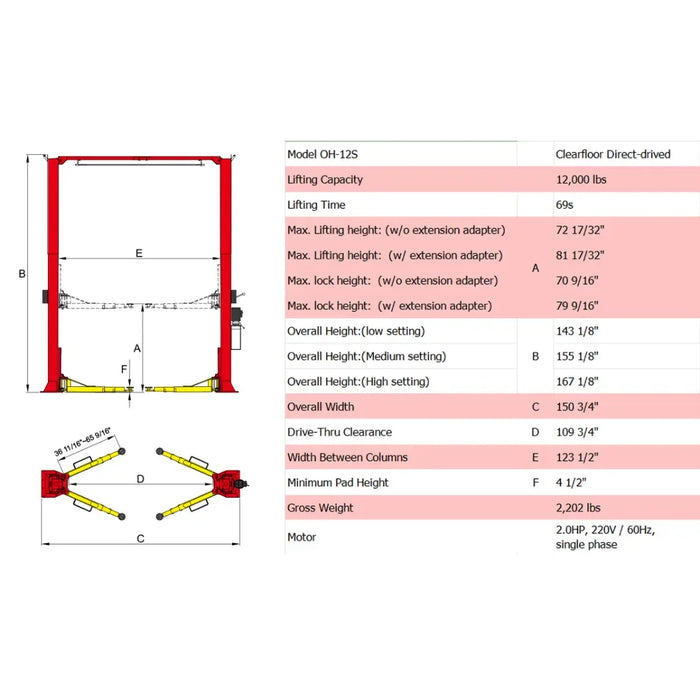

Product Specifications
| Model | OH-12S |
|---|---|
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lifting Time | 69S |
| A: Max. Lifting Height: (w/o extension adapter) | 72 17/32″ |
| A: Max. Lifting Height: (w/ extension adapter) | 81 17/32″ |
| A: Max. Lock Height: (w/o extension adapter) | 70 9/16″ |
| A: Max. Lock Height: (w/ extension adapter) | 79 9/16″ |
| B: Overall Height: (Low Setting) | 143 1/8″ |
| B: Overall Height: (Medium Setting) | 155 1/8″ |
| B: Overall Height: (High Setting) | 167 1/8″ |
| C: Overall Width | 150 3/4″ |
| D: Drive Thru Clearance | 109 3/4″ |
| E: Width Between Columns | 123 1/2″ |
| F: Minimum Pad Height | 4 1/2″ |
| Motor | 2.0HP, 220V / 60Hz, Single Phase |
| Gross Weight | 2,202 lbs |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Specifications
-| Drive thru width | 9 ft. |
|---|---|
| Drive thru between carriage | 109" |
| Height | 30 |
| Inside columns | 123" |
| Length | 114 |
| Lifting capacity | 12000 lbs |
| Lifting height to flush pad on | 6 ft |
| Lifting height top of pad | 72"81" |
| Max rise clearance under arms | 5.7 ft |
| Max rise under arms | 68" |
| Min height lowered arm height | 4.5" |
| Minimum pad height | 4.5" |
| Modal | OH-12S |
| Motor | 220V |
| Overall width | 12.5 ft. |
| Overall heights | 143"155"167" |
| Overall weight | 2205 lbs. |
| Overall width | 150" |
| Width | 21 |
| Width between columns | 10 ft. |
