Description

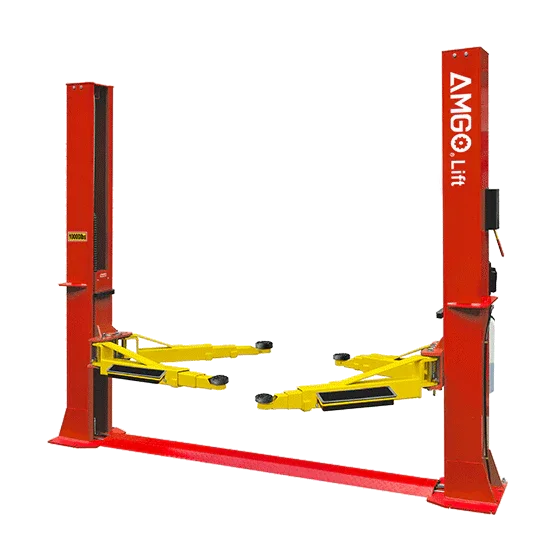

-Amgo BP-10 10,000 lb 2 Post Lift
The AMGO BP-10 2 Post Car Lift represents the pinnacle of engineering excellence, offering a robust solution for professional shops and home garages alike. Designed to accommodate environments with low ceilings or where overhead obstructions are a concern, this commercial-grade base plate lift boasts a 10,000 lbs capacity, ensuring it can handle a wide array of vehicles with ease. This lift is a testament to AMGO's commitment to providing high-quality, reliable solutions for automotive lifting needs, available through the trusted retailer, Mechanic Superstore.
Featuring a single-point safety release, the BP-10 auto lift allows operators to simultaneously unlock safety locks from both columns, enhancing convenience and efficiency. Further emphasizing safety, a dual locking system is incorporated, offering an additional layer of security during lifting operations. The lift is equipped with four three-stage arms, making it versatile enough to accommodate more vehicle types, an essential feature for busy workshops looking to maximize their service capabilities.
Automatic arm restraints ensure that arms remain locked in their proper positions throughout the lift operation, while self-lubricating UHMW Polyethylene sliders and bronze bushings contribute to the durability and low maintenance of the lift. Synchronization of the lift is achieved through the use of aircraft-quality cable, highlighting the attention to detail and quality standards that AMGO applies to its products.
The AMGO BP-10 goes beyond just lifting; it includes thoughtful features like a detachable foot guard and tool tray to maintain a clutter-free workspace. Backed by extensive warranties—five years on steel components, three years on hydraulic parts, and two years on electrical components—and CE certification, this lift meets or exceeds European Standard EN-1493. With a lifting capacity of 10,000lbs and a comprehensive range of lifting heights, the BP-10 is an indispensable tool for automotive workshops seeking to elevate their service offerings. Its compact design, combined with high functionality, makes the AMGO BP-10 a smart investment for those looking to optimize their workspace while ensuring the highest levels of safety and efficiency.

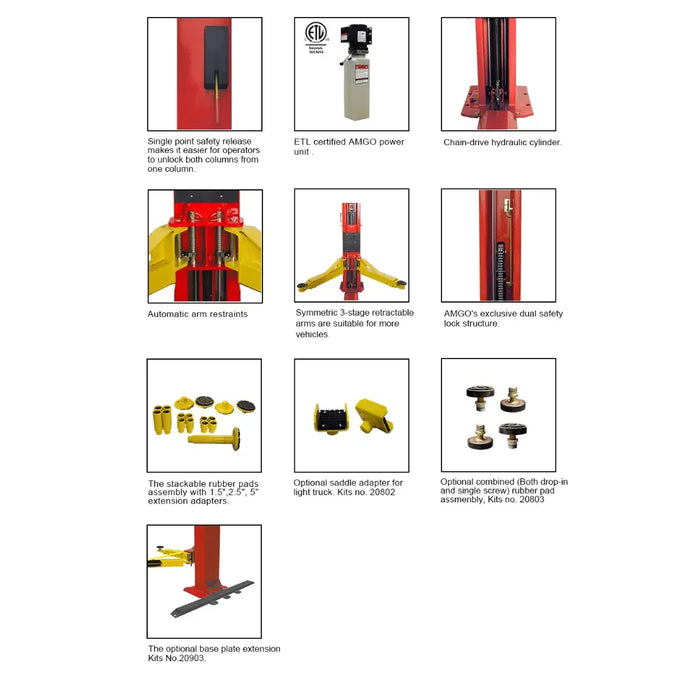

Product Features
- 10,000 lbs capacity, commercial grade 2-post base plate lift is designed and built for any professional shops and home garages to fit low ceiling workshop environment without overhead obstructions
- Single-point safety release allows the operator to unlock the safety locks from both Columns simultaneously. There is also a dual locking system for additional safety
- 4 three-stage arms are suitable for more vehicles
- Automatic arm restraints keep the arms locked in their proper positions.
- Self-lubricating UHMW Polyethylene sliders and bronze bushings
- Aircraft quality cable is used for synchronization
- Detachable foot guard and tool tray allow for a clutter free work space
- Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493

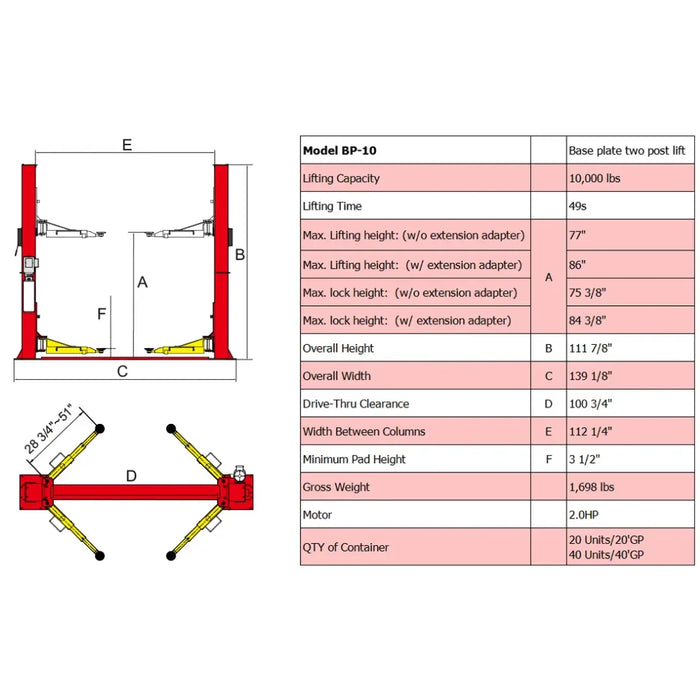

Product Specifications
| Model | BP-10 |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Lifting Time | 49S |
| A: Max. Lifting Height: (w/o extension adapter) | 77″ |
| A: Max. Lifting Height: (w/ extension adapter) | 86″ |
| A: Max. Lock Height: (w/o extension adapter) | 75 3/8″ |
| A: Max. Lock Height: (w/ extension adapter) | 84 3/8″ |
| B: Overall Height | 111 7/8″ |
| C: Overall Width | 139 1/8″ |
| D: Drive Thru Clearance | 100 3/4″ |
| E: Width Between Columns | 112 1/4″ |
| F: Minimum Pad Height | 3 1/2″ |
| Motor | 2.0HP |
| Gross Weight | 1,698lbs |
| QTY of Container | 20 Units/20'GP | 40 Units/40'GP |

Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Specifications
-| Drive thru width | 8 ft |
|---|---|
| Drive thru between carriage | 100" |
| Height | 35 |
| Inside columns | 112" |
| Length | 115 |
| Lifting capacity | 10000 lbs |
| Lifting height top of arms | 6.25 ft |
| Lifting height top of pad | 77"86" |
| Max rise under arms | 6 ft |
| Max rise under arms | 74" |
| Min height lowered arm height | 3.5" |
| Minimum pad height | 3" |
| Modal | BP-10 |
| Motor | 220V |
| Overall width | 11.75 ft |
| Overall heights | 111" |
| Overall weight | 1,698lbs |
| Overall width | 139" |
| Width | 21 |
| Width between columns | 9 ft |
