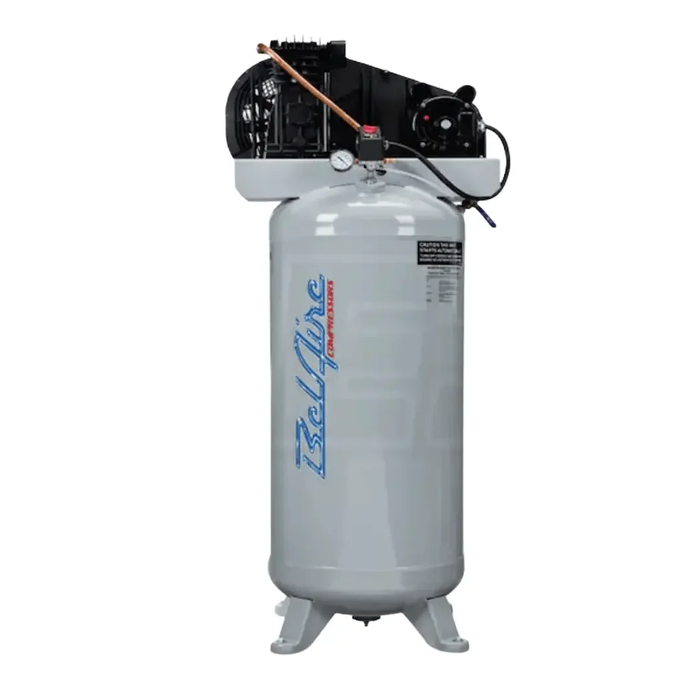

BelAire 6061V 4HP 60gal vertical single-stage electric air compressor

BelAire Air Compressor 6061V 3.5 HP 60 Gallon Single Stage 230V Single Phase

Part #:6061V
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$1,324.00
$1,324.00 - $1,324.00
$1,324.00
Call/Text Us: 866-774-7743 Call Us

Description

-

BelAire 6061V 3.5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)

The BelAire 6061V is a powerful stationary air compressor designed for both commercial and DIY applications. With a 3.5 HP motor operating on 120/240 Volt AC Single Phase power, this compressor delivers 14.6 CFM at 40 PSI and 12.4 CFM at 100 PSI, making it suitable for a wide range of tasks. The compressor features a solid cast iron, single-stage pump with splash lubrication, ensuring durability and reliable performance.

Key Features:

  • Motor: 3.5 HP, Single Phase, 120/240 Volt AC
  • CFM Delivery: 14.6 at 40 PSI, 12.4 at 100 PSI
  • Max PSI: 135 PSI
  • Tank Capacity: 60 gallons (vertical orientation)
  • Pump Type: Single-stage, oil-lubricated, belt drive
  • Construction: Solid cast iron pump for durability

The BelAire 6061V air compressor is a robust and reliable solution for various air-powered tools and tasks.

Product Features

  • Cast Iron Pump
  • More durable and longer life than aluminum pumps
  • 3.5-HP Motor Dual-Voltage Motor (208/230 Single Phase)
  • Long lasting for maximum performance and reliability
  • 60-Gallon Vertical Tank
  • Rugged receiver tank to improve consistency of air flow
  • Fully Enclosed Belt Guard
  • Provides added safety during operation
  • Start/Stop pressure switch control
  • ASME safety and tank valves
  • Tank drain and discharge valve

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 120/240 Volt AC
Phase Single Phase
Magnetic Starter No
Amp Draw Consult Certified Electrician
Recommended Breaker 30 Amp Breaker

Engine

HP 3.5

Pump

CFM 12.4
CFM Rated @ 100 PSI
CFM @ 40 PSI 14.6
Pump Material Solid Cast Iron
Max PSI 135 PSI
Oil Sight Glass No
Pump Type Sinle-Stage
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off No

Tank

Tank Size 60 Gallons
Tank Outlet 1/4 Inch
Electronic Drain Valve No
Tank Orientation Vertical

Filter

Regulator No

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 261 Pounds
Certification ASME
Consumer Warranty 1 Year
Product Length 30 Inches
Product Width 22 Inches
Product Height 68 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter No
Overall length 30"
Overall weight 261 Lbs
Overall width 22
Phase Single Phase
Pump material Solid Cast Iron
Tank orientation Vertical
Tank outlet 1/2"
Tank size gallons 60
Voltage 208-230V

Warranty

-
Warranty Details
