Amgo AX-12A 12,000 Lb Scissor Lift

SKU/Product #: AX-12A

AMGO Hydraulics

Write a review
$11,785.00 $11,785.00

Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save

Product Description

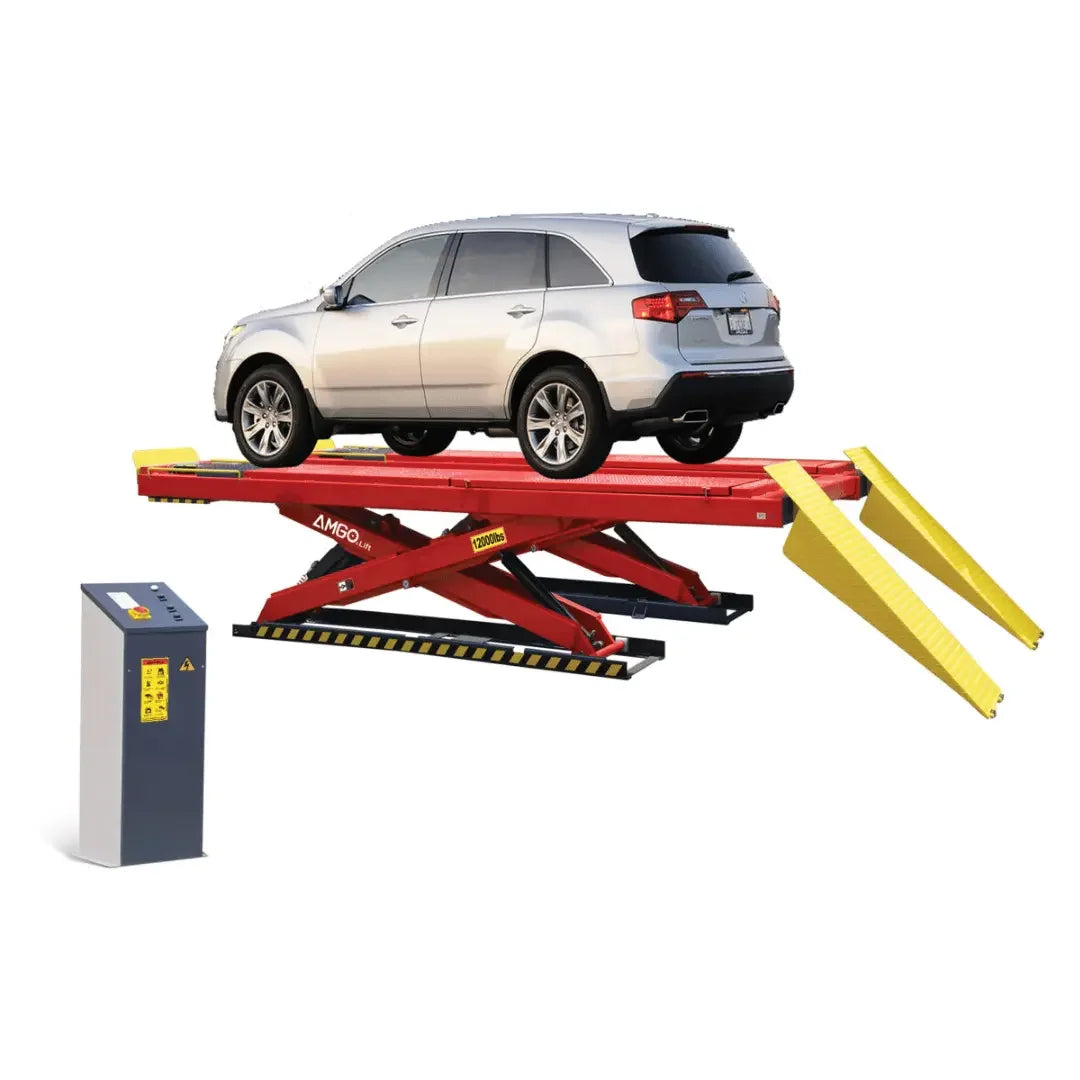

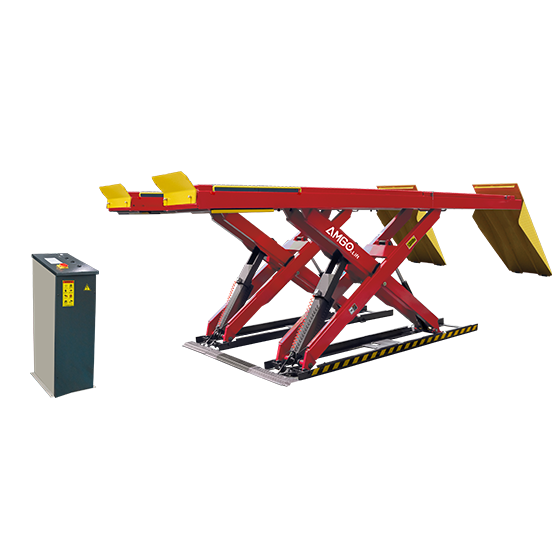

Amgo AX-12A 12,000 Lb Scissor Lift

The AMGO AX-12A Alignment Scissor Lift is a great lift to expand your shops capacity for larger vehicles and greater workload with its rugged design and increased dependability. The hefty 6 ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits.

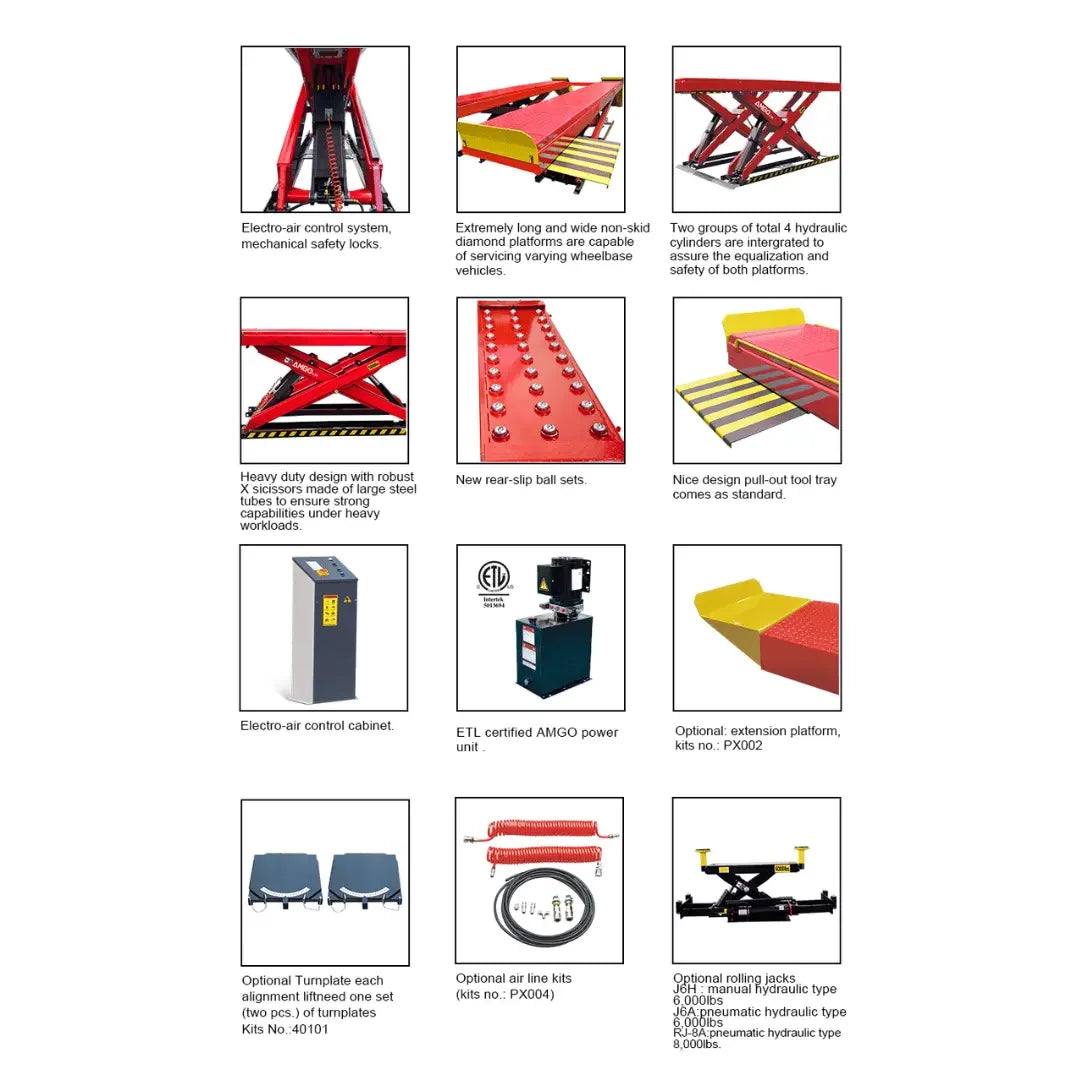

Product Features

  • 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
  • Electro-air control system, which operates the self-lock safety mechanism
  • Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operations
  • Skid proof diamond platform provides traction for tires to stay put

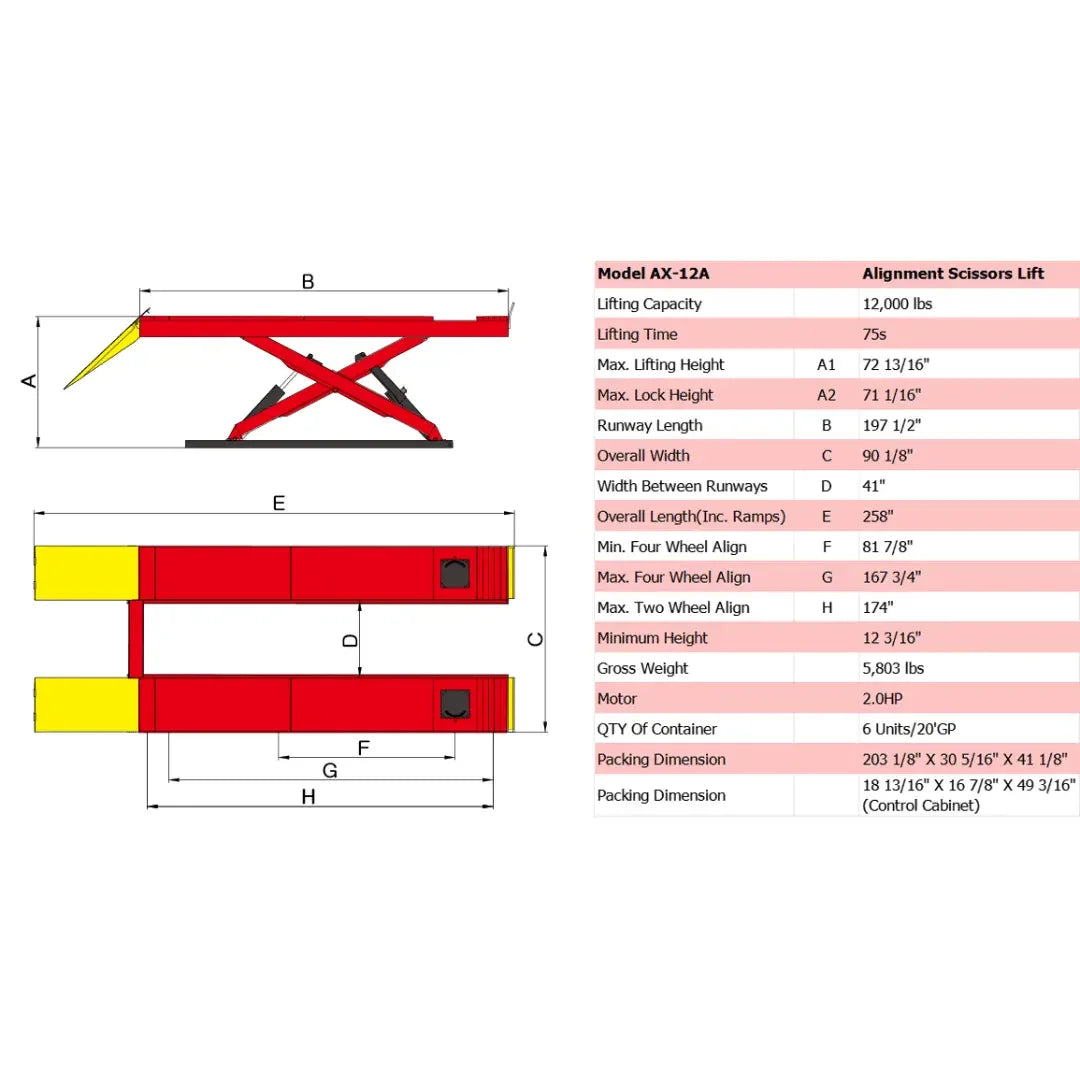

Product Specifications

Model AX-12A
Style Alignment
Lifting Capacity 12,000 lbs (5,500 kg)
Lifting Time 75 seconds
A1: Max. Lifting Height 73 5/8″ (1870mm)
A2: Minimum Height 11 3/4″ (300mm)
B: Runway Length 197 1/2″ (5018mm)
C: Overall Width 90 1/8″ (2290mm)
D: Width Between Runways 41″ (1040mm)
E: Overall Length(Inc.Ramps) 258″ (6554mm)
F: Min.Four Wheel Align 81 7/8″ (2080mm)
G: Max.Four Wheel Align 167 3/4″ (4260mm)
H: Max.Two Wheel Align 174″ (4420mm)
Gross Weight 5,785lbs (2,624 kg)
Motor 2.0HP,220V/60Hz,single phase

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.

Call, text, or chat with us if you have questions. 866-774-7743



Downloads

Brochure
Manual
Warranty
