iDEAL PSB-AFOFB1388-AK Open Front Paint Booth

Name: iDEAL PSB-AFOFB1388-AK Open Front Paint Booth
Brand: iDeal
Price: 9020.0 USD
Availability: InStock

Part #:PSB-AFOFB1388-AK

Brand: iDeal

$0.00 - $0.00

$0.00

$9,020.00

$9,020.00 - $9,020.00

$9,020.00

Call/Text Us: 866-774-7743 Call Us

Description

-

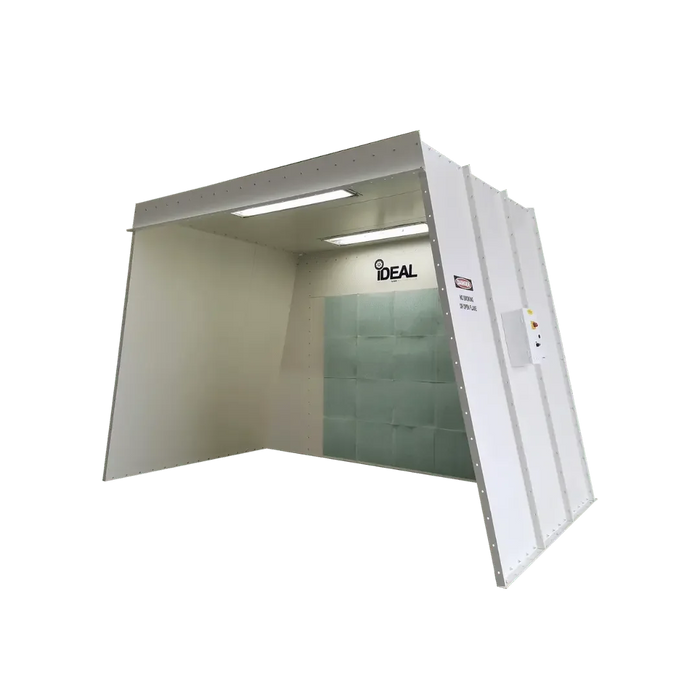

iDEAL PSB-AFOFB1388-AK Open Front Paint Booth

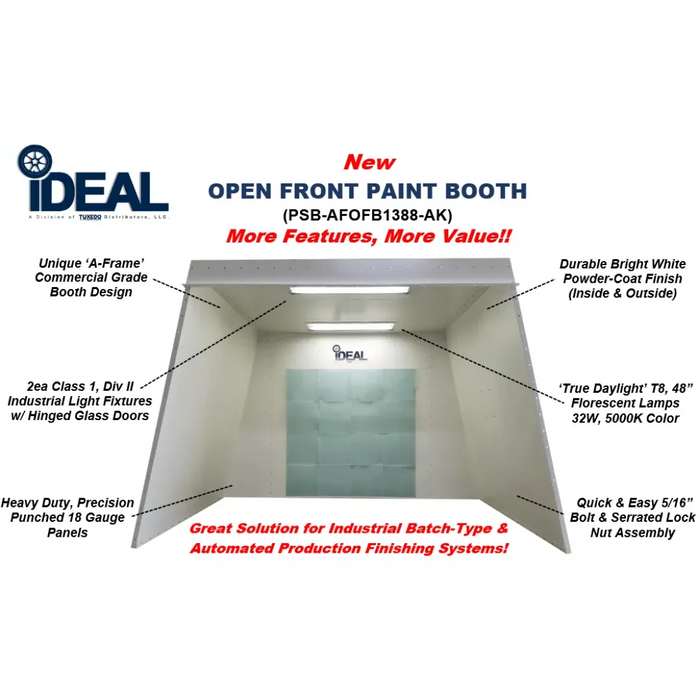

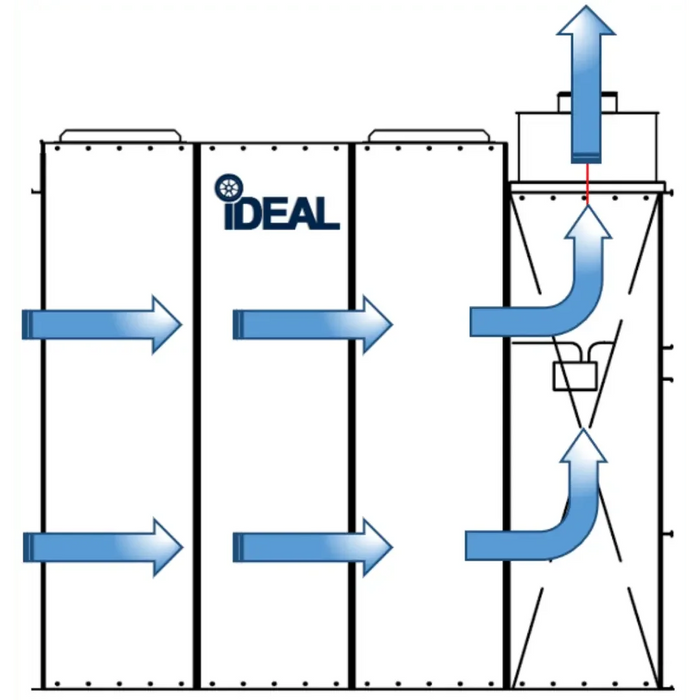

The iDEAL ‘A-Frame’ Open Front Paint Booth is an economic, commercial grade open front paint booth designed to provide optimal ‘air flow’ with superior lighting for high-quality spray painting & finishing applications. The iDEAL Open Front Paint Booth is a great solution for industrial batch-type & automated production-type finishing systems. Air flows through the open front section of the booth, then passes through the work area towards the rear of booth into the filtered exhaust chamber. Filtered exhaust air is then drawn through the exhaust plenum & discharged upwards through the exhaust fan & ducting. Easily installed with heavy duty, precision punched 18 gauge panels allowing for quick nut & bolt assembly. Standard with bright white powder-coat finish, deluxe control panel, premium exhaust filters, hinged glass light fixtures & high-quality tube-axial exhaust fan to complete the package for a premium, high-Quality Open Front Paint Booth, all at a great value!

Product Features

TYPICALLY SHIPS WITHIN 48 HOURS!
COMMERCIAL GRADE DESIGN FOR OPTIMAL AIR FLOW & LIGHTING COVERAGE

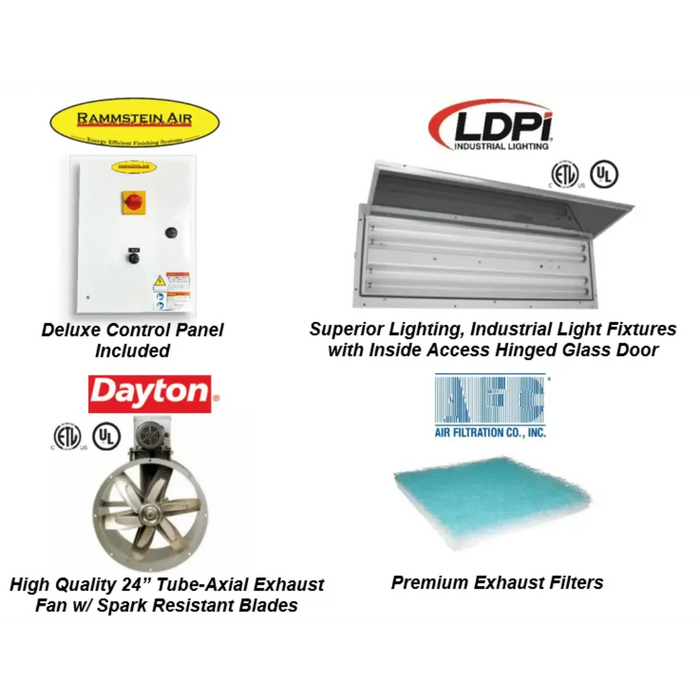

DELUXE CONTROL PANEL INCLUDED
BRIGHT WHITE POWDER COAT PANEL FINISH – (INSIDE & OUTSIDE)
HEAVY DUTY PRECISION PUNCHED 18 GAUGE PANEL CONSTRUCTION
CONVENIENT 5/16” BOLT & SERRATED LOCK NUT ASSEMBLY
UL LISTED DAYTON 24” TUBE-AXIAL EXHAUST FAN W/ SPARK RESISTANT FAN BLADES
NEMA RATED 2HP-3 PHASE – 230/460VAC-60HZ MOTOR STANDARD
PREMIUM AFC EXHAUST FILTERS
LDPI INDUSTRIAL LIGHT FIXTURES W/ INSIDE ACCESS HINGED GLASS DOOR
(2EA) LDPI INDUSTRIAL (CLS1 / DIV 2) LIGHT FIXTURES – UL & ETL (GROUPS A, B, C & D.)
TRUE ‘DAYLIGHT COLOR’ W/ GE T8 48” FLORESCENT LAMPS 32W – 2900 LUMENS, 5000K
OPTIMAL AIR FLOW W/ CFM 7,983 @ .5 STATIC PRESSURE
INSIDE DIMENSIONS: 13″ W X 8′ W X 7.6″ D
ALL ASSEMBLY HARDWARE, MANOMETER & SEALANT INCLUDED
MEETS AND/OR EXCEEDS ALL APPLICABLE OSHA & NFPA 33 REGULATIONS
EASY TO INSTALL, OPERATE & MAINTAIN

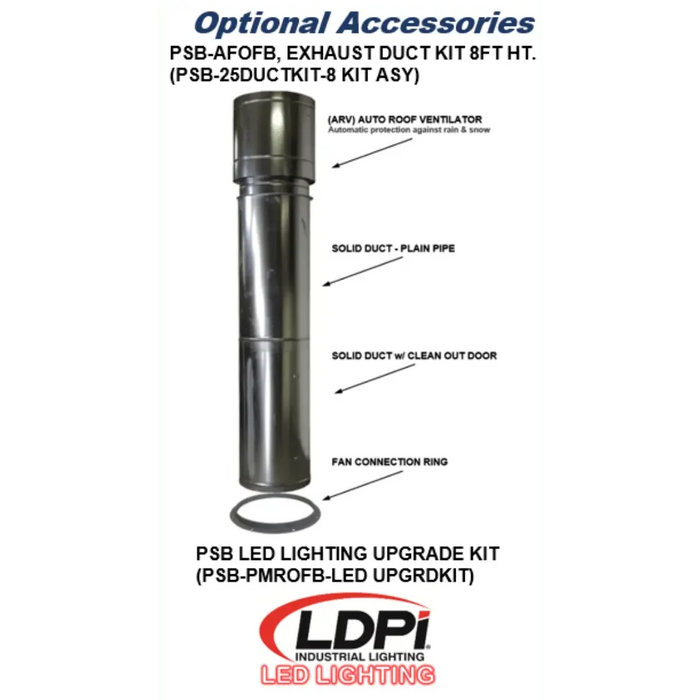

OPTIONAL: 1PH ELECTRICAL & PSB-25DUCTKIT-8 KIT ASY

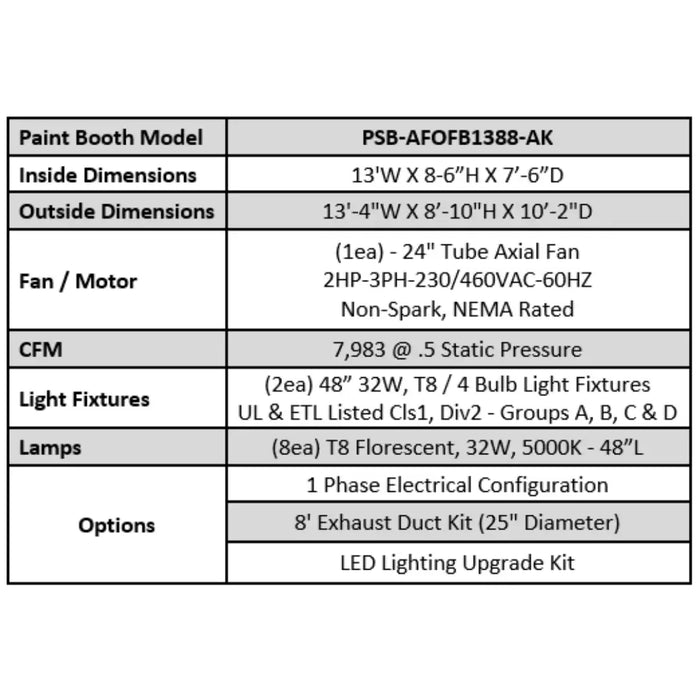

Specifications

Paint Booth Model	PSB-AFOFB1388-AK

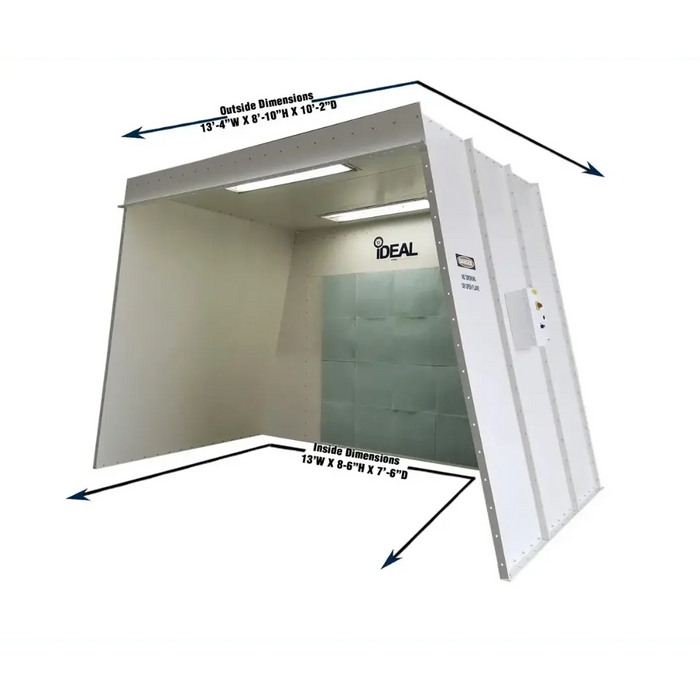

Inside Dimensions	13’W X 8-6”H X 7’-6”D
Outside Dimensions	13′-4″W X 8’-10″H X 10’-2″D
Fan / Motor	(1ea) – 24″ Tube Axial Fan / 2HP-3PH-230/460VAC-60HZ / Non-Spark, NEMA Rated
CFM	7,983 @ .5 Static Pressure
Light Fixtures	(2ea) 48” 32W, T8 / 4 Bulb Light Fixtures / UL & ETL Listed Cls1, Div2 – Groups A, B, C & D
Lamps	(8ea) T8 Florescent, 32W, 5000K – 48”L
Options	Single Phase Electrical Configuration / 8′ Exhaust Duct Kit (24″ Diameter) / LED Lighting Upgrade Kit

Pick Up and Delivery

Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.
