iDEAL MSC-18K-X-236 Heavy Duty Mobile Column Lift (Set of 2)

Name: iDEAL MSC-18K-X-236 Heavy Duty Mobile Column Lift (Set of 2)
Brand: iDeal
Price: 22510.0 USD
Availability: InStock

Part #:MSC-18K-X-236

Brand: iDeal

$0.00 - $0.00

$0.00

$22,510.00

$22,510.00 - $22,510.00

$22,510.00

Call/Text Us: 866-774-7743 Call Us

Description

-

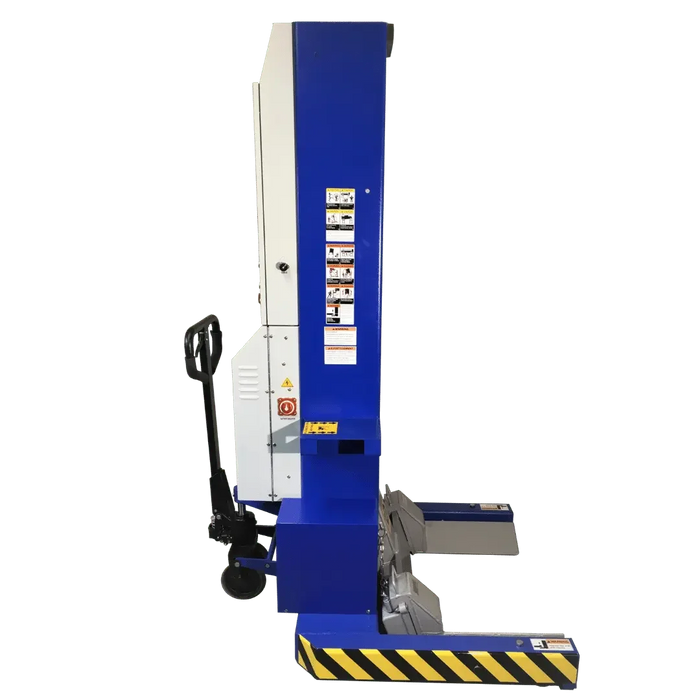

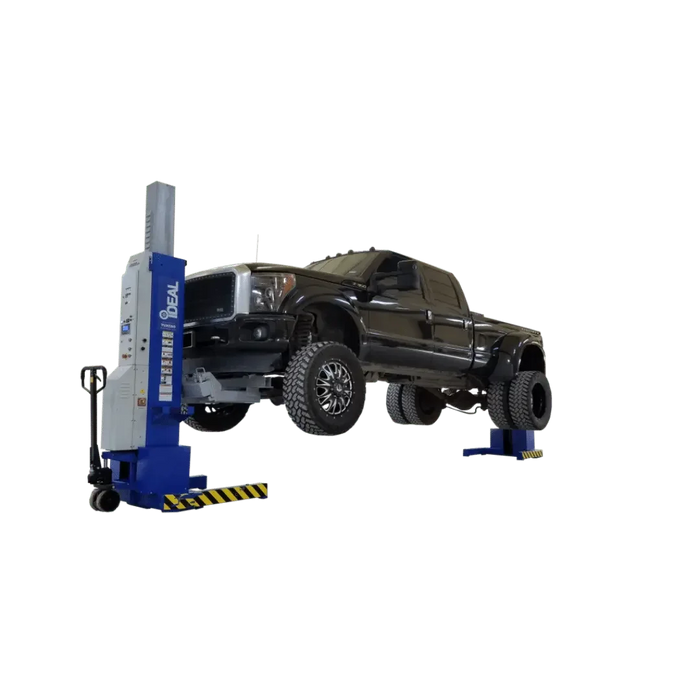

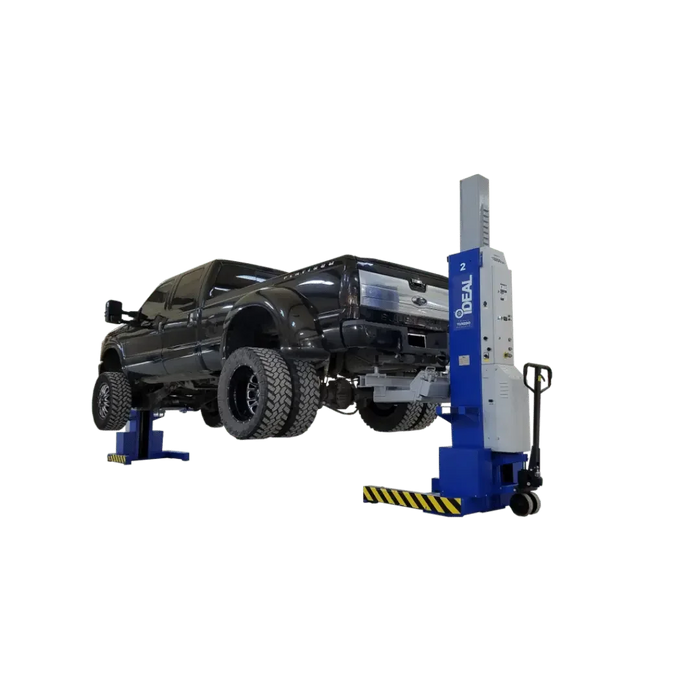

iDEAL MSC-18K-X-236 Heavy Duty Mobile Column Lift

Product Features

24VDC Battery Operation with Onboard Charging System

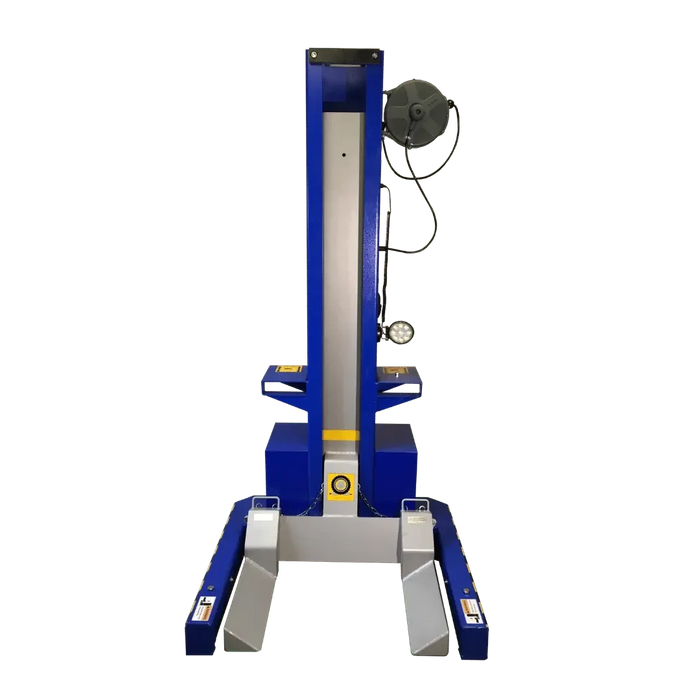

Communication Cable with Retractable Cable Reels
U-Shape Wiring Configuration for quick vehicle entry & exiting
Convenient Operation from any Column
Independent Mechanical Locking System
PLC & Optical Encoder provides continuous synchronization for Columns
Easily positioned with Pallet Jack type device with Poly Caster Wheels

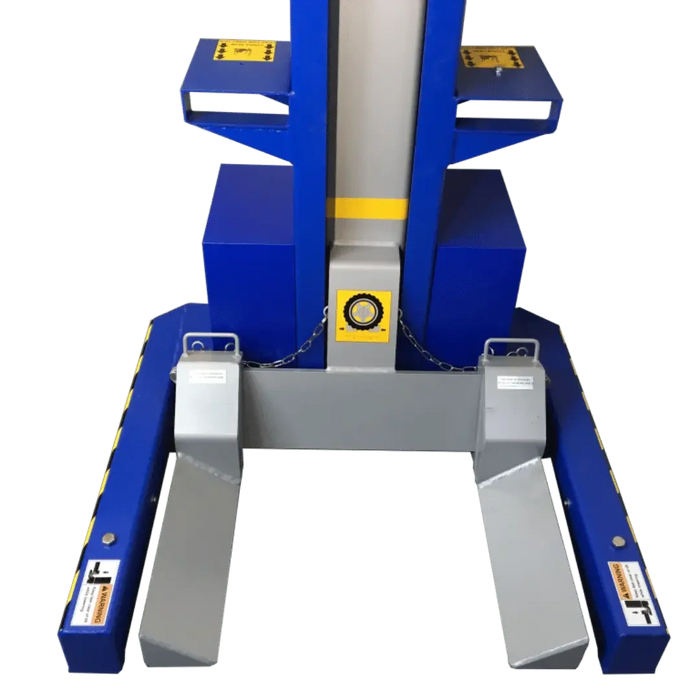

Adjustable Lifting Forks for the widest range of Wheel Diameters
Emergency Switch per each Column, provides the highest safety assurance
Easy to use Master Control Panel for Individual or Paired Synchronized Operation
LCD Screen with Keypad offers 'easy to read' visuals for Settings Lifting Height
Conveniently stored out of the way when not in use to maximize work space
Available in Two, Four or Six Column Configurations

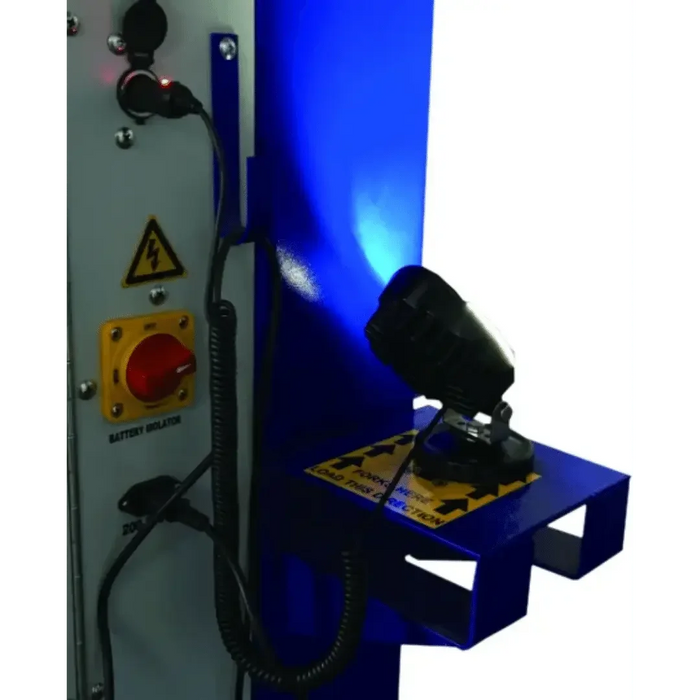

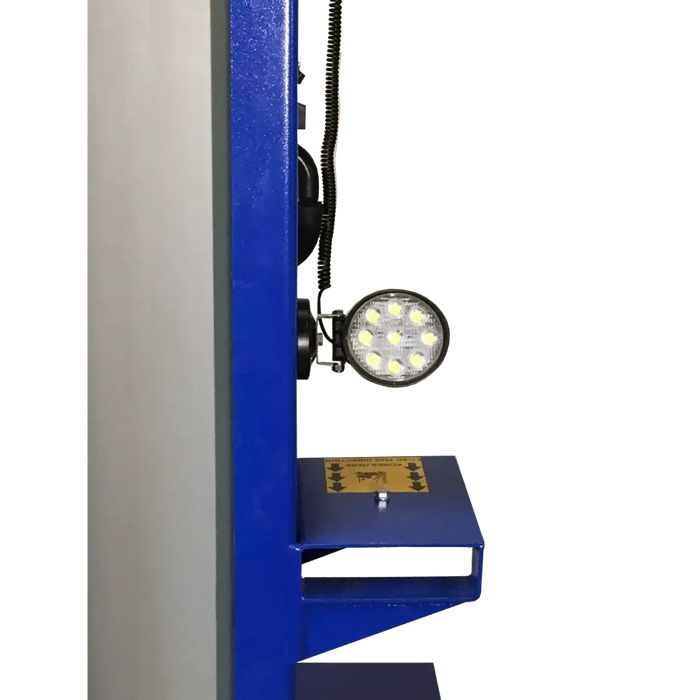

New! LED Light with Magnetic Base!!

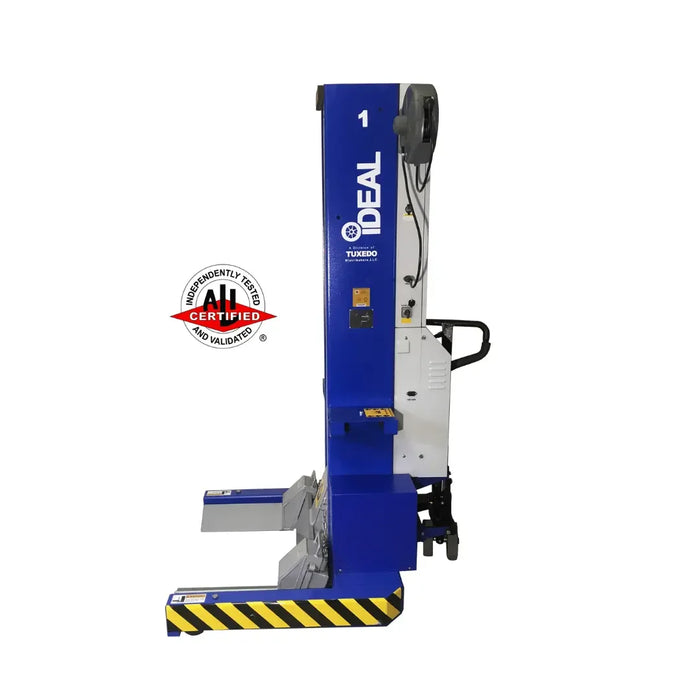

New! Optional MSC ALI Certified Accessories available

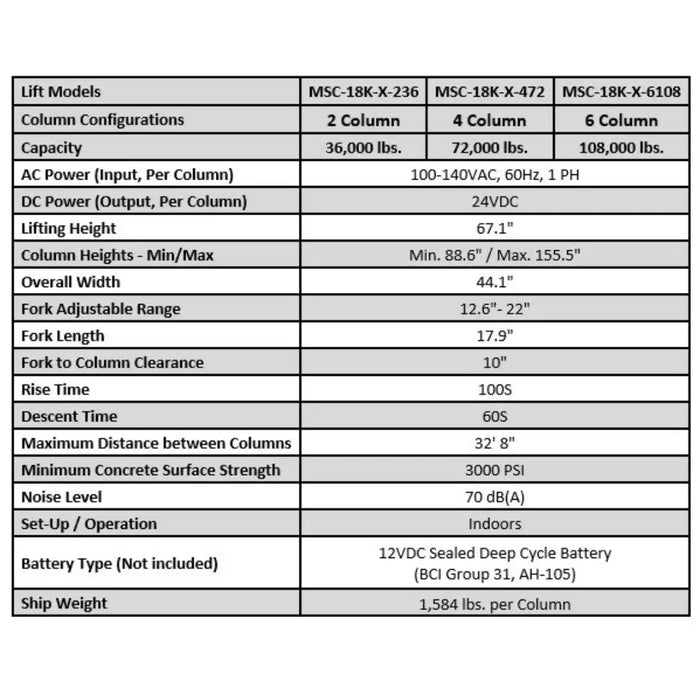

Product Specifications

Lift Model	MSC-18K-X-236
Column Configurations	2 Column
Capacity	36,000 lbs
AC Power (Input, Per Column)	100-140VAC, 60Hz, 1 PH
DC Power (Output, Per Column)	24VDC
Lifting Height	67.1″
Column Heights – Min/Max	Min. 88.6″ / Max 155.5″
Overall Width	44.1″
Fork Adjustable Range	12.6″ – 22″
Fork Length	17.9″
Fork to Column Clearance	10″
Rise Time	100S
Descent Time	60S
Maximum Distance between Columns	32′8″
Minimum Concrete Surface Strength	3000 PSI
Noise Level	70 dB(A)
Set-Up / Operation	Indoors
Battery Type (Not included)	12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)
Ship Weight	1,584 lbs per Column

Pick Up and Delivery

Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.
