Atlas PV10PX 10,000 lb Overhead 2-Post Car Lift

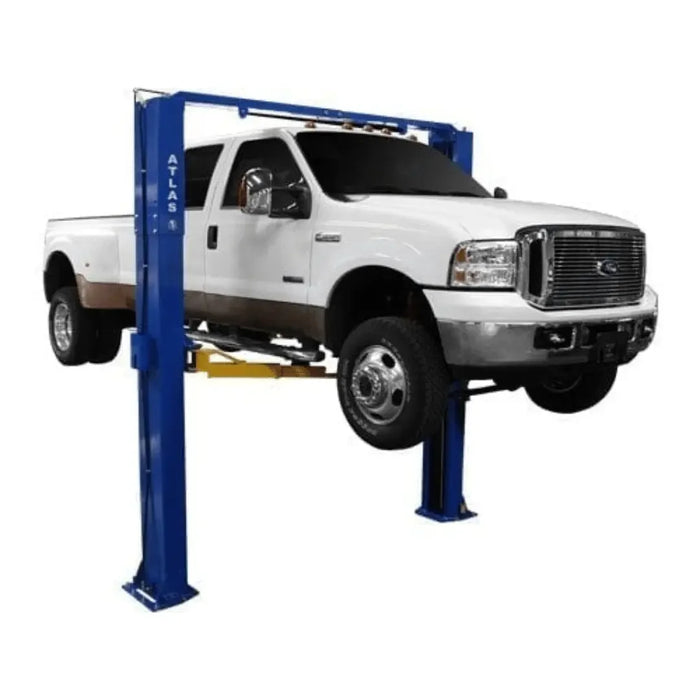

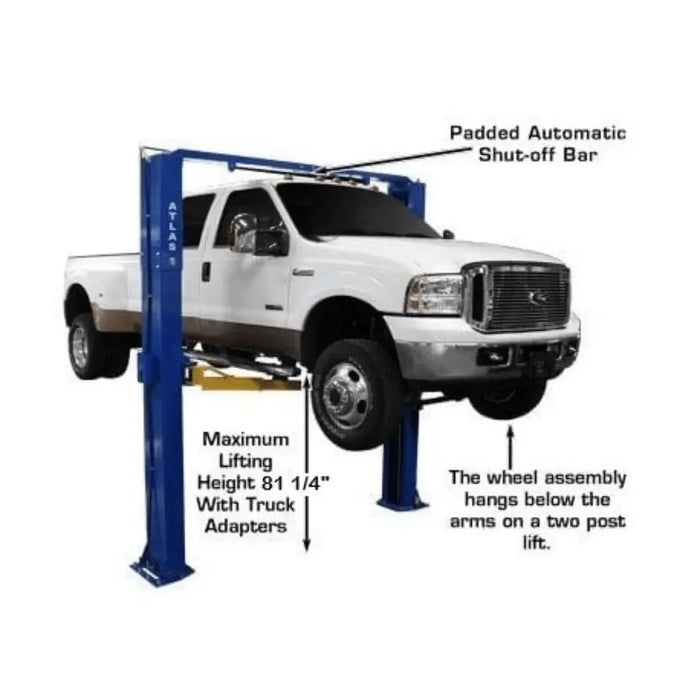

2-Post Lift - The Atlas® PV10PX is a heavy-duty, professional-grade two-post lift designed for both automotive repair shops and serious home garages. With a lifting capacity of 10,000 pounds, it is built to safely handle a wide range of vehicles, from compact cars to one-ton diesel trucks. The lift features a padded shut-off bar that prevents the roof of the vehicle from contacting the overhead crossbar, and the carriages are equipped with rubber protective covers to reduce the risk of door damage when opened near the columns.

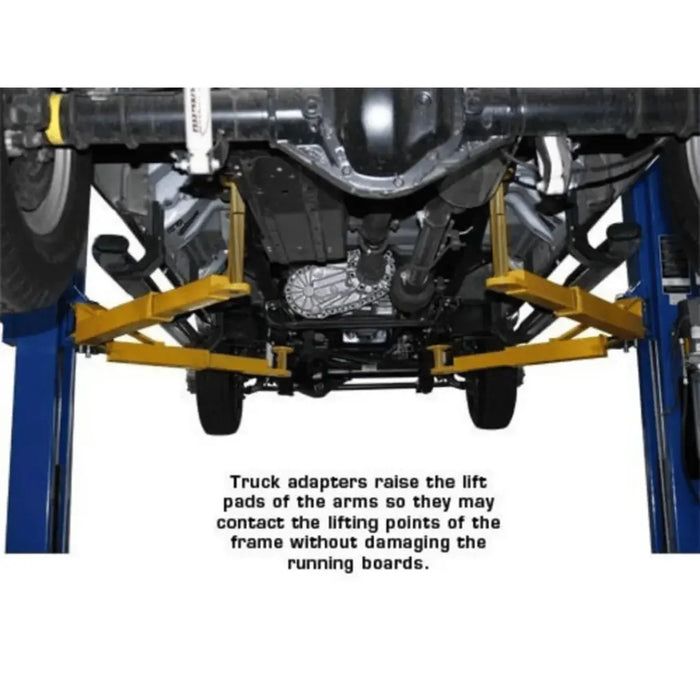

To increase versatility, the PV10PX 2-post car lift includes a twelve-piece deluxe truck adapter set, compared to the standard eight-piece version found on many lifts. Reinforced rubber lift pads provide secure and durable contact with vehicle lifting points, ensuring stability during operation. Engineered for safety and reliability, the PV10PX has been trusted by thousands of users worldwide for more than a decade, making it one of the most popular above-ground lifts in the industry.

Product Features

10,000 lb. capacity
Commercial Grade
Adjustable Height – 11′ 11 1/8″ or 12’3″

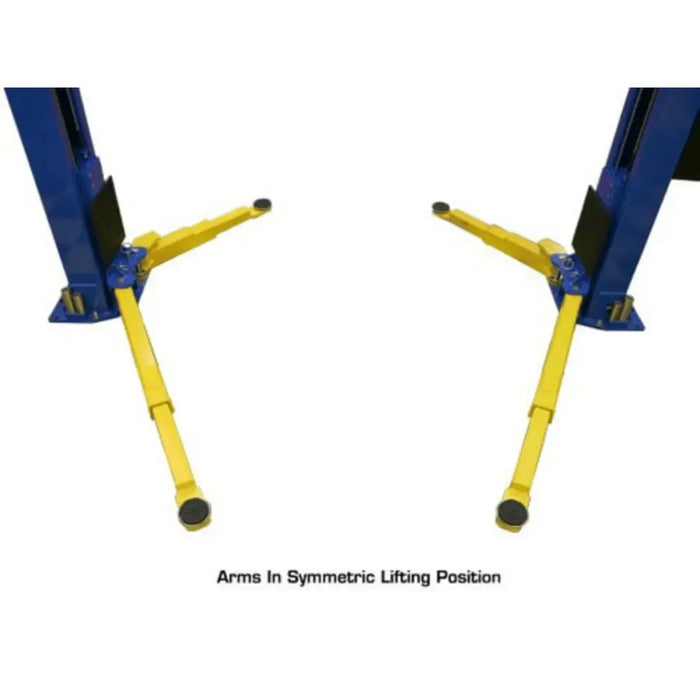

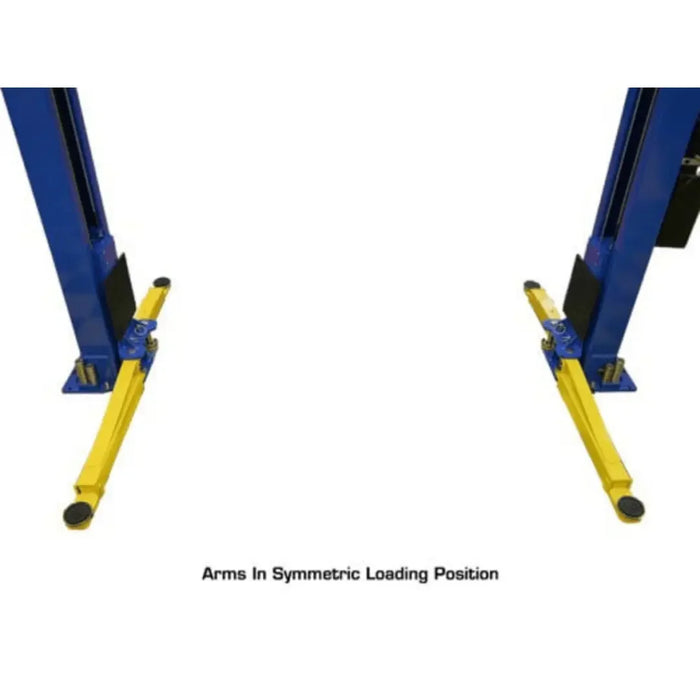

Asymmetric/Symmetric Arms

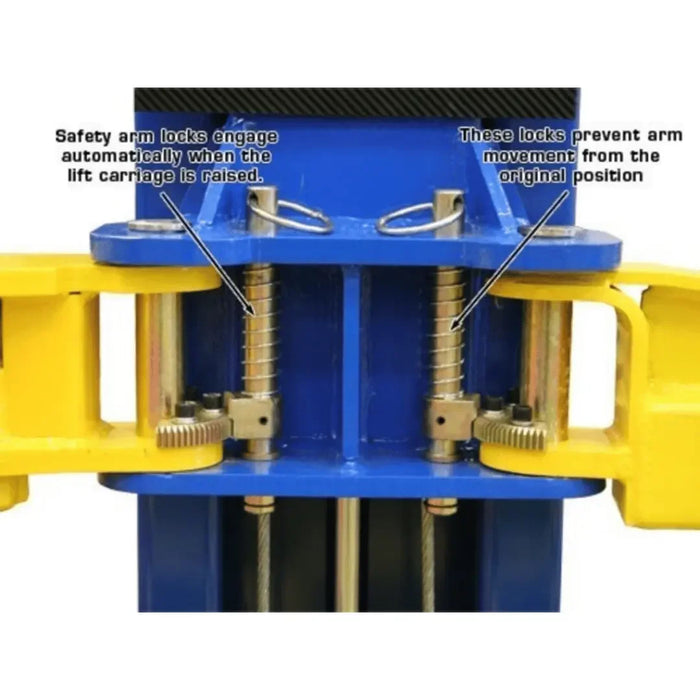

Automatic Arm Restraints

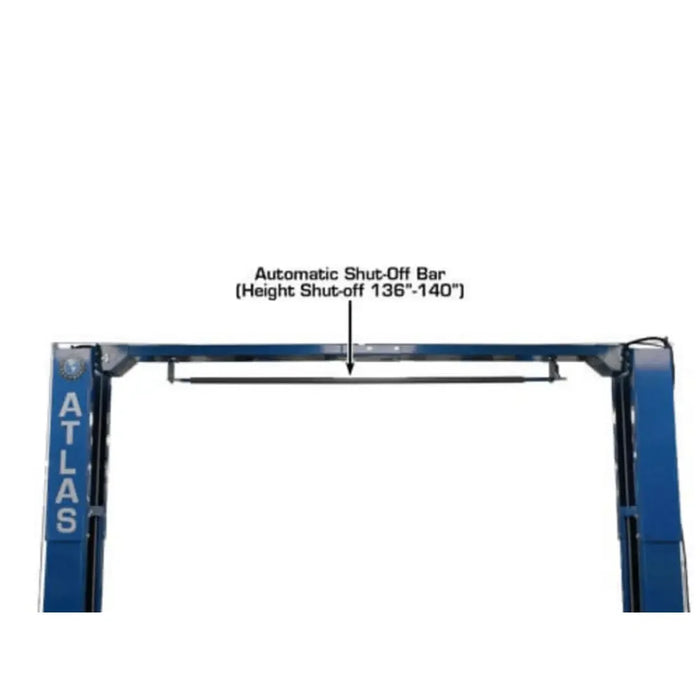

“Padded” Shut-Off Bar
Padded Carriages

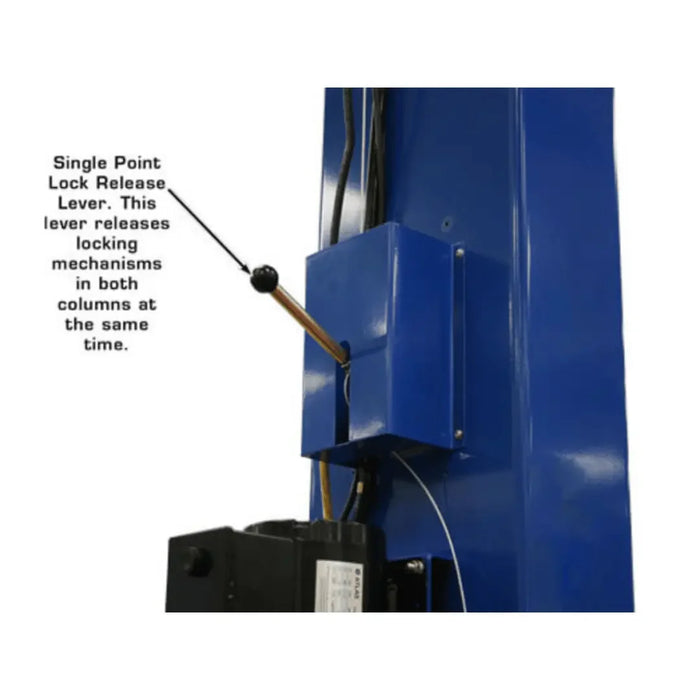

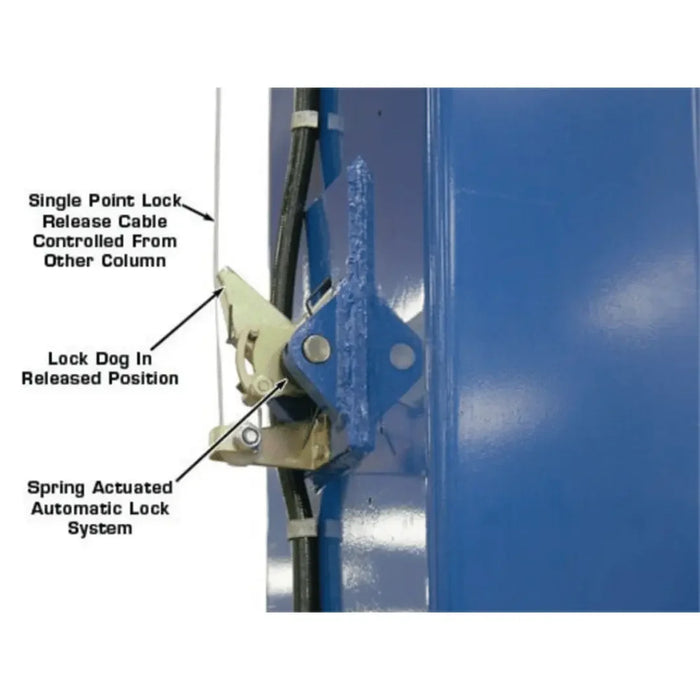

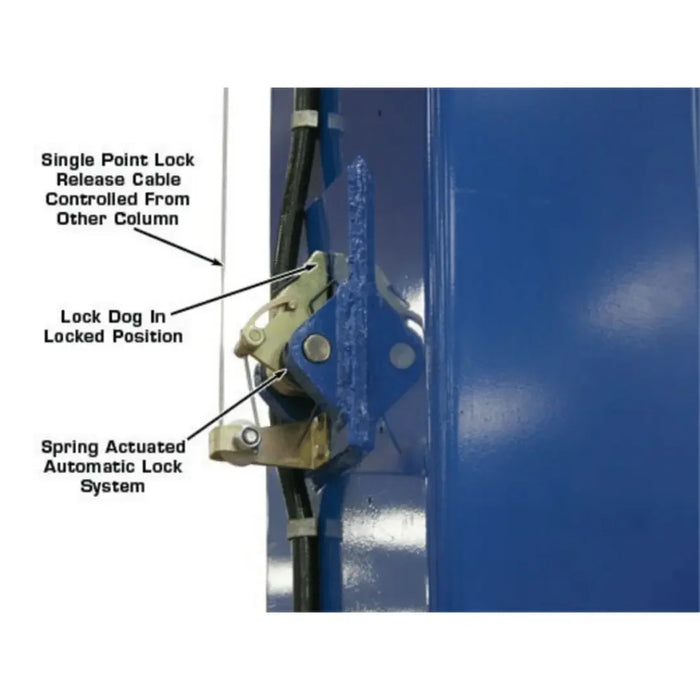

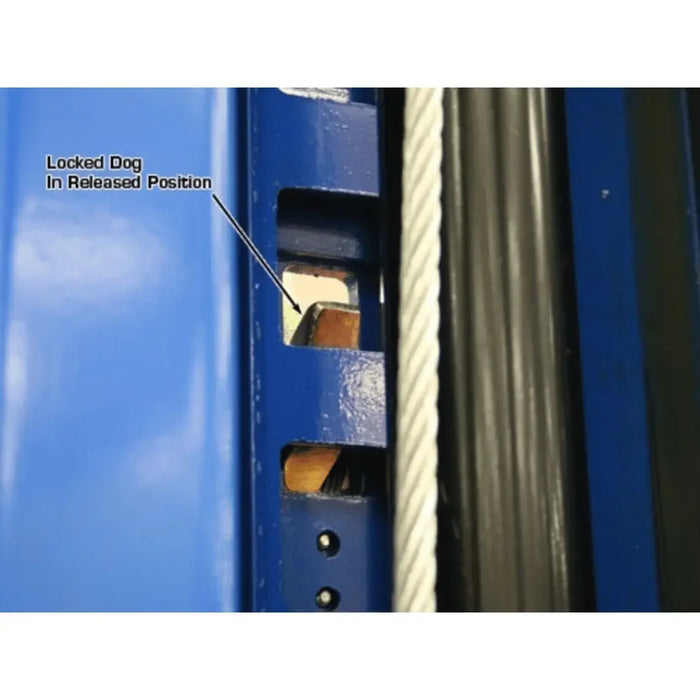

Single Point Lock Release

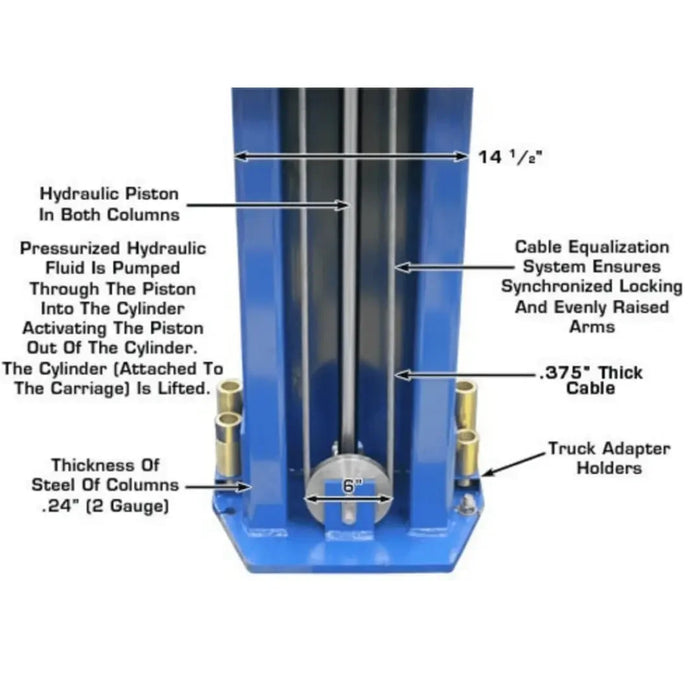

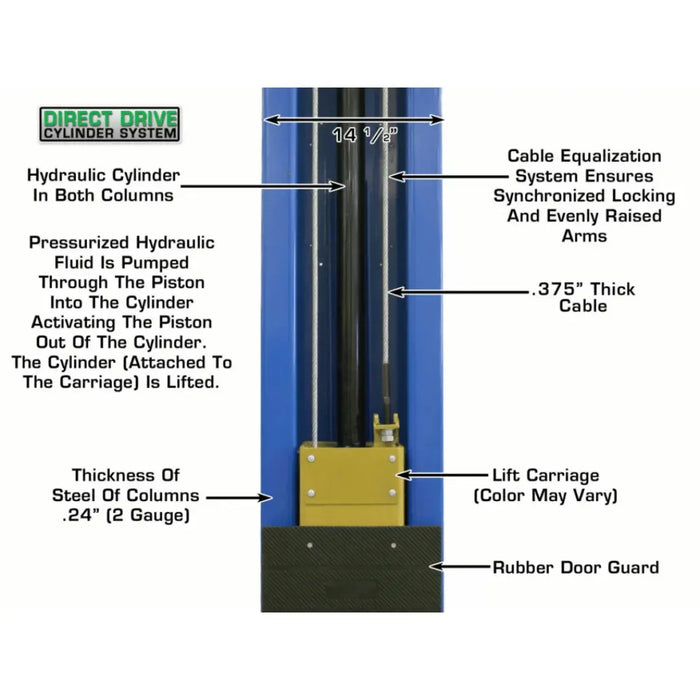

Direct-Drive Cylinders
Powder Coat Finish
Free 12 Piece Truck Adapter Set

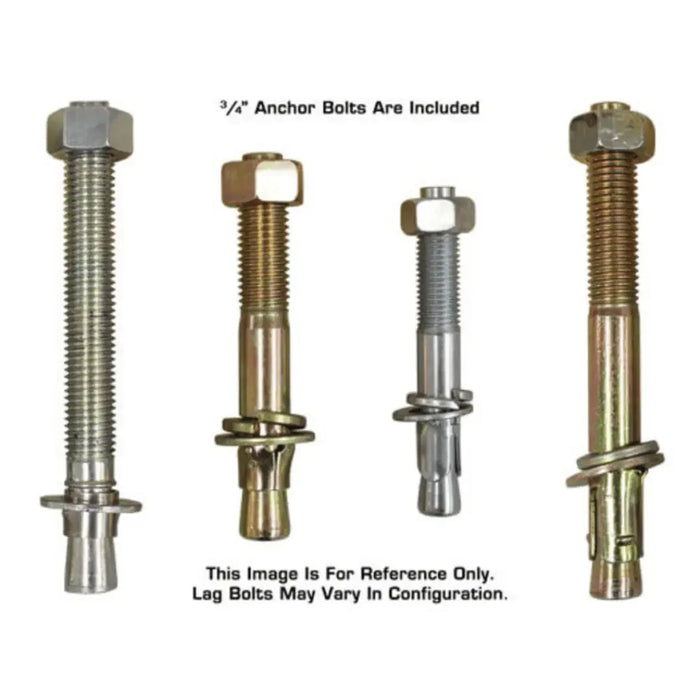

Mounting Hardware Included
Shipping Weight: 1,875 lbs.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Product Specifications

Model	XH-PV10PX
Capacity	10,000 lbs.

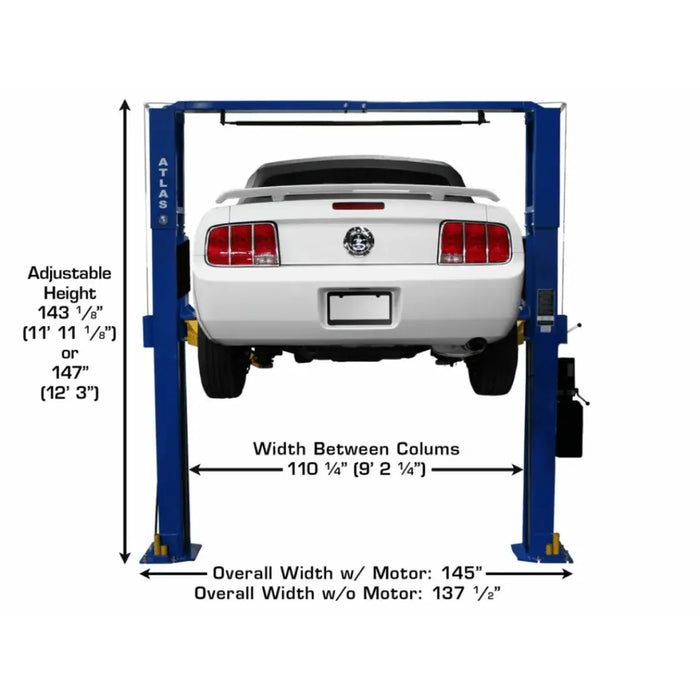

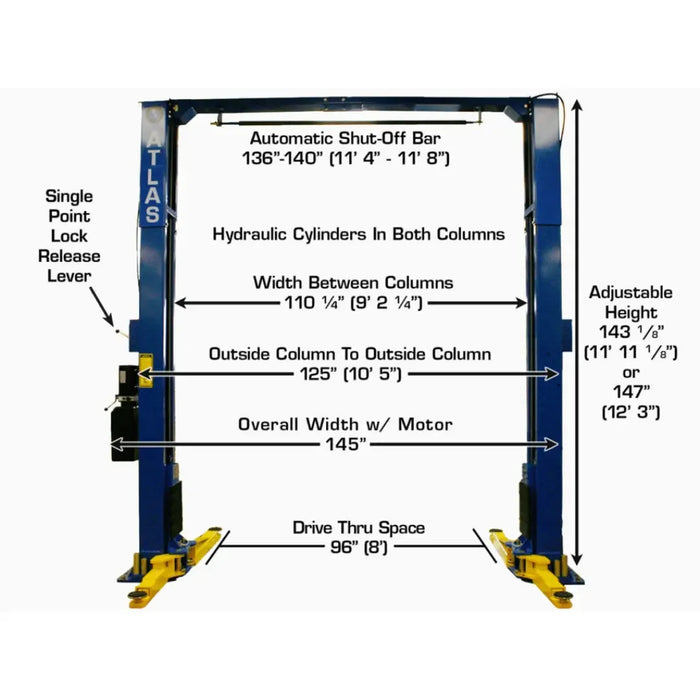

Overall Height	143 1/8" (11’ 11 1/8”) or 147” (12’ 3”)
Overall Width w/Motor	145" (11’ 11”)
Outside Column to Outside Column	125 1/2" (10’ 5 1/2")
Maximum Lift Height (Without Adapters)	72 1/2"

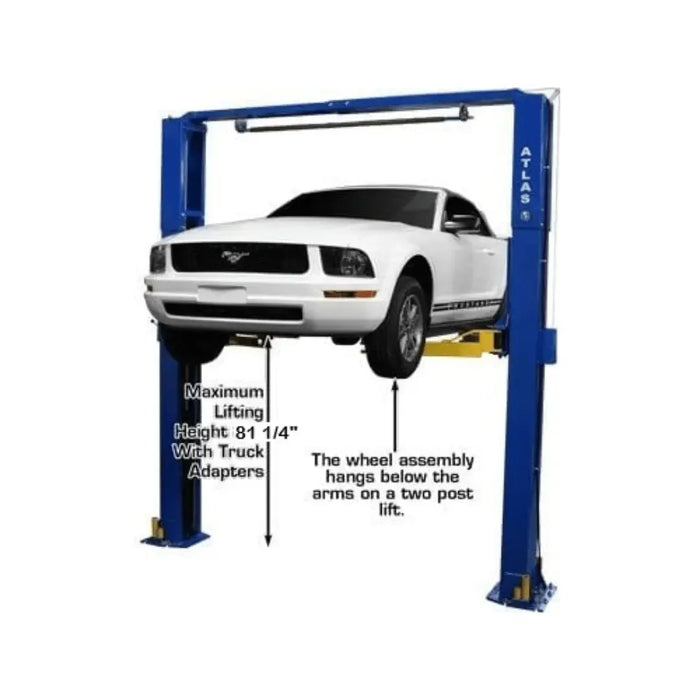

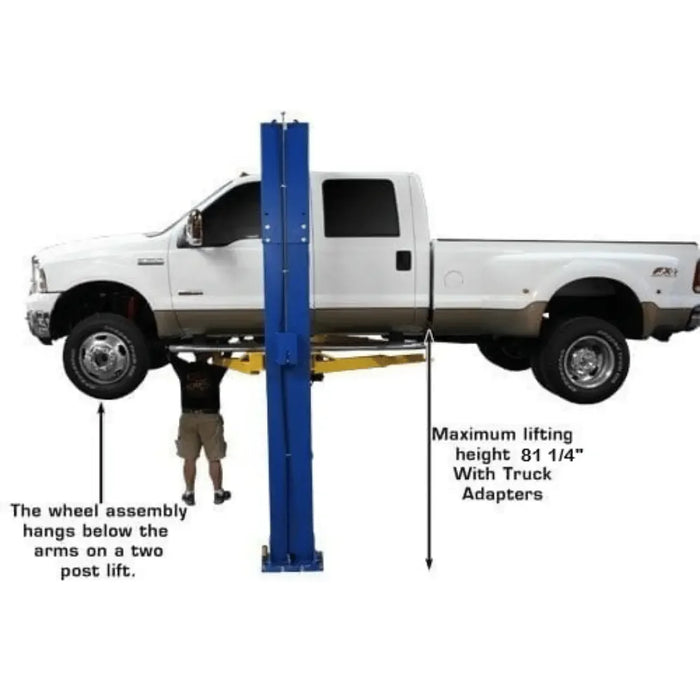

Maximum Lift Height (With Adapters)	81 1/4"
Minimum Arm Height	4 1/2"
Inside Column	110 1/8” (9’ 2 1/8”)
Drive Thru	96 1/4” (8’ 1/4") Symmetric / 90 1/4" (7' 6 1/4") Asymmetric
Column Size	7 1/2" x 14 1/2"
Column Thickness of Steel	6mm

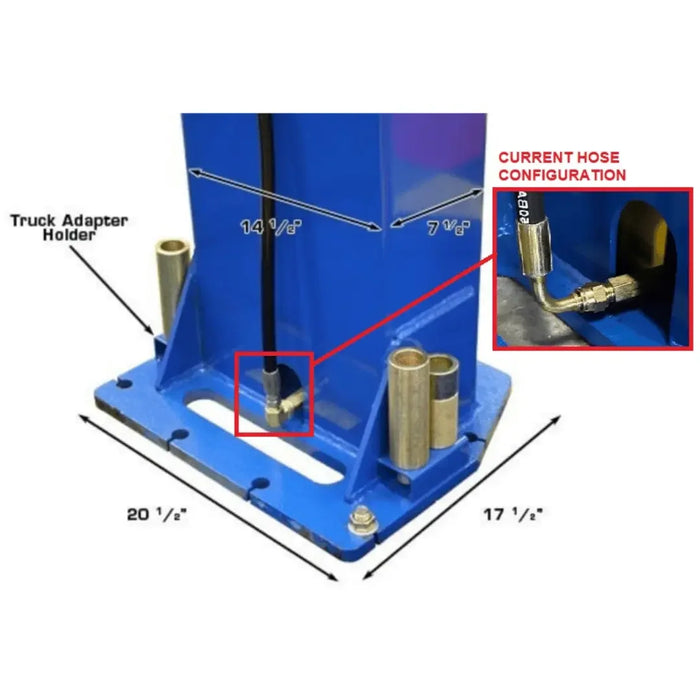

Base Of Lift	17 1/2" x 20 1/2"

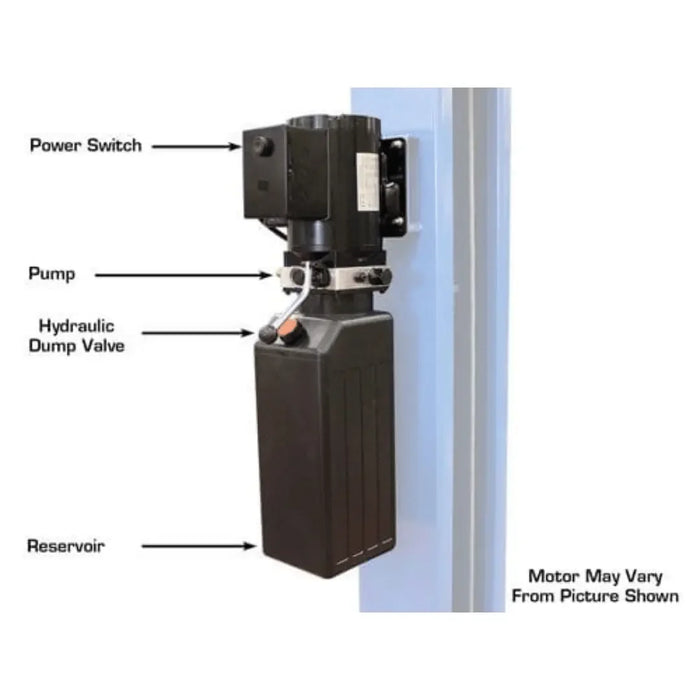

Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3–5 Gallons AW32/AW46 (NOT INCLUDED)

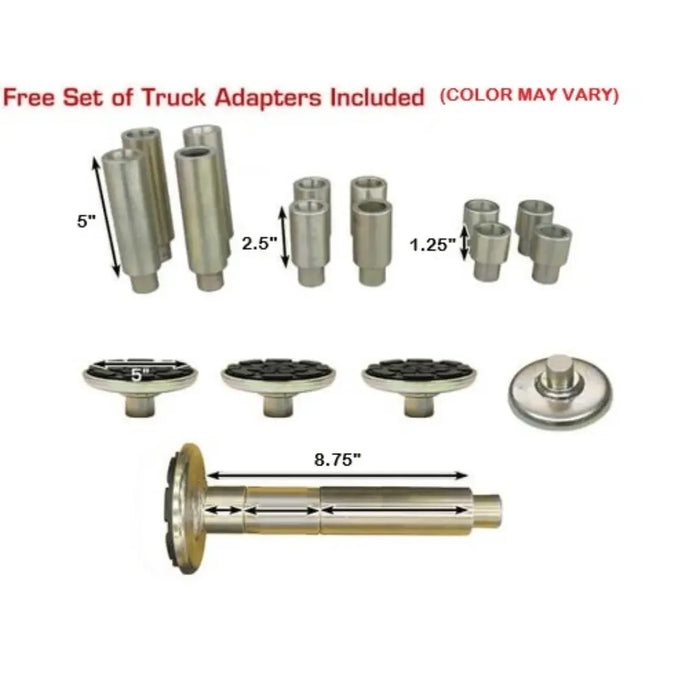

Adapter Heights	4 Each: 1.25”, 2.5”, 5”
Arm Hole/Adapter Peg Size	1.5”
Minimum Concrete Required	4" of concrete with a 3000 psi rating

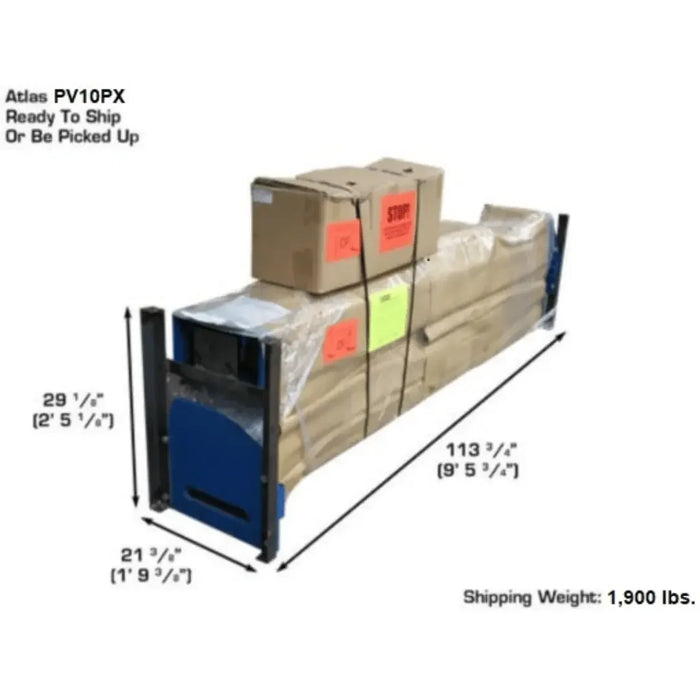

Shipping Weight	1,900 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Atlanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Drive thru between carriage	90"96"
Inside columns	110"
Lifting height top of pad	72"81"
Max rise under arms	72"
Minimum pad height	4.5"
Modal	Atlas PV10PX
Motor	220V
Overall heights	143"147"
Overall weight	1,900 lbs.
Overall width	145"
Upc	810524029469

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
