Quincy 551C80VCB23M 5HP 80gal vertical two-stage electric air compressor

Quincy Air Compressor 80 Gallon

Part #:2020040741
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$6,760.00
$6,760.00 - $6,760.00
$6,760.00
Call/Text Us: 866-774-7743 Call Us

Description

-

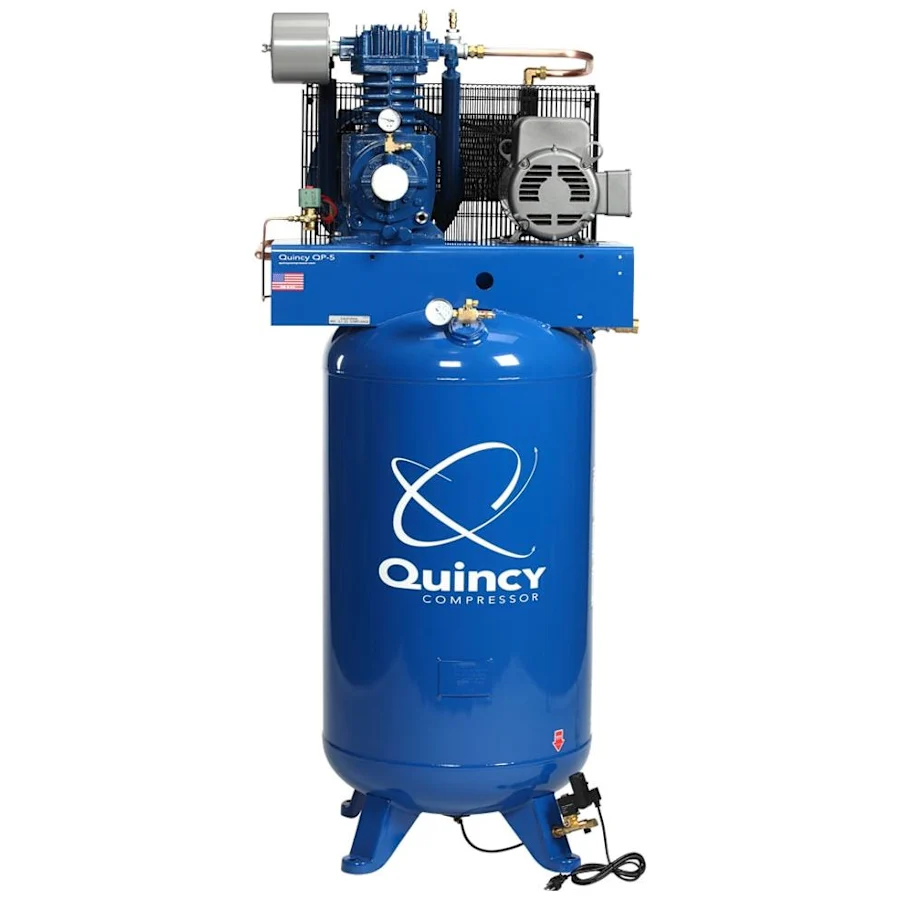

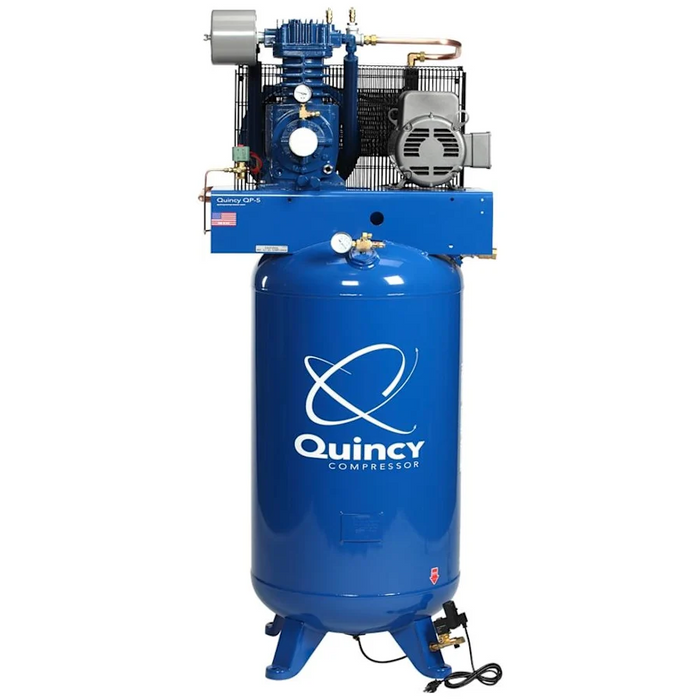

Quincy 551C80VCB23M QP MAX 5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor

The Quincy 551C80VCB23M QP MAX 5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor delivers consistent power and long-lasting operation for demanding shops. With a pump life rated over 60,000 hours and a durable 942 RPM industrial motor, it supports continuous use in heavy-duty environments. Its gerotor positive displacement oil pump ensures vital components like crankshaft and bearings receive constant lubrication, reducing wear and maximizing reliability.

Key features include an electronic automatic tank drain to minimize condensation, a mounted air-cooled aftercooler to enhance pump longevity, and a magnetic starter providing thermal overload protection for the motor. The heavy-duty cast iron 2-stage pump paired with aluminum heads offers strength with optimal heat dissipation. Stainless steel reed valves with bumpers ensure maximum volumetric efficiency, while graphite cylinder and head gaskets maintain tight seals under intense pressure. Its high-efficiency fin and tube intercooler effectively lowers interstage temperatures, supporting consistent performance across applications.

For warranty information please see the below link.

Product Features

  • Fully Pressure Lubricated QP Max Package 2-Stage Compressor
  • Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
  • Spin-On Oil filter
  • Gerator Positive Displacement Oil Pump
  • Stainless Steel Reed Valves With Valve Bumpers
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 230 Volt AC
Phase Single Phase
Magnetic Starter Yes
Amp Draw 28
Recommended Breaker 60 Amp Breaker

Engine

HP 5

Pump

CFM 17.2
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off Yes

Tank

Tank Size 120 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve Yes
Tank Orientation Vertical

Accessories

Air Dryer No

Overview

Weight 680 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 37 Inches
Product Width 24 Inches
Product Height 74 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 37"
Overall weight 680 Lbs
Overall width 24
Phase Single Phase
Pump material Cast Iron w/ Aluminum Head
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 80
Voltage 230V
