Quincy 4153DS12HCA46 15HP 120gal horizontal two-stage electric air compressor

Quincy Air Compressor Pro 15 HP 120 Gallon Two Stage 460V 3 Phase

Part #:2020040888
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$8,614.00
$8,614.00 - $8,614.00
$8,614.00
Call/Text Us: 866-774-7743 Call Us

Description

-

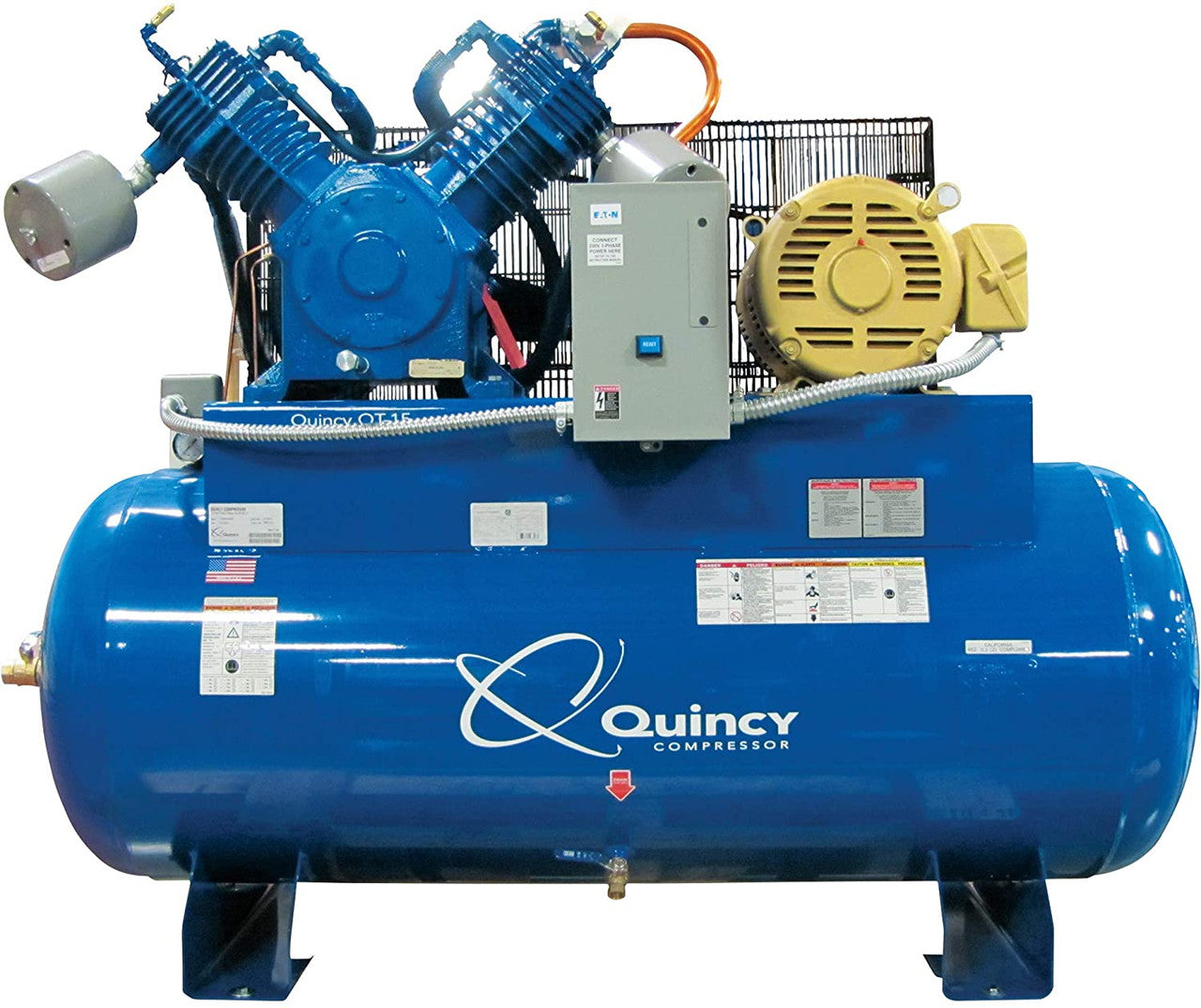

Quincy 4153DS12HCA46 QT Pro 15-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)

The Quincy QT Pro 15-HP two-stage air compressor delivers industrial-grade performance with its durable cast iron 4-cylinder pump, rated for over 50,000 hours of operation. Driven by a powerful 460V Three Phase Baldor electric motor, this unit runs cooler and more efficiently to maximize lifespan and reduce operational costs.

Built to handle demanding tasks, it produces 51 CFM at 175 PSI and features a 1-inch ball valve outlet for high-flow air delivery. The industrial-duty magnetic starter is wired and mounted at the factory for simplified installation, and oil blow-by is minimized to less than 5 PPM to protect your tools and maintain clean air output.

This compressor includes a robust 120-gallon ASME-rated tank, making it ideal for heavy shop use, manufacturing, and high-demand industrial applications.

See warranty information below.

Product Features

  • Industrial Duty Baldor Electric Motor
  • Cast Iron 4 Cylinder Pump
  • Industrial Duty Magnetic Starter
  • Less Than 5 PPM Oil Blow By
  • Strong Enough For Tough Jobs
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 460 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw 21
Recommended Breaker Consult Certified Electrician

Engine

HP 15

Pump

CFM 51
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off No

Tank

Tank Size 120 Gallons
Tank Outlet 1 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Air Dryer No

Overview

Weight 995 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 78 Inches
Product Width 28 Inches
Product Height 55 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 78"
Overall weight 995 Lbs
Overall width 28
Phase Three Phase
Pump material Cast Iron w/ Aluminum Head
Tank orientation Horizontal
Tank outlet 1"
Tank size gallons 120
Voltage 460V
