Quincy 7.5 HP-1 7.5 HP 230V Single Phase, 60 Gallon Air Compressor

Quincy Air Compressor 7.5 HP 60 Gallon Single Stage 230V 1 Phase

Part #:4152051928
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$9,068.00
$9,068.00 - $9,068.00
$9,068.00
Call/Text Us: 866-774-7743 Call Us

Description

-

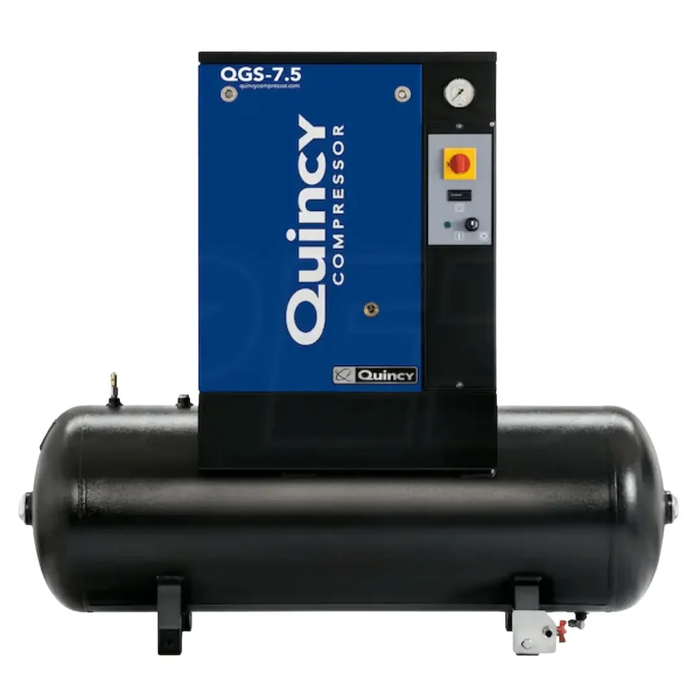

Quincy QGS 7.5 HP-1 7.5 HP 230 Volt Single Phase, 60 Gallon Horizontal Rotary Screw Air Compressor

The Quincy QGS 7.5-HP rotary screw air compressor delivers dependable, quiet compressed air with its oil-injected twin screw pump, engineered for continuous 100% duty cycle operation. Its compact, turnkey design features a small footprint for installation flexibility in tight shop environments.

With a TEFC electric motor operating on Single Phase 230V power, this unit produces 20.4 CFM at 150 PSI, making it ideal for most general shop applications. Premium synthetic lubrication ensures up to 8,000 hours of reliable service with minimal oil carryover to protect your tools and equipment.

The quiet enclosure reduces sound fatigue to 64 dBA while eliminating the vibration typical of piston compressors. Built with a long-life V-belt drive, this compressor minimizes maintenance requirements and maximizes operational reliability. Start/stop operation is controlled via a UL and cUL compliant control panel, supporting a minimum operating temperature of 36°F.

Due to its design, this rotary screw compressor is ideal for automotive shops, manufacturing, and industrial applications requiring dependable, efficient air supply.

See warranty information below.


Product Features

  • Superior Compressed Air Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Compact, Modern Turn-Key Design
  • Small footprint allows for installation flexibility
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 20.4 CFM at 150 PSI
  • 64 dBA for reduced sound fatigue in work area installations
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Start/Stop Operation
  • UL and cUL control panel compliant; 36°F minimum temperature
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 1-phase unit runs on 230V power (IP 55 wash down)
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 230 Volt AC
Phase Single Phase
dBA 64
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 7.5
Engine Low Oil Shut-off Yes

Pump

CFM 20.4
CFM Rated @ 150 PSI
Max PSI 150 PSI
Oil Sight Glass Yes
Pump Type Rotary
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Pump Low Oil Shut-off Yes
Duty Cycle 100%

Tank

Tank Size 60 Gallons
Tank Included Yes
Tank Outlet 1/2 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 465 Pounds
Certification ASME
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 56 Inches
Product Width 23 Inches
Product Height 51 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 56"
Overall weight 465 Lbs
Overall width 23
Phase Single Phase
Tank orientation Horizontal
Tank outlet 1/2"
Tank size gallons 60
Voltage 230V
