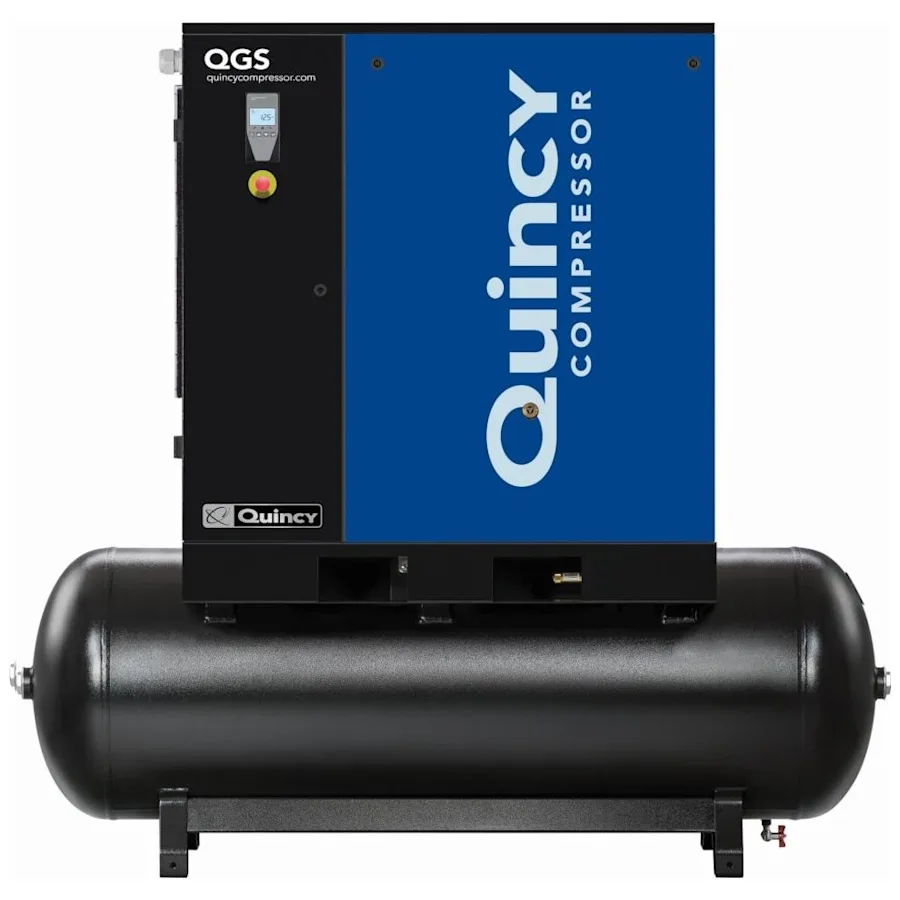

Quincy 4152026525 20HP 132gal horizontal single-stage electric air compressor

Quincy Air Compressor 4152026525 QGS 20 HP 132 Gallon Rotary Screw 208-230/460V 3 Phase

Part #:4152026525
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$20,739.00
$20,739.00 - $20,739.00
$20,739.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Quincy 4152026525 QGS 20-HP 132-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase)

Quincy’s QGS rotary screw compressor delivers highly efficient, continuous-duty compressed air with an oil-injected twin screw pump rated for 8,000 hours using premium synthetic lubrication, minimizing oil carryover to protect your components.

Equipped with the Infologic2 Basic Microprocessor Controller, this unit allows networking of up to six QGS 20 to 30 HP compressors, featuring programmable auto-restart, remote start/stop, and a user-friendly display panel that shows pressure, temperature, dew point, and motor limits.

Quiet operation is ensured by a full sound enclosure and rotary screw technology that significantly reduces vibration. The TEFC electric motor with IP 55 wash down protection guards against dirt, moisture, and weather, while the wye-delta reduced voltage start supports demanding industrial applications.

An integrated refrigerant air dryer reduces corrosion and supplies clean, dry air to your system. Maintenance is simplified with fast, out-of-the-box installation, hinged doors, detachable panels, constant fluid monitoring, and a spin-on fluid filter.

This unit requires a shipping dock or forklift for delivery as it is too large for liftgate service.

See warranty information below.

Product Features

  • Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
  • Infologic2 Basic Controller
  • Convenient Display Panel
  • TEFC Electric Motor (IP 55 Wash Down)
  • Integrated Refrigerant Air Dryer
  • Quiet Operation
  • Increased Maintenance Simplicity
  • Extended 3 Year Factory Warranty Available
  • True Blue 5-Year Warranty with Quincy Authorized Start Up

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230/460 Volt AC
Phase Three Phase
dBA 67
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 20
Engine Low Oil Shut-off Yes

Pump

CFM 82.2
CFM Rated @ 125 PSI
Max PSI 125 PSI
Oil Sight Glass Yes
Pump Type Rotary
After Cooler Yes
Pump Drive Gear Drive
Oil Type Oil Lubricated
Pump Low Oil Shut-off Yes
Duty Cycle 100%

Tank

Tank Size 132 Gallons
Tank Included Yes
Tank Outlet 1 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Pressure Gauge Yes
Air Dryer No
Air Filter Yes

Overview

Weight 1,184 Pounds
Certification ASME
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 74 Inches
Product Width 30.7 Inches
Product Height 72.2 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 74"
Overall weight 1,184 Lbs
Overall width 30.7
Phase Three Phase
Tank orientation Horizontal
Tank outlet 1"
Tank size gallons 132
Voltage 208-230/460V
