Quincy 4152022000 20HP 132gal horizontal single-stage electric air compressor

Quincy Air Compressor 132 Gallon Rotary Screw with Dryer

Part #:4152022000
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$19,315.00
$19,315.00 - $19,315.00
$19,315.00
Call/Text Us: 866-774-7743 Call Us

Description

-

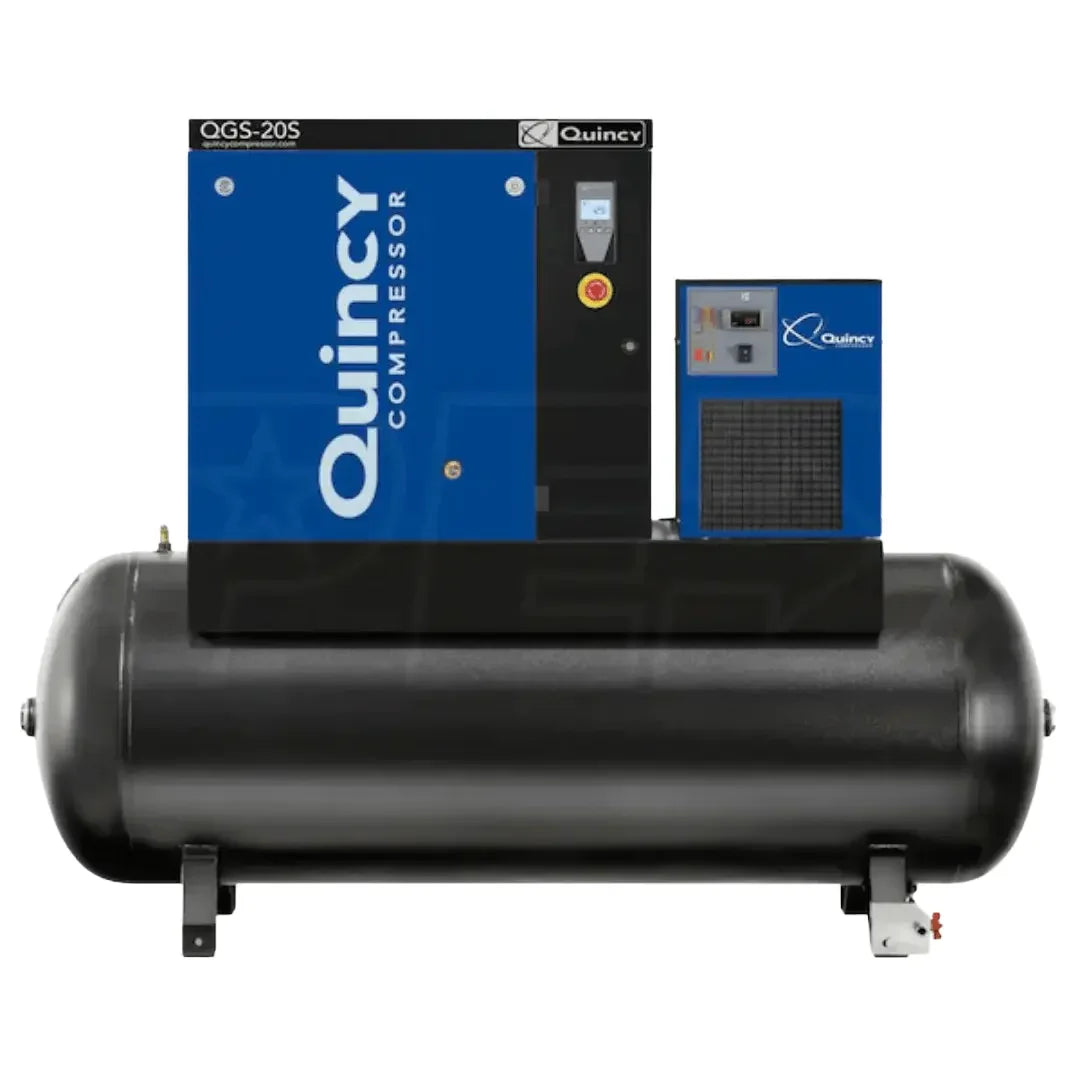

Quincy 4152022000 QGS 20S-HP 132-Gallon Rotary Screw Value Package Air Compressor w/ Dryer (208-230/460V 3-Phase)

Engineered for reliable, continuous-duty operation, this Quincy QGS rotary screw compressor delivers 60.9 CFM at 71 dBA with oil-injected twin screw technology for quiet, efficient power. The integrated refrigerated air dryer removes moisture, dirt, and oil, ensuring clean, dry air output.

Features include the Infologic2 Basic Microprocessor Controller for programmable auto-restart and remote start/stop, a convenient display panel, TEFC motor with wye-delta reduced voltage start, and easy maintenance with hinged doors, detachable panels, and spin-on fluid filters.

This unit requires a shipping dock or forklift for delivery; it is too large for liftgate service.

See warranty information below.

Product Features

  • Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
  • Value Package QGS-20S Series Features
  • Infologic2 Basic Controller
  • Convenient Display Panel
  • TEFC Electric Motor (IP 55 Wash Down)
  • Integrated Refrigerant Air Dryer
  • Quiet Operation
  • Increased Maintenance Simplicity
  • Extended 3 Year Factory Warranty Available
  • True Blue 5-Year Warranty with Quincy Authorized Start Up

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230/460 Volt AC
Phase Three Phase
dBA 71
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 20
Engine Low Oil Shut-off Yes

Pump

CFM 60.8
CFM Rated @ 125 PSI
Max PSI 125 PSI
Oil Sight Glass Yes
Pump Type Rotary
After Cooler Yes
Pump Drive Gear Drive
Oil Type Oil Lubricated
Pump Low Oil Shut-off Yes
Duty Cycle 100%

Tank

Tank Size 132 Gallons
Tank Included Yes
Tank Outlet 1 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Pressure Gauge Yes
Air Dryer Yes
Air Filter Yes

Overview

Weight 1,296 Pounds
Certification ASME
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 74 Inches
Product Width 30.7 Inches
Product Height 72.2 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer Yes
Electronic drain valve No
Magnetic starter Yes
Overall length 74"
Overall weight 1,296 Lbs
Overall width 30.7
Phase Three Phase
Tank orientation Horizontal
Tank outlet 1"
Tank size gallons 132
Voltage 208-230/460V
