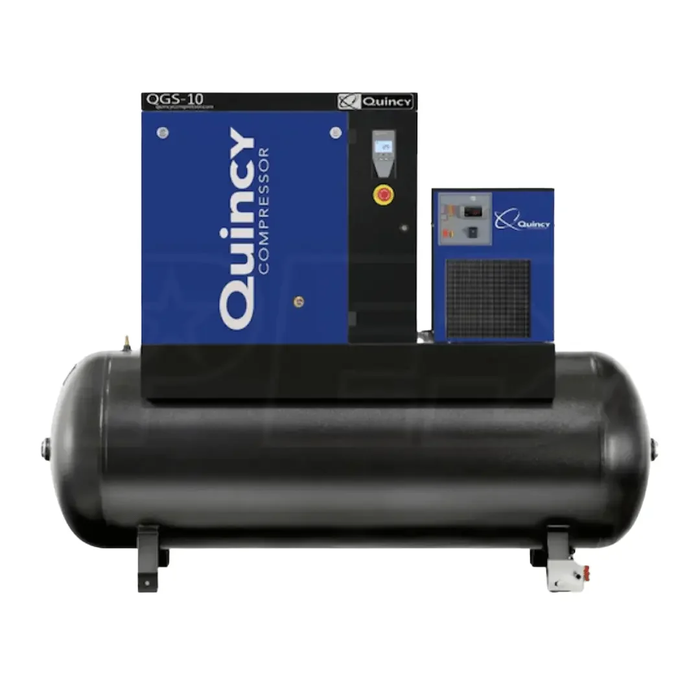

Quincy 4152021980 10HP 120gal horizontal single-stage electric air compressor

Quincy Air Compressor 10 HP 120 Gallon Rotary Screw with Dryer

Part #:4152021980
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$14,485.00
$14,485.00 - $14,485.00
$14,485.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Quincy 4152021980 QGS 10-HP 120-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)

The Quincy QGS 10-HP rotary screw air compressor with integrated refrigerated dryer delivers clean, dry air for your shop or industrial setup. Featuring an oil-injected twin screw pump, it ensures reliable, quiet performance around the clock with its 100% duty cycle design.

This compact system outputs 38.8 CFM at 125 PSI while maintaining a small footprint, saving valuable workspace. Its integrated dryer condenses and removes moisture, oil, and debris, protecting downstream tools and machinery from corrosion and wear.

The Auto-Dual control system allows programmable timed shutdowns to reduce energy use during downtime, while the TEFC motor operates on 208, 230, or 460V 3-phase power (installation by a licensed electrician required). Premium synthetic lubrication rated for 8,000 hours reduces oil carryover and extends service life.

Designed with a durable long-life V-belt drive and enclosed in a noise-reducing cabinet, this unit keeps your facility quieter and your compressed air system efficient.

For warranty information please see the below link.



Product Features

  • Superior Compressed Air Turn-Key Performance
  • Integrated Refrigerated Air Dryer
  • Continuous 100% Duty Cycle
  • Standard Quiet Enclosure
  • Premium Synthetic Lubrication
  • Auto-Dual Operation
  • Long Life V-Belt Drive
  • TEFC Electric Motor
  • Extended 3 Year Factory Warranty Available
  • True Blue 5-Year Warranty with Quincy Authorized Start Up

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230/460 Volt AC
Phase Three Phase
dBA 65
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 10
Engine Low Oil Shut-off Yes

Pump

CFM 38.8
CFM Rated @ 125 PSI
Max PSI 125 PSI
Oil Sight Glass Yes
Pump Type Rotary
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Pump Low Oil Shut-off Yes
Duty Cycle 100%

Tank

Tank Size 120 Gallons
Tank Included Yes
Tank Outlet 1/2 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Air Dryer Yes
Air Filter Yes

Overview

Weight 850 Pounds
Certification ASME
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 76 Inches
Product Width 25 Inches
Product Height 58 Inches
Power Type Electric

Specifications

-
Air dryer Yes
Electronic drain valve No
Magnetic starter Yes
Overall length 76"
Overall weight 850 Lbs
Overall width 25
Phase Three Phase
Tank orientation Horizontal
Tank outlet 1/2"
Tank size gallons 120
Voltage 208-230/460V
