Quincy 4152051914 5HP 60gal horizontal single-stage electric air compressor

Quincy Air Compressor 60 Gallon Rotary Screw with Dryer 3 Phase

Part #:4152051914
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$10,763.00
$10,763.00 - $10,763.00
$10,763.00
Call/Text Us: 866-774-7743 Call Us

Description

-

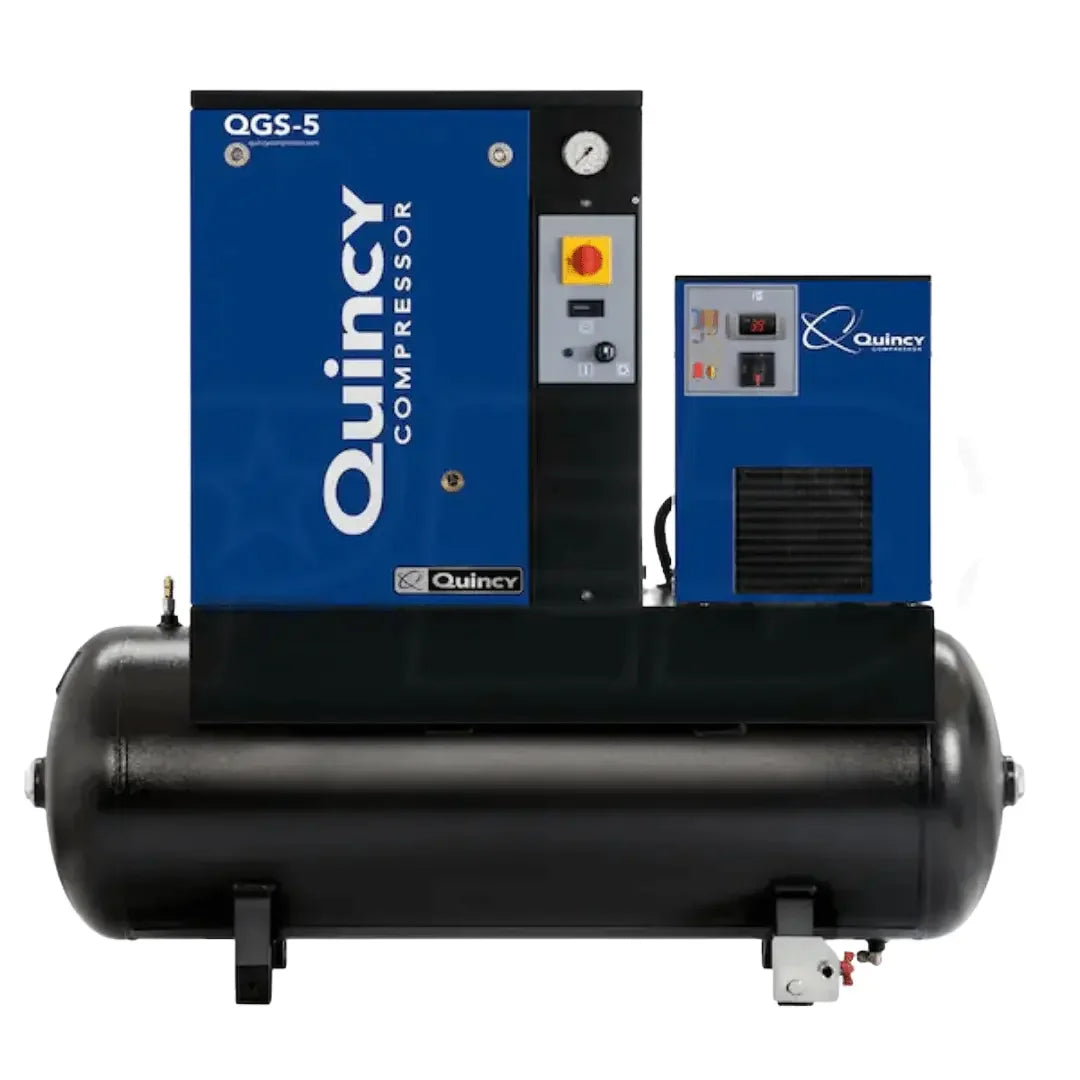

Quincy 4152051914 QGS 5-HP 60-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)

The Quincy QGS 5-HP rotary screw air compressor with integrated dryer delivers quiet, efficient, and reliable compressed air for demanding operations. Its oil-injected twin screw pump ensures consistent performance with minimal vibration compared to traditional piston compressors. Designed for continuous 100% duty cycle operation, this unit keeps your applications running smoothly around the clock.

Equipped with an integrated refrigerated air dryer, it effectively removes moisture, dirt, and oil from the air, protecting downstream tools and systems. Premium synthetic lubrication provides up to 8,000 hours of runtime with low oil carryover, while the start/stop control system and TEFC electric motor offer dependable functionality in varied work environments. The quiet enclosure maintains noise levels at only 62 dBA, reducing fatigue and enhancing workplace comfort.

For warranty information please see the below link.

Product Features

  • Superior Compressed Air Turn-Key Performance
  • ntegrated Refrigerated Air Dryer
  • Continuous 100% Duty Cycle
  • Standard Quiet Enclosure
  • Premium Synthetic Lubrication
  • Start/Stop Operation
  • Long Life V-Belt Drive
  • TEFC Electric Motor
  • Extended 3 Year Factory Warranty Available
  • True Blue 5-Year Warranty with Quincy Authorized Start Up

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230/460 Volt AC
Phase Three Phase
dBA 62
Amp Draw 28
Recommended Breaker 60 Amp Breaker

Engine

HP 5
Engine Low Oil Shut-off Yes

Pump

CFM 15.6
CFM Rated @ 150 PSI
Max PSI 150 PSI
Oil Sight Glass Yes
Pump Type Rotary
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Pump Low Oil Shut-off Yes
Duty Cycle 100%

Tank

Tank Size 60 Gallons
Tank Included Yes
Tank Outlet 1/2 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Air Dryer Yes
Air Filter Yes

Overview

Weight 543 Pounds
Certification ASME
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 56 Inches
Product Width 23 Inches
Product Height 51 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer Yes
Electronic drain valve No
Magnetic starter Yes
Overall length 56"
Overall weight 543 Lbs
Overall width 23
Phase Three Phase
Tank orientation Horizontal
Tank outlet 1/2"
Tank size gallons 60
Voltage 208-230/460V

Warranty

-
Warranty Details
