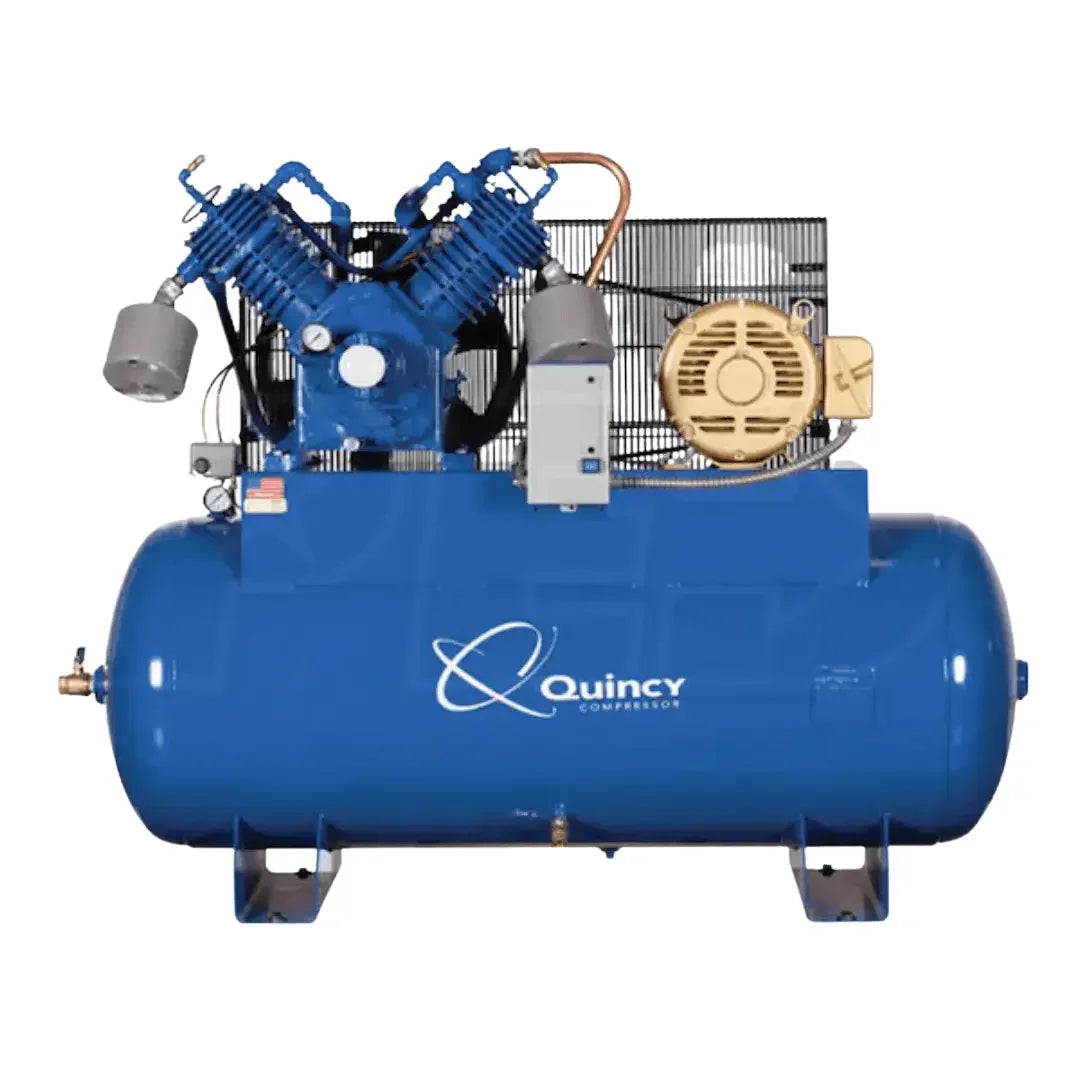

Quincy 5153DS12HCA23 10HP 120gal horizontal two-stage electric air compressor

Quincy Air Compressor 5153DS12HCA23 QP Pro 15 HP

Part #:2020040911
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$9,947.00
$9,947.00 - $9,947.00
$9,947.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Quincy 5153DS12HCA23 QP Pro 15-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 3-Phase)

The Fully Pressure Lubricated 2-Stage Compressor is engineered to deliver consistent performance for demanding industrial environments. Its gerotor positive displacement oil pump ensures full lubrication to critical areas like the crankshaft and bearings, reducing wear and extending the lifespan by up to 15% compared to splash-lubricated models. The addition of a spin-on oil filter enhances reliability by keeping oil clean for optimal pump health.

This compressor integrates stainless steel reed valves with bumpers for dependable airflow and volumetric strength, while graphite cylinder and head gaskets maintain a secure seal under high-pressure operation. The electronically balanced cast iron flywheel improves cooling to cylinders and intercoolers, ensuring smoother operation. With durable cast iron cylinders and a high-efficiency fin and tube intercooler, it effectively reduces interstage temperatures for enhanced performance and longevity.

For warranty information please see the below link.

Product Features

  • Fully Pressure Lubricated 2-Stage Compressor
  • Gerotor Positive Displacement Oil Pump
  • Spin-On Oil filter
  • Stainless Steel Reed Valves With Valve Bumpers
  • Graphite Cylinder & Head Gaskets
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • One Year Factory Warranty

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 230 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw 42
Recommended Breaker Consult Certified Electrician

Engine

HP 10

Pump

CFM 35
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Full Pressure Lubrication
Pump Low Oil Shut-off No

Tank

Tank Size 120 Gallons
Tank Outlet 1 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Air Dryer No

Overview

Weight 995 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 78 Inches
Product Width 28 Inches
Product Height 55 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 78"
Overall weight 995 Lbs
Overall width 28
Phase Three Phase
Pump material Cast Iron w/ Aluminum Head
Tank orientation Horizontal
Tank outlet 1"
Tank size gallons 120
Voltage 230V

Warranty

-
Warranty Details
