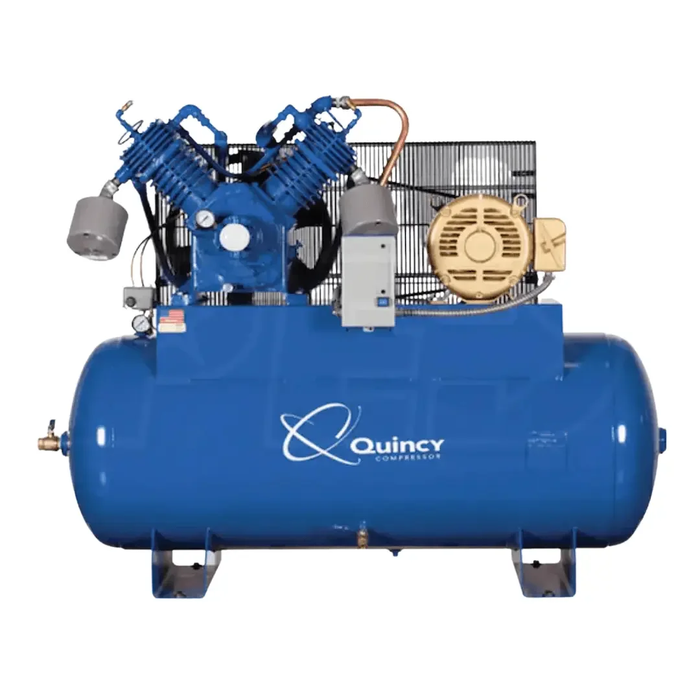

Quincy 5153D12HCB46M 15HP 120gal horizontal two-stage electric air compressor

Quincy Air Compressor 120 Gallon 460V 3 Phase

Part #:2020040920
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$11,695.00
$11,695.00 - $11,695.00
$11,695.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Quincy 5153D12HCB46M QP MAX 15-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (460V 3-Phase)

The Quincy 3153D12HCB46M QP MAX is a high-performance air compressor designed for demanding industrial applications. It features a robust 15 horsepower motor operating on 460V Three Phase power, delivering reliable and consistent compressed air for various tasks.

Equipped with a pressure-lubricated two-stage pump, this compressor ensures optimal performance and longevity. The cast iron construction of the pump and cylinders provides durability, while the aluminum heads aid in efficient heat dissipation. The unit's 120-gallon horizontal tank offers ample storage capacity, reducing the frequency of motor cycling and maintaining steady air pressure.

Additional features include a mounted air-cooled aftercooler to extend pump life, a magnetic starter with thermal overload protection for the motor, and a spin-on oil filter for easy maintenance. The electronic automatic tank drain minimizes condensation buildup, contributing to the overall efficiency and reliability of the system.

This compressor is suitable for heavy-duty applications in automotive shops, manufacturing facilities, and other industrial environments where a dependable air supply is essential.

Product Features

  • Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor
  • Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
  • Spin-On Oil filter
  • Gerator Positive Displacement Oil Pump
  • Stainless Steel Reed Valves With Valve Bumpers
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 460 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw 21
Recommended Breaker Consult Certified Electrician

Engine

HP 15

Pump

CFM 51
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off Yes

Tank

Tank Size 120 Gallons
Tank Outlet 1 Inch
Electronic Drain Valve Yes
Tank Orientation Horizontal

Accessories

Air Dryer No

Overview

Weight 995 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 78 Inches
Product Width 28 Inches
Product Height 55 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 78"
Overall weight 995 Lbs
Overall width 28
Phase Three Phase
Pump material Cast Iron w/ Aluminum Head
Tank orientation Horizontal
Tank outlet 1"
Tank size gallons 120
Voltage 460V
