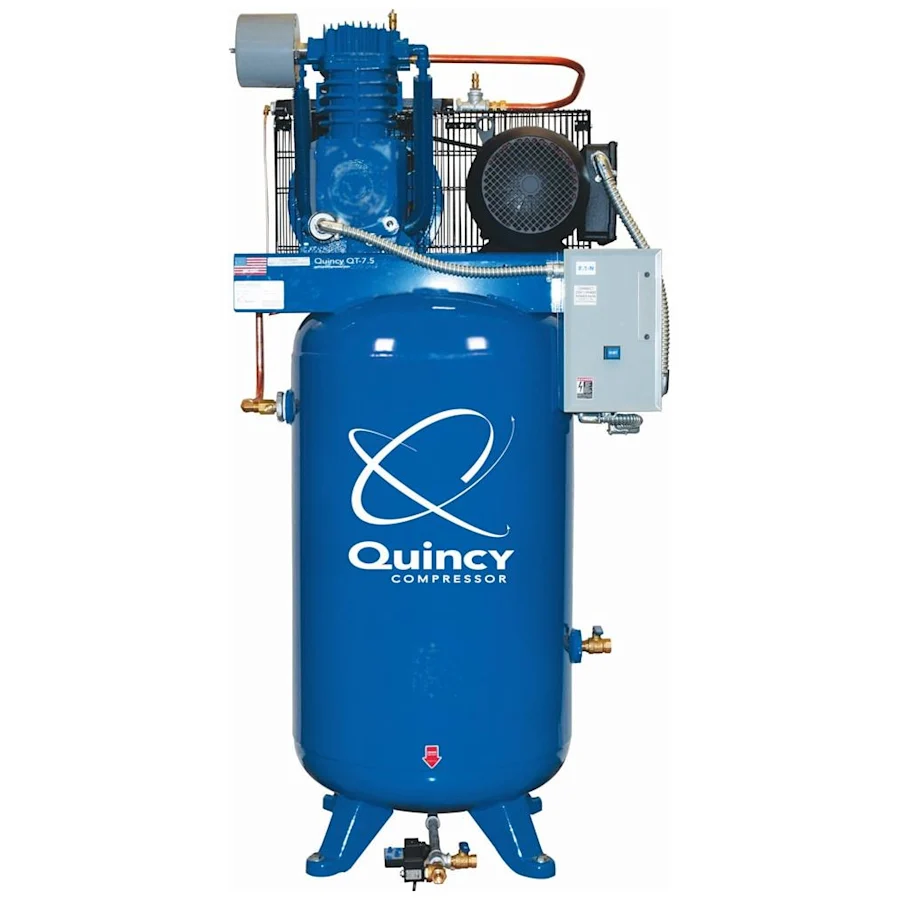

Quincy 473DS80VCB23 8HP 80gal vertical two-stage electric air compressor

Quincy Air Compressor Pro 7.5 HP 80 Gallon Two Stage 230V 3 Phase

Part #:2020040717
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$3,795.00
$3,795.00 - $3,795.00
$3,795.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Quincy 473DS80VCB23 QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)

This two-stage air compressor features a 100% duty cycle and splash-lubricated design, optimized to deliver increased compressed air output at reduced horsepower for cost efficiency. Proudly made in the USA, it includes a high-performance cast iron QT-7.5 belt drive pump with an industry-leading pump life exceeding 50,000 hours.

Equipped with an aluminum head for enhanced strength and heat dissipation, corrosion-resistant stainless-steel reed valves, and a two-cylinder cast-iron construction, this compressor offers durable and efficient operation. Industrial-class bearings and graphite gaskets ensure extended piston life and reliable sealing, while the balanced cast iron flywheel and counter-weighted crankshaft provide smooth, energy-efficient performance.

The high-efficiency finned tube intercooler reduces heat buildup, prolonging valve life and minimizing downtime with fewer moving parts. A heavy-duty industrial motor with a capacitor start and built-in thermal overload runs cooler at slower RPMs, lowering operational costs. All electrical components carry UL and CSA approvals.

For warranty information please see the below link.

Product Features

  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • High Performance Cast Iron Belt Drive Pump
  • 2-Cylinder Cast-Iron Design
  • Large Balanced Cast Iron Fly Wheel
  • High-Efficiency Finned Tube Intercooler
  • Heavy-Duty Industrial Motor
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 230 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw 22
Recommended Breaker Consult Certified Electrician

Engine

HP 7.5

Pump

CFM 22.6
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off No

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Vertical

Accessories

Air Dryer No

Overview

Weight 720 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 37 Inches
Product Width 24 Inches
Product Height 74 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 37"
Overall weight 720 Lbs
Overall width 24
Phase Three Phase
Pump material Cast Iron w/ Aluminum Head
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 80
Voltage 230V
