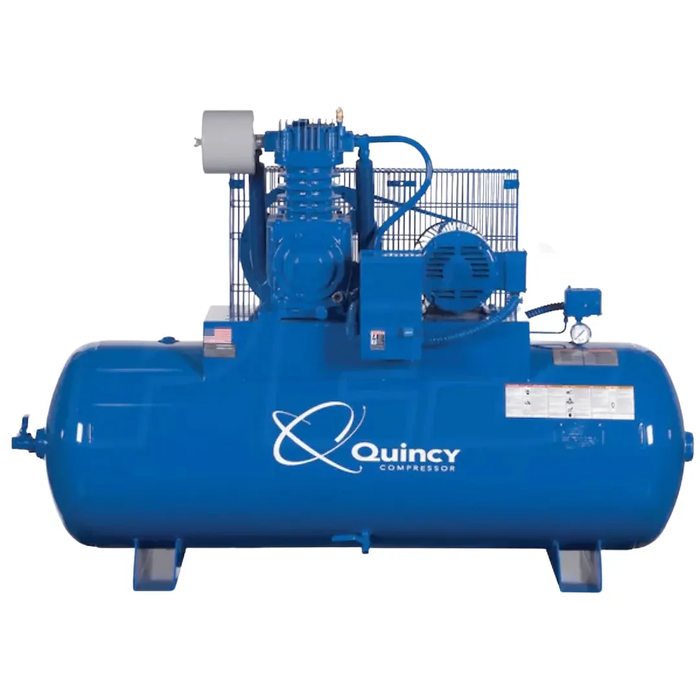

Quincy 453DS80HCB20 5HP 80gal horizontal two-stage electric air compressor

Quincy Air Compressor 453DS80HCB20 QT Pro 5 HP 80 Gallon Two Stage 208V 3 Phase

Part #:2020040799
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$3,714.00
$3,714.00 - $3,714.00
$3,714.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Quincy 453DS80HCB20 QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)

The Quincy QT Pro 5 HP air compressor (model 253DS80HCB20) is designed for commercial and industrial use, featuring a splash-lubricated, two-stage cast-iron pump engineered for durability and long service life. It delivers approximately 17.2 CFM at 175 PSI, providing steady and reliable airflow for a wide range of pneumatic tools and applications.

Powered by a 5-horsepower, 208V Three Phase motor running at low RPM, this compressor minimizes heat and wear for quieter operation and extended component life. The 80-gallon ASME-certified horizontal tank offers ample capacity to meet the air demands of high-output work environments.

Efficiency is enhanced with an aluminum head for heat dissipation, finned-tube intercoolers, and an oversized oil reservoir. The unit maintains low oil carryover to ensure clean compressed air. Maintenance is simplified by an automatic condensate drain, low-oil shutdown protection, and a factory-mounted magnetic starter with thermal overload protection.

Product Features

  • Heavy Duty QT-5 Industrial Pump
  • ODP Slow-Speed Motor
  • High-Efficiency Finned Intercooler
  • 2-Piece Connection Rods
  • ASME Coded 80 Gallon Tank
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw 17.5
Recommended Breaker Consult Certified Electrician

Engine

HP 5

Pump

CFM 17.2
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off No

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Air Dryer No

Overview

Weight 660 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 70 Inches
Product Width 23 Inches
Product Height 47 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 70"
Overall weight 660 Lbs
Overall width 23
Phase Three Phase
Pump material Cast Iron w/ Aluminum Head
Tank orientation Horizontal
Tank outlet 3/4"
Tank size gallons 80
Voltage 208 Volt AC
