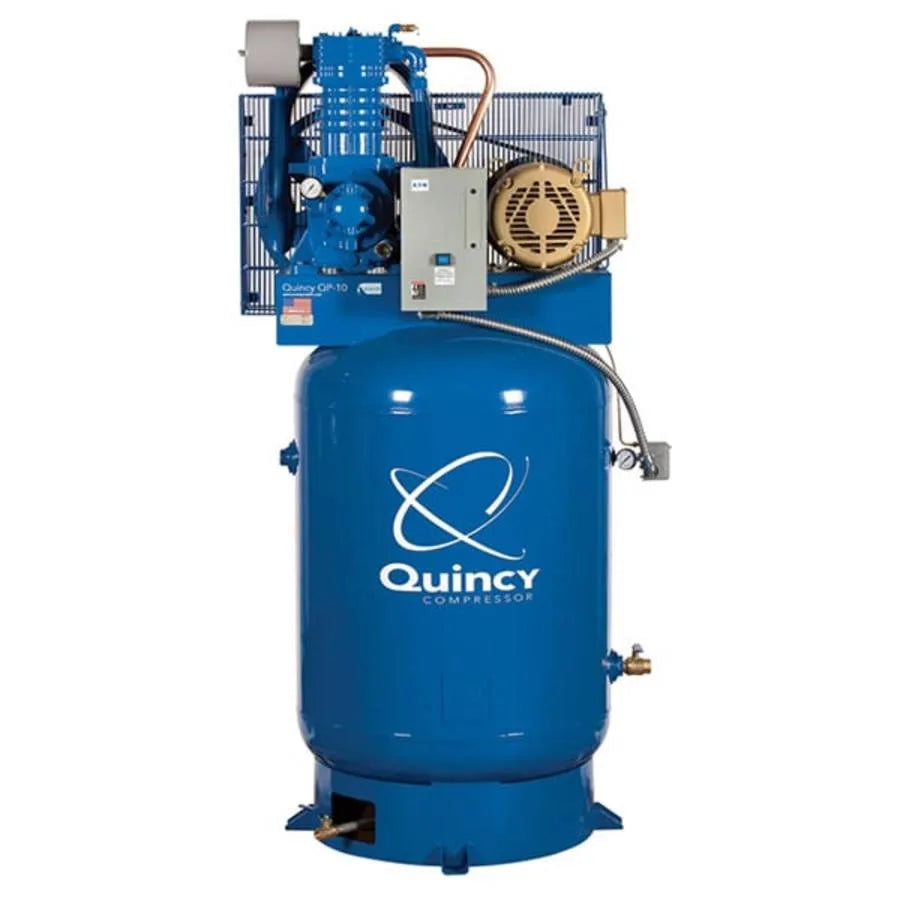

Quincy 5103DS12VCA20 10HP 120gal vertical two-stage electric air compressor

Quincy Air Compressor 10 HP 120 Gallon Two Stage

Part #:2020040787
Brand: Quincy Compressor
$0.00 - $0.00
$0.00
$8,134.00
$8,134.00 - $8,134.00
$8,134.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Quincy 5103DS12VCA20 QP Pro 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (208V 3-Phase)

The Quincy 3103DS12VCA20 QP Pro delivers reliable, continuous compressed air for industrial settings requiring steady performance. Powered by a 10 horsepower motor, this unit operates on 208 volts Three Phase power, making it ideal for facilities with that electrical setup.

Its two-stage pump uses pressure lubrication to keep vital components like bearings and crankshafts well-oiled, reducing friction and promoting longer operational life. Constructed with durable cast iron cylinders and aluminum heads, the pump efficiently manages heat, supporting consistent output even during extended use.

The vertical 120-gallon tank stores a significant volume of compressed air, minimizing cycling and maintaining pressure stability. Designed for ease of maintenance, this compressor includes features such as automatic condensate drainage and oil level monitoring to help prevent downtime.

Built to meet the demands of automotive shops, manufacturing floors, and other industrial environments, this compressor combines durability with consistent performance for dependable air supply.

Product Features

  • Fully Pressure Lubricated 2-Stage Compressor
  • Gerotor Positive Displacement Oil Pump
  • Spin-On Oil filter
  • Stainless Steel Reed Valves With Valve Bumpers
  • Graphite Cylinder & Head Gaskets
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • One Year Factory Warranty

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw 32.2
Recommended Breaker Consult Certified Electrician

Engine

HP 10

Pump

CFM 35
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off No

Tank

Tank Size 120 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Vertical

Accessories

Air Dryer No

Overview

Weight 850 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 40 Inches
Product Width 30 Inches
Product Height 75 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 40"
Overall weight 850 Lbs
Overall width 30
Phase Three Phase
Pump material Cast Iron w/ Aluminum Head
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 120
Voltage 208 Volt AC
