BelAire QP338VLE 8HP 80gal vertical two-stage electric air compressor

BelAire Air Compressor QP338VLE 7.5 HP 80 Gallon Two Stage Quiet 208-230V 3 Phase

Part #:QP338VLE
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$5,469.00
$5,469.00 - $5,469.00
$5,469.00
Call/Text Us: 866-774-7743 Call Us

Description

-

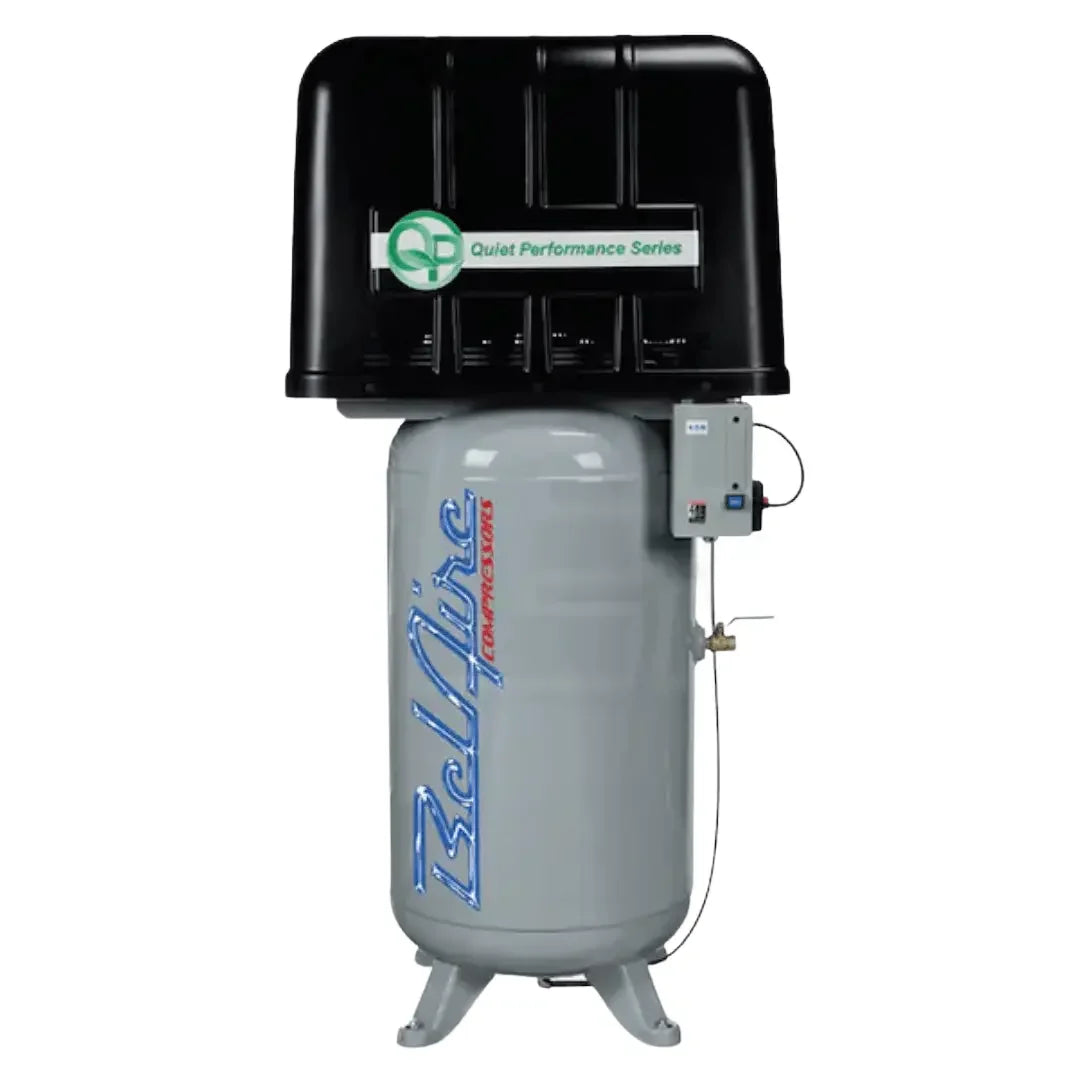

BelAire QP338VLE 7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)

Quiet Compressor Air System

  • A piston air compressor with the noise level of a rotary screw

Compact Design

  • Ideal for work environments where space is a premium

7.5-HP Three Phase Motor (208-230V) w/ Magnetic Starter Included

  • Saves money, no need to purchase additional starter

Low Sound Enclosure

  • As low as 69 dbA, designed for a greener workplace
  • Less than half the noise of a standard piston compressor

High Strength ABS Enclosure & High Flow Fan

  • Keeps the compressor running cooler and quieter

Cast Iron Cylinder

  • Designed for superior quality & extends the life of the pump

80-Gallon ASME Certified Vertical Air Tank

  • 100% factory tested at full pressure

Added Features

  • Low Oil Level Protection & High Temperature Shut Dow
  • Automatic Pressurized Tank Drain (Not Electronic)
  • ASME Safety Valves & Integrated Aftercooler
  • Shipped "Wet", Ready To Use

Product Features

  • Quiet Compressor Air System
  • A piston air compressor with the noise level of a rotary screw
  • Compact Design
  • Ideal for work environments where space is a premium
  • 7.5-HP Three Phase Motor (208-230V) w/ Magnetic Starter Included
  • Saves money, no need to purchase additional starter
  • Low Sound Enclosure
  • As low as 69 dbA, designed for a greener workplace
  • Less than half the noise of a standard piston compressor
  • High Strength ABS Enclosure & High Flow Fan
  • Keeps the compressor running cooler and quieter
  • Cast Iron Cylinder
  • Designed for superior quality & extends the life of the pump
  • 80-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure
  • Low Oil Level Protection & High Temperature Shut Dow
  • Automatic Pressurized Tank Drain (Not Electronic)
  • ASME Safety Valves & Integrated Aftercooler
  • Shipped "Wet", Ready To Use

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230 Volt AC
Phase Three Phase
dbA 69
Magnetic Starter Yes
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 7.5

Pump

CFM 25.3
CFM Rated @ 100 PSI
Pump Material Solid Cast Iron
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off Yes

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Tank Orientation Vertical

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 537 Pounds
Certification ASME
Consumer Warranty 2 Year
Product Length 38.2 Inches
Product Width 24.3 Inches
Product Height 80 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 38.2"
Overall weight 537 Lbs
Overall width 24.3
Phase Three Phase
Pump material Solid Cast Iron
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 80
Voltage 208-230V
