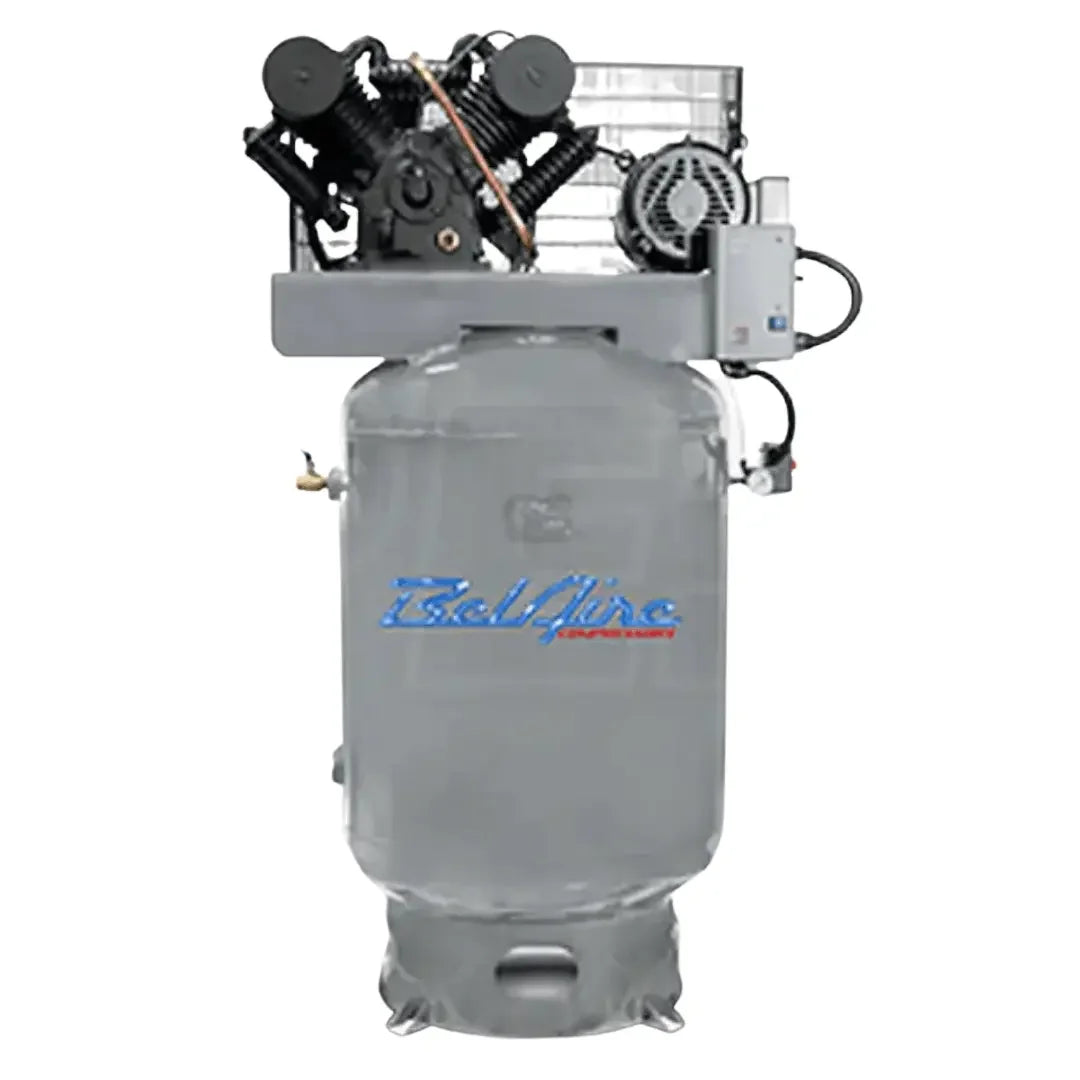

BelAire 6312V4 10HP 120gal vertical two-stage electric air compressor

BelAire Air Compressor 6312V4 Iron Series 10 HP 120 Gallon Two Stage 460V Three Phase

Part #:6312V4
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$5,127.00
$5,127.00 - $5,127.00
$5,127.00
Call/Text Us: 866-774-7743 Call Us

Description

-

BelAire 6312V4 Iron Series 10-HP 120-Gallon Two-Stage Cast Iron Air Compressor (460V 3-Phase)

The unit features automotive-style rod bearings and wrist pins, contributing to smoother operation and increased reliability. A fully enclosed high-flow belt guard enhances safety by protecting the belt and the operator, while a manual air tank drain simplifies maintenance.

Designed with 460-volt Three Phase power compatibility, the BelAire 6312V4 is versatile and can be easily integrated into existing systems. Its 3/4-inch air outlet is rated up to 175 PSI, accommodating a wide range of pneumatic tools and equipment.

This compressor is an excellent choice for industrial settings, automotive shops, and other applications that demand consistent and powerful compressed air delivery.

Product Features

  • Solid Cast Iron 2 Stage Pump
  • Delivers 35 CFM at 100 PSI; 32 CFM at 175 PSI
  • Rugged components provide long-lasting dependability
  • Automotive-Style Rod Bearings & Wrist Pins
  • Smoother running & more durable
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 460 Volt, Three Phase Power
  • Easily wires into your 460V-3
  • CPXHT50 dryer recommended (not included)

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 460 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 10

Pump

CFM 35
CFM Rated @ 100 PSI
Pump Material Solid Cast Iron
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off No

Tank

Tank Size 120 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Vertical

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 830 Pounds
Certification ASME
Consumer Warranty 2 Year
Commercial Warranty 2 Year
Product Length 42 Inches
Product Width 30 Inches
Product Height 74 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 42"
Overall weight 830 Lbs
Overall width 30
Phase Three Phase
Pump material Solid Cast Iron
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 120
Voltage 460V

Warranty

-
Warranty Details
