BelAire 4916V 5HP 60gal vertical two-stage electric air compressor

BelAire Air Compressor 4916V 5 HP 60 Gallon Two Stage 230V Single Phase

Part #:4916V
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$1,710.00
$1,710.00 - $1,710.00
$1,710.00
Call/Text Us: 866-774-7743 Call Us

Description

-

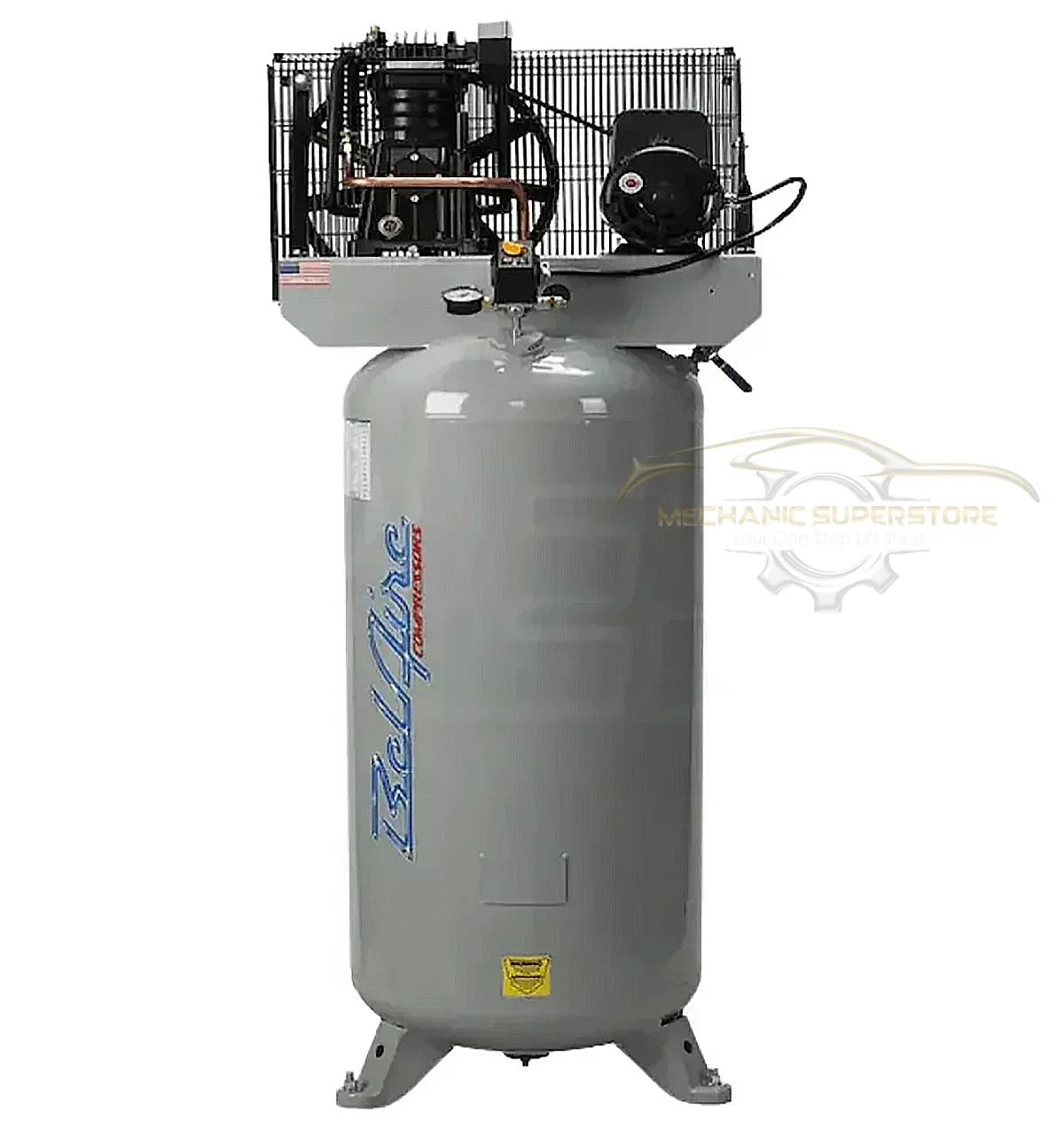

BelAire 4916V 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)

The BelAire 4916V delivers reliable 5 horsepower performance on standard 230 volt Single Phase power, producing approximately 16 CFM at 100 PSI and around 14 CFM at its maximum pressure of 165 PSI. This makes it a strong choice for moderate-duty air tool use in smaller shops or home garages needing dependable airflow.

Its compact vertical design features a 60-gallon ASME-certified tank, providing ample air storage while conserving valuable floor space. Standing under 70 inches tall, it fits easily in areas with height limitations without sacrificing performance.

Product Features

  • Two-Stage Solid Cast Iron Pump
  • Designed for superior quality & extends the life of the pump
  • Compact Design
  • Ideal for work environments where space is a premium
  • 5-HP Single Phase Motor (230V)
  • Saves $$$, No need to purchase additional starter
  • 60-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure; 16.1 CFM at 100 PSI
  • High Flow Belt Guard
  • Fully enclosed design provides added safety
  • Oil Level Sight Glass
  • Easily check the oil level at any time
  • Start-Stop Pressure Switch Control
  • Saves time and energy
  • Stainless Steel Valves
  • Extends the life of the compressor
  • 2 Year Full Warranty
  • Protects your investment

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 230 Volt AC
Phase Single Phase
Magnetic Starter No
Amp Draw 22
Recommended Breaker 40 Amp Breaker

Engine

HP 5

Pump

CFM 16.1
CFM Rated @ 100 PSI
Pump Material Solid Cast Iron
Max PSI 165 PSI
Oil Sight Glass Yes
Pump Type Sinle-Stage
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off No

Tank

Tank Size 60 Gallons
Tank Outlet 1/2 Inch
Electronic Drain Valve No
Tank Orientation Vertical

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 250 Pounds
Certification ASME
Consumer Warranty 2 Year
Product Length 22.9 Inches
Product Width 27.2 Inches
Product Height 69.7 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter No
Overall length 22.9"
Overall weight 250 Lbs
Overall width 27.2
Phase Single Phase
Pump material Solid Cast Iron
Tank orientation Vertical
Tank outlet 1/2"
Tank size gallons 60
Voltage 230V

Warranty

-
Warranty Details
