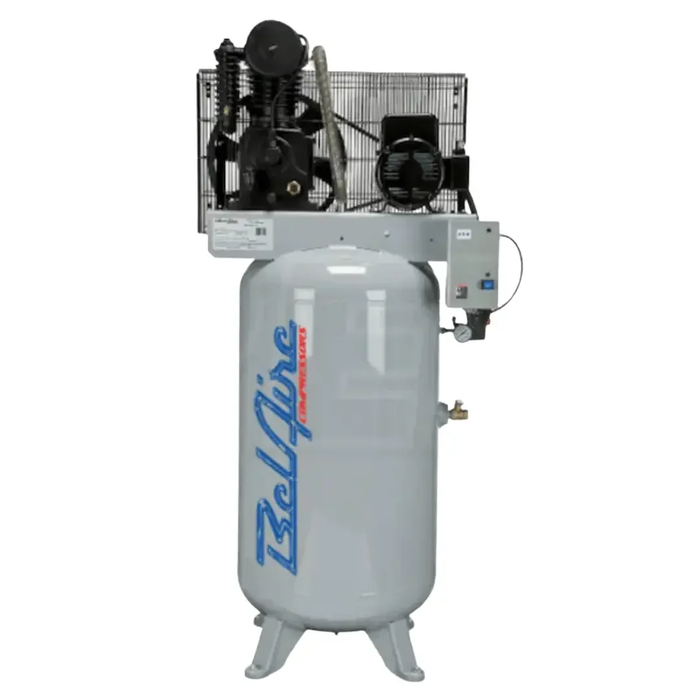

BelAire 438VL4 8HP 80gal vertical two-stage electric air compressor

BelAire Air Compressor 438VL4 Iron Series 7.5 HP 80 Gallon Two Stage 460V Three Phase

Part #:438VL4
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$3,235.00
$3,235.00 - $3,235.00
$3,235.00
Call/Text Us: 866-774-7743 Call Us

Description

-

BelAire 438VL4 Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (460V 3-Phase)

The BelAire 438VL4 brings heavy-duty capability to a compact vertical design. Its 7.5 horsepower motor running on 460 volt Three Phase power delivers approximately 23 CFM at 100 PSI and around 21 CFM at 175 PSI, making it ideal for commercial garages and industrial environments where high airflow is required without sacrificing floor space.

Built with a solid cast-iron two-stage pump, this compressor is engineered to handle rugged daily use while maintaining stable, consistent pressure. The vertical 80-gallon ASME-certified tank offers ample air reserve, supporting longer tool operation in a footprint-efficient package.

Operation is streamlined with a magnetic motor starter and a pressure-sensing start/stop switch, allowing hands-off functionality and improved energy efficiency. Additional features include a fully enclosed high-flow belt guard, a manual tank drain, and a conveniently located three-quarter-inch tank outlet rated up to 175 PSI.

Product Features

  • Solid Cast Iron Cylinder 2 Stage Pump
  • Delivers 18.5 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank maintenance simple
  • 460 Volt Three Phase Power
  • Easily wires into your 460V-3 system
  • CPXHT25 dryer recommended (not included)

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 460 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 7.5

Pump

CFM 23
CFM Rated @ 100 PSI
Pump Material Solid Cast Iron
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off No

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve Yes
Tank Orientation Vertical

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 600 Pounds
Certification ASME
Consumer Warranty 2 Year
Commercial Warranty 2 Year
Product Length 37 Inches
Product Width 24 Inches
Product Height 72 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 37"
Overall weight 600 Lbs
Overall width 24
Phase Three Phase
Pump material Solid Cast Iron
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 80
Voltage 460V
