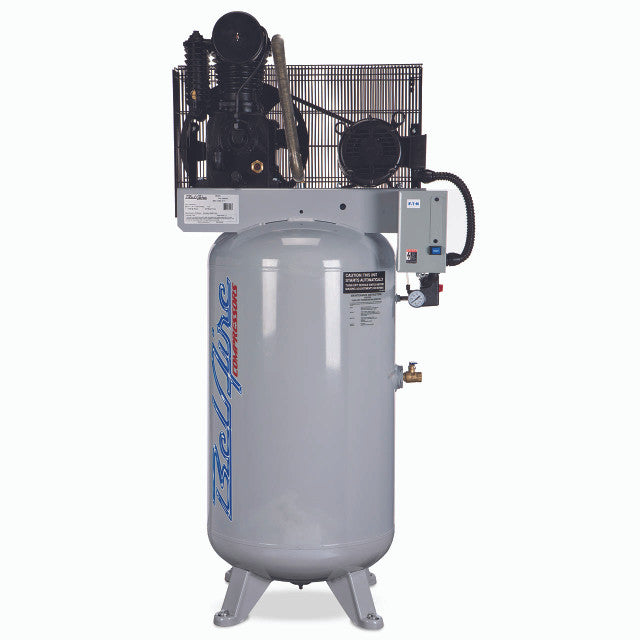

BelAire 418VLE 8HP 80gal vertical two-stage electric air compressor

BelAire Air Compressor 418VLE Elite Iron Series 7.5 HP 80 Gallon Two Stage

Part #:418VLE
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$3,843.00
$3,843.00 - $3,843.00
$3,843.00
Call/Text Us: 866-774-7743 Call Us

Description

-

BelAire 418VLE Elite Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 1-Phase)

The BelAire 418VLE Elite Iron Series is a heavy-duty air compressor designed for demanding industrial and commercial environments. It features a powerful 7.5-horsepower motor that operates on 208-230V Single Phase power, delivering 23 CFM at 100 PSI and 21 CFM at 175 PSI, with a maximum pressure of 175 PSI. The 80-gallon vertical ASME-certified tank provides substantial air storage capacity to support continuous operation and multiple users.

This compressor is built around a solid cast iron two-stage pump that runs at a low 900 RPM, which helps reduce wear and noise while extending the unit’s lifespan. It includes a magnetic starter for reliable motor protection and smooth startups. Safety and efficiency are further enhanced by features such as an automatic tank drain, an aftercooler to reduce discharge air temperature, and a low oil level switch to protect the pump.

Maintenance is straightforward with these built-in features, and the oil type recommended is 30W non-detergent oil. The unit measures approximately 37 inches long, 24 inches wide, and stands 72 inches tall, weighing about 610 pounds. It requires a 60-amp breaker for proper electrical protection. Backed by a two-year bumper-to-bumper warranty, the BelAire 418VLE offers dependable performance and peace of mind for workshop professionals.

Product Features

  • BelAire 7.5-HP Elite Iron Series Splash Lubricated Air Compressor
  • Great performance and value offer professional quality
  • Lubricants protect against high heat and extend equipment life
  • Fully packaged unit includes auto drain, aftercooler, magnetic starter, pressure switch and low oil switch
  • Solid Cast Iron Pump Construction
  • Adds dependability and smooth operation
  • Finned coolers enable more efficient heat exchange
  • Automotive-style rod bearing & wrist pins allow less oil carryover
  • Space-saving concentric valves offer compact design and max delivery volume
  • High-Performance Baldor Motor
  • Runs smoothly, quietly and efficient as possible
  • Improves your systems reliability and performance
  • Thermal overload switch automatically prevents overheating
  • Start-Stop Pressure Switch Controls
  • Automatically controls on/off cycling of compressor
  • Stops when cut-off pressure has reached capacity
  • Magnetic Starter
  • Safe method for starting an electric motor with a large load
  • Under-voltage & overload protection w/ automatic cutoff in the event of a power failure
  • High-Flow Wire Beltguard Aftercooler
  • Cools compressed air & removes moisture from air stream
  • Improves air quality for longer lifespan of tools and equipment
  • Elite Series Automatic Tank Drain (Not Electronic)
  • Pressurized auto draining makes tank maintenance effortless
  • Routine draining prevents air contamination & prolongs tool life
  • Low Oil Level Switch
  • Automatically disables your compressor if the oil level is too low
  • Protects your compressor's pump from seizing when your oil level drops
  • 80-Gallon ASME Air Tank
  • Pressure gauge shows the regulated pressure of compressed air
  • Safety valves prevent pressure in tank from rising over limit
  • 2 Year Bumper to Bumper Warranty
  • No additional purchase necessary
  • 100% factory tested

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230 Volt AC
Phase Single Phase
Magnetic Starter Yes
Amp Draw Consult Certified Electrician
Recommended Breaker Consult Certified Electrician

Engine

HP 7.5

Pump

CFM 23
CFM Rated @ 100 PSI
Pump Material Solid Cast Iron
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off Yes

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Vertical

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 580 Pounds
Certification ASME
Consumer Warranty 2 Year
Commercial Warranty 2 Year
Product Length 37 Inches
Product Width 24 Inches
Product Height 72 Inches
Power Type Electric


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 37"
Overall weight 580 Lbs
Overall width 24
Phase Single Phase
Pump material Solid Cast Iron
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 80
Voltage 208-230V
