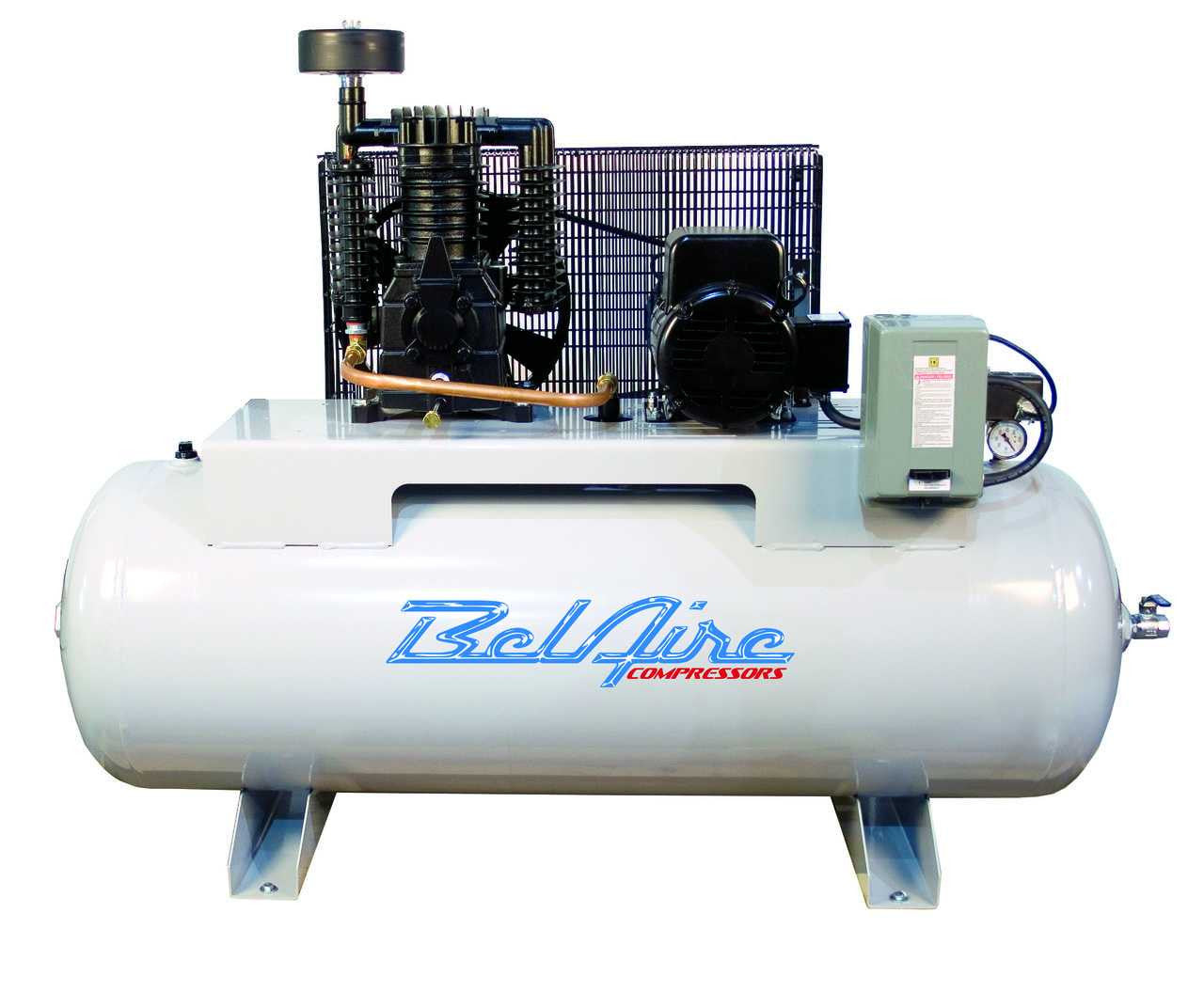

BelAire 338HE4 Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
The BelAire 338HE4 Elite Series is a heavy-duty two-stage air compressor designed for professional and industrial applications. It features a powerful 5 horsepower motor operating on 460-volt Three Phase power, delivering 18.5 cubic feet per minute at 100 PSI and 16.6 CFM at 175 PSI, with a maximum working pressure of 175 PSI. This performance ensures reliable and consistent airflow to power multiple pneumatic tools and high-demand equipment efficiently.
Built with a durable belt-driven two-stage pump, the 338HE4 features cast-iron cylinder sleeves and aluminum heads for effective heat dissipation and long service life. The integrated triple-pass pump-mounted aftercooler reduces discharge air temperature, improving efficiency and extending pump and tool lifespan.
The compressor comes equipped with a magnetic starter for smooth motor operation, a start-stop pressure switch for convenient automatic operation, and a low oil level protection switch to prevent damage. Maintenance is simplified with an automatic tank drain and an oil sight glass for quick monitoring, while safety is enhanced with a fully enclosed high-flow belt guard.
Air is stored in an 80-gallon horizontal ASME-certified tank, providing ample reserve to reduce motor cycling and maintain stable airflow during heavy use. Measuring approximately 71 inches in length, 24 inches in width, and 49 inches in height, and weighing around 481 pounds, the BelAire 338HE4 combines a compact footprint with industrial-grade durability. It is factory-tested at full pressure and backed by a two-year bumper-to-bumper warranty covering all components for peace of mind and dependable operation in your shop.
