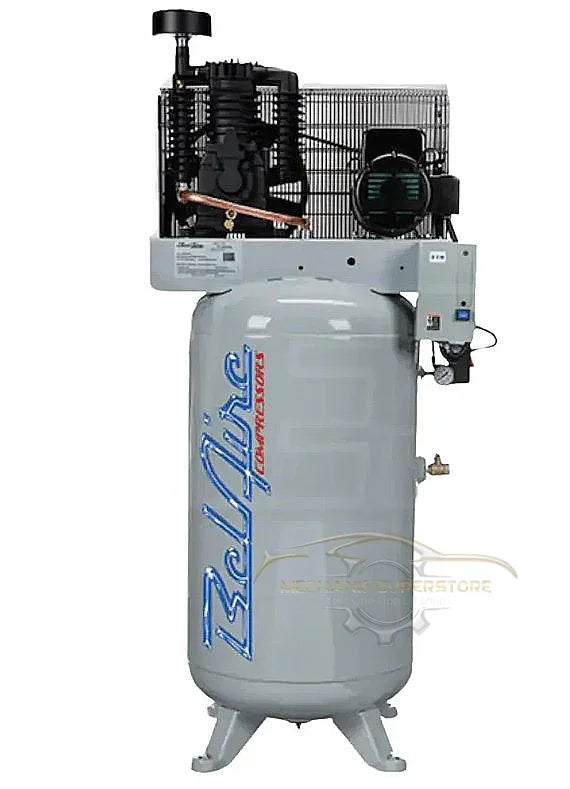

BelAire 318VE 5HP 80gal vertical two-stage electric air compressor

BelAire Air Compressor 318VE Elite Series 80 Gallon Two Stage

Part #:318VE
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$3,404.00
$3,404.00 - $3,404.00
$3,404.00
Call/Text Us: 866-774-7743 Call Us

Description

-

BelAire 318VE Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)

The BelAire 318VE Elite Series is a 5 HP, 80-gallon two-stage air compressor built for consistent performance in demanding shop environments. Powered by a 208-230V Single Phase motor, it delivers the durability and output needed for heavy-duty air tools and industrial applications. This unit features a vertical tank design to save floor space, and its cast-iron pump construction ensures long service life.

Built-in overload protection, an enclosed belt guard, and easy-access controls add to its user-focused design. With high airflow output and reliable pressure recovery, this model is ideal for automotive and commercial shops that require dependable, high-volume air.

Click on the manual link below for warranty information.

Product Features

  • Two-Stage Pump
  • Designed for superior quality & extends the life of the pump
  • Compact Design
  • Ideal for work environments where space is a premium
  • 5-HP Single Phase Motor (208-230V) w/ Magnetic Starter Included
  • Saves $$$, No need to purchase additional starter
  • 80-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure
  • High Flow Belt Guard
  • Fully enclosed design provides added safety
  • Oil Level Sight Glass
  • Easily check the oil level at any time
  • Start-Stop Pressure Switch Control & Stainless Steel Valves
  • Saves time and energy and extends the life of the compressor
  • Elite Series Automatic Tank Drain (Not Electronic)
  • Pressurized auto draining makes tank maintenance effortless
  • Triple-Pass Pump Mounted Aftercooler
  • Keeps your pump running cooler and longer
  • 3/4" Air Outlet
  • 2 year Factory Warranty protects your investment

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230 Volt AC
Phase Single Phase
Magnetic Starter Yes
Amp Draw Consult Certified Electrician
Recommended Breaker 40 Amp Breaker

Engine

HP 5

Pump

CFM 18.5
CFM Rated @ 100 PSI
Pump Material Solid Cast Iron
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off Yes

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Vertical

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 428 Pounds
Certification ASME
Consumer Warranty 2 Year
Product Length 39 Inches
Product Width 24 Inches
Product Height 77 Inches
Power Type Electric


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 39"
Overall weight 428 Lbs
Overall width 24
Phase Single Phase
Pump material Solid Cast Iron
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 80
Voltage 208-230V
