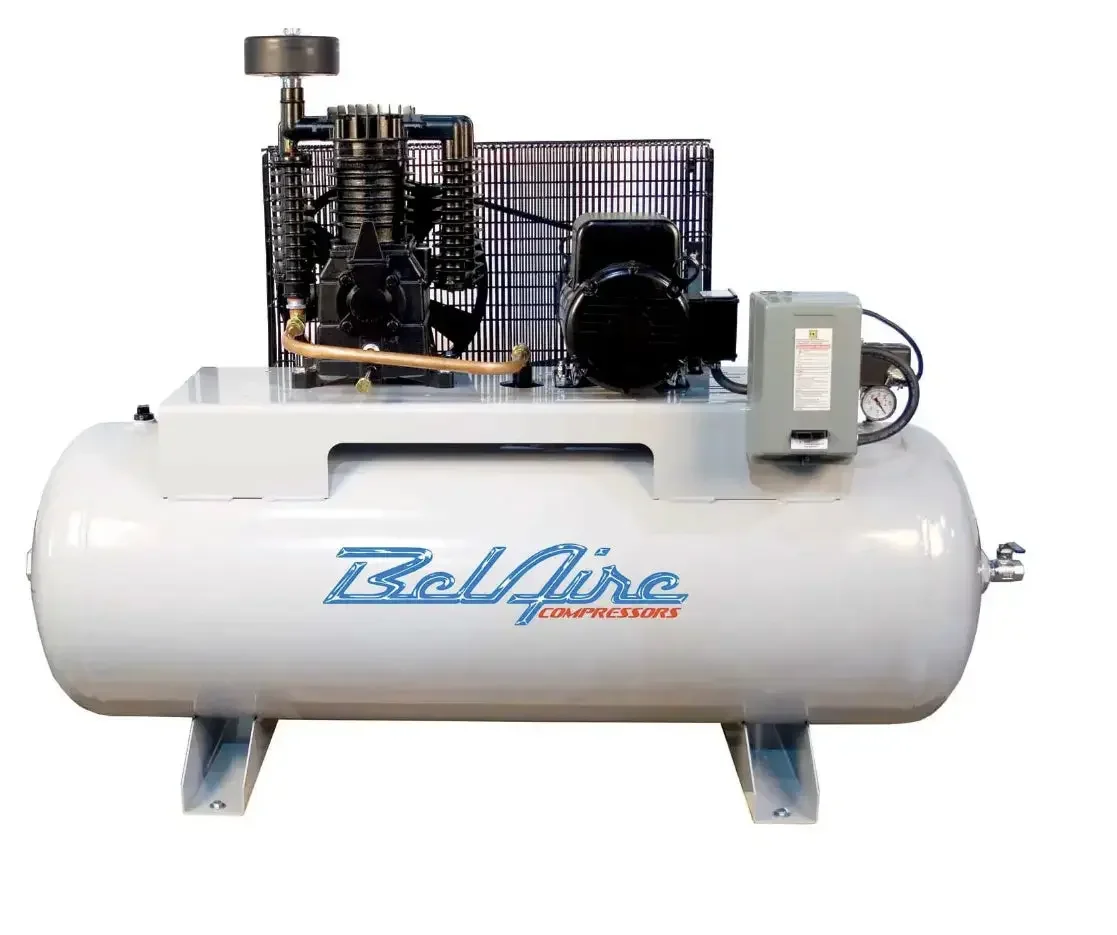

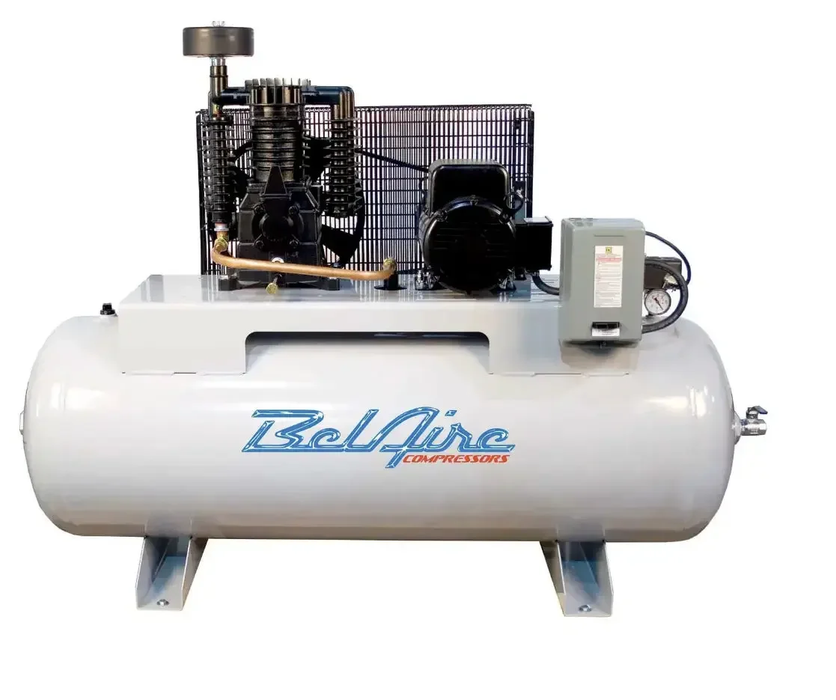

BelAire 318HE Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)
The BelAire 318HE Elite Series air compressor features a powerful 5 horsepower motor paired with an 80-gallon tank to deliver consistent, high-capacity compressed air for demanding applications. Designed with a two-stage pump, this unit efficiently compresses air in two phases to maximize pressure output while maintaining energy efficiency. Operating on 208-230 volts and a Single Phase power supply, it’s ideal for workshops, garages, and industrial settings where reliable air supply is critical.
Constructed with durable cast iron components, the compressor ensures longevity and quiet operation, while integrated safety features and an easy-to-read control panel provide convenient and secure use. This compressor balances performance and dependability, making it a solid choice for professional environments requiring steady airflow and durability.
See manual link below for warranty information.
Product Features
- Solid Cast Iron Cylinder Sleeve 2-Stage Pump
- Delivers 18.5 CFM at 100 PSI
- CPXHT25 dryer recommended (not included)
- Elite Series Triple Pass Pump-Mounted Aftercooler
- Cooler air helps your equipment last longer
- Start / Stop Pressure Switch Controls
- Save time & energy
- ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4" air outlet; 175 PSI maximum pressure
- Elite Series Automatic Tank Drain (Not Electronic)
- Pressurized auto draining makes tank maintenance effortless
- Elite Series Low Oil Switch
- Protects the pump; sight glass for easy maintenance
- 2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
- Fully Enclosed High-Flow Belt Guard
- Protects the belt & the operator
- 208 Volt Or 230 Volt Single Phase Power
- Easily wires into either your 208V-1 or 230V-2 system
Product Specifications
General Information
| Product Category |
Air Compressor - Stationary |
Motor
| Voltage |
208-230 Volt AC |
| Phase |
Single Phase |
| Magnetic Starter |
Yes |
| Amp Draw |
Consult Certified Electrician |
| Recommended Breaker |
40 Amp Breaker |
Engine
Pump
| CFM |
18.5 |
| CFM Rated @ |
100 PSI |
| Pump Material |
Aluminum w/ Cast Iron Sleeve |
| Max PSI |
175 PSI |
| Oil Sight Glass |
Yes |
| Pump Type |
Two-Stage |
| After Cooler |
Yes |
| Pump Drive |
Belt Drive |
| Oil Type |
Oil Lubricated |
| Oil System |
Splash Lubrication |
| Pump Low Oil Shut-off |
Yes |
Tank
| Tank Size |
80 Gallons |
| Tank Outlet |
3/4 Inch |
| Electronic Drain Valve |
No |
| Tank Orientation |
Horizontal |
Accessories
| Pressure Gauge |
Yes |
| Air Dryer |
No |
Overview
| Weight |
501 Pounds |
| Certification |
ASME |
| Consumer Warranty |
2 Year |
| Commercial Warranty |
2 Year |
| Product Length |
71 Inches |
| Product Width |
24 Inches |
| Product Height |
49 Inches |
| Power Type |
Electric |
