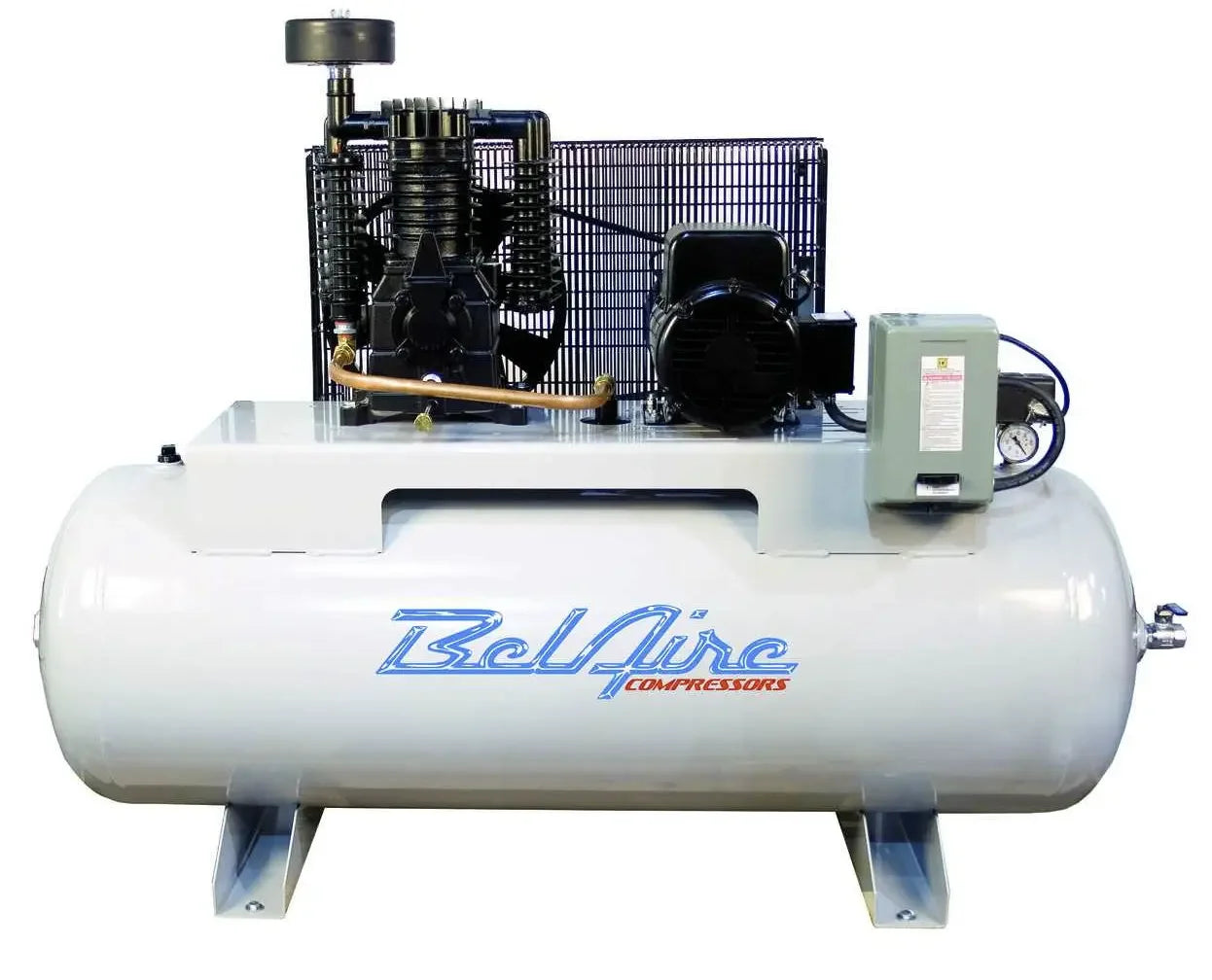

BelAire 318H 5HP 80gal horizontal two-stage electric air compressor

BelAire Air Compressor 318H 5 HP 80 Gallon Two Stage 208-230V 1 Phase

Part #:318H
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$3,222.00
$3,222.00 - $3,222.00
$3,222.00
Call/Text Us: 866-774-7743 Call Us

Description

-

BelAire 318H 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)

Two-Stage Pump

  • Designed for superior quality & extends the life of the pump

Compact Design

  • Ideal for work environments where space is a premium

5-HP Single Phase Motor (208-230V)

  • Can be wired for either voltage

80-Gallon ASME Certified Horizontal Air Tank

  • 100% factory tested at full pressure

High Flow Belt Guard

  • Fully enclosed design provides added safety

Oil Level Sight Glass

  • Easily check the oil level at any time

Start-Stop Pressure Switch Control

  • Saves time and energy

Stainless Steel Valves

  • Extends the life of the compressor

3/4" Outlet

  • 2 Year Full Warranty
  • Magnetic starter 0000052006 sold separately

Product Features

  • Two-Stage Pump
  • Designed for superior quality & extends the life of the pump
  • Compact Design
  • Ideal for work environments where space is a premium
  • 5-HP Single Phase Motor (208-230V)
  • Can be wired for either voltage
  • 80-Gallon ASME Certified Horizontal Air Tank
  • 100% factory tested at full pressure
  • High Flow Belt Guard
  • Fully enclosed design provides added safety
  • Oil Level Sight Glass
  • Easily check the oil level at any time
  • Start-Stop Pressure Switch Control
  • Saves time and energy
  • Stainless Steel Valves
  • Extends the life of the compressor
  • 3/4" Outlet
  • 2 Year Full Warranty
  • Magnetic starter 0000052006 sold separately

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230 Volt AC
Phase Single Phase
Magnetic Starter No
Amp Draw Consult Certified Electrician
Recommended Breaker 40 Amp Breaker

Engine

HP 5

Pump

CFM 18.5
CFM Rated @ 100 PSI
Pump Material Aluminum w/ Cast Iron Sleeve
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off No

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 491 Pounds
Certification ASME
Consumer Warranty 2 Year
Product Length 71 Inches
Product Width 24 Inches
Product Height 49 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter No
Overall length 71"
Overall weight 491 Lbs
Overall width 24
Phase Single Phase
Pump material Aluminum w/ Cast Iron Sleeve
Tank orientation Horizontal
Tank outlet 3/4"
Tank size gallons 80
Voltage 208-230V
