Product Description

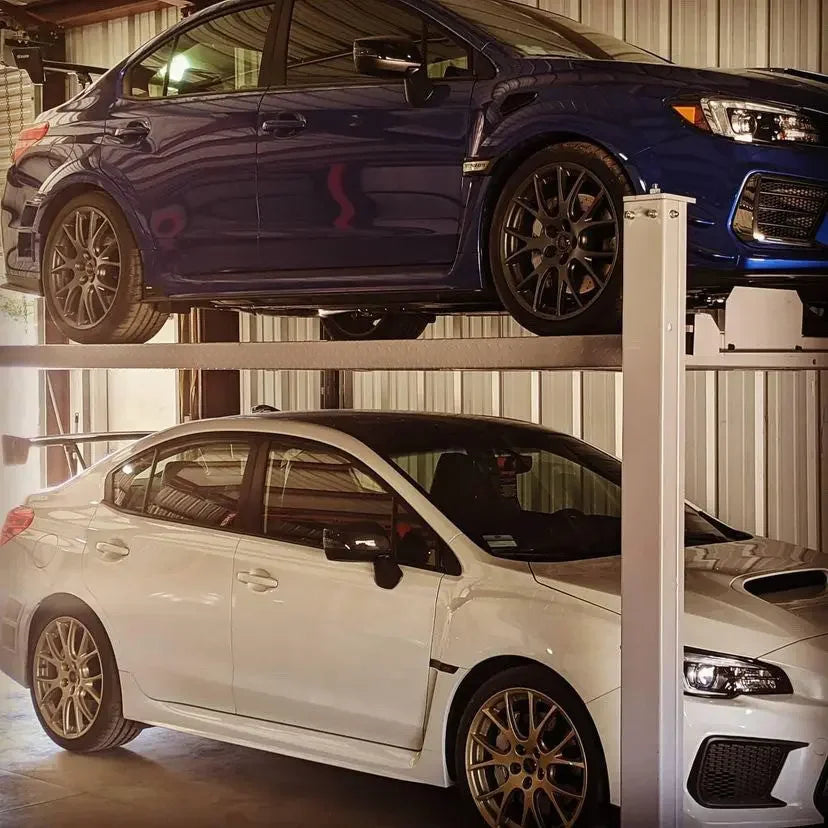

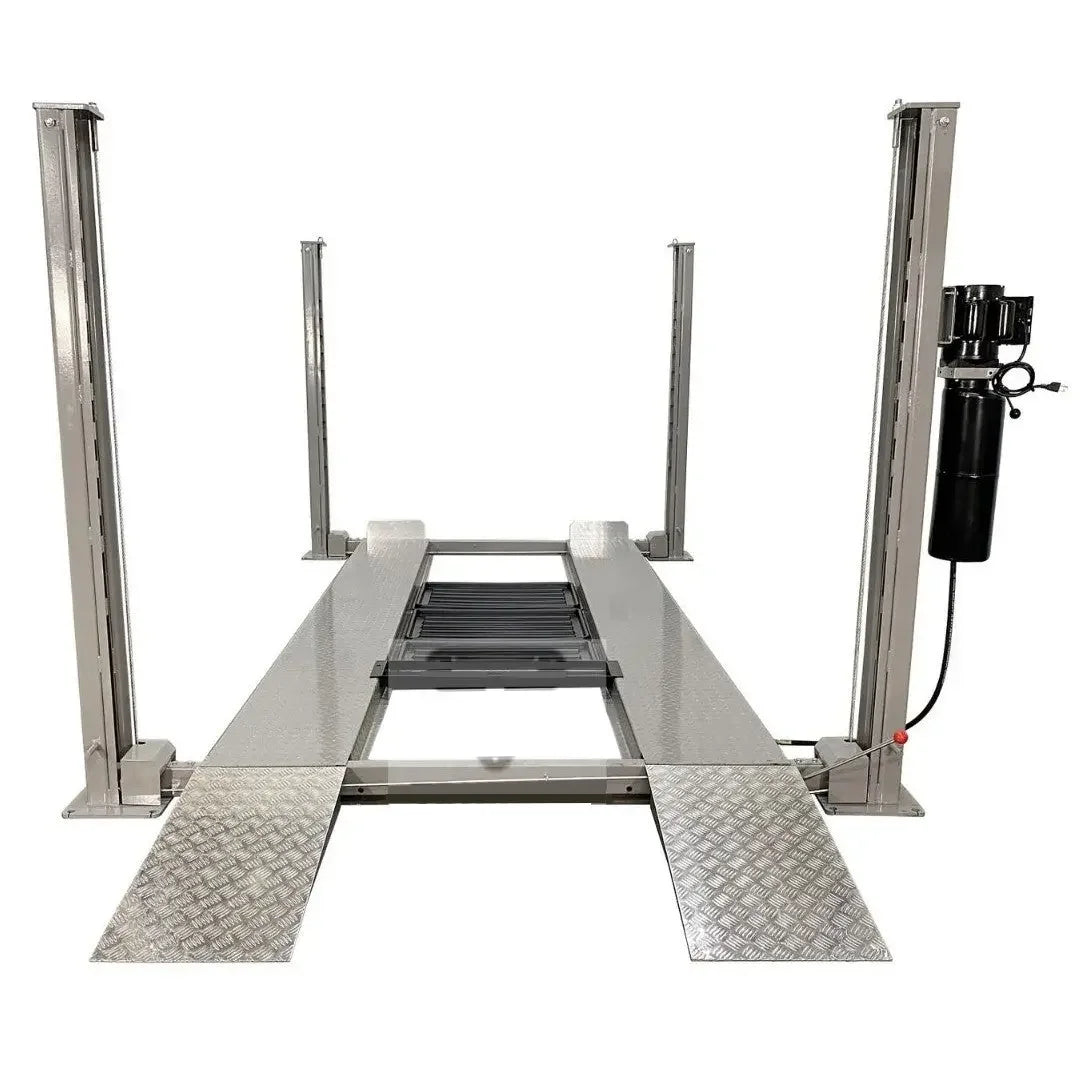

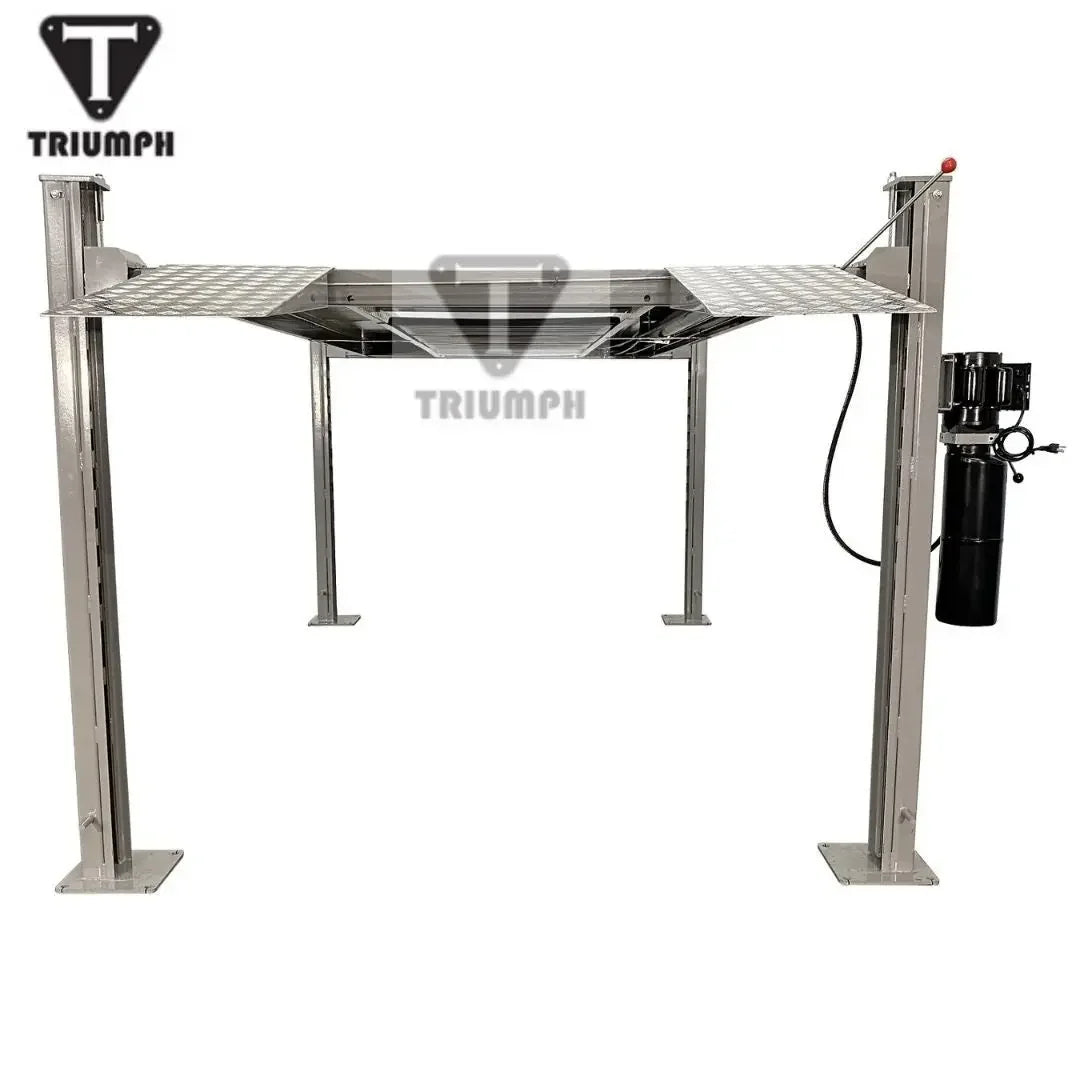

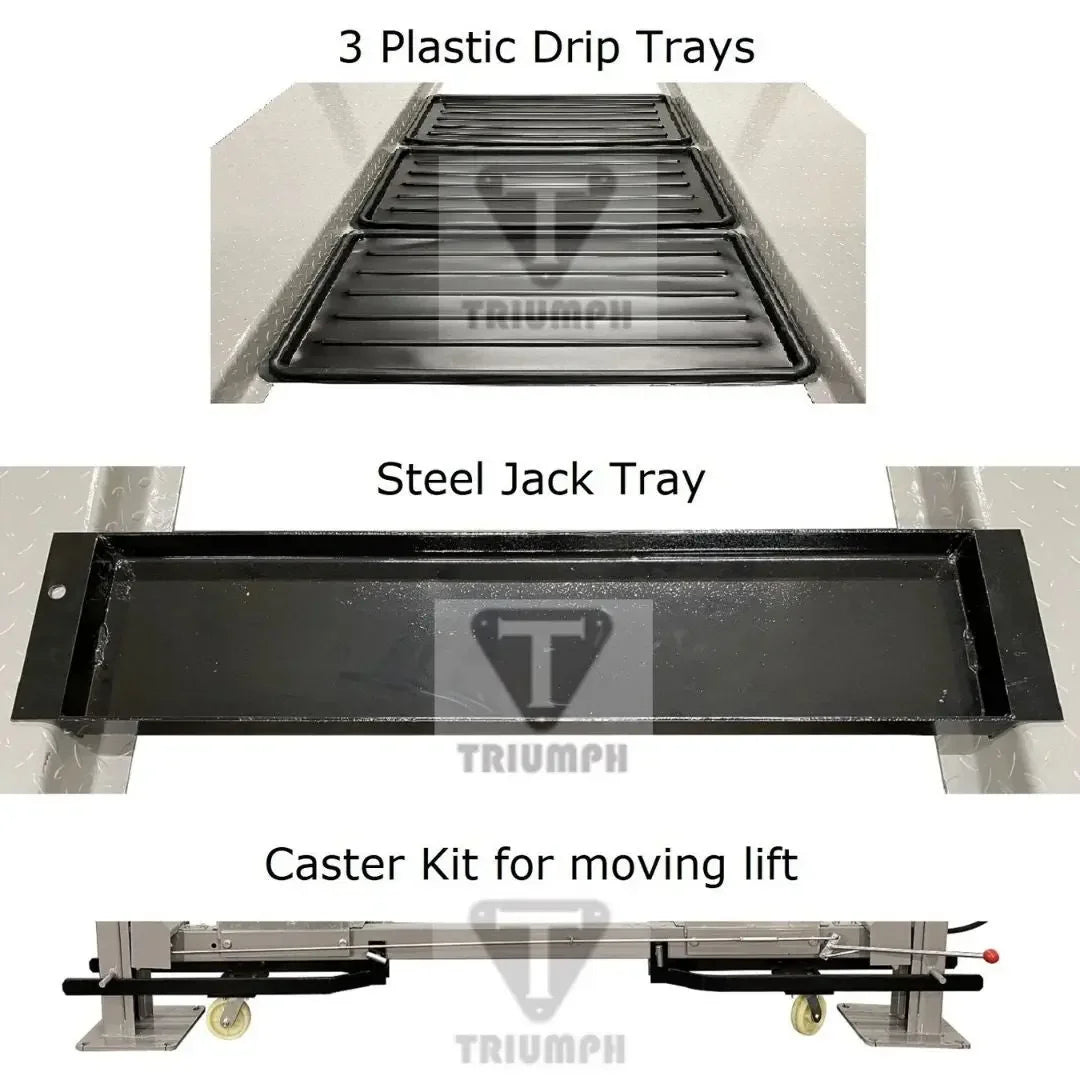

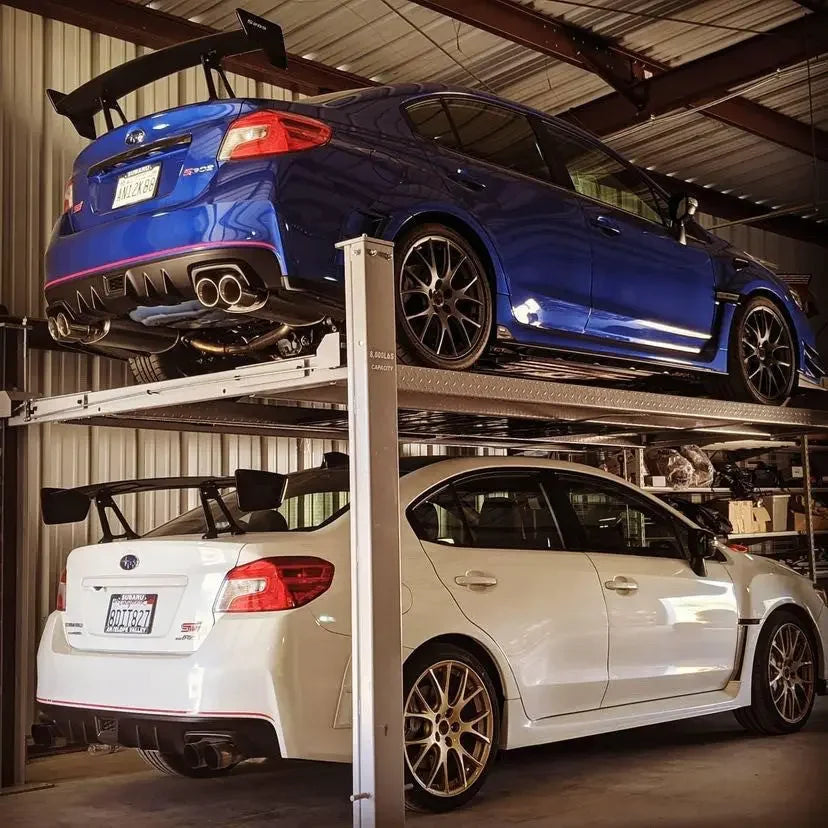

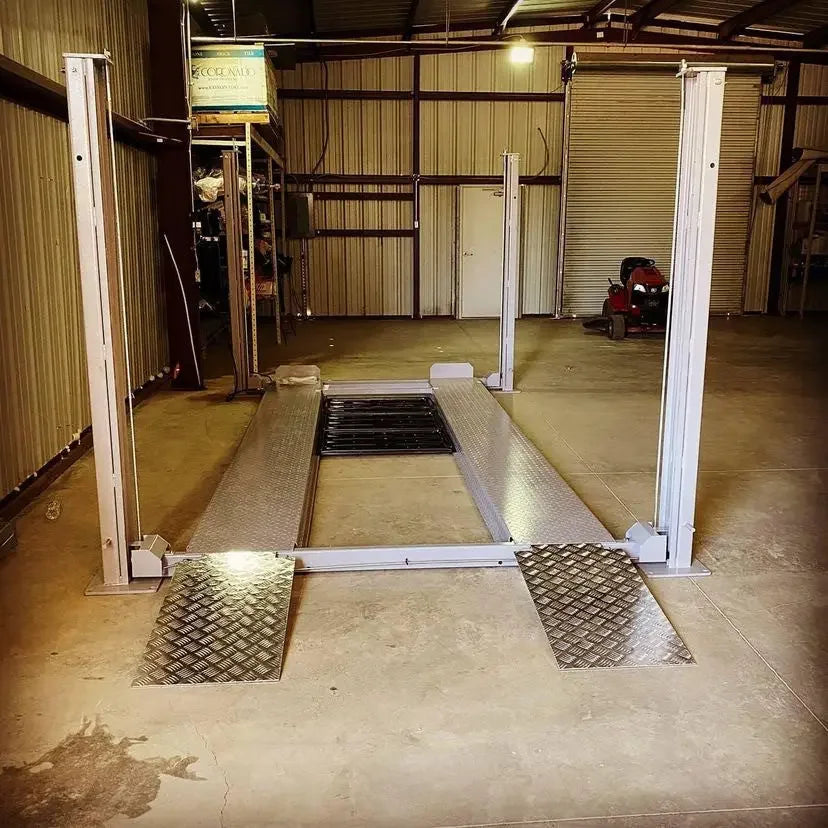

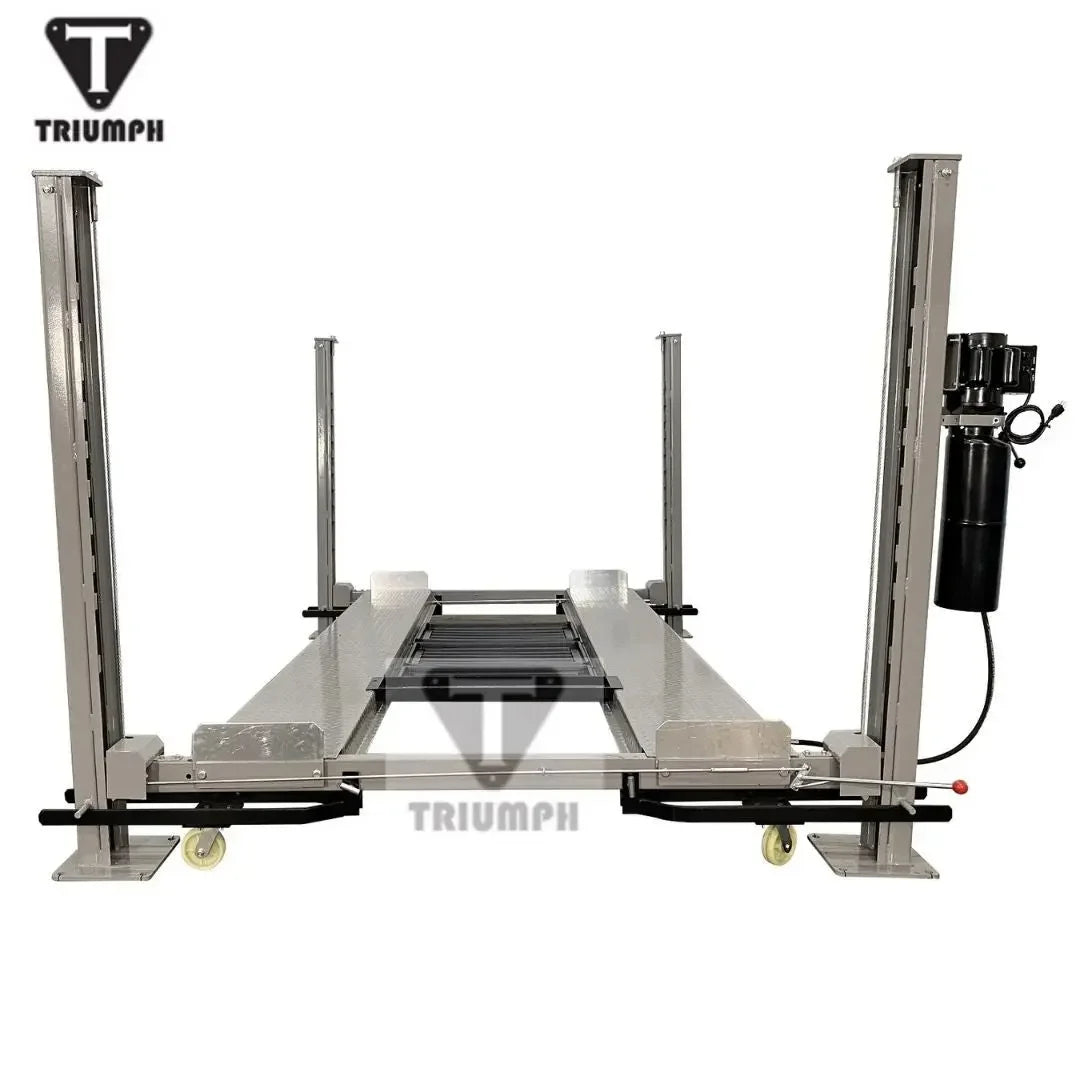

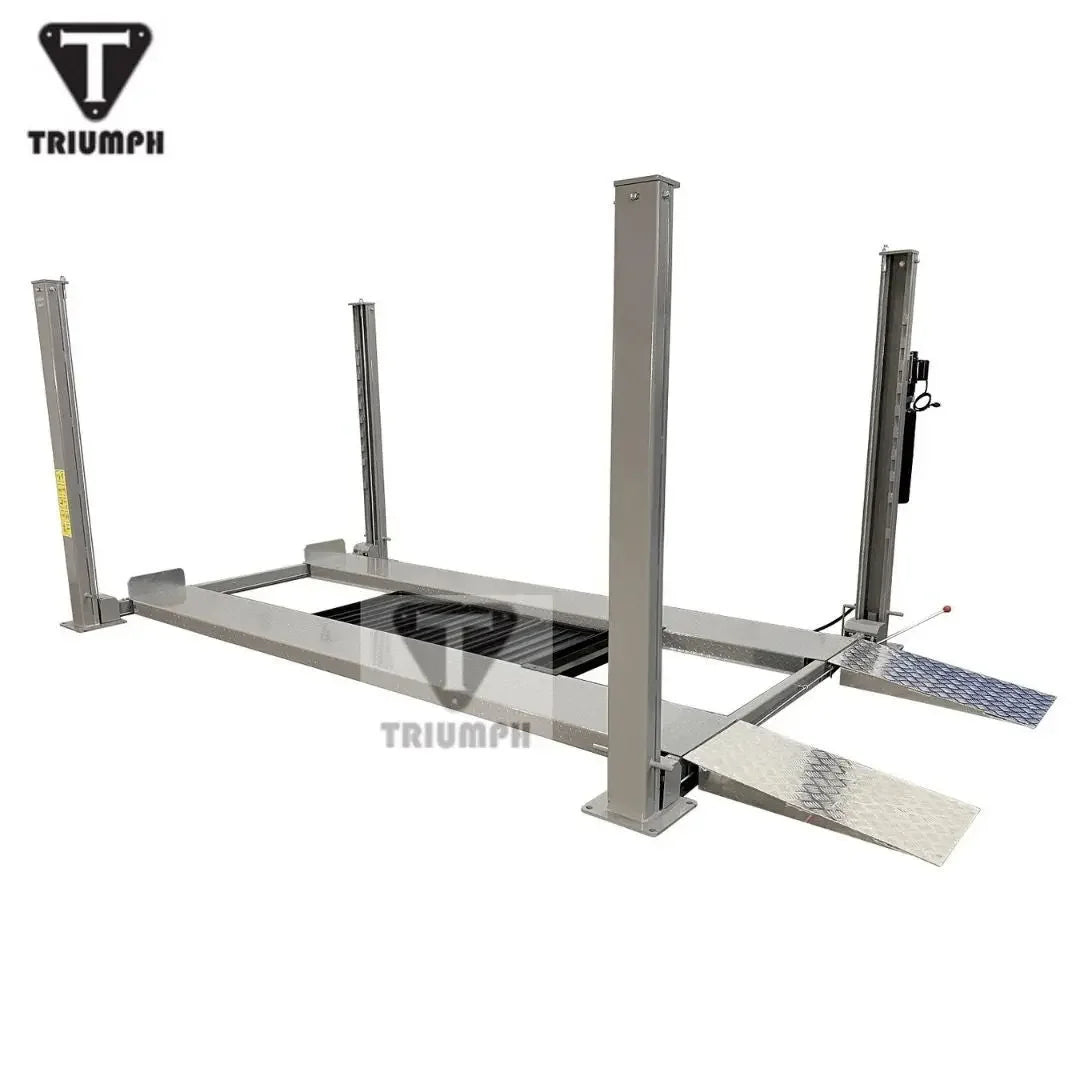

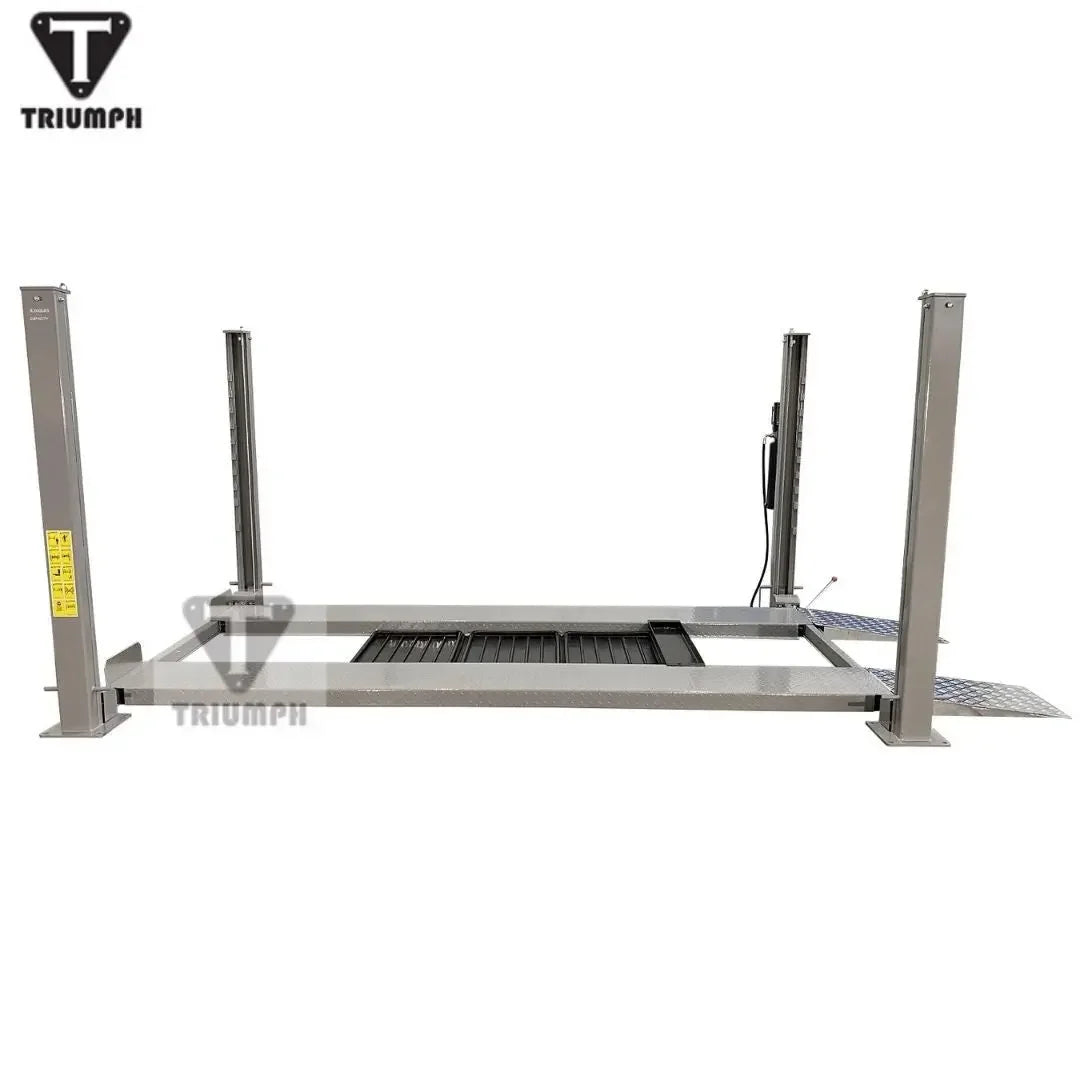

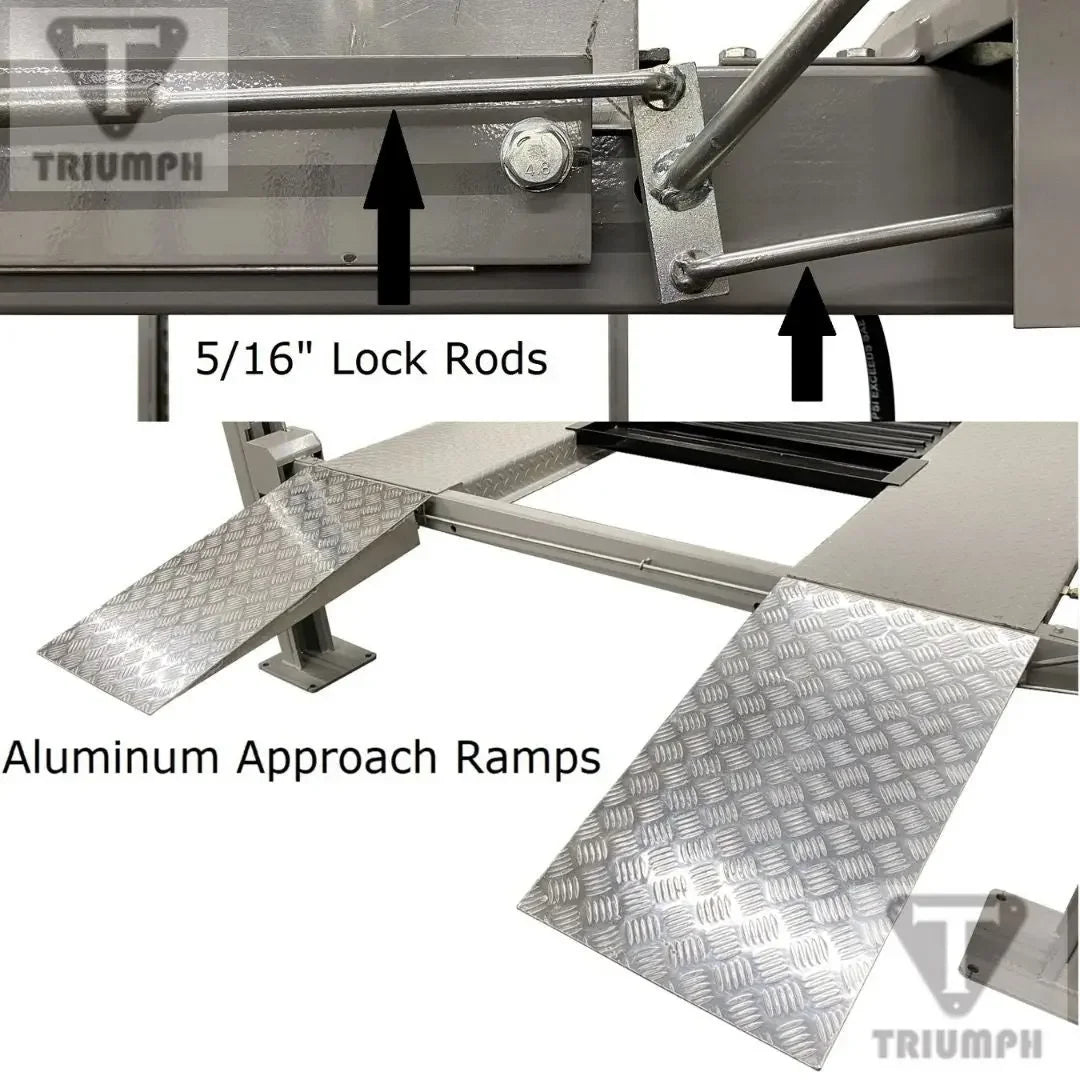

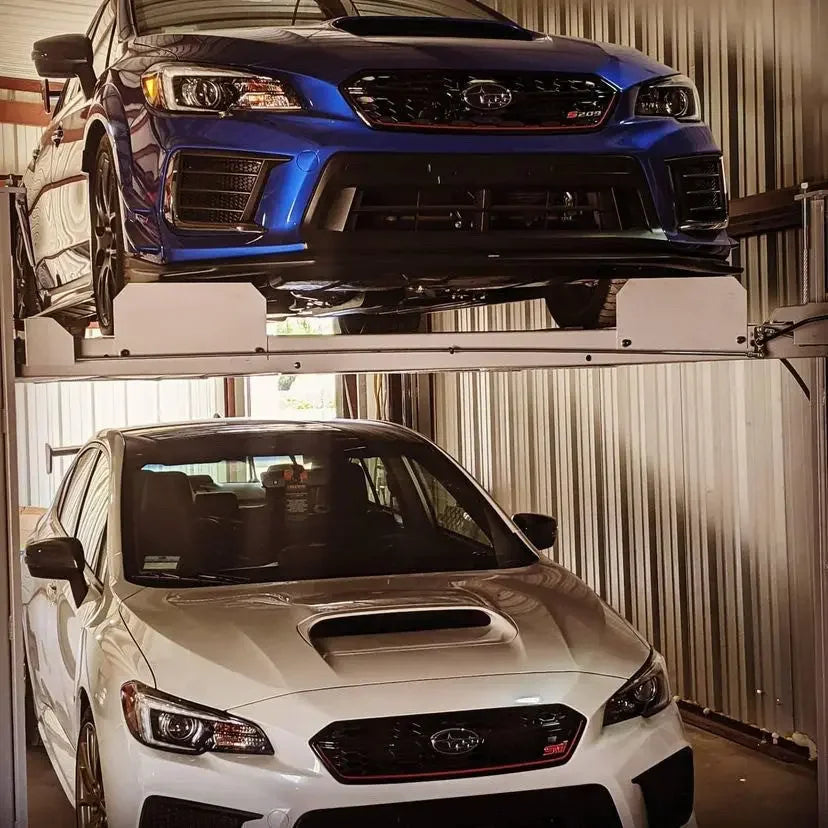

This car lift is great for storage or service. This lift comes with a caster kit, jack tray, and three drip trays. The drips trays will keep any fluid from the top vehicle from dripping on the bottom vehicle. Jack tray allows you to use a bottle jack or floor jack to lift one end of your vehicle. Caster kit allows you to easily move your auto lift around the garage. It is easy to set up and completely portable. If you need to store your car this is the lift for you. A time tested design that has been used for over 20 years. With automatic locking that engage at 10 different positions as you raise the vehicle. The default standard color is Grey.

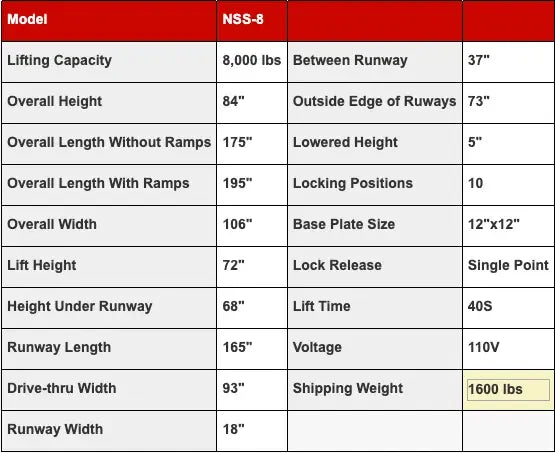

Product Specifications


Lifting Capacity: 8,000 lbs
Max. Capacity / Front Axle: 4,000 lbs
Max. Capacity / Rear Axle: 4,000 lbs


G: Minimum Height 5" (0.41 ft.)
H: Max. Rise (Under Runway) 69" (5.75 ft.)
E - Max. Lifting Height: 72" (6 ft.)
Lifting Time: 40 Seconds

Outside Dimensions

C - Overall Width: 106" (8.83 ft.)
A: Overall Length (Inc.Ramps) 195" (16.25 ft.)
B: Overall Length (No Ramps) 175" (14.58 ft.)
F: Overall Height 84" (7 ft.)

Inside Dimensions

D - Width Between Columns: 37" (3.08 ft.)
I: Drive-Thru Clearance 93" (7.75 ft.)


Runway Width 18" (1.5 ft.)
Runway Length 165" (13.75 ft.)
J: Width Between Runways 37" (3.08 ft.)
K: Outside Edge of Runways NA

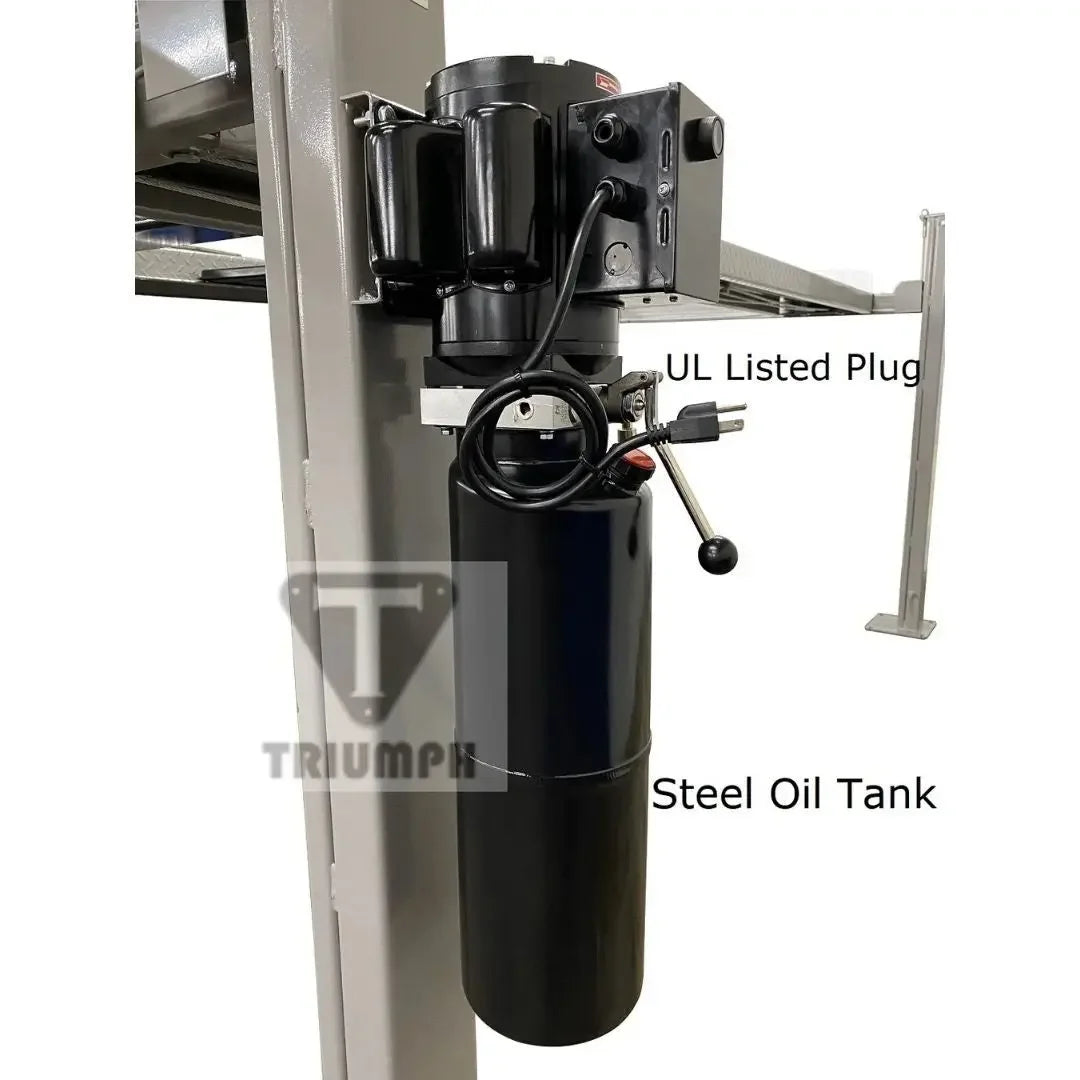

Power Unit

Motor: 110 VOLT POWER


Weight: 1,600 lbs.

Pick Up and Delivery

Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Los Vegas, NV.

Call, text, or chat with us if you have questions. 866-774-7743
