Katool KT-T830 Wheel Clamp Tire Changer Machine
Katool KT-T830 Wheel Clamp Tire Changer Machine

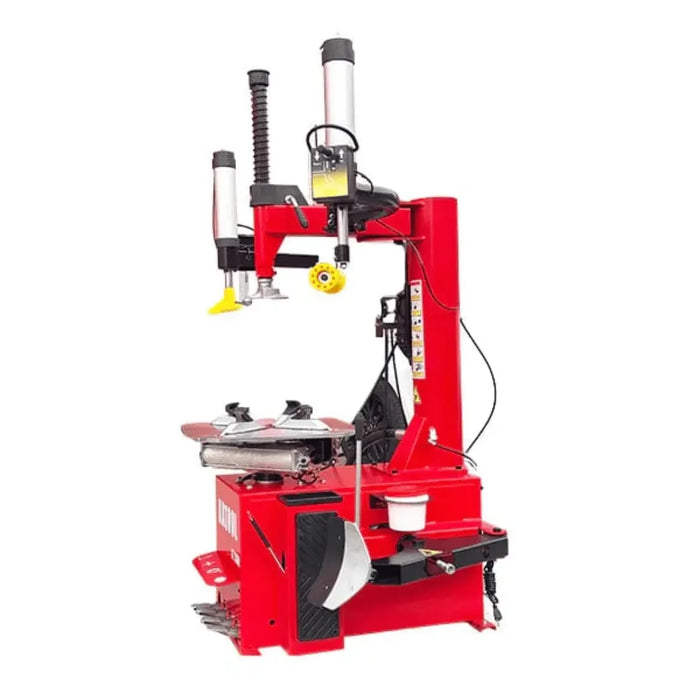

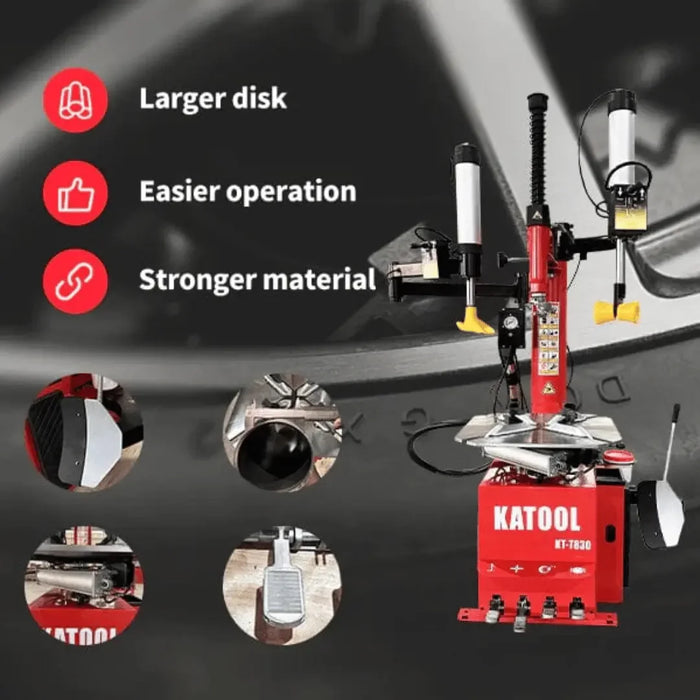

The Katool KT-T830 Wheel Clamp Tire Changer is a powerhouse for changing tires with ease! Its tough alloy steel jaw and stainless steel mounting head are designed for durability. T
The Katool KT-T830 Wheel Clamp Tire Changer offers a strong combination of durability, precision, and user-friendly features that make it a reliable tool for automotive repair shops focused on tire service. Built with solid materials and engineered components, the KT-T830 is ideal for handling a wide range of wheel sizes while protecting rims and easing operator workload.
At the heart of the KT-T830 wheel clamp machine is a 2.0 HP (1.5 kW) motor running on standard 120 V single-phase power. This motor produces ample torque to tackle tight beads and stiff wheels, while its pure copper winding ensures better heat dissipation and a lower failure rate under continuous use. The rotation speed of the turntable is 6.8 revolutions per minute, striking a balance between speed and control during mounting and demounting.
The KT-T830 wheel clamp tire changer can accommodate wheels as large as 41 inches in diameter and as wide as 15 inches, covering most passenger and light truck applications. Its clamping system consists of an outside clamp range of 12 to 22 inches and an inside clamp range of 14 to 24 inches. These ranges offer flexibility and adaptability for various wheel dimensions and designs.
One of the valued features is the alloy steel jaws, precisely treated with carburization of 0.8 to 1.1 mm and full quenching. This treatment gives the jaw interiors toughness while keeping the exterior hardened, and paired with protective jaw covers, these jaws help minimize damage to wheel finishes. The mounting head is crafted from stainless steel, polished and shaped to reduce friction, and includes a plastic cover to safeguard delicate rim surfaces.
For easier operation, the KT-T830 uses a pull-type pedal control system and includes an inflation gauge that is pedal-controlled as well. The spade cover protects rims during inflation, and the bead breaker is powered by a stainless steel cylinder measuring 186 mm (7.32 inches), delivering consistent force. The machine has double side assist arms to help with stubborn beads or low-profile tires, boosting operator ease and safety.
Contact us for more information.
Product Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- Inflation gauge with pedal control
- The high-quality spade cover effectively prevents the rim from being damaged

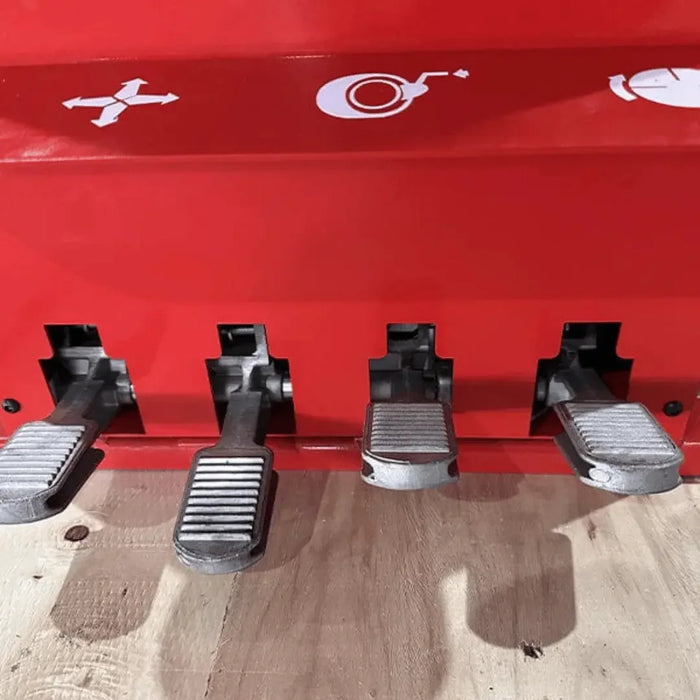

- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

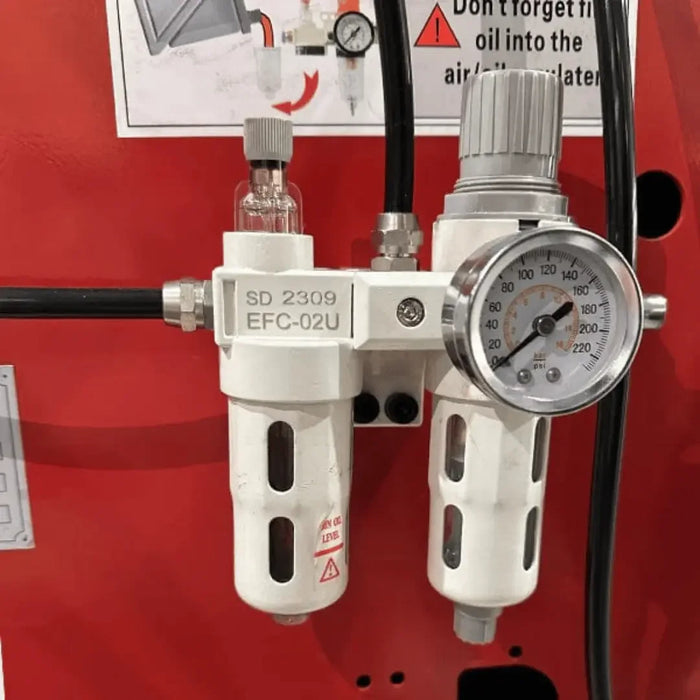

- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Double side assist arm
- Bead blast seater head with post tank

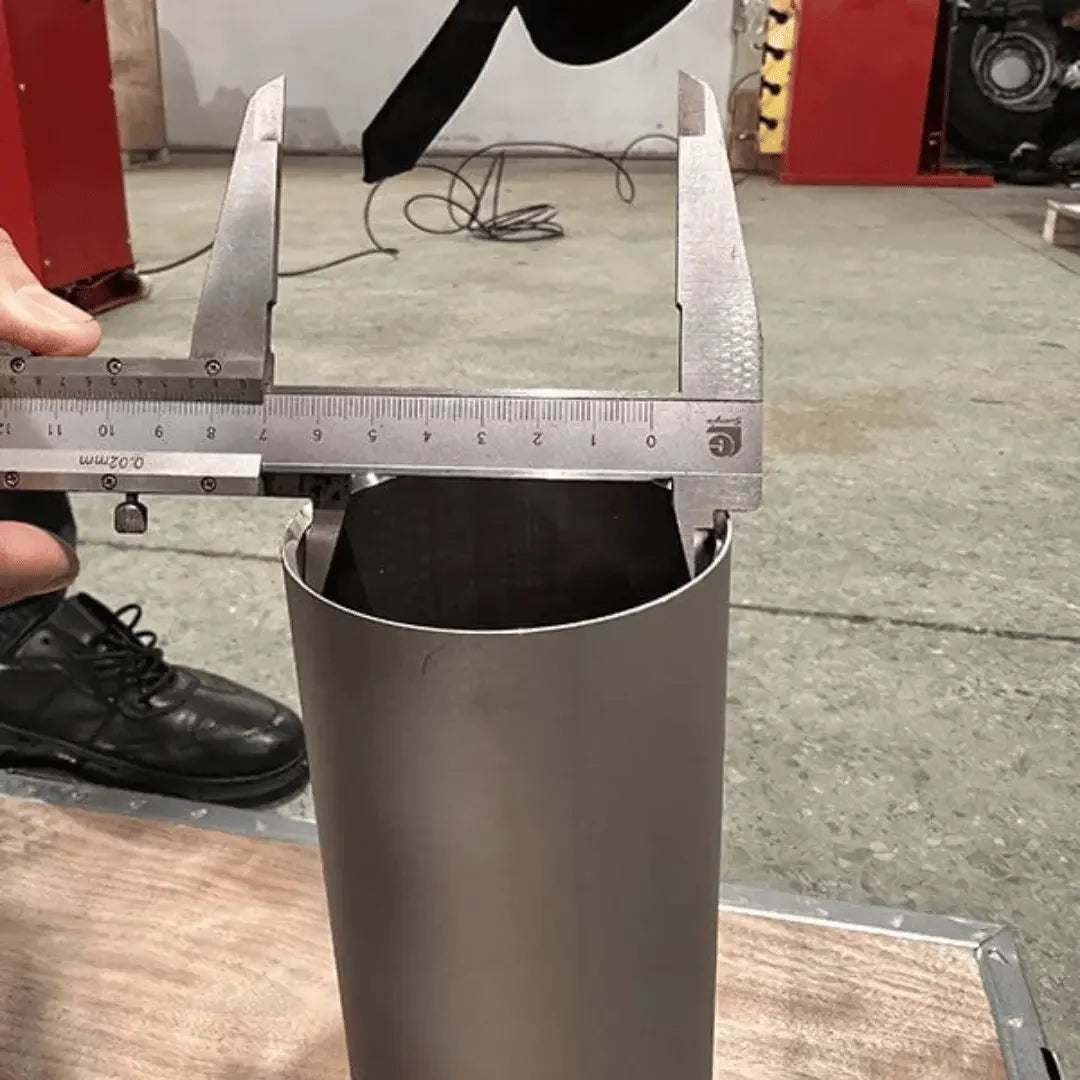

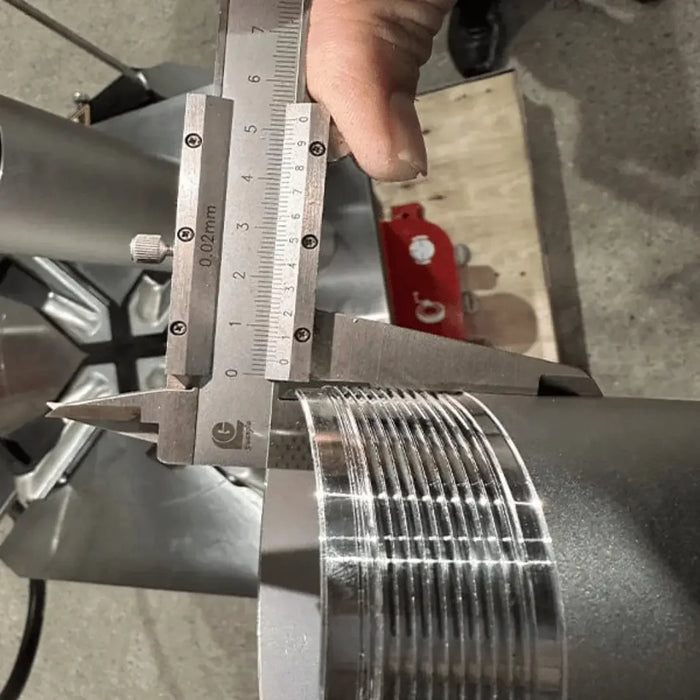

- 186mm / 7.32" stainless bead breaker cylinder
- Closed body for the protection of the parts inside
Product Specifications
| Max Wheel Diameter: | 41"/1040mm |
| Max Wheel Width: | 15"/380mm |
| Outside Clamp: | 12"-24" |
| Inside Clamp: | 14"-26" |
| Power Supply: | 120V 1PH |
| Motor Power: | 2.0HP/1.5KW |
| Rotation Speed: | 6.8r/min |
| Air Pressure: | 0.8-1.0Mpa (116-145psi) |
| Net weight: | 240KG/529lbs |
Tire Changer Installation – Quick Guide
- Prepare Area: Use a level concrete floor with space and proper power/air access.
- Unpack & Inspect: Check for damage or missing parts.
- Anchor Machine: Bolt to the floor if required.
- Connect Power: Match voltage, follow wiring diagram, and ground properly.
- Attach Air Supply: Connect to regulated compressed air (110–145 PSI).
- Function Check: Test all controls – turntable, bead breaker, inflation.
- Calibrate & Lube: Add tire lube, adjust settings, and ensure safe operation.
