Atlas Air Force AF9-17 7.5HP 80 Gallon Two Stage Commercial Grade A...
Product Description
Atlas Air Force AF9-17 7.5HP 80 Gallon Two Stage Commercial Grade Air Compressor
The Atlas Air Force AF9-17 is a high-performance, commercial-grade air compressor designed for rigorous industrial applications. With a powerful 7.5 horsepower motor, this compressor operates on 220 volts and requires a 50-amp breaker. It delivers an impressive 24.8 CFM at 100 PSI and 22.8 CFM at 175 PSI, ensuring you have the air supply needed for demanding tasks. The pressure setting ranges between 145 and 175 PSI, making it versatile for various uses.
Durable and Efficient Design
The AF9-17 features an 80-gallon tank with a 1/2" NPT air outlet size, providing ample capacity for extended use without frequent refills. The compressor pump is a TK50 3-cylinder, 2-stage model, known for its durability and efficiency. The vertical tank orientation allows for a smaller footprint, making it easier to fit in tight spaces.
Specifications and Performance
This compressor's overall dimensions are L 36 1/2" x W 24" x H 71", and it weighs 627 lbs. The TK50 pump is designed to handle high workloads, ensuring consistent performance in even the most demanding environments. The solid construction and high-quality components make this compressor a reliable choice for professional workshops and industrial settings.
Ease of Use and Installation
The Atlas Air Force AF9-17 is designed for easy installation and operation. Its 220-volt, single-phase motor is straightforward to set up with the help of a certified electrician. The robust design and powerful motor ensure that this compressor can handle a variety of tools and applications, making it a versatile addition to any workspace.
Key Features:
- Motor: 7.5 HP, 220 volts, single-phase
- CFM Delivery: 24.8 at 100 PSI, 22.8 at 175 PSI
- Pressure Setting: 145-175 PSI
- Tank Capacity: 80 gallons (vertical)

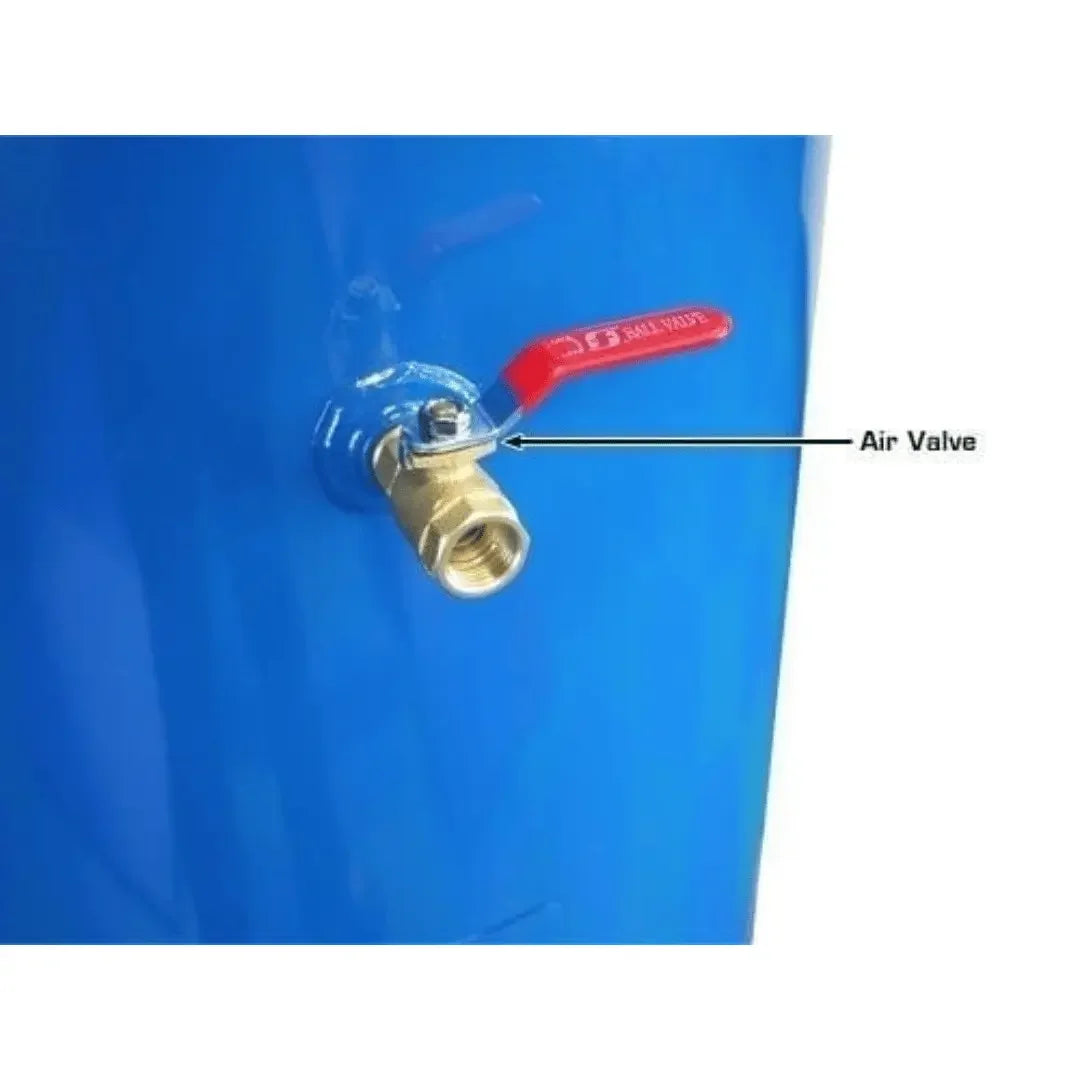

- Air Outlet Size: 1/2" NPT
- Dimensions: L 36 1/2" x W 24" x H 71"
- Weight: 627 lbs
Product Features
- 2-Stage Pump

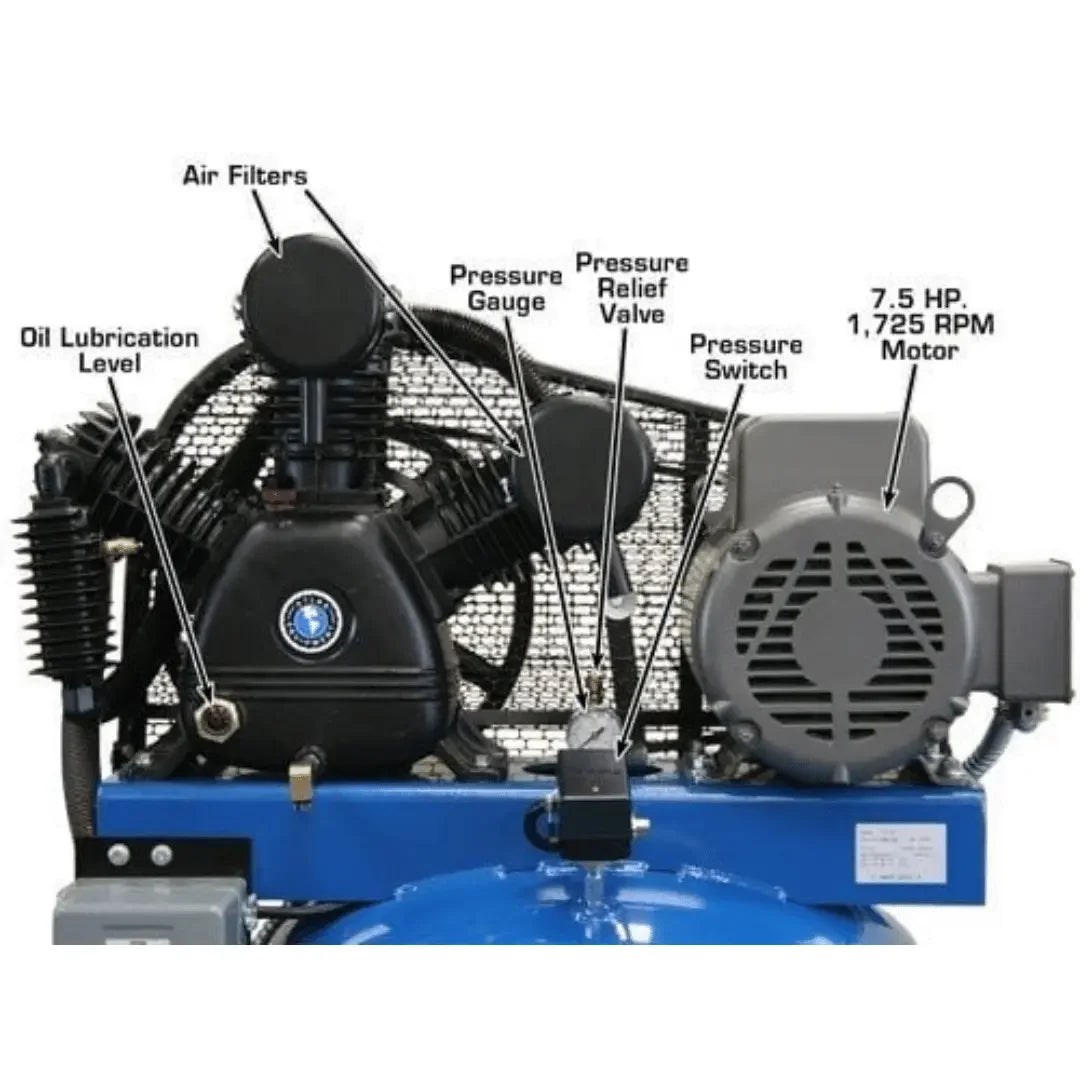

- 7.5hp, 1725 RPM Motor
- 80 Gallon Vertical Tank (Made in the USA)
- Air Output 145-175 PSI
- Extremely Quiet Operation

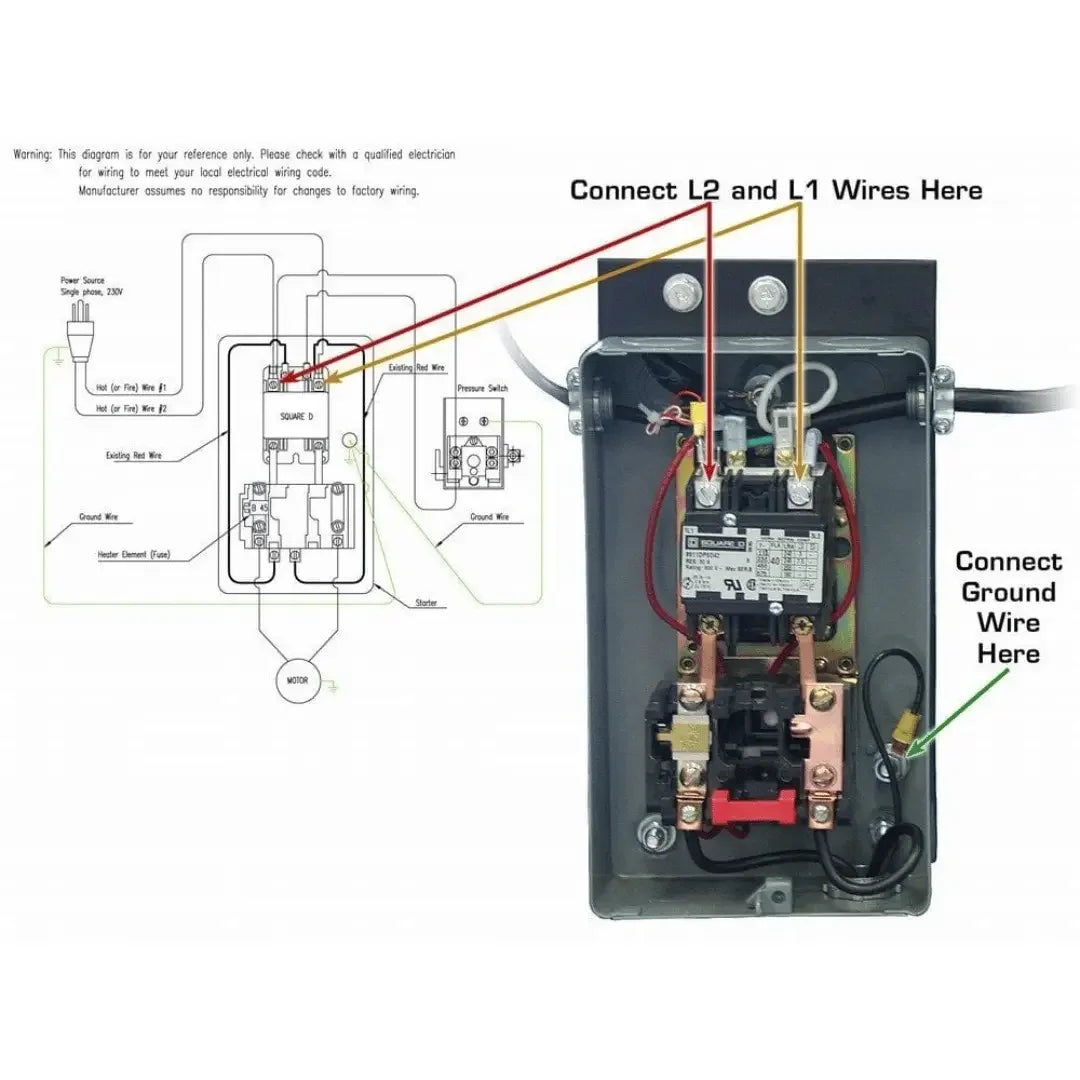

- Magnetic Starter Included

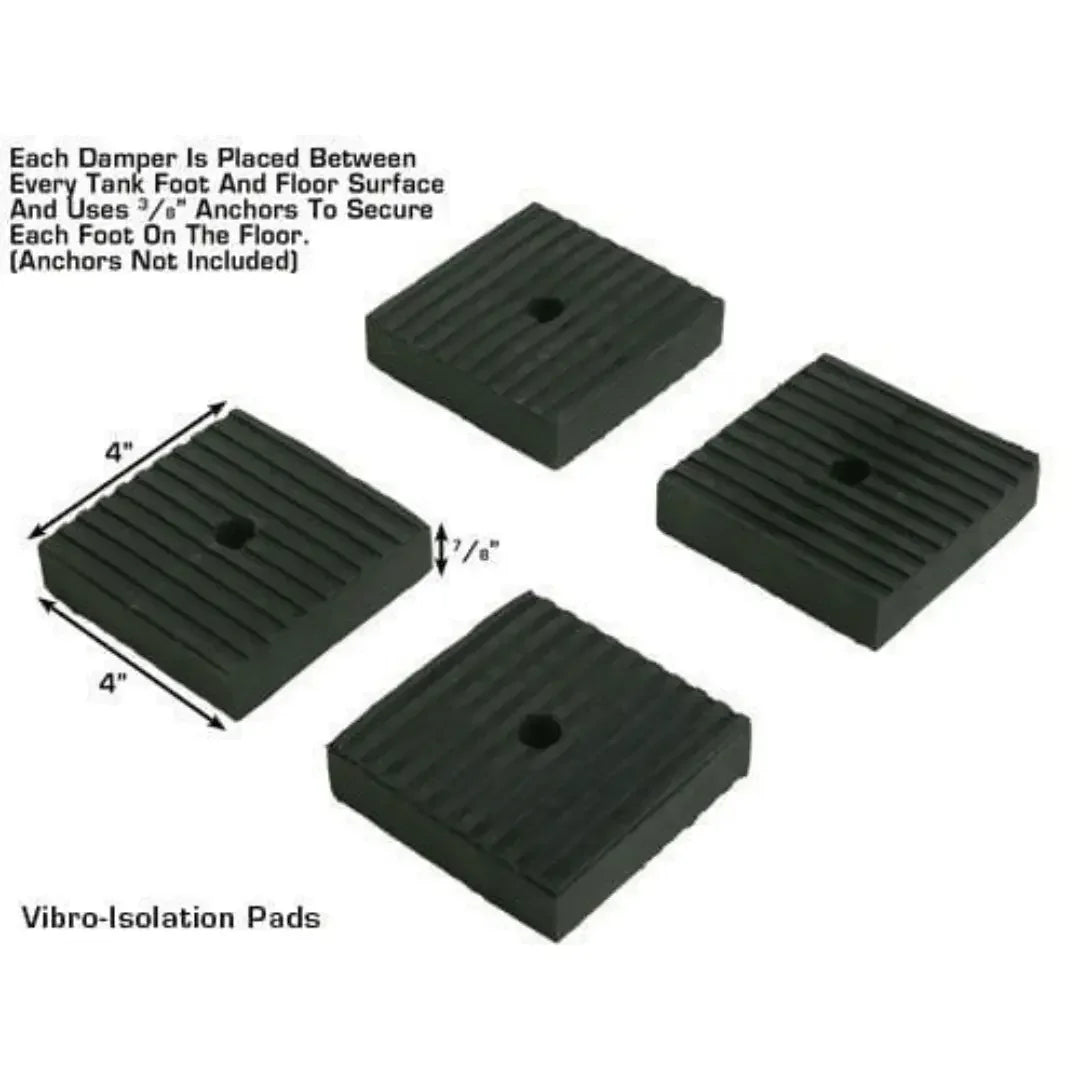

- Set of Vibro-Isolation Pads Included

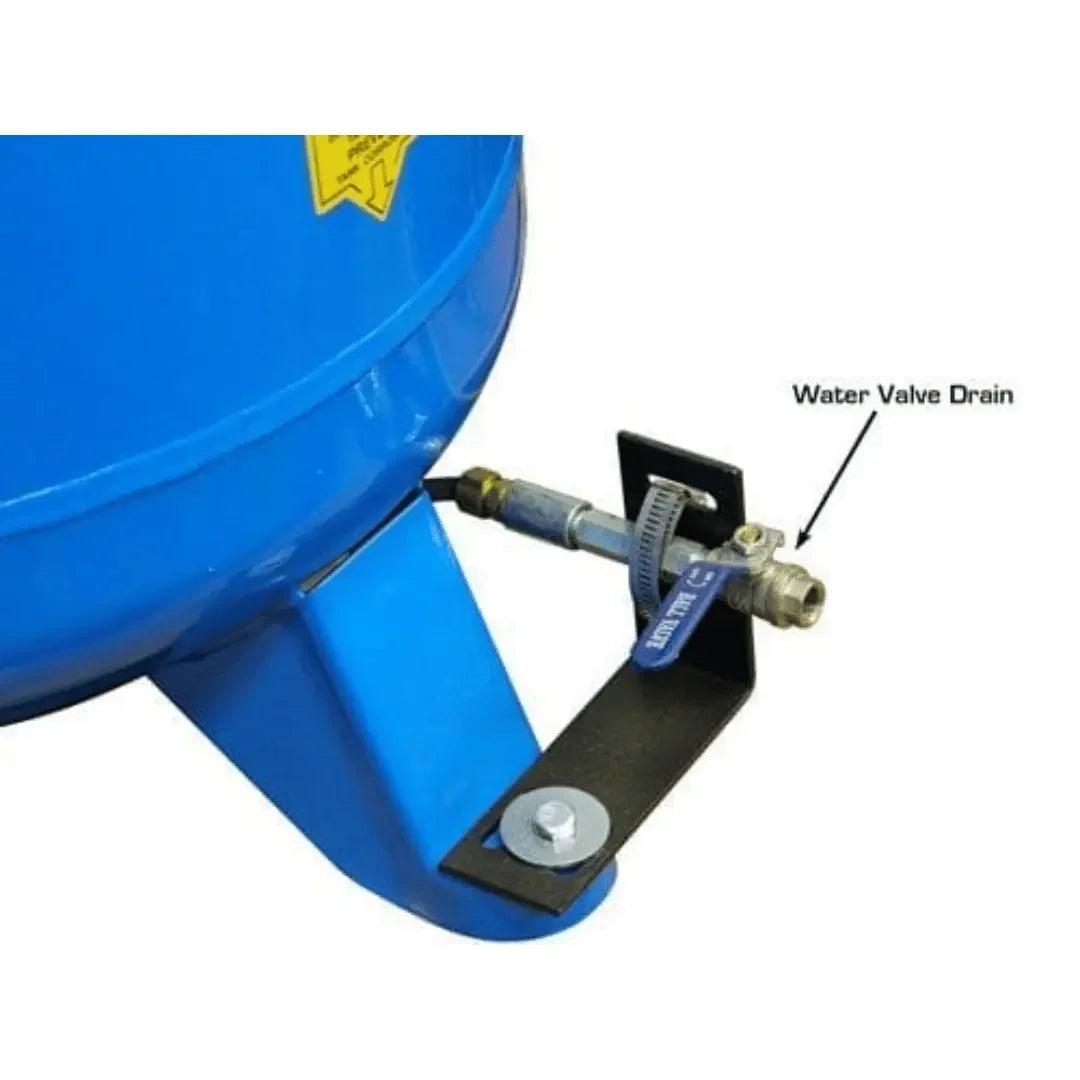

- Hands free tank drain extension
- Compressor oil drain extension tube
- Finned tank inlet tube for reduced tank water accumulation

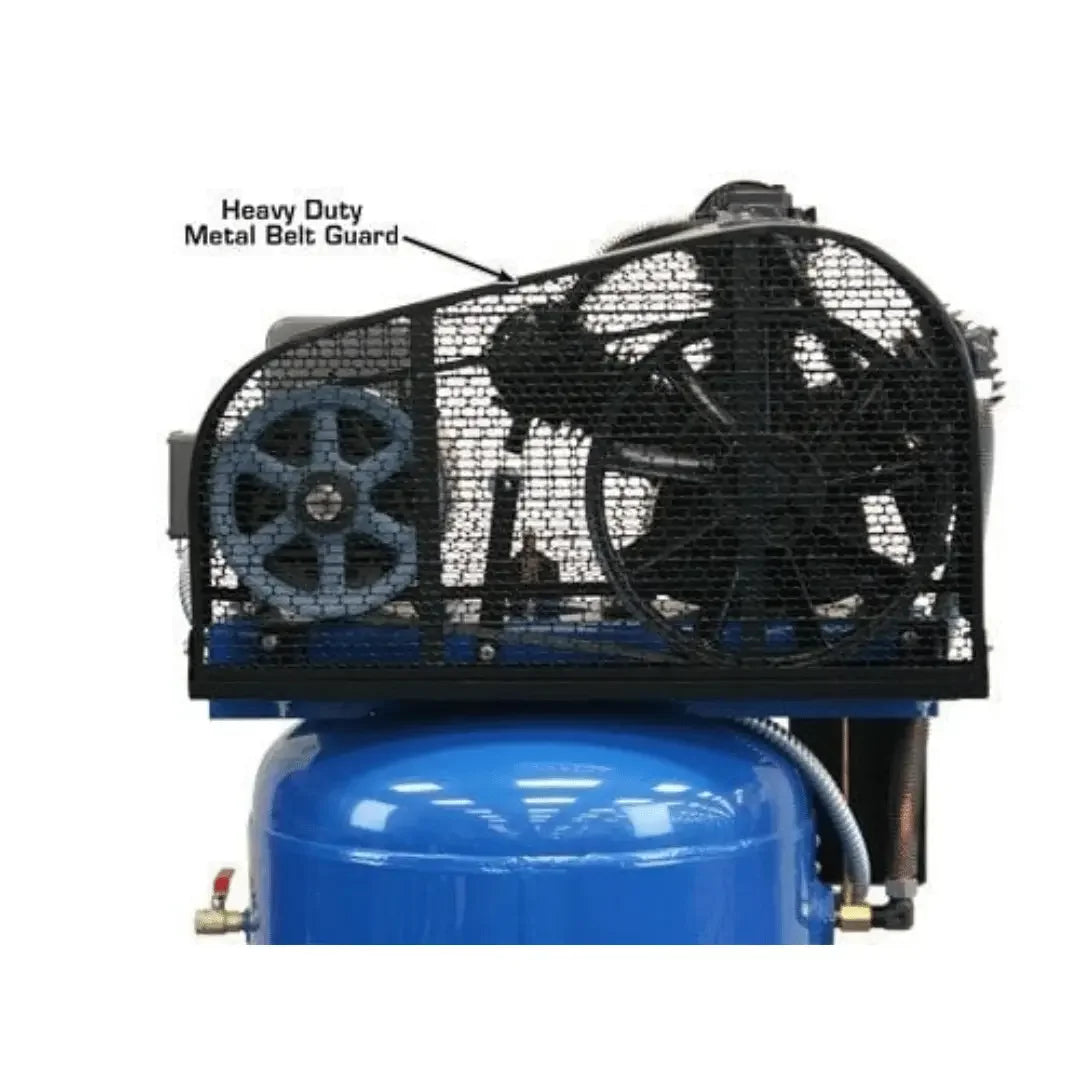

- Heavy Duty Metal Belt Guard
- Electric: 220volt/1phase
- 1 Year Parts Only Warranty
Product Specifications
| Model | Air Force AF9-17 |
| Motor Running | 7.5 Horsepower |
| Delivered-CFM 100 PSI | 24.8 |
| Delivered-CFM 175 PSI | 22.8 |
| Pressure Setting | 145-175 PSI |
| Tank Capacity | 80 Gallons |
| Air Outlet Size | 1/2" NPT |
| Overall Dimensions | L 36 1/2" x W 24" x H 71" |
| Motor Voltage | 220volt, 1PH, 50 amp breaker required |
| Compressor Pump | TK50 3 Cylinder, 2-Stage |
| Shipping Weight | 627 lbs. |
