Product Description

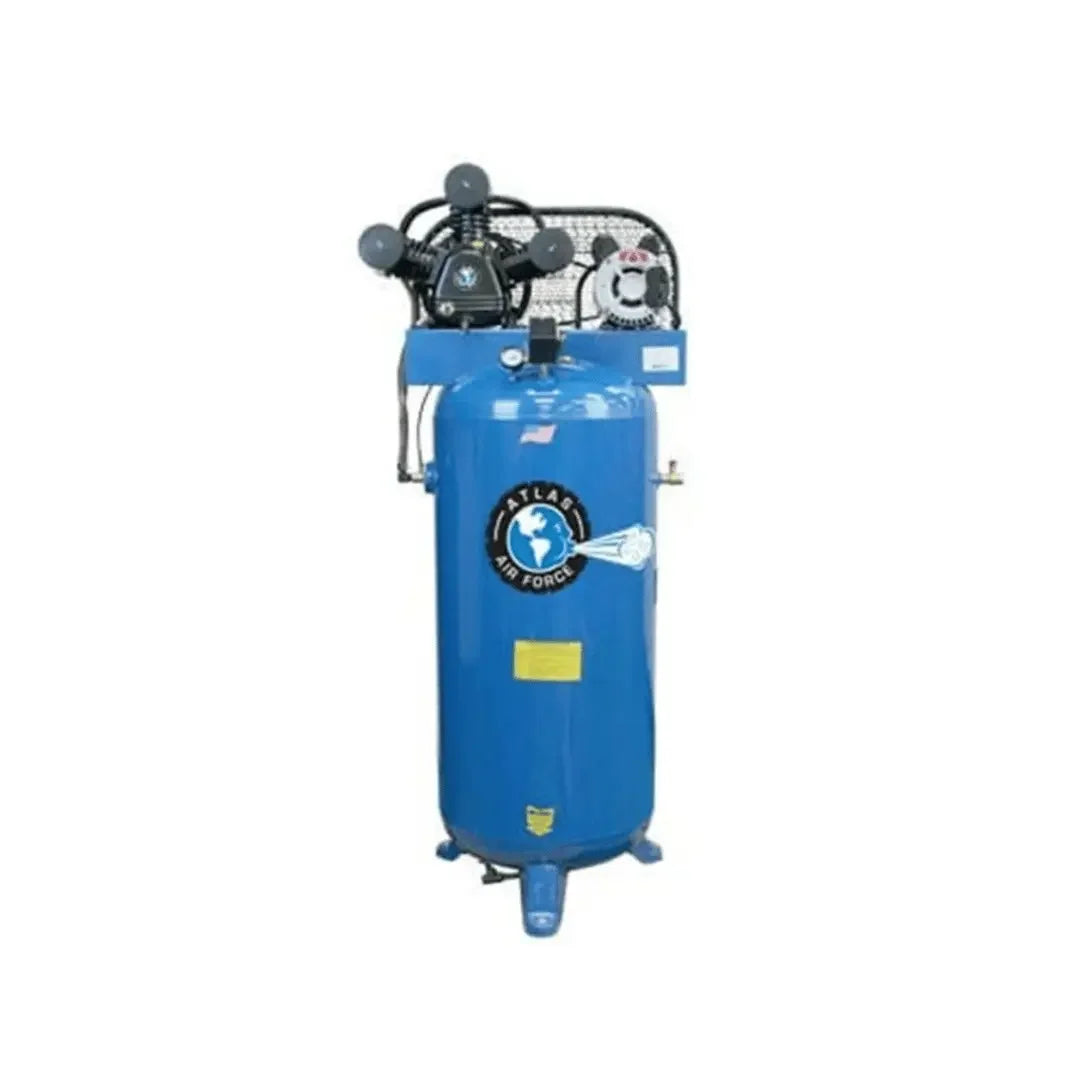

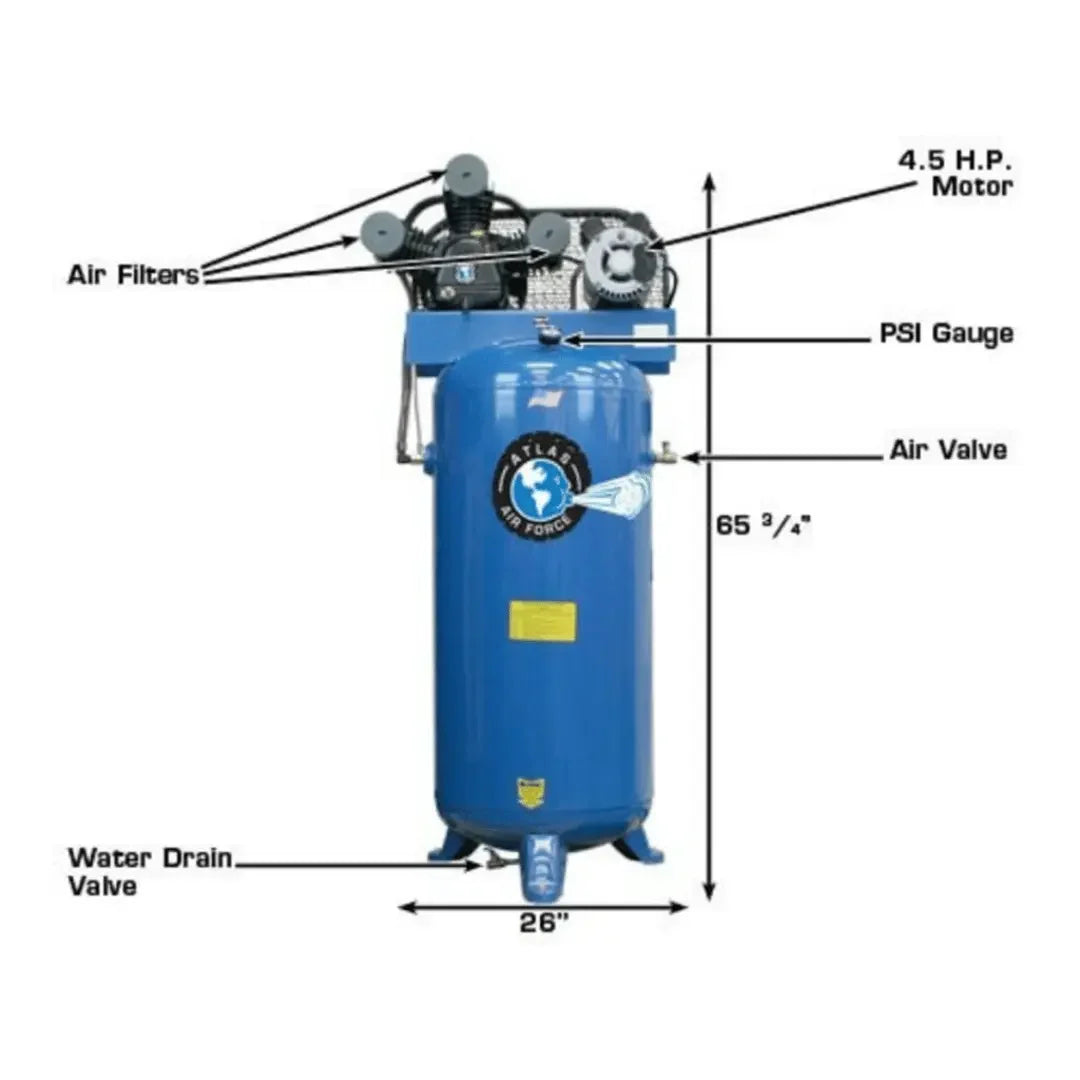

Atlas Air Force AF5 4.5HP 60 Gallon Single-Stage Air Compressor
The Atlas Air Force AF5 is a robust and efficient single-stage air compressor, perfect for both professional and home use. Featuring a 4.5 HP running motor with a peak of 6.5 HP, this compressor operates on 220 volts single-phase power. It delivers 20.0 CFM at 40 PSI and 18.0 CFM at 90 PSI, with a pressure range of 90-135 PSI, making it suitable for various applications.
High-Performance and Quiet Operation
The AF5 includes a PP65 3-cylinder, single-stage pump, ensuring reliable performance. Despite its powerful output, the compressor operates extremely quietly, ideal for environments where noise control is important. Vibro-Isolation pads are included to reduce vibrations and enhance stability.
Durable Construction and Easy Maintenance
Equipped with a 60-gallon vertical tank made in the USA, the AF5 provides ample air capacity. The compressor features a hands-free tank drain extension, a compressor oil drain extension tube, and a finned tank inlet tube to minimize water accumulation. Its heavy-duty metal belt guard ensures durability and safety.
Key Features:
- Motor: 4.5 HP running, 6.5 HP peak, 220 volts single-phase
- CFM Delivery: 20.0 at 40 PSI, 18.0 at 90 PSI
- Pressure Setting: 90-135 PSI
- Tank Capacity: 60 gallons (vertical, made in the USA)
- Operation: Extremely quiet with Vibro-Isolation pads
- Construction: Heavy-duty metal belt guard, finned tank inlet tube, hands-free tank drain extension
The Atlas Air Force AF5 air compressor is a reliable and efficient choice for various air supply needs.

Product Features
- 1-Stage Pump
- 4.5hp Running, 6.5hp Peak Motor
- 60 Gallon Vertical Tank (Made in the USA)
- Air Output 90-135 PSI
- Extremely Quiet Operation

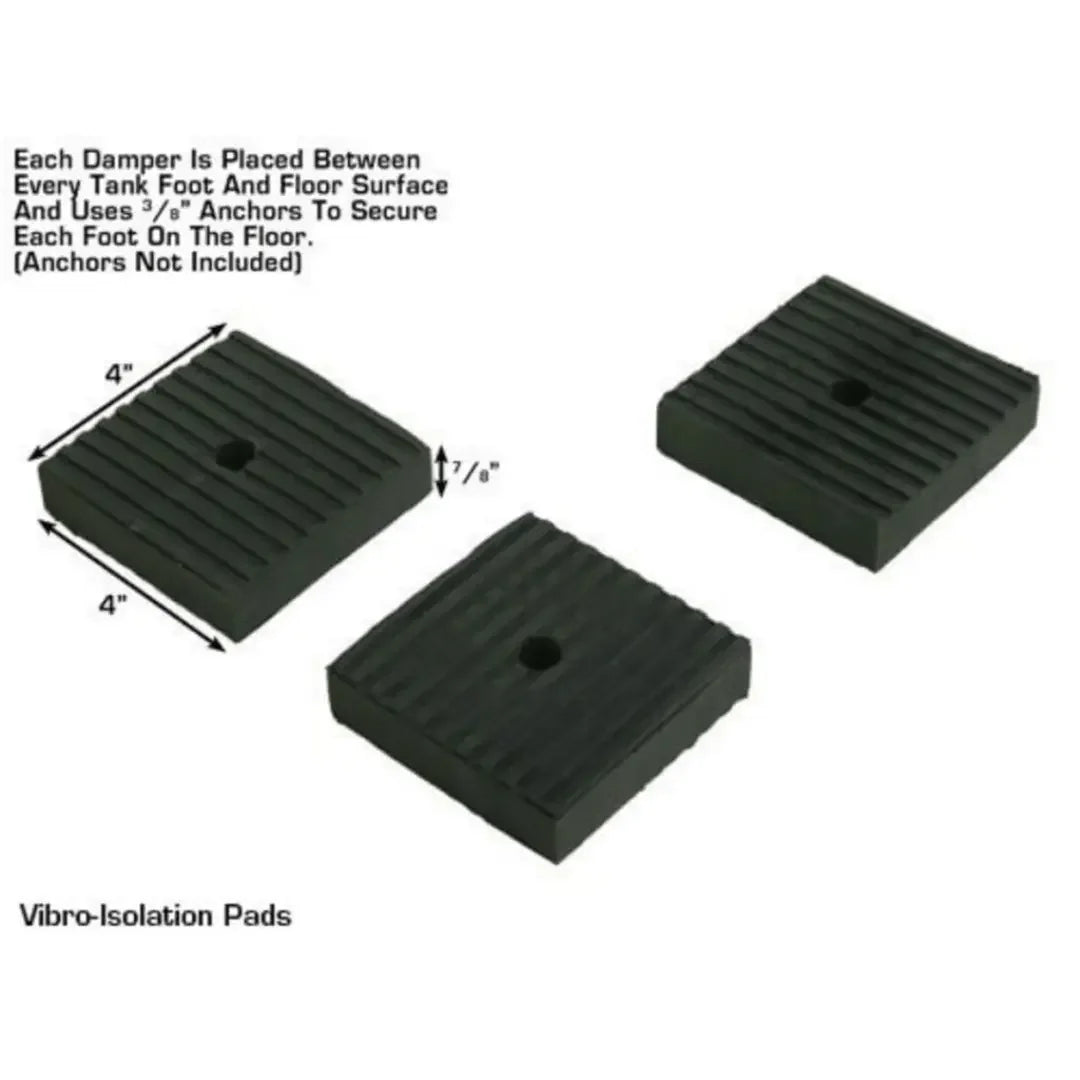

- Set of Vibro-Isolation Pads Included

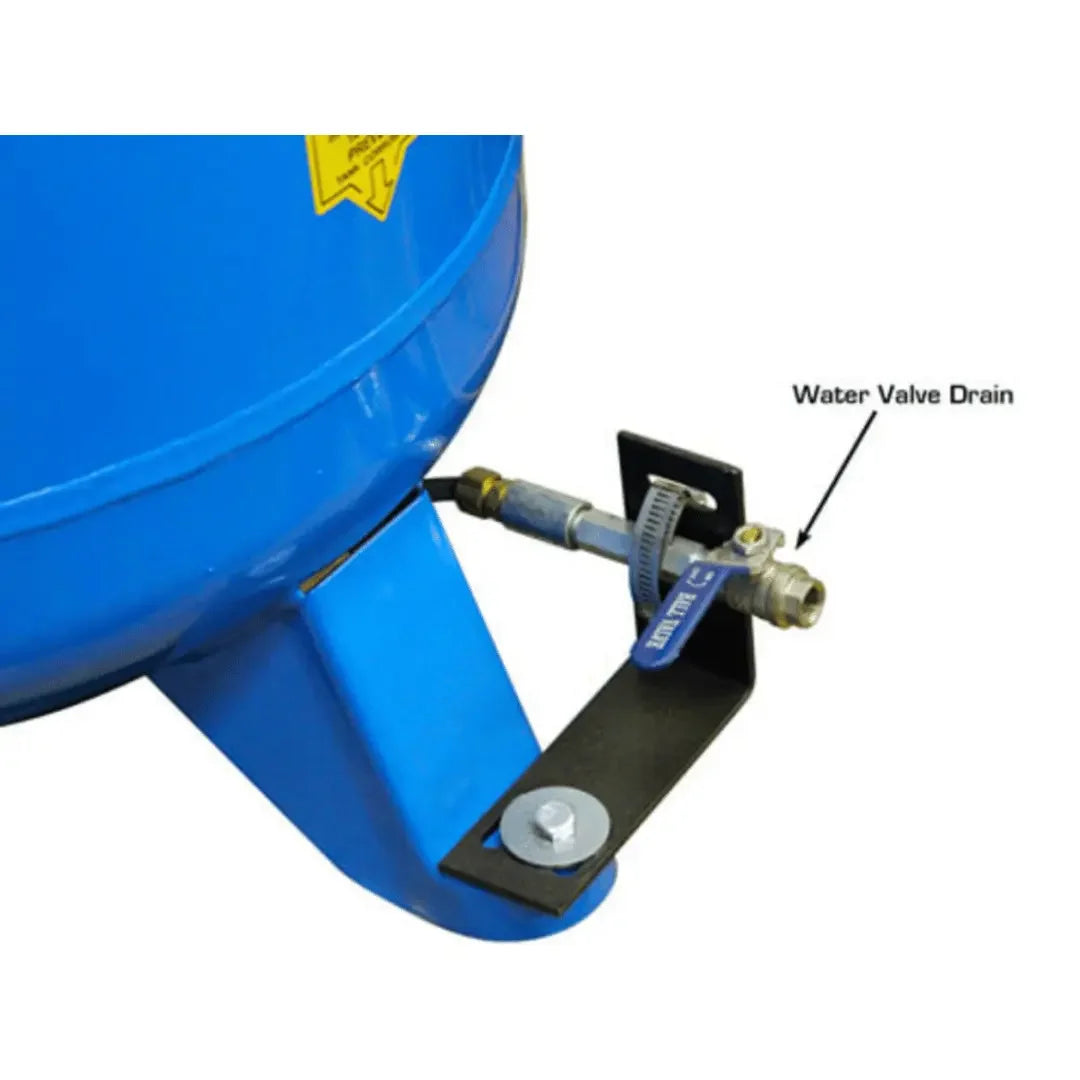

- Hands free tank drain extension
- Compressor oil drain extension tube
- Finned tank inlet tube for reduced tank water accumulation

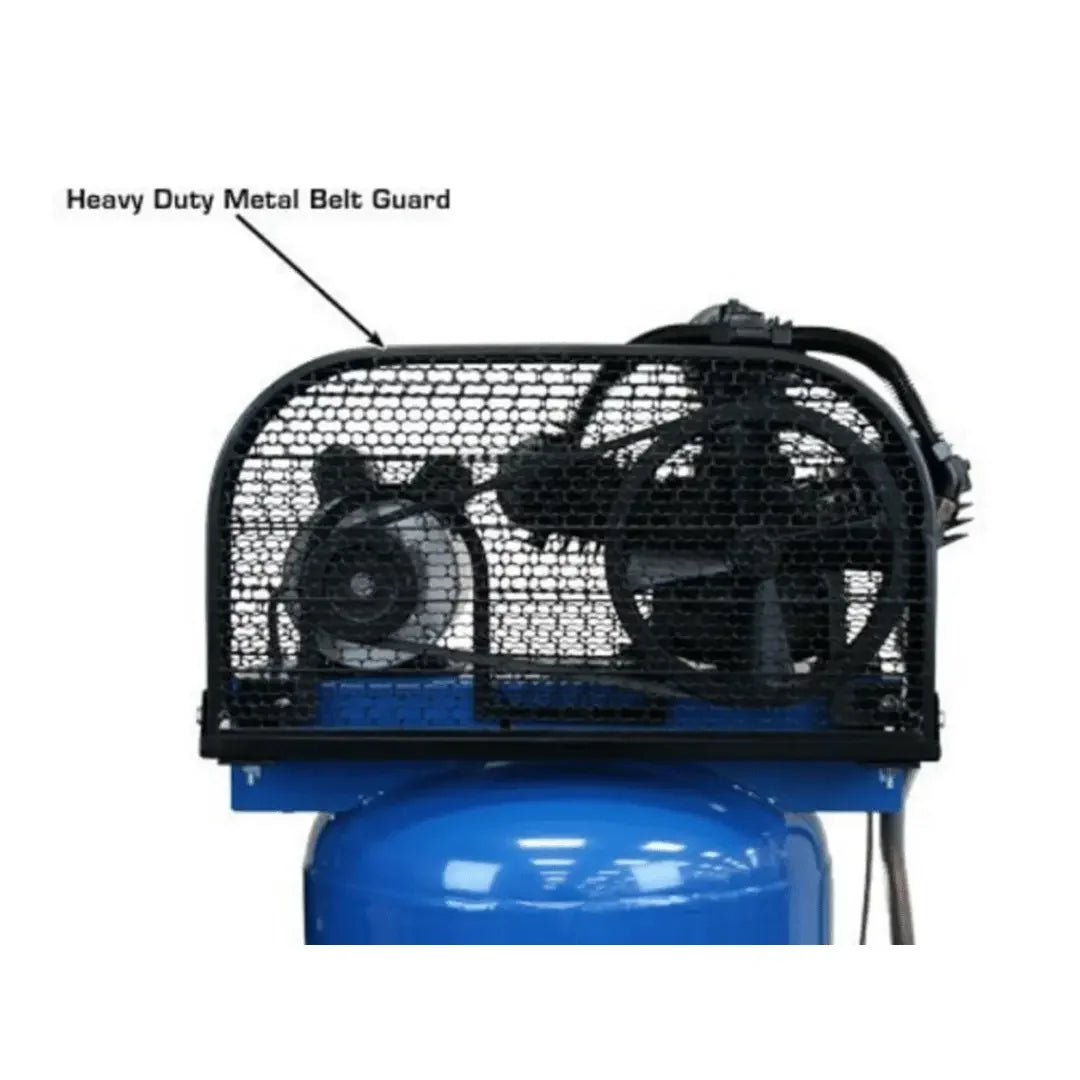

- Heavy Duty metal Belt Guard
- Electric: 220volt/1phase
- 1 Year Parts Only Warranty

Product Specifications
Model | Air Force AF5 |
Motor Running | 4.5 Horsepower |
Delivered-CFM 40 PSI | 20.0 |
Delivered-CFM 90 PSI | 18.0 |
Pressure Setting | 90-135 PSI |
Tank Capacity | 60 Gallons |
Air Outlet Size | 1/2" NPT |

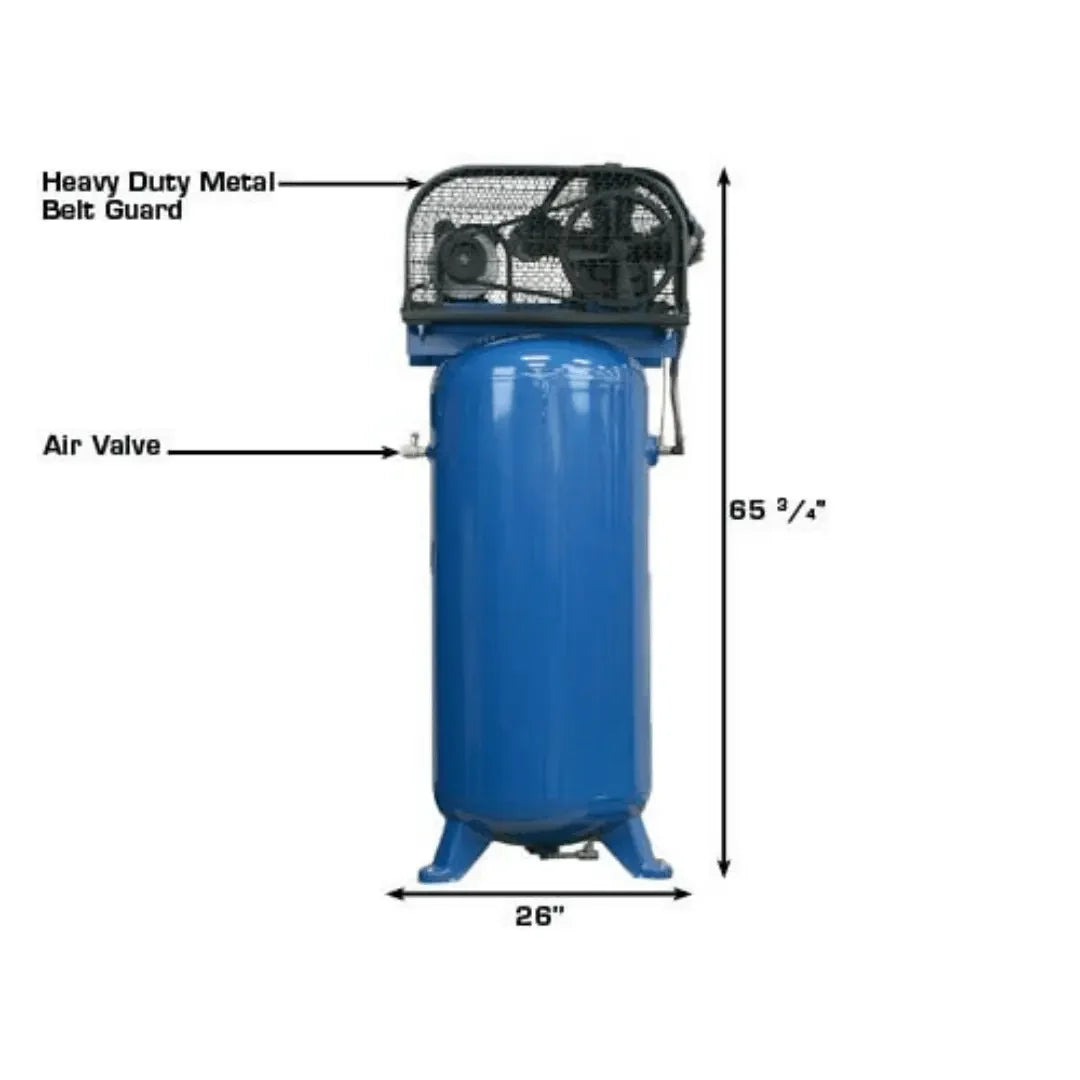

Overall Dimensions | L 25 1/2" x W 18" x H 65 3/4" |

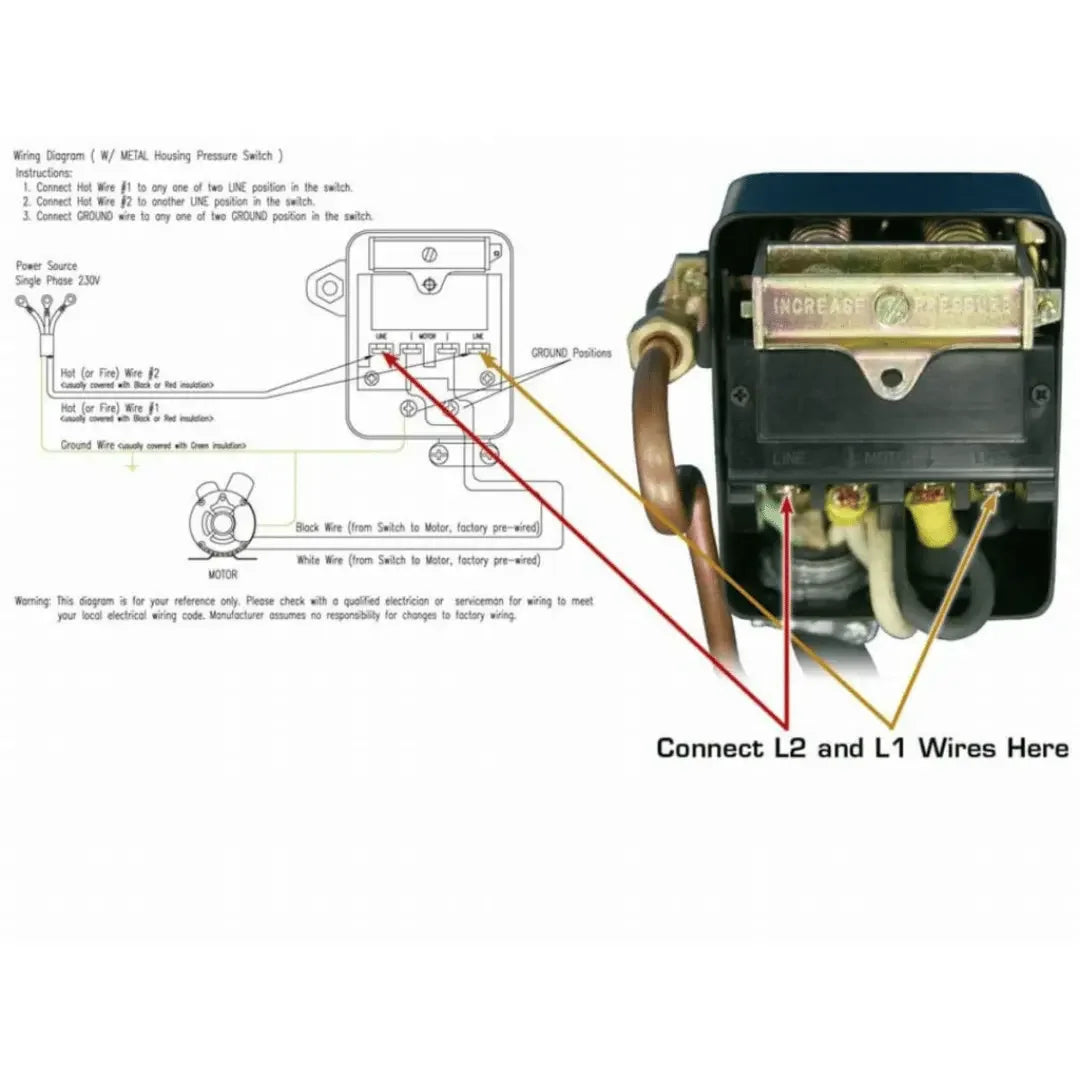

Motor Voltage | 220volt, 1PH, 30 amp breaker required |

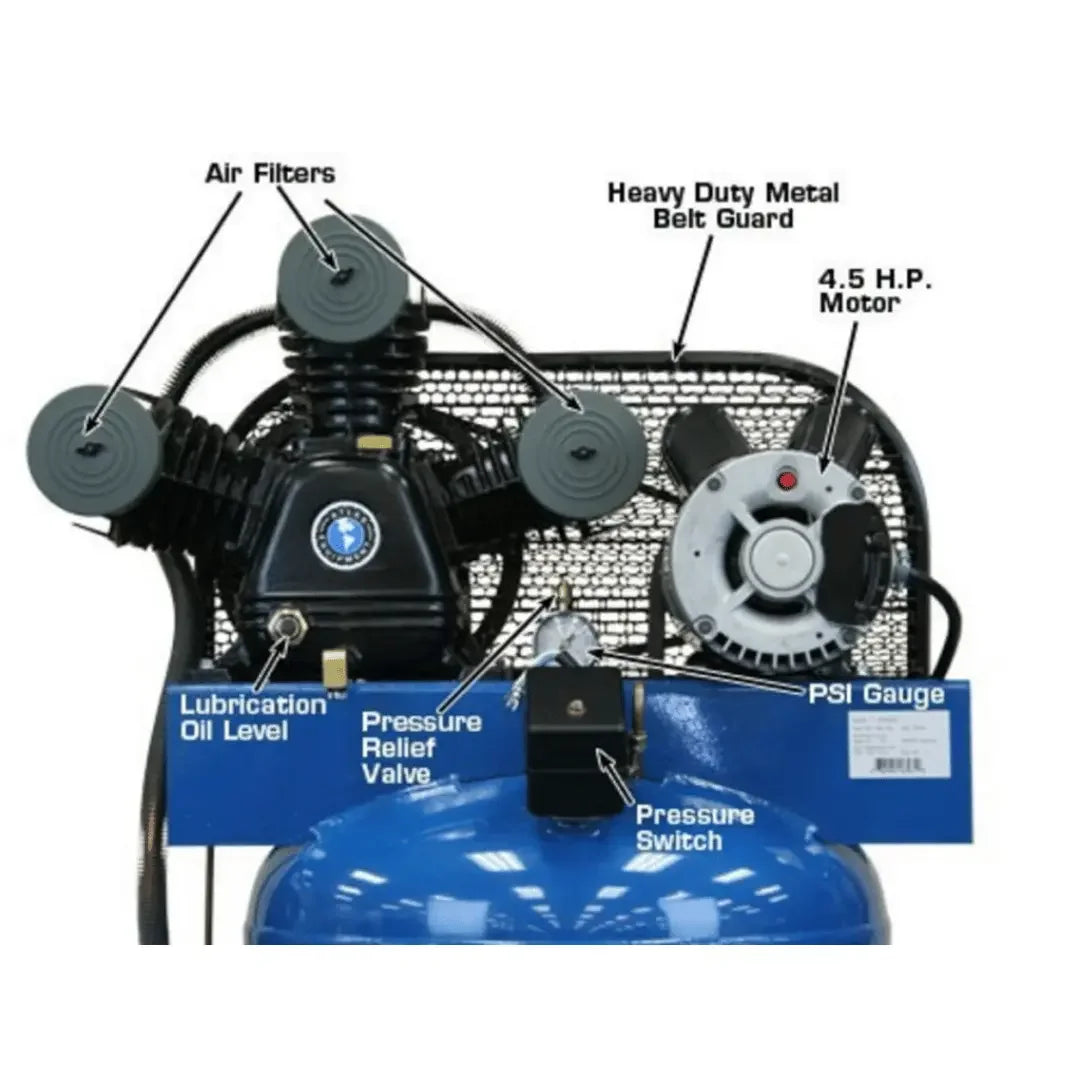

Compressor Pump | PP65 3 Cylinder, 1-Stage |
Shipping Weight | 390 lbs. |

Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
