LANAIR XT200 Waste Oil Heater Value Package 2

SKU/Product #: 81012002


Write a review
$8,975.99 $8,975.99

Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save

Product Description

LANAIR XT200 Waste Oil Heater Value Package 2

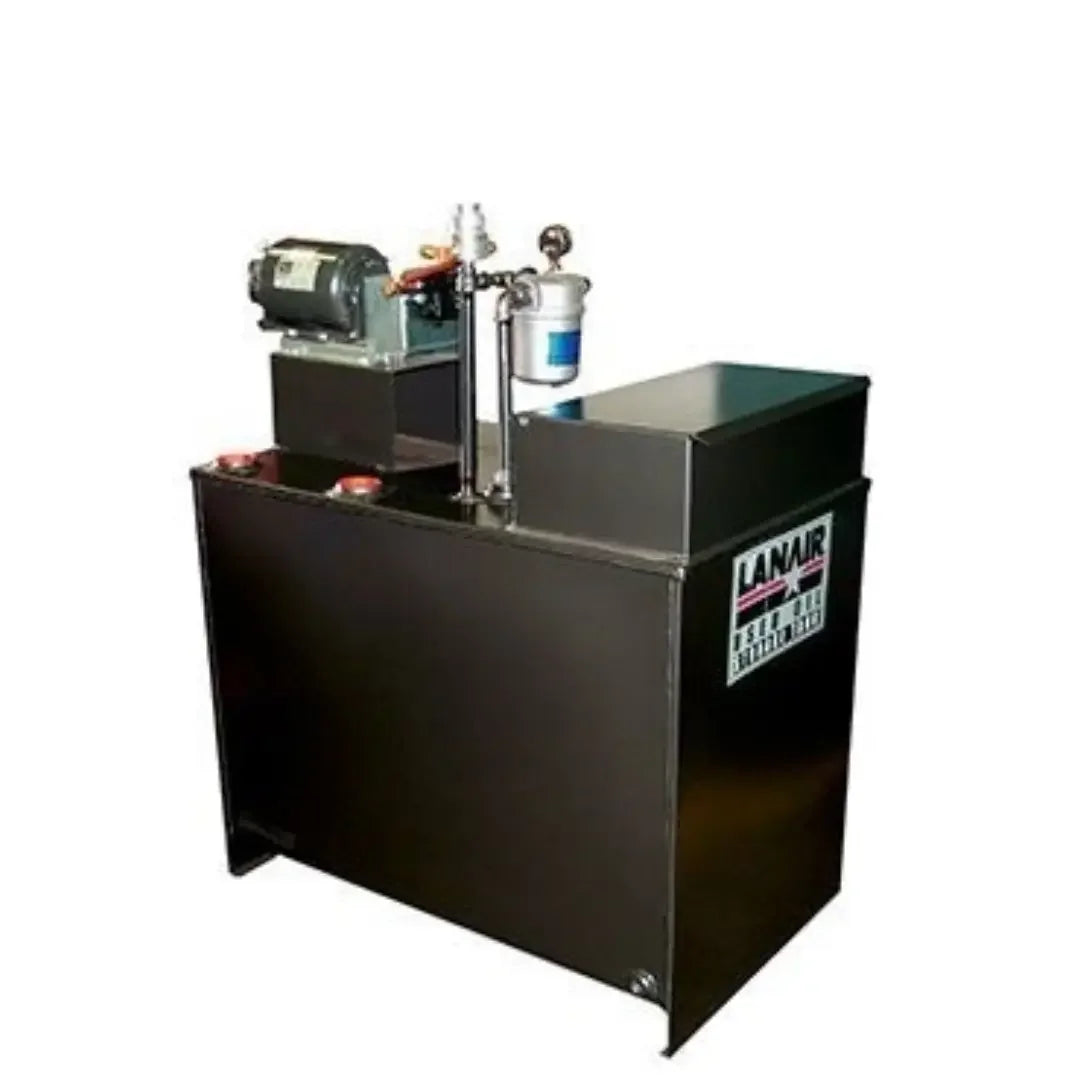

Heater with 80 gallon tank and thru roof 6" chimney kit

Chimney Kit Includes (16' eave): 1 chimney cap, 1 (24") Class A chimney pipe, 1 storm collar, 1 roof flashing 0/12-6/12, 1 (36") Class A chimney pipe, 1 finishing collar, 1 (14") slip connector, 4 (24") black pipe, 1 black tee pipe w/cap, 1 roof support bracket, 1 (90°) elbow

The XT Series heaters by Lanair are our most advanced units to date. We combine the latest burner technology with the latest lean manufacturing efficiencies to produce a quality, reliable heater at the lowest price in the industry. Factor in unstable fuel prices and escalating disposal costs and you'll see that purchasing a Lanair XT Series Heater is indeed... "The Right Choice at the Right Time!"

The XT-200 Waste Oil Heater is our second smallest unit pushing out up to 200,000 BTU's an hour. It features a fine grained galvanized (rust-resistant) cabinet to protect it in most shop environments, a high performance XT series burner that burns more efficient than any other burners to date, an internal fan to reduce excess noise in your shop, and adjustable locking louvers to direct air flow. All our units are UL listed so you can be assured that safety is a high priority with all Lanair products.

Product Specifications

Heat Range (BTUH) 200,000
Fuel Input (GPH) 1.44
Fuel Type Waste oil (used crankcase oil up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, used C.C. synthetic ATF #1 and #2, used automatic transmission fluid
Heating Area (sq. ft.) 5,000
Power Supply (AC) 120 V-60Hz 20 Amps
Cabinet Dimensions (L x W x H) 24" x 40.25" x 48"
Hanging Weight (lbs.) 413
Axial Fan (CFM) 2,600
Chimney Pipe 6" Class A
Compressed Air 2 CFM – 12-15 PSI
Combustion Chamber 12 Gauge CRS
Ductable Option Call
Chimney Location Top and Side
