Shipping-FAQ's
Shipping Info
At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.
I Have The Equipment To Unload My Order
- Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.Aspects to keep in mind when choosing this option.
- The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
- Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
- You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
- Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
- There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
- In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.
Do you have a hitch trailer to transport your lift? If so, then this might be the best option.
Aspects to keep in mind when choosing this option.
1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.
Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.
You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.
Neither of the above delivery options suits you? Then we have the solution.
We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.
Aspects to keep in mind when choosing this option.
1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).
Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.
Atlas 12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jack Combo
Product Description
Atlas 12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jack Combo
The Atlas® alignment lift has a lifting height of over seven feet so that it may be floor mounted or recessed if the customer decides on a flush mount installation. The full frame under the scissor lift provides for maximum stability. The extra long 53″ long approach ramps make it easy to load low riding vehicles.
Quality workmanship, ease of operation, a durable powder coat finish and the lowest prices in the Industry makes the Atlas® 12ASL 12,000 alignment scissor lift the perfect choice for the demanding and discriminating shop owner.
Worried about bay space? An Atlas Alignment System allows the customer to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one ton dual rear wheel pickup truck.
Welded rails on the inside of the runways are standard on all lifts, allowing the bundled Atlas® RJ-6 (6,000 lbs. capacity) air/hydraulic rolling jack system on his Atlas® alignment scissor lift. The Atlas® RJ-6 is designed and engineered to operate on “delivered” air pressure of between 70-105 PSI.
Product Features
12AWFSL Alignment Scissor Lift
- 12,000 LB. Capacity
- Commercial Grade
- Scissor Alignment Lift
- Built in “Wheels Free” Lifting System
- Built in Slip Plates and Alignment Turntables Included
- Turntable Covers Included
- Open Center Design for Easy Access
- Air-Operated Single Point Lock Release (External Air Supply Required)
- Airline Kit Included

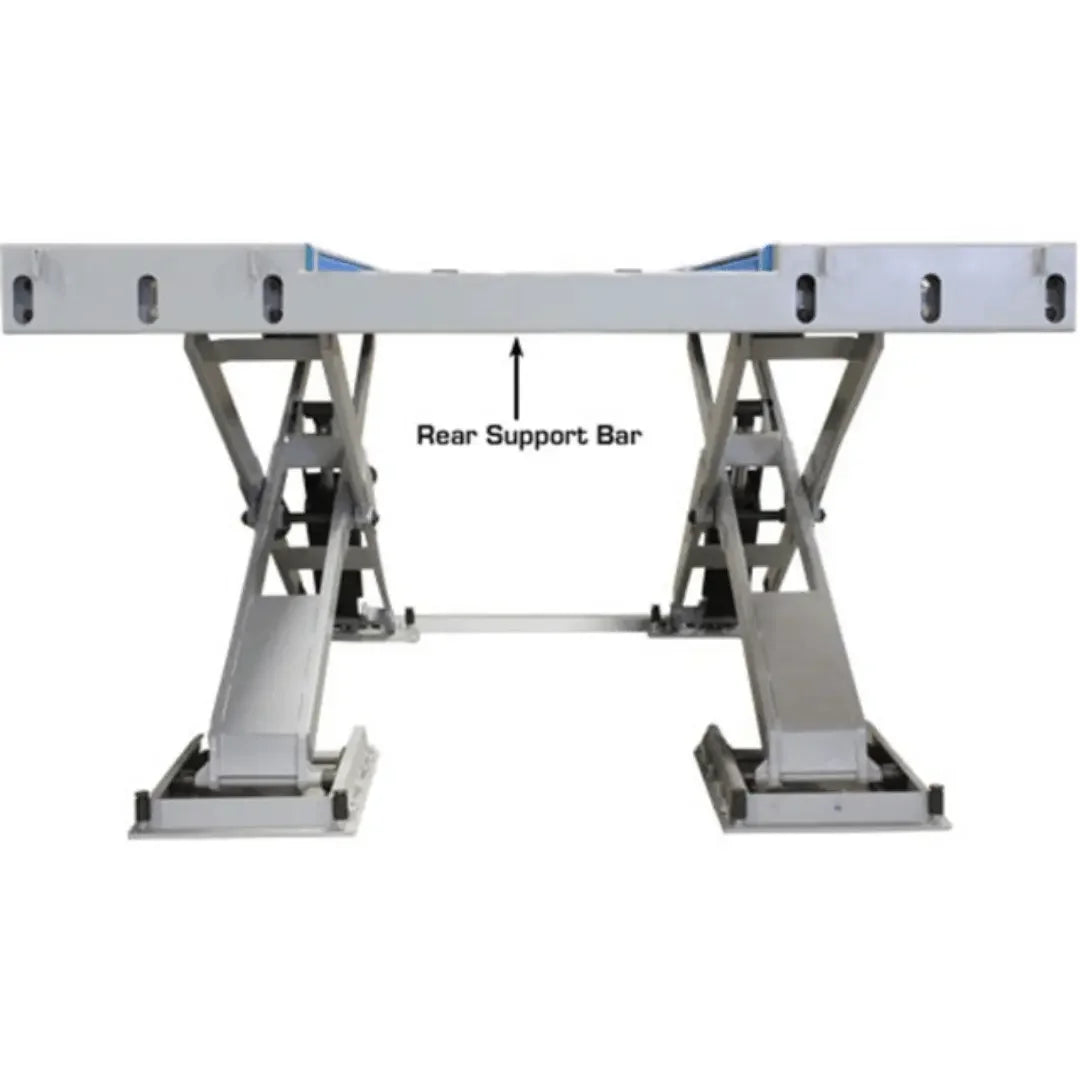

- Rear Cross Beam for Extra Stability Included
- Extra Long 72″ Ramps Standard
- Precise Platform Leveling Accuracy
- Separate Self-Contained Control Panel
- Emergency Manual Pump for Lowering
- 19 Locking Positions
- CE Certified
- Can be Surface Mounted or Flush Mounted
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 5,000 lb.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
RJ-6 Rolling Jack
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- Double Screw-Up Adapters Included
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Product Specifications
Atlas® 12AWFSL Specifications
| Lifting Capacity | 12,000 lbs. |
| Lifting Height | 84 1/4" (7' 1/4") (Surface Mounted) |
| "Wheels Free" Lift Height | 17" (Above Runway) |
| Lowered Height | 11 1/2" |
| Overall Width | 86 3/8" (7' 2 3/8") |
| Overall Length with Approach Ramps | 250" (20' 10") |
| Overall Length without Approach Ramps | 197" (16' 5") |
| Approach Ramp Length | 72" (6') |
| 4-Wheel Alignment Wheelbase | Max. 168 in. / Min. 90 in. |
| 2-Wheel Alignment Wheelbase | Max. 172 in. / Min. 86 in. |
| Runway Width including Rail | 23 3/4" (1' 11 3/4") |
| Width Between Runways | 39 1/4" |
| Width Between Runway Rails | 34 3/8" |
| Air Requirement | 90-120 PSI |
| Motor/Electrical Requirement | 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (NOT INCLUDED) |
| Requires a minimum of | 6" of concrete with a 3000 psi. rating |
| Shipping Weight | 5,000 lbs. |
Atlas® RJ-6 Specifications
| Maximum Capacity | 6,000 lbs. |
| Maximum Width | 64 1/2 (5' 4 1/2") |
| Minimum Width | 30 1/2" (2' 6 1/2") |
| Distance Between Runway Capability | 31 1/2"- 49 1/2" |
| Maximum Lifting Height (With Adapters) | 17 5/8" (1' 5 5/8") |
| Air Requirement | 70-115 PSI |
| Adapter Heights | 2 Each 3", 7" |
| Arm Hole/Adapter Peg Size | 2" |
| Shipping Weight | 350 lbs |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
Downloads
Brochure
Manual
