iDEAL UF-2500EH-X Electric / Hydraulic UTV Frame Lift
Product Description

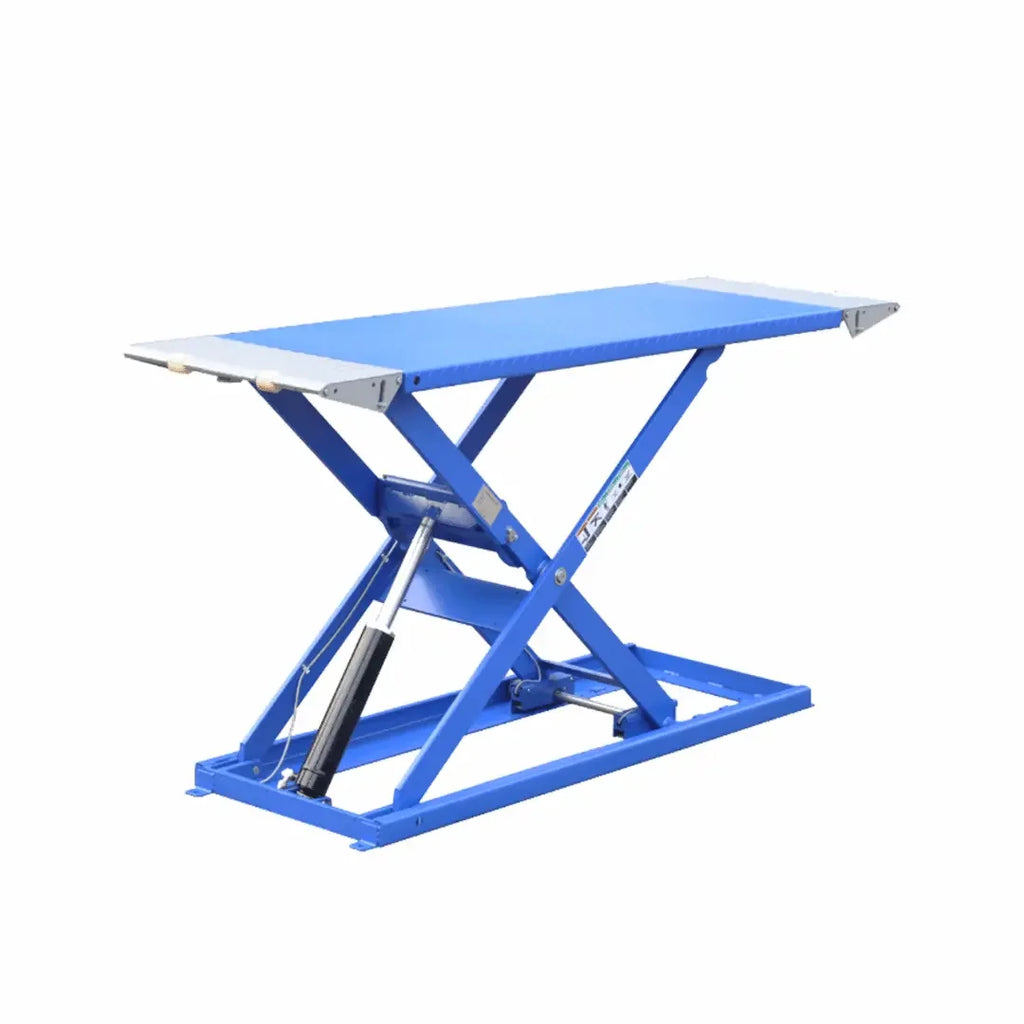

Ideal UF-2500EH-X Electric / Hydraulic UTV Frame Lift
Introducing the Ideal UF-2500EH-X Electric/Hydraulic UTV Frame Lift—a versatile and powerful lifting solution designed to handle everything from the largest UTVs to the smallest ATVs with ease. This state-of-the-art lift is engineered to provide maximum efficiency and a small footprint, making it the perfect addition to any workshop or garage.
Compact and Efficient Design
The UF-2500EH-X features an exclusive ‘wheels free’ design, allowing you to lift vehicles without the wheels, providing additional workspace around the lift. Despite its robust capabilities, this lift maintains a small footprint, making it an ideal choice for shops where space is at a premium. The lift's 24″W x 88.9″L platform offers ample space to accommodate a wide range of vehicles, all while keeping your workspace organized and efficient.
Powerful Lifting Capabilities
With a 2,500 lbs. lifting capacity, the UF-2500EH-X is built to handle heavy-duty lifting tasks with ease. The lift can achieve a 43″ rise height, extending up to 49.25″ with the use of rubber lift pads. The minimum height of 4.75″ ensures that even low-clearance vehicles can be easily accommodated. Whether you're working on a large UTV or a compact ATV, this lift provides the power and flexibility needed to get the job done.
Smooth and Rapid Operation
The UF-2500EH-X is equipped with a smooth and rapid 110V Electric/Hydraulic operation, allowing you to lift and lower vehicles in just 25 seconds. The fully operational control panel, featuring an electro-magnetic lock release, ensures precise and safe operation at all times. With three locking positions (28″, 36.5″, and maximum height), you can easily secure the lift at the height that best suits your needs.
Durable and Reliable Construction
Constructed with a heavy-duty diamond plate platform and load-bearing ‘hinged’ platform extensions, the UF-2500EH-X is designed for long-lasting durability and reliability. The platform's rugged construction can withstand the demands of daily use, making it a dependable choice for any professional or enthusiast. The rubber contact lift pads (4.75″ x 6.5″ each) ensure that the vehicle's frame is securely lifted without damage, providing peace of mind during every lift.
Additional Features and Options
The UF-2500EH-X includes a portable or mounted pedestal stand, allowing for flexible placement and ease of use. The power unit cover with storage bin keeps your workspace organized and your tools easily accessible. For those looking to enhance the lift’s functionality, an optional wheel stand kit (WHLSTDKIT-UF2500EH-X) is available.
The Ideal UF-2500EH-X Electric/Hydraulic UTV Frame Lift is the ultimate solution for those who need a reliable, efficient, and space-saving lift. Whether you’re a professional mechanic or a serious hobbyist, this lift offers the durability, power, and convenience you need to tackle any job with confidence.
Product Features
- Exclusive ‘wheels free’ design for the largest UTVs to smallest ATVs.
- Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE
- 2,500 lbs capacity
- 43″ RISE HEIGHT (49” w/ rubber lift pads)
- 24″W X 88.9″L PLATFORM SIZE
- 4.75” MIN. HEIGHT
- Smooth & rapid 110V Electric / Hydraulic operation

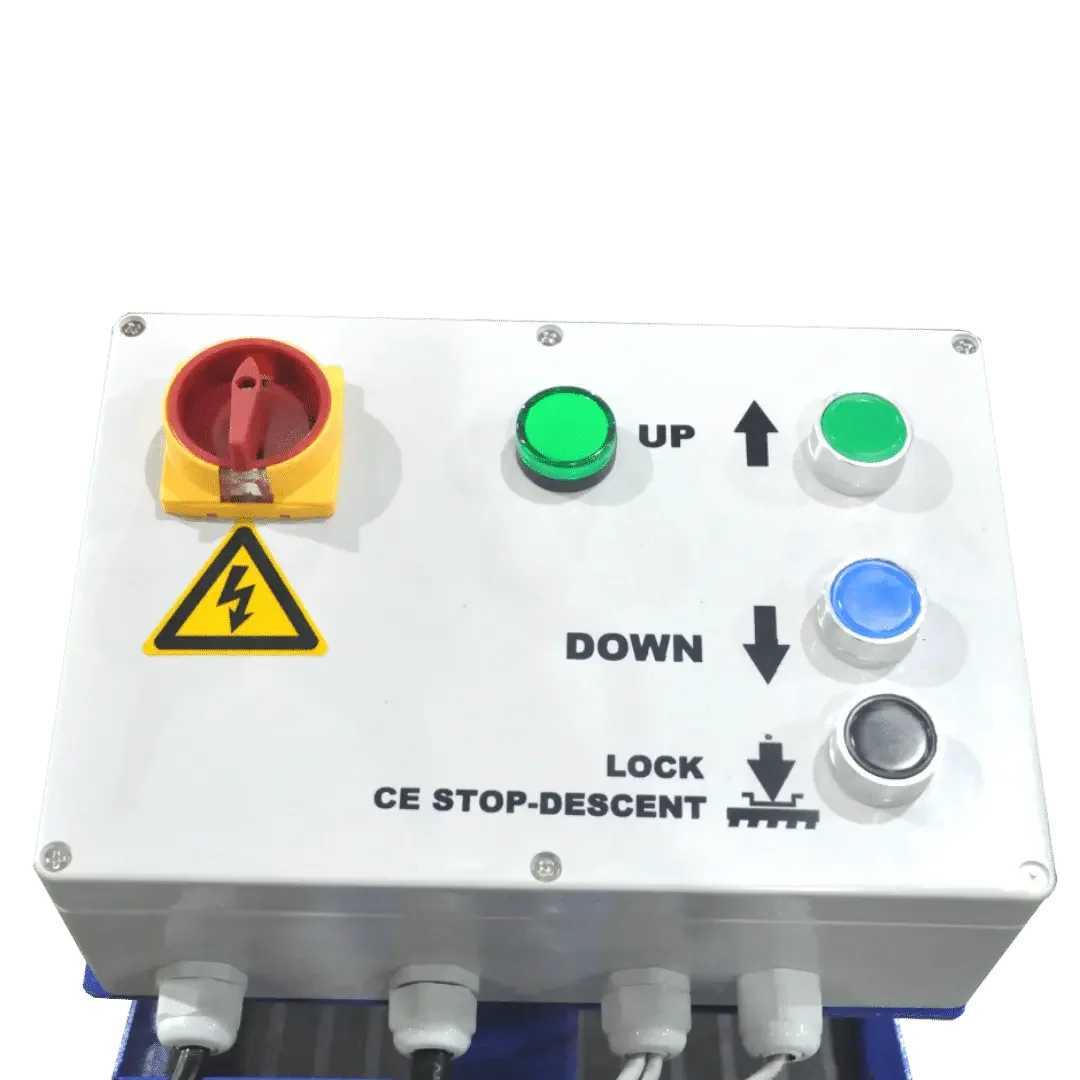

- Fully operational control panel W/ ELECTRO-MAGNETIC LOCK RELEASE
- Three locking positions
- Heavy-Duty Diamond Plate Platform & extension Construction

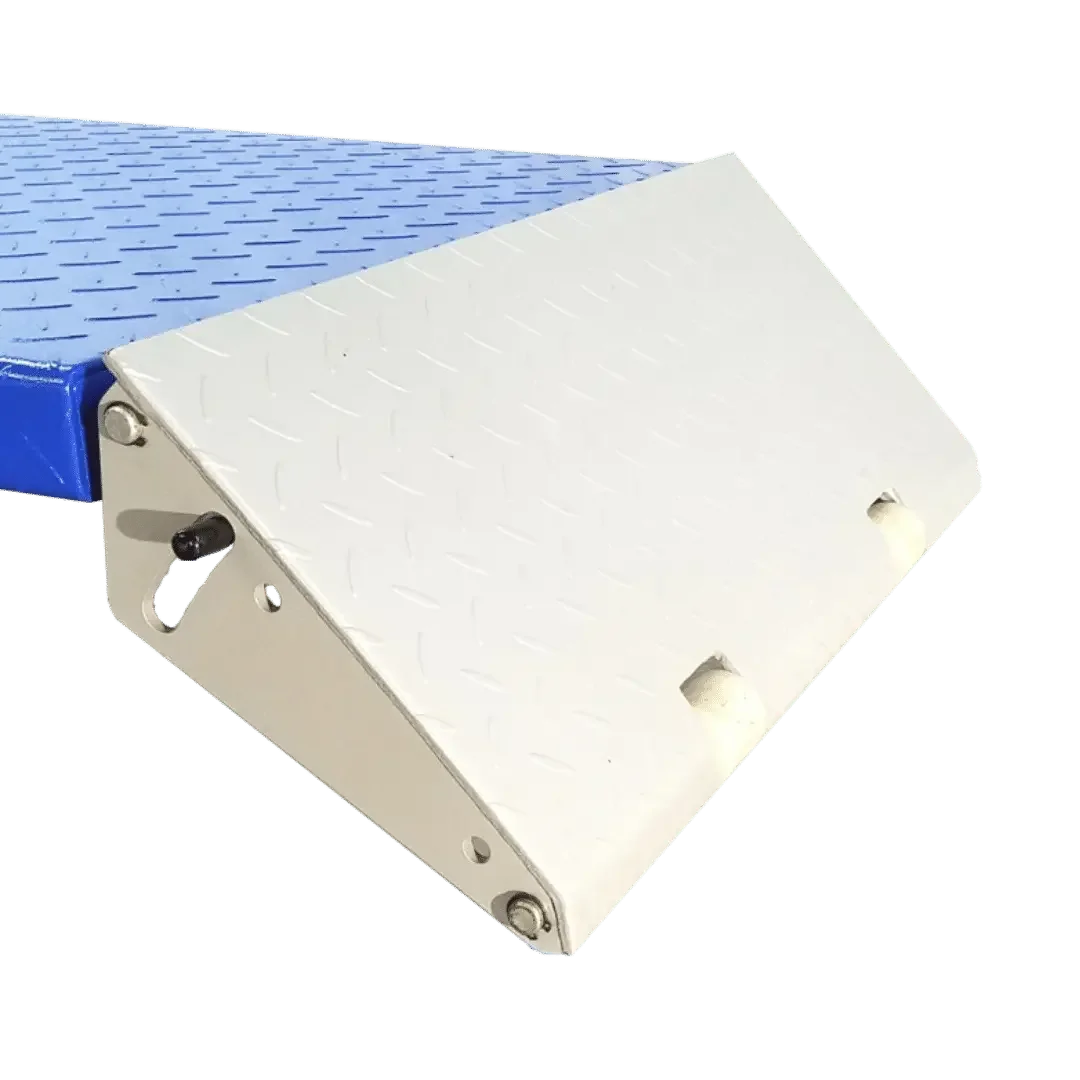

- LOAD BEARING ‘HINGED’ PLATFORM EXTENSIONS
- PORTABLE OR MOUNTED PEDESTAL stand
- Power unit cover w/ storage bin
- RUBBER CONTACT LIFT PADS – 4.75” X 6.5” (4EA)
- Options: WHLSTDKIT-UF2500EH-X
Specifications
| Product Model | UF-2500EH-X |
|---|---|
| Capacity | 2,500 lbs. (1,134 kg) |
| Min. Height | 4.75" (121 mm) |
| Max Lifting Heights | 43" to 49.25” w/ Adaptor |
| Locking Heights | 28” - 36.5” |
| Overall Length w/ Ramps | 67" to 89" |
| Overall Width | 24.8" |
| Platform Size (L x W) | 67” x 24" |
| Pedestal Control Stand Size (L x W x H) | 15” x 11” x 39” |
| Pedestal / Platform Max Distance | 96” |
| Lifting Time | 25 Seconds |
| Lowering Time | 25 Seconds |
| Power | 110V, 60Hz, 1 PH-18A |
| Ship Weight | 740 lbs. |
