Product Description
The BP-9 is a base-plate two-post lift designed for low ceiling garages. The total column height of 108″ allows this lift to be installed in almost any professional or home garage with a ceiling higher than 9 feet. The BP-9 features symmetric arms, and automatic arm restraints. The BP-9 also has a single point release switch to make it easier to unlock both column locks from one column.
![](https://cdn11.bigcommerce.com/s-ew8kwapfc4/images/stencil/original/image-manager/golden-bar.png?t=1681903157)

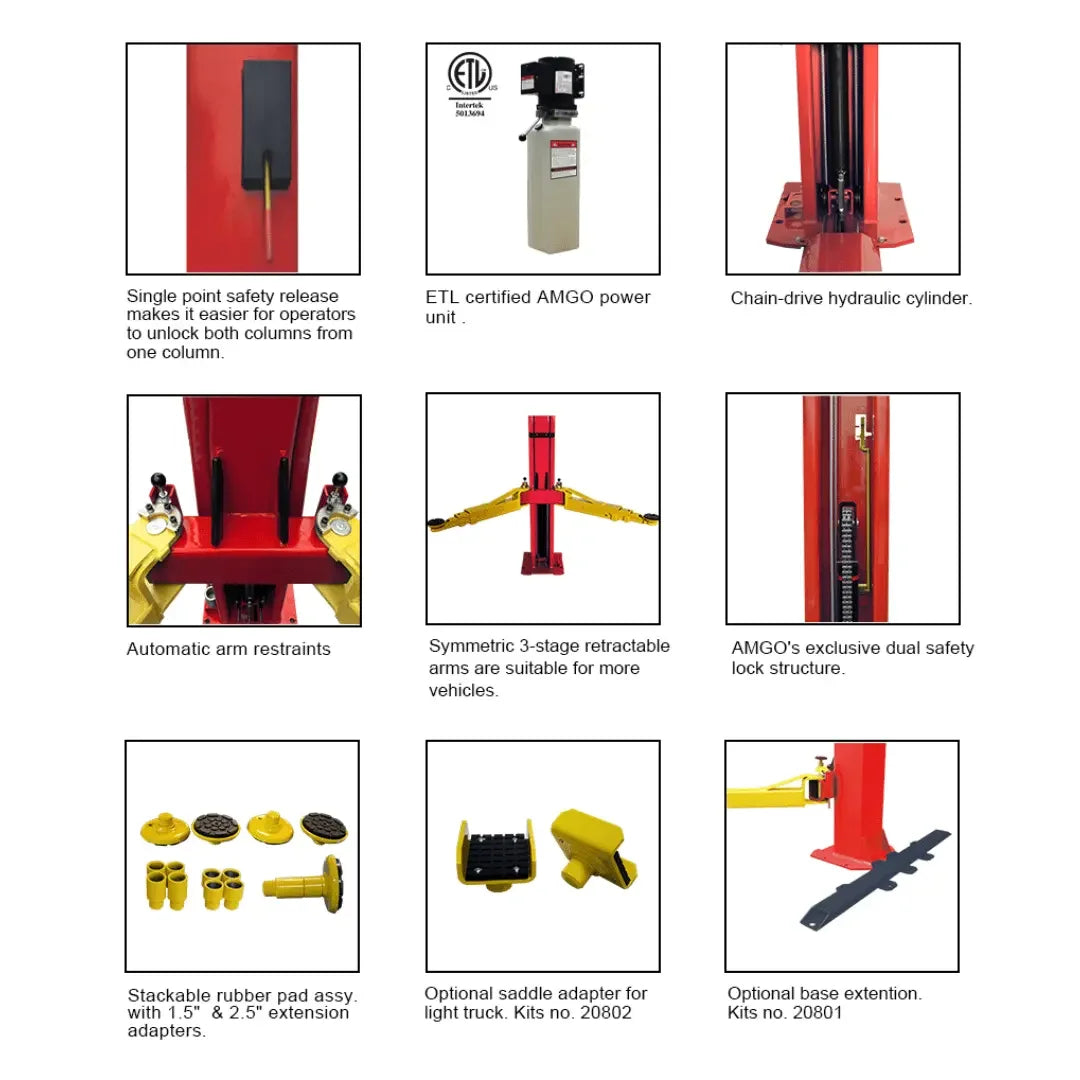

Product Features
- 9,000 lbs capacity, commercial grade 2-post base plate lift is designed andbuilt for professional shops and home garages to fit low ceiling workshop environment without overhead obstructions.
- Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety.
- 4 three-stage arms are suitable for more vehicles.
- Automatic arm restraints keep the arms locked in their proper positions.
- Self-lubricating UHMW Polyethylene sliders and bronze bushings
- Aircraft quality cable is used for synchronization
- Stackable rubber pads with 1.5" and 2.5" extension adapters
- Detachable foot guard and tool tray to allow for a clutter free work space
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493
![](https://cdn11.bigcommerce.com/s-ew8kwapfc4/images/stencil/original/image-manager/golden-bar.png?t=1681903157)

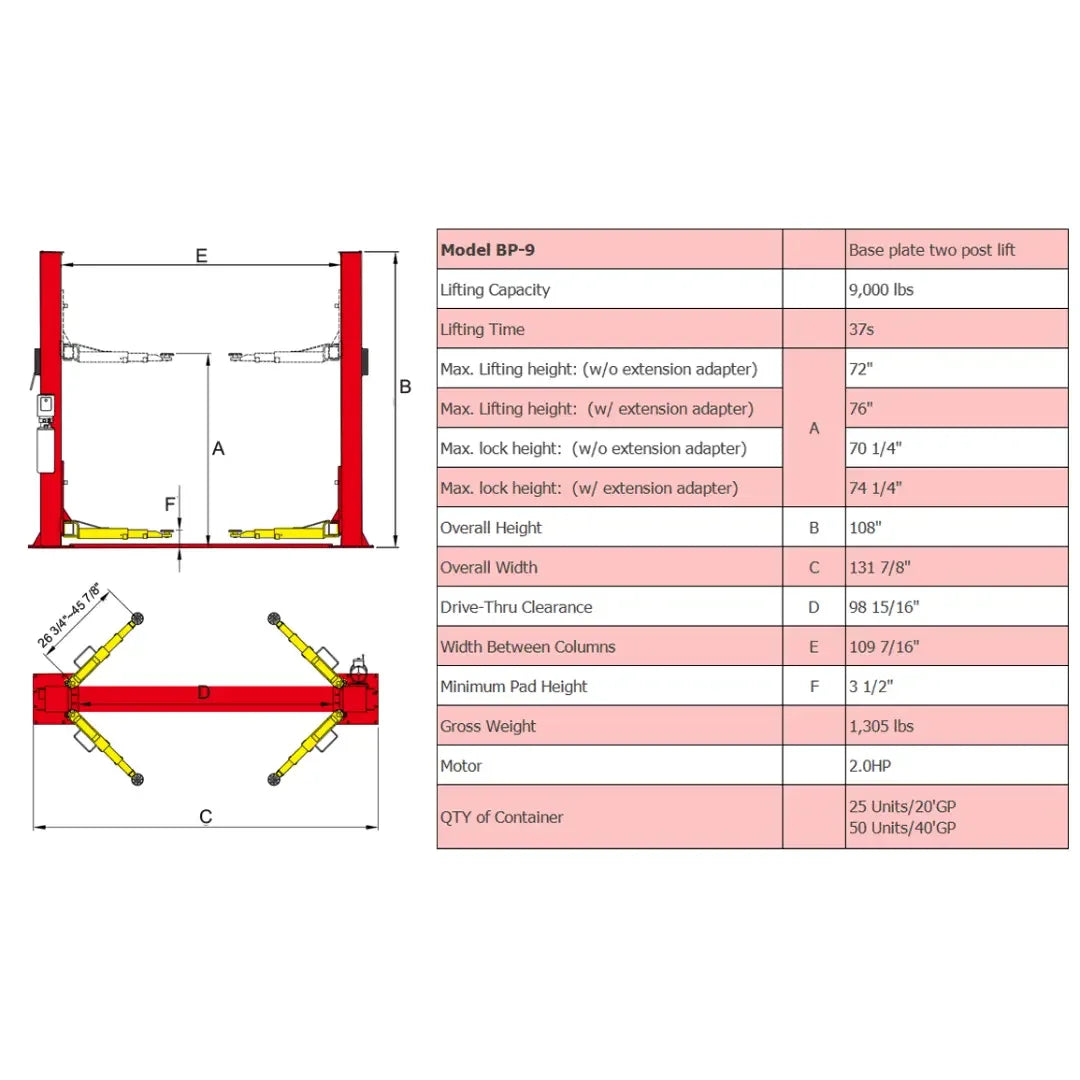

Product Specifications
Model | BP-9 |
---|---|
Lifting Capacity | 9,000 lbs |
Lifting Time | 37S |
A: Max. Lifting Height: (w/o extension adapter) | 72" |
A: Max. Lifting Height: (w/ extension adapter) | 76" |
A: Max. Lock Height: (w/o extension adapter) | 70 1/4" |
A: Max. Lock Height: (w/ extension adapter) | 74 1/4" |
B: Overall Height | 108" |
C: Overall Width | 131 7/8" |
D: Drive Thru Clearance | 99 15/16" |
E: Width Between Columns | 109 7/16" |
F: Minimum Pad Height | 3 9/16" |
Motor | 2.0HP |
Gross Weight | 1,305 lbs |
QTY of Container | 25 Units/20'GP | 50 Units/40'GP |
![](https://cdn11.bigcommerce.com/s-ew8kwapfc4/images/stencil/original/image-manager/golden-bar.png?t=1681903157)
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
![](https://cdn11.bigcommerce.com/s-ew8kwapfc4/images/stencil/original/image-manager/golden-bar.png?t=1681903157)
Downloads
![](https://cdn11.bigcommerce.com/s-ew8kwapfc4/images/stencil/original/image-manager/vector.png?t=1681982695)
Brochure
![](https://cdn11.bigcommerce.com/s-ew8kwapfc4/images/stencil/original/image-manager/untitled.png?t=1681982721)
Manual
![](https://cdn11.bigcommerce.com/s-ew8kwapfc4/images/stencil/original/image-manager/vector-1-.png?t=1681982750)
Warranty
