Champion VR5-8-RS Reciprocating Air Compressor R-Series
Product Description

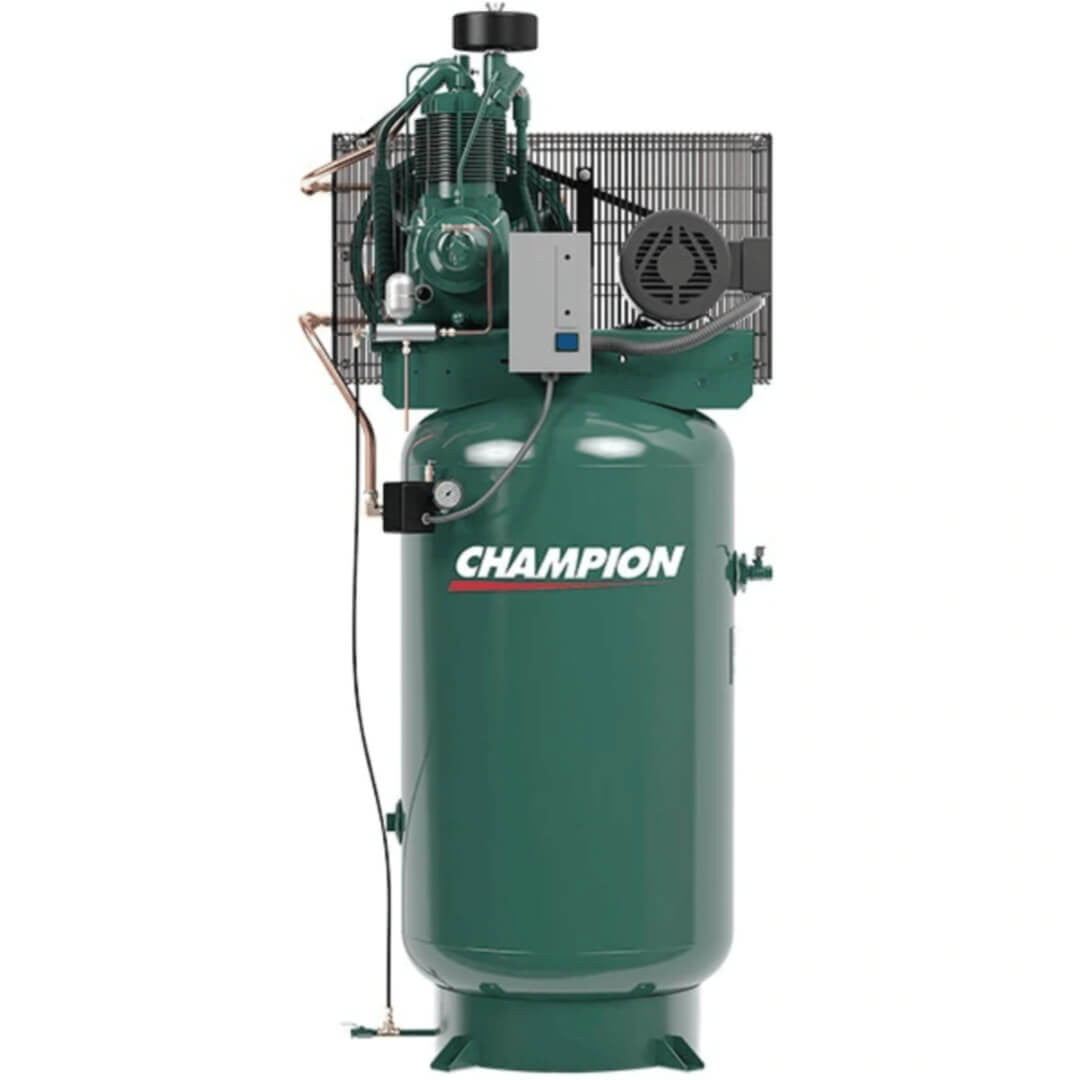

Champion VR5-8-RS Reciprocating Air Compressor R-Series
The Champion R-Series simplex two stage piston air compressor is available as a base mounted model or as a tank mounted model with tank sizes ranging from 30 gallons up to 240 gallons. The multi-finned cylinders enable cooler operating temperatures while the integral cylinder/head design allows for a low maintenace and trouble-free design. The two high efficient lap joint compression rings with bi-directional seal provide efficient air delivery while the aluminum alloy first-stage piston and cast iron second-stage piston ensure proper balance of the system. The centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
Product Features
- Heavy Duty Two Stage, Splash Lubricated Air Compressor Pump(s)
- Multi-Finned Cylinders
- Integral Cylinder Head
- Intercoolers for Cooling Between Stages
- Reliable High Flow Disc Valves
- Oversized Main Bearings
- Balanced Crankshaft
- Oil Level Site Glass
- Centrifugal Unloader for Loadless Starting
Options:
- Electric Fuel Pump
- Canvas Cover – (Engine Driven Models
- 9 Gallon standalone fuel tank
- 5 Gallon standalone fuel tank
Product Specifications
| Product Model | VR5-8-RS |
| Weight | 590 lbs |
| Dimensions | 35 × 27 × 75 in |
| Motor | 5 hp |
| CFM Delivery | 17 |
| Phase | N/A |
| PSI Rating | 175 |
| RPM | 737 |
| Tank Capacity | 80 Gallon |
| Tank Position | Vertical |
| Voltage | 230 |
