Challenger Lifts CL10AV3 (MADE IN USA) 10000 lbs Versymmetric® 2 Post Adjustable Lift
Couldn't load pickup availability
Shipping-FAQ's
Shipping Info
At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.
I Have The Equipment To Unload My Order
- Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.Aspects to keep in mind when choosing this option.
- The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
- Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
- You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
- Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
- There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
- In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.
Do you have a hitch trailer to transport your lift? If so, then this might be the best option.
Aspects to keep in mind when choosing this option.
1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.
Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.
You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.
Neither of the above delivery options suits you? Then we have the solution.
We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.
Aspects to keep in mind when choosing this option.
1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).
Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.
Challenger Lifts CL10AV3 (MADE IN USA) 10000 lbs Versymmetric® 2 Po...
Product Description

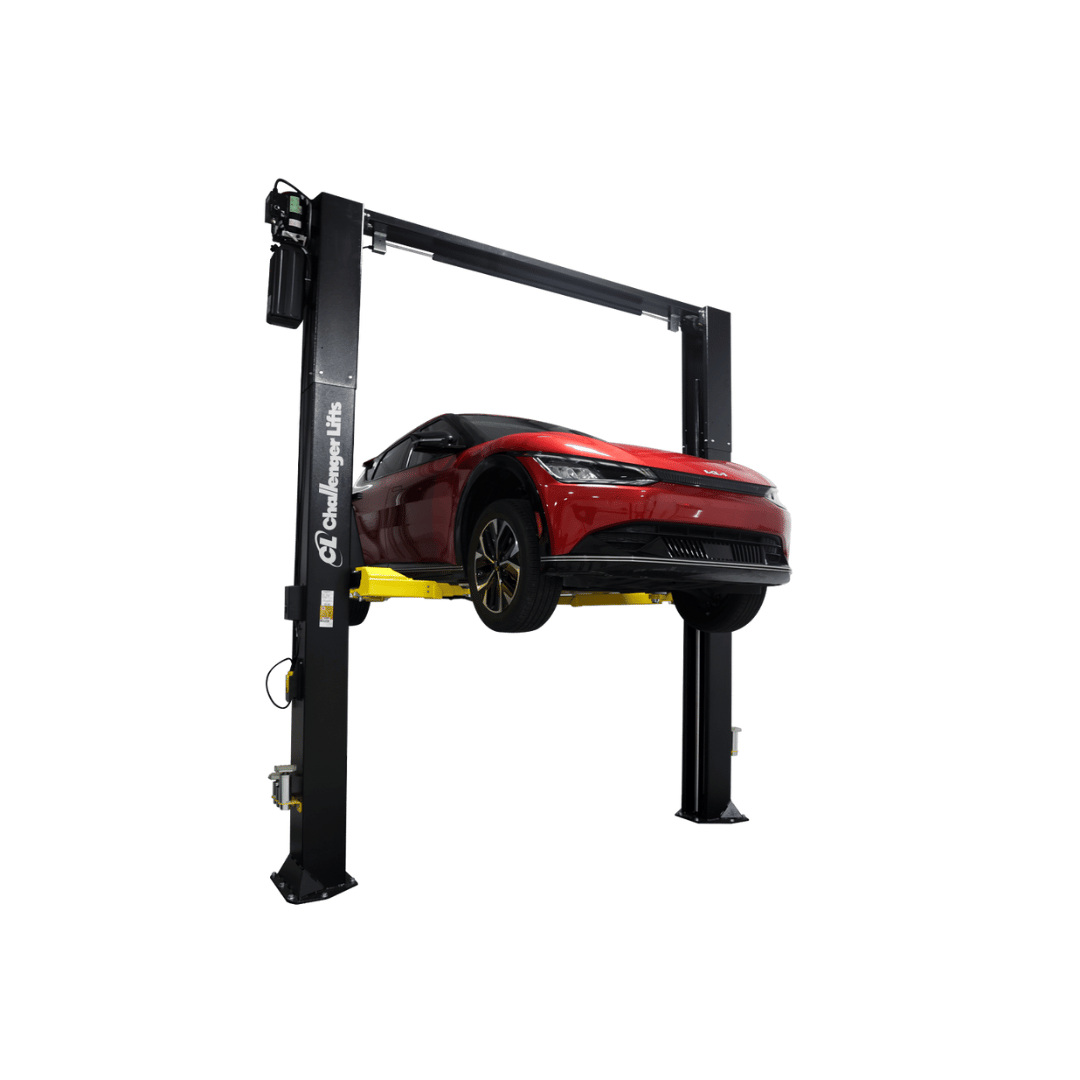

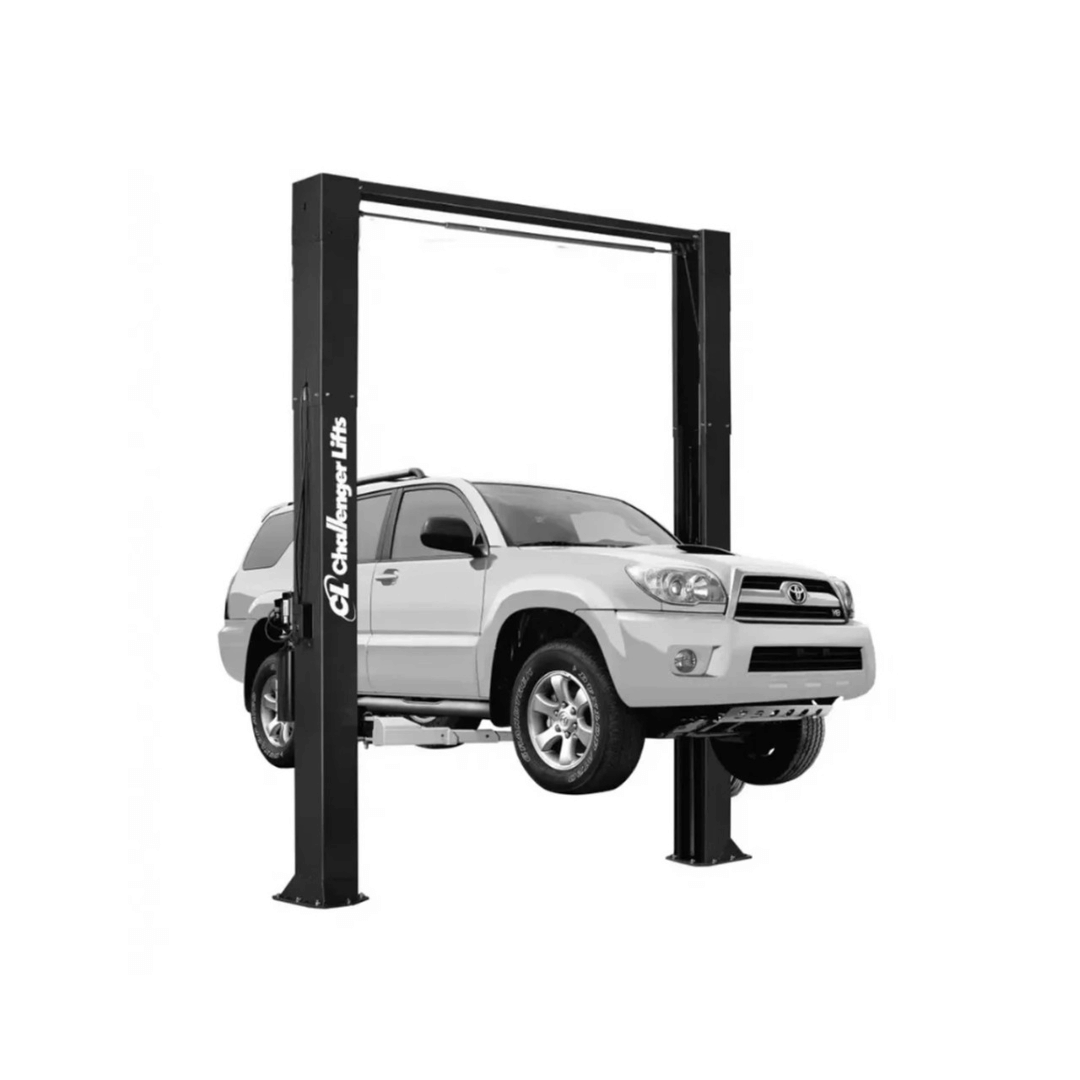

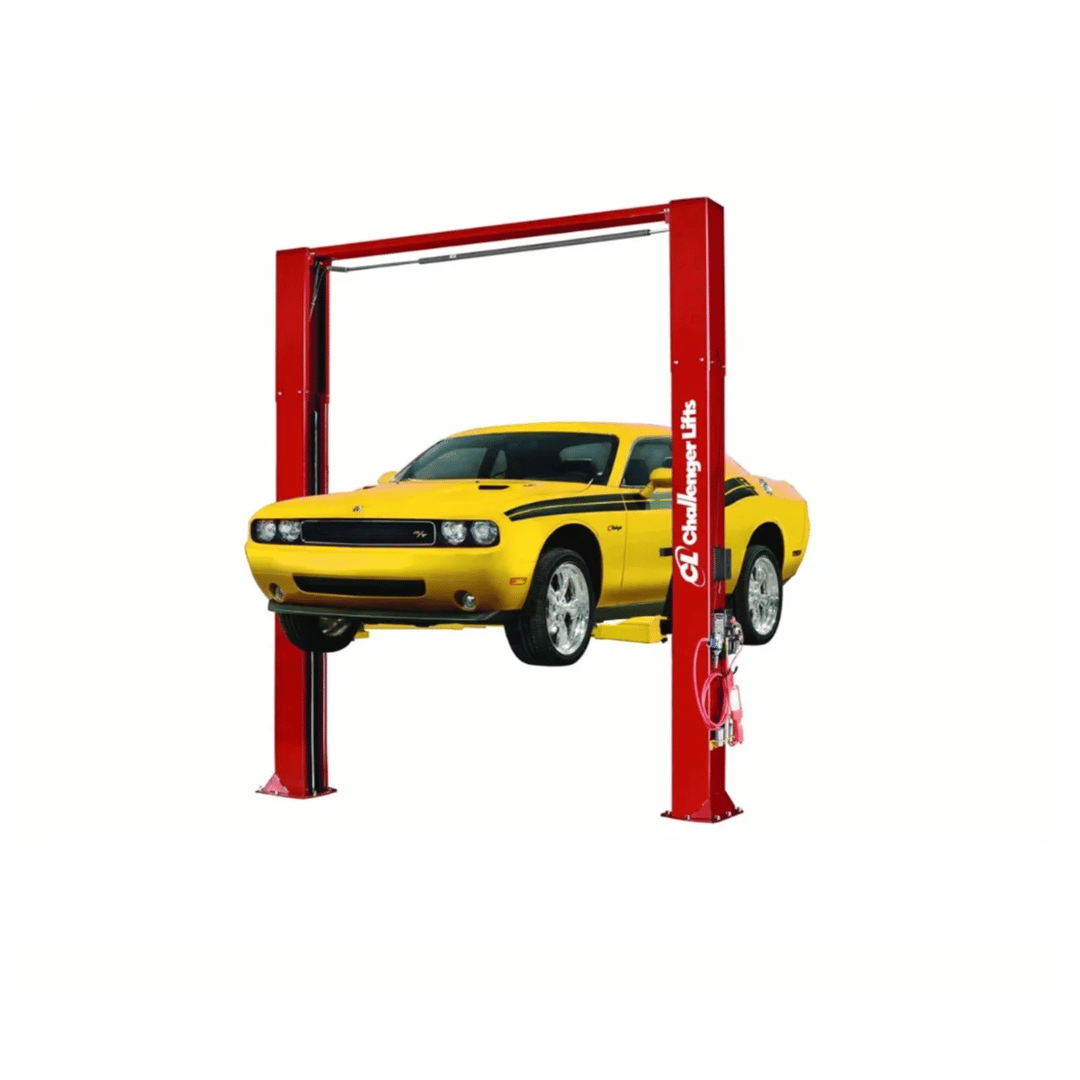

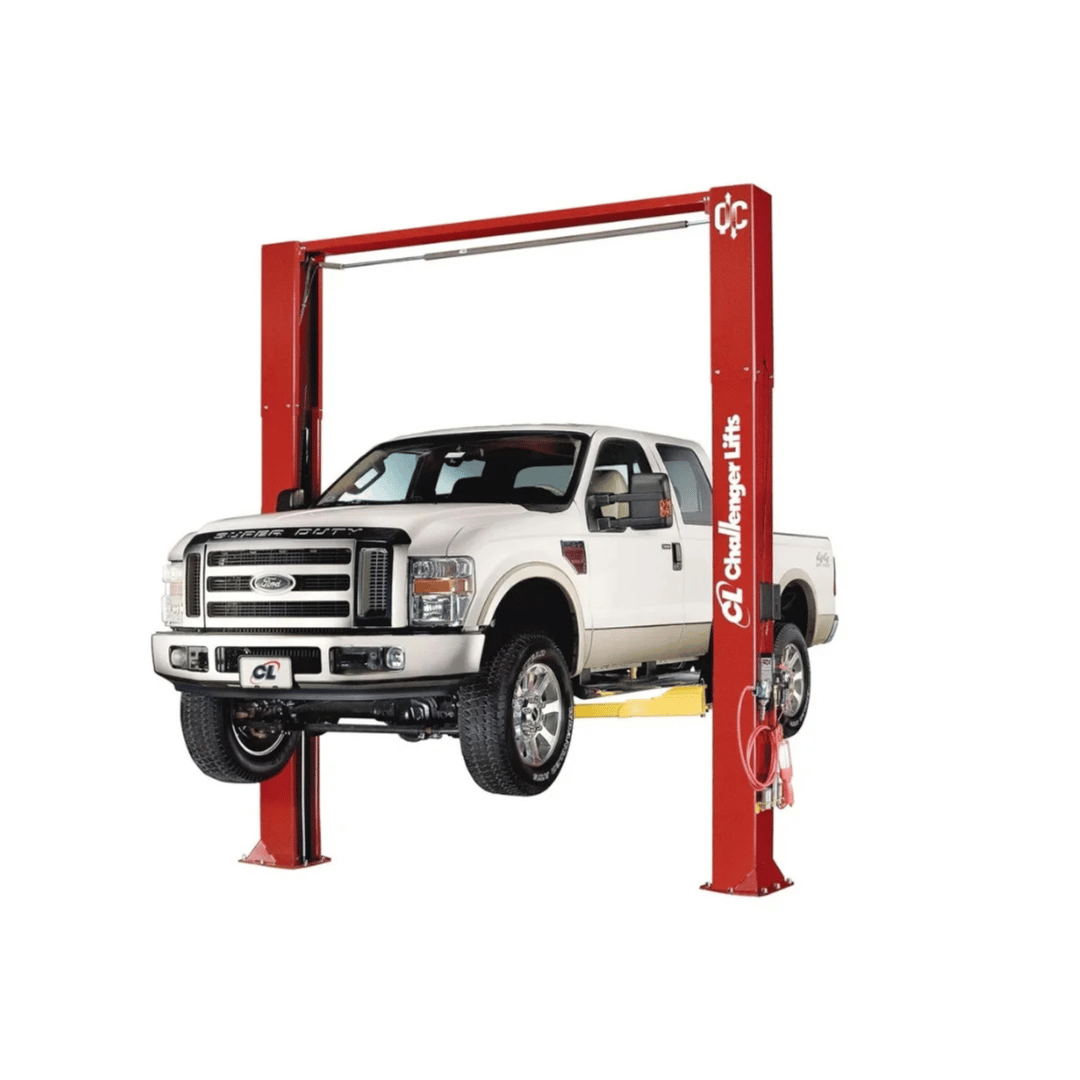

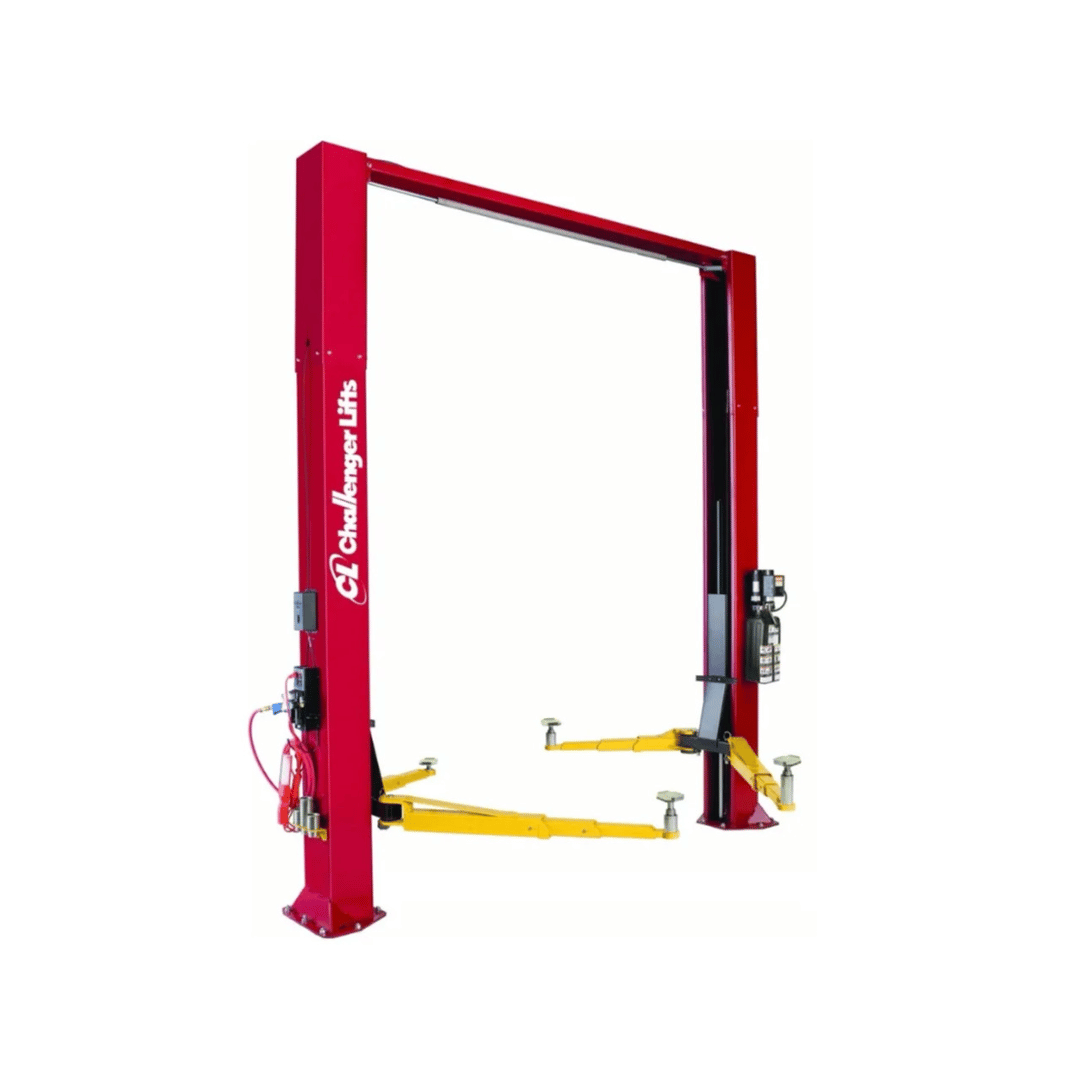

Challenger Lifts CL10AV3 10000 lbs Versymmetric® 2 Post Adjustable Lift

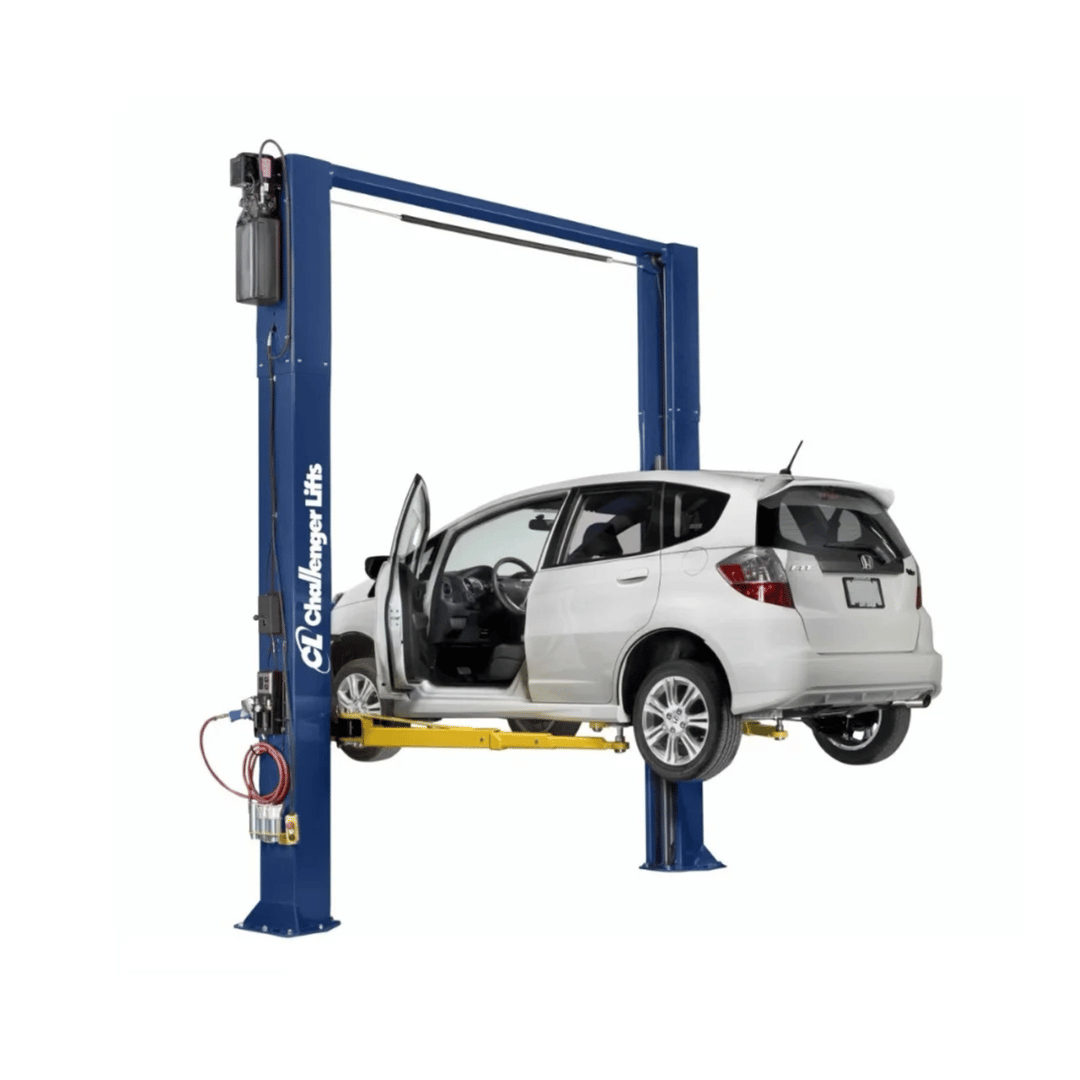

The Challenger CL10V3 10,000 lbs. Versymmetric 2-Post Adjustable Lift is designed to offer maximum flexibility and efficiency for automotive service shops. With a 10,000 lb. lifting capacity, this lift can accommodate a wide range of vehicles, making it ideal for diverse service needs. The CL10V3 features Challenger’s innovative Versymmetric technology, allowing it to function both as a symmetric and asymmetric lift.
This dual capability makes it easy to position vehicles for optimal access, whether for routine maintenance or more complex repairs. The lift’s adjustable height, which can reach up to 11' 10-5/8", provides ample clearance, while its spacious drive-thru clearance makes maneuvering in and out of the lift hassle-free.
The 3-stage front arms and 2-stage rear arms make it versatile enough to accommodate various vehicle sizes, from small sedans to larger trucks. With a design focused on durability and ease of use, the CL10V3 is an excellent choice for shops looking to boost productivity and adapt to the needs of different vehicles.
Product Features
- 10,000 lbs. lift capacity
- Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
- Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
- 48 in. elongated carriage design increases lift life
- Three settings for width adjustment, from 11′ 6.5″ to 12′ 6.5″
- Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
- Padded overhead shut off system prevents vehicle damage

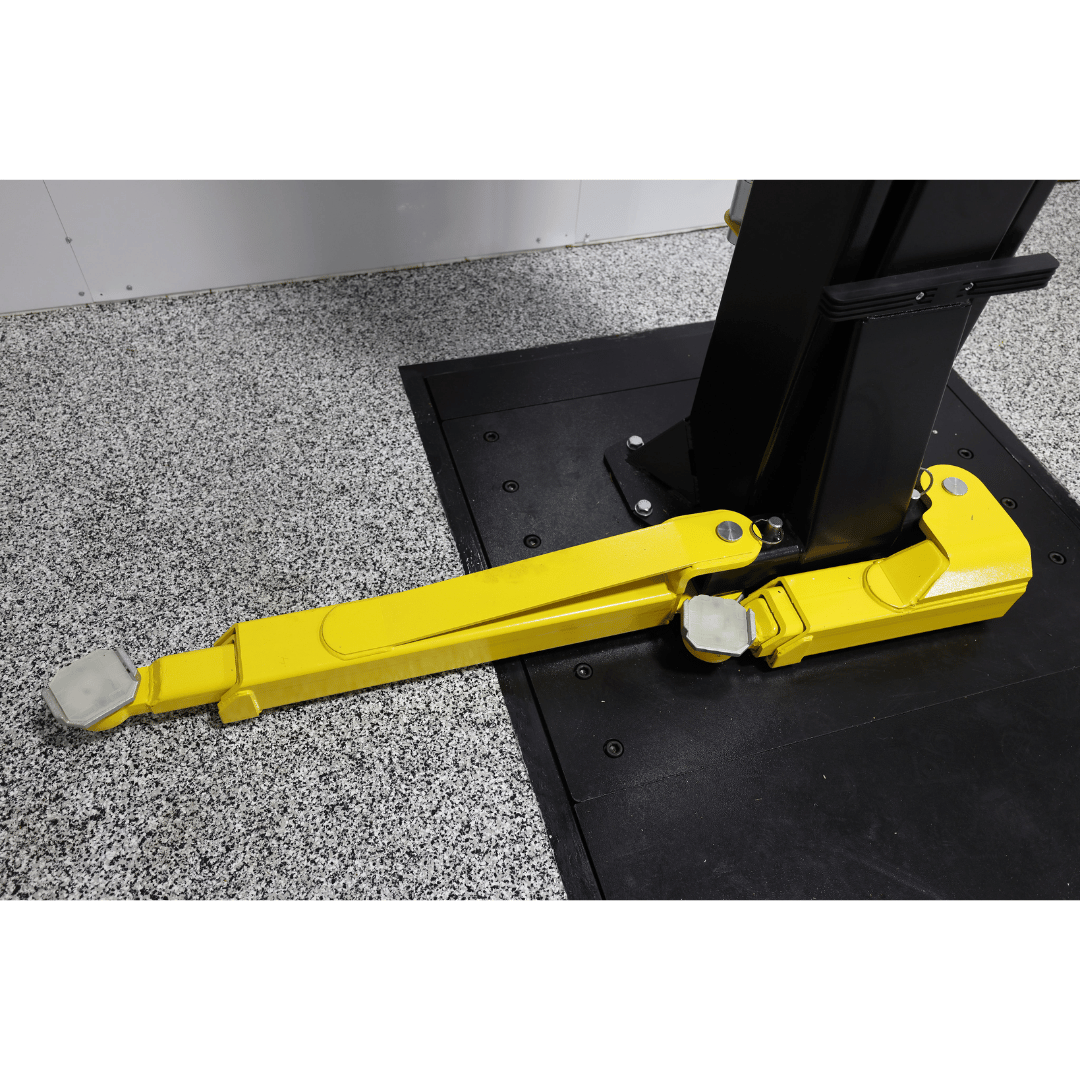

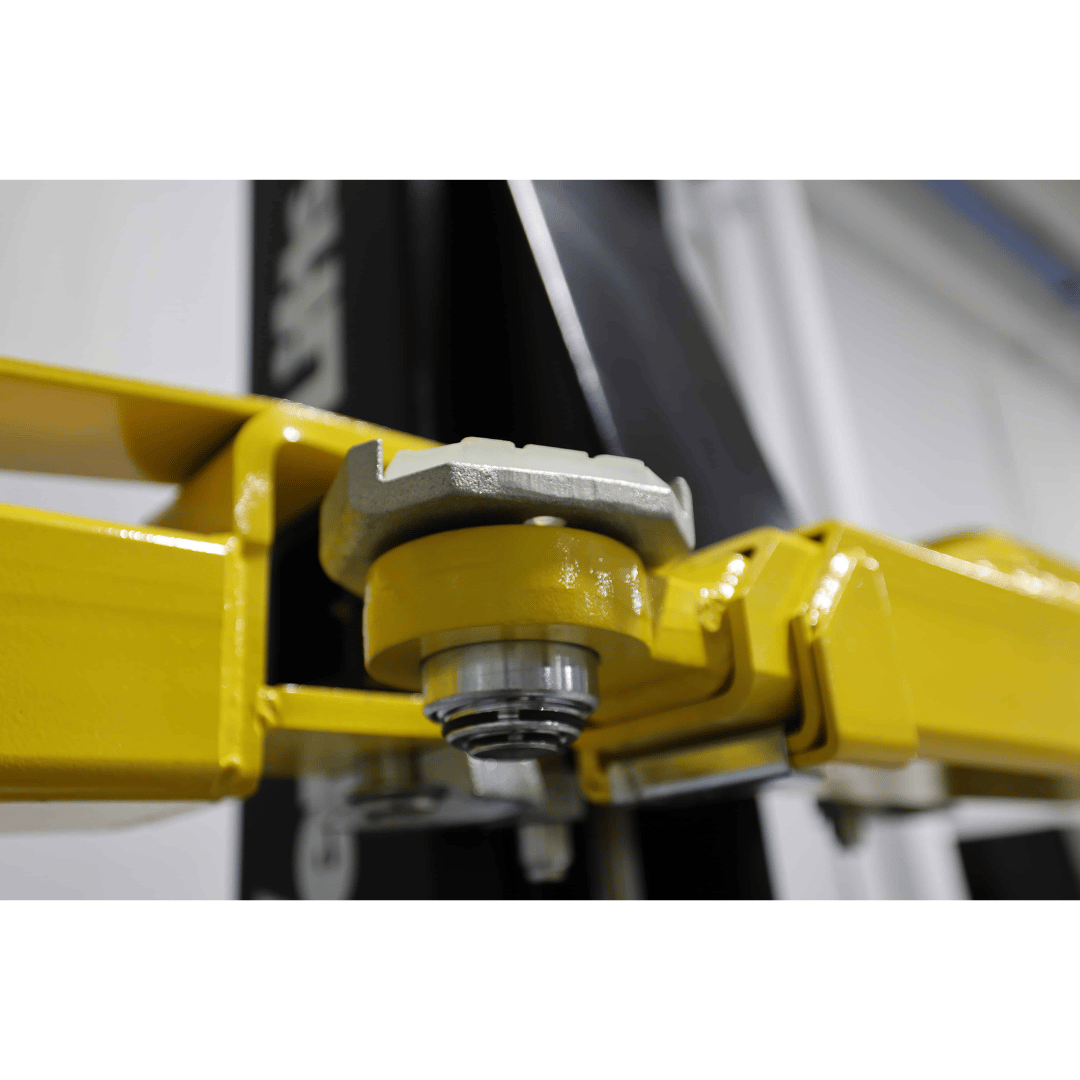

- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Fully gusseted base plate design increases column rigidity

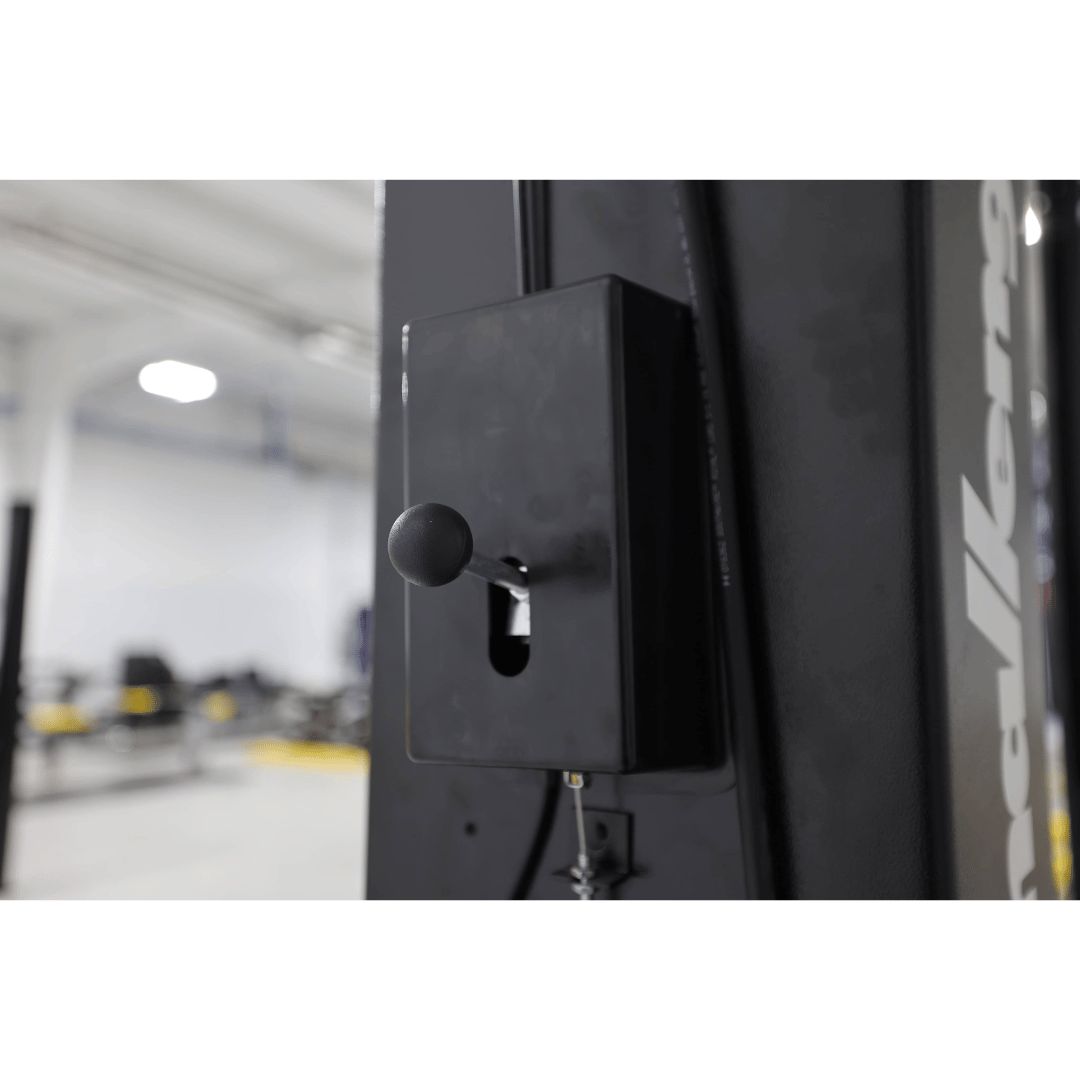

- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Premium powder coat finish provides long-lasting durability
Product Specifications
| Model | CL10AV3 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Lift Configuration | Standard |
| Arm Configuration | 3-Stage Front/Rear |
| Rise Height | 74.125” |
| Overall Height | 11' 2" or 11' 8" |
| Overall Height (Cylinder Extended) | 11' 11" |
| 2’ Height Extension Available | Yes |
| 3’ Height Extension Available | Yes |
| Overall Width | 11' 6.5" / 12' .5" / 12' 6.5" |
| Drive-Thru Clearance | 100" / 106" / 112" |
| Floor to Overhead Switch | 10' 8.5" - 11' 2.5" |
| Front Arm Reach | 20” - 42” |
| Rear Arm Reach | 37.625” - 60” |
| Screw Pad Height | 3.875” - 6.125” |
| Inside Columns | 110" / 116" / 122" |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38s |
| Ceiling Height Required | 12' |
| ALI/ETL Certified | Yes |
| Colors Available | Red, Blue, Black |
