BendPak LR-10000 10,000 lb. Capacity Low-Rise Lift
Product Description

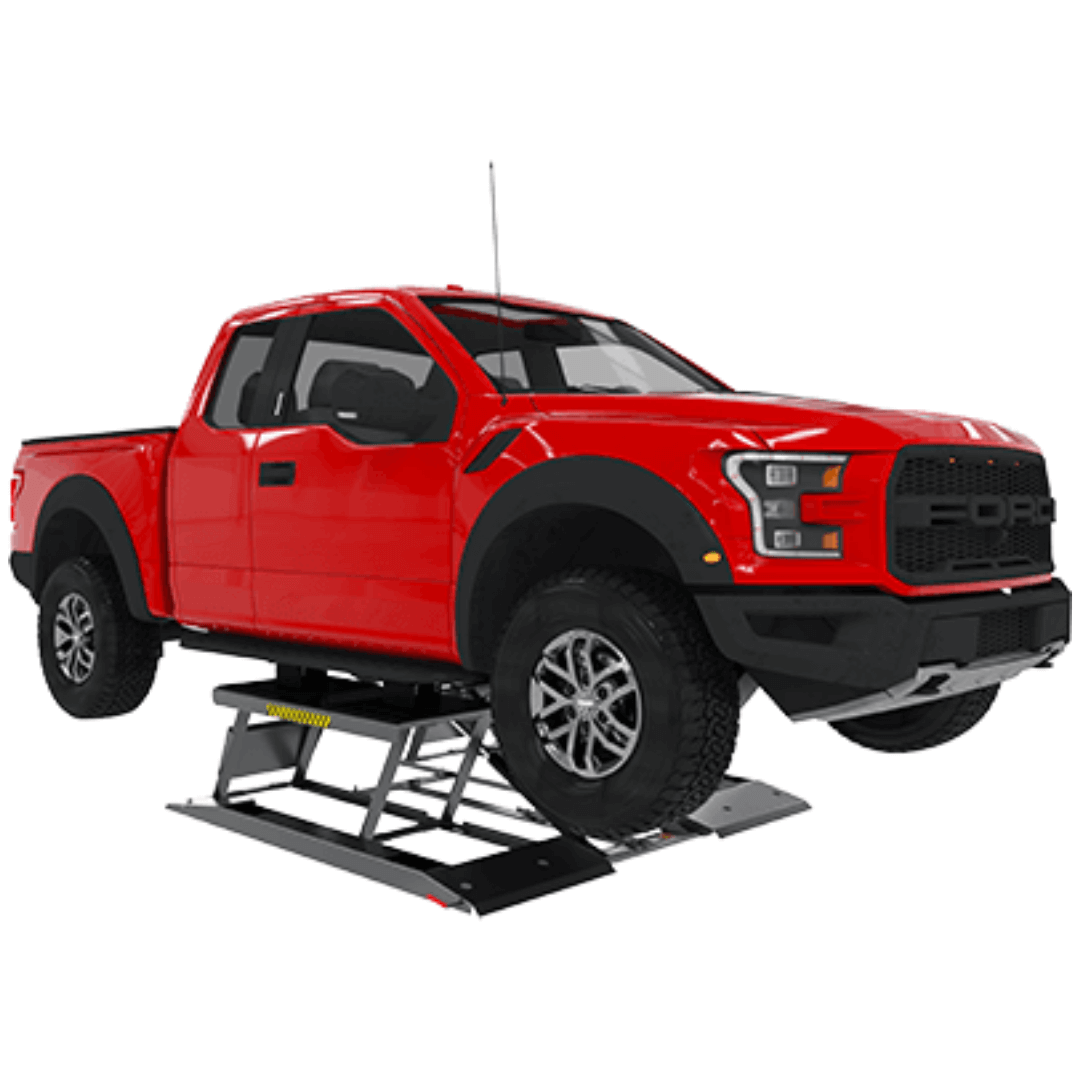

BendPak LR-10000 10,000 lb. Capacity Low-Rise Lift
BendPak’s 10,000-lb. capacity LR-10000 low-rise lift is your solution for quick service and increased productivity when servicing today’s passenger cars and light trucks. From tire and brake service to vehicle detailing and body repair, a wide variety of vehicles will fit.
Work Faster with the Top-Selling LR-10000 Low-Rise Lift
When you need to get wheel service done quickly, there’s no substitute for the LR-10000. This amazingly efficient low-rise lift holds up to 10,000 lbs. It’s perfect for trucks and SUVs that many other lifts can’t handle.
Lug nuts and other small parts are always within reach with the convenient built-in storage trays. A small footprint, easy installation and adaptable 220V power-unit make the LR-10000 the perfect lift that fits any shop. The lift platform and auxiliary adapters allow lifting of most unibody and frame contact undercarriages at recommended manufacturer pick-up points on most vehicles.
Be sure to compare your vehicle specifications, including ground clearance and overall height with the specification shown before you purchase.
Low-profile height
A low 4" collapsed height accommodates most vehicles, including sports cars, race cars and larger trucks/SUVs. The minimal garage footprint means you can collapse your car lift without it getting in your way. This is perfect for home garages that want to reduce clutter in a tight space.
Single-point safety release
The single-point safety release and dead-man style operation controls make this lift easy to operate and safe to use. The release during descent is instantaneous, smooth and perfectly level.
Dropped crossbar
A specially formed crossbar is dropped in the center, providing added vehicle drive-over clearance. Now suspension work, oil changes, wheel and brake service and detailing are easier than ever.
Rugged steel channel frame
If you're going to do heavy lifting, you need a solid base. BendPak steel is manufactured under the strictest industry standards. The same warranty that applies to our larger lifts applies to our low-rise lifts.
Industrial-grade hydraulic cylinder
A durable, leak-proof hydraulic cylinder with flow divider ensures even ascents and descents with every use. This is the same cylinder technology that supports all BendPak lift designs. In our minds, low-rise lifts deserve the same rugged equipment as any other car lift, so we treat them that way.
Product Features
- Each lift platform features four parallelogram frame support bars making it the strongest 10,000-pound low-rise lift in its class
- Drive-over ramps and side rails provide an increased width to support wider vehicles during approach
- Comes standard with a durable full length rubber-topped lifting platform and eight multi-height rubber topped adapters for increased vehicle contact versatility
- Storage trays are conveniently placed on each side of the lift platform to prevent wheel lug nuts and other small parts from being misplaced
- Dual hydraulic cylinders provide a stable 10,000-pound lifting capacity to accommodate a wide range of vehicles
- Diamond plated approach ramps help to prevent slipping
- Thee locking positions allow technicians to work at different working heights to increase productivity and minimize fatigue
- Powder coat finish provides a long lasting durable finish
Product Specifications
| Lifting capacity | 10,000 lbs. (4,545 kg) |
| Max Capacity / Front Axle | 5,000 lbs. (2,273 kg) |
| Max Capacity / Rear Axle | 5,000 lbs. (2,273 kg) |
| Lifting Height | 23" (584 mm) |
| Lifting Height + Blocks | 32” (813 mm) |
| Fully Lowered | 4.5" (114 mm) |
| 1st Lock | 14" (356 mm) |
| 2nd Lock | 18" (457 mm) |
| 3rd Lock | 20.75" (527 mm) |
| 4th Lock | 22.75" (578 mm) |
| Full Rise | 23" (584 mm) |
| Overall Pad Length | 53” (1,346 mm) |
| Overall Length | 82.65" (2,094 mm) |
| Overall Pad Width | 24" (610 mm) |
| Overall Width | 85" (2,159 mm) |
| Lifting Time | 35 seconds |
| Motor | 220 VAC / 50/60 Hz / 1 Ph |
| Shipping Weight | 1,332-lbs. (604 kg) |
| Shipping Dimensions | 88" x 85" x 24" (2,235 mm x 2,159 mm x 609 mm) |
