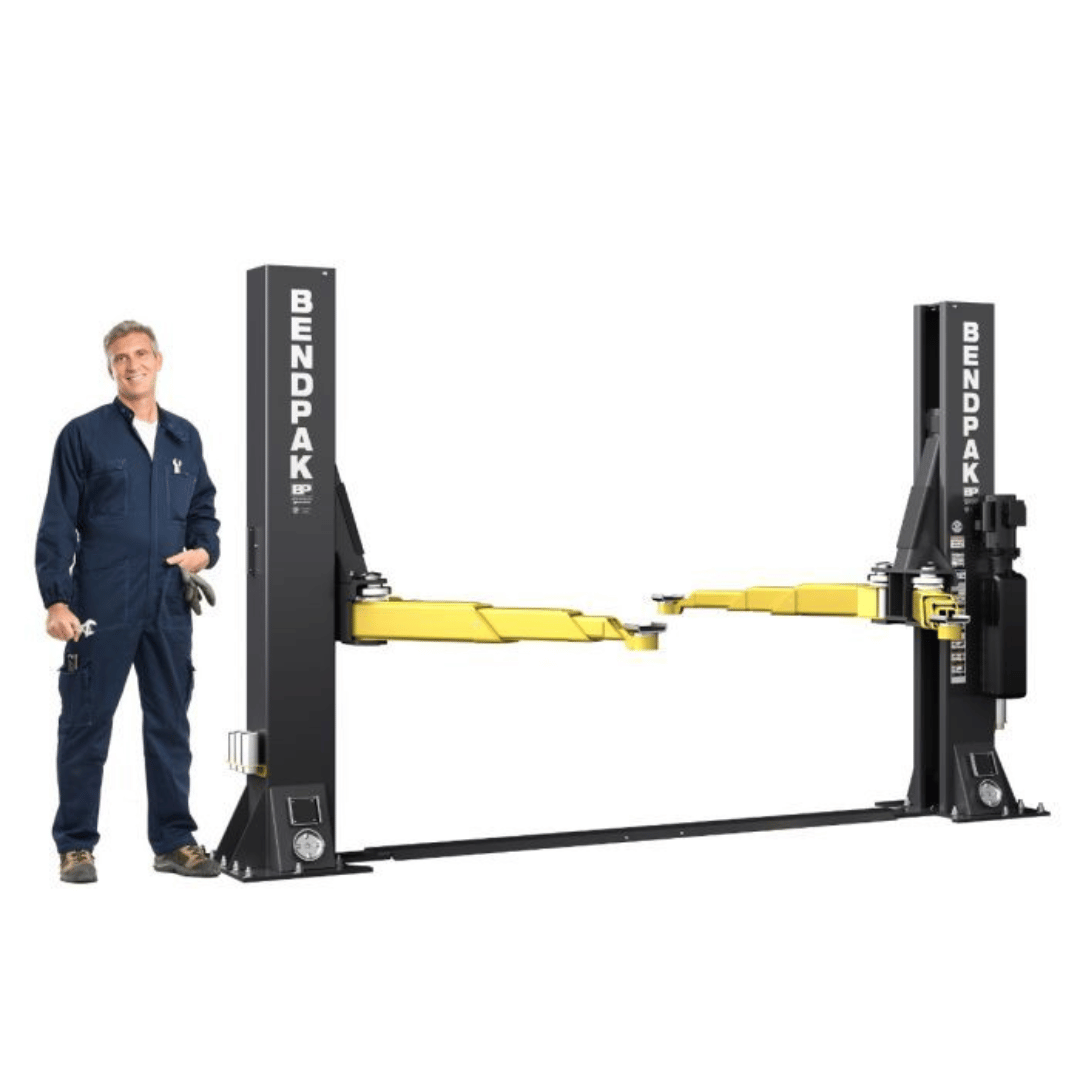

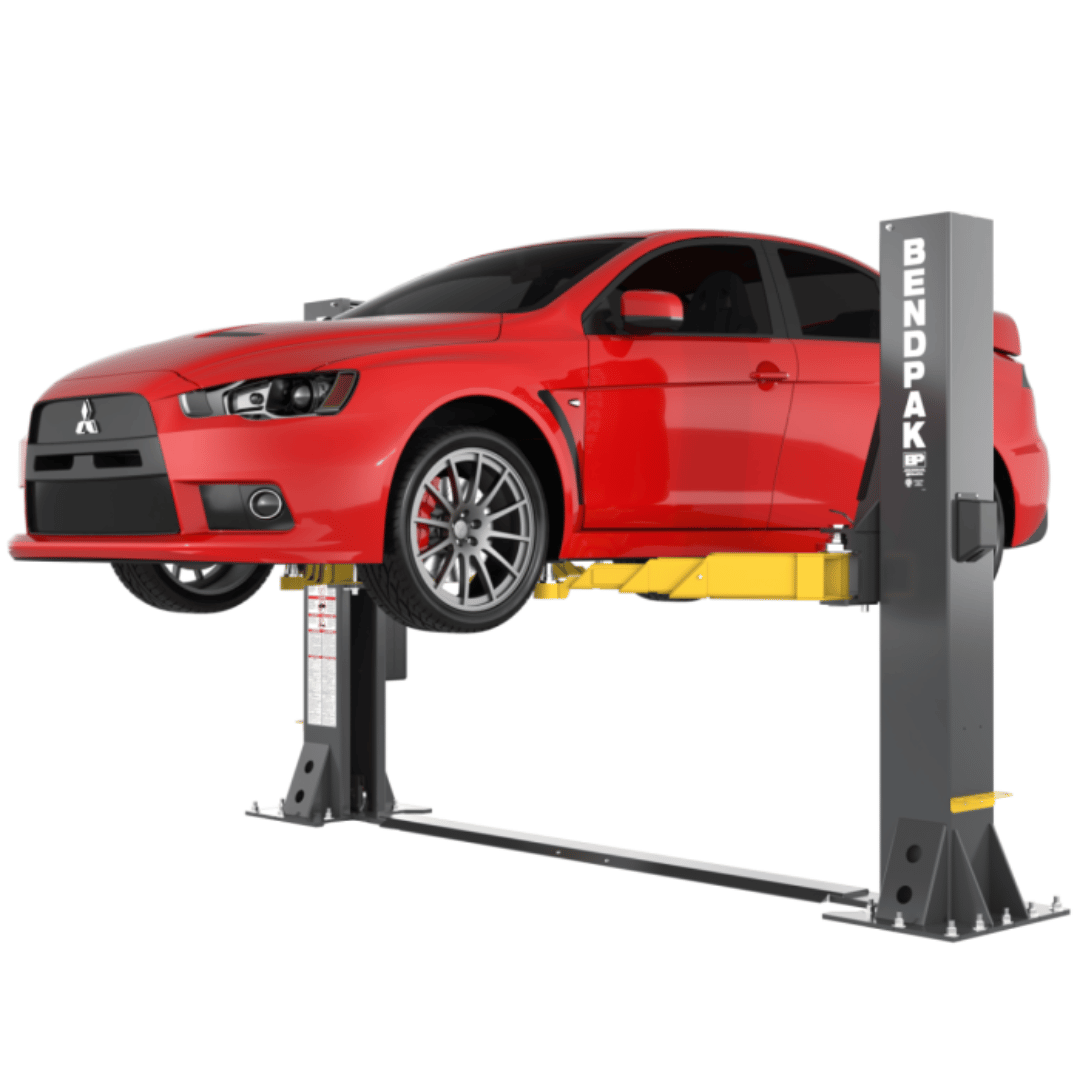

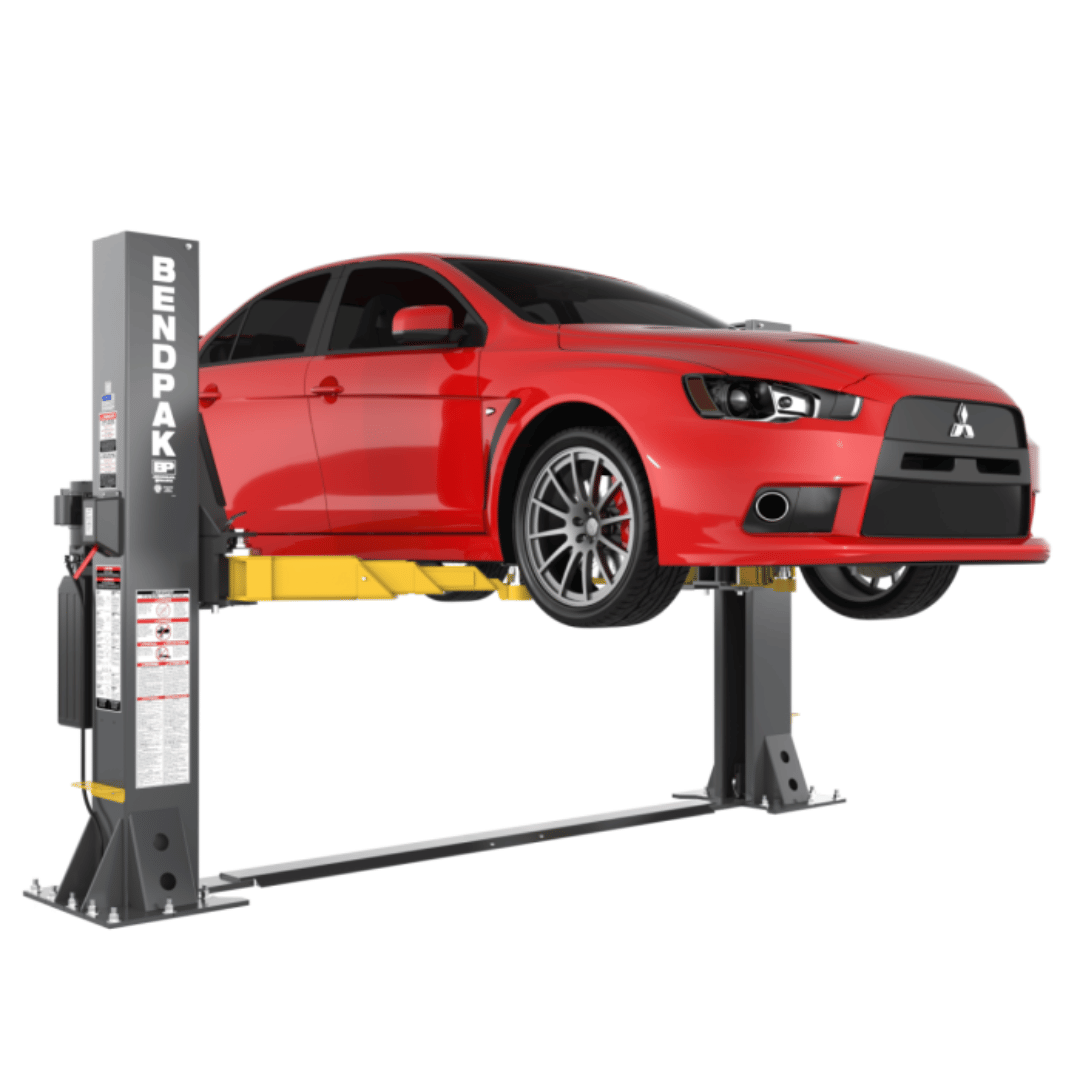

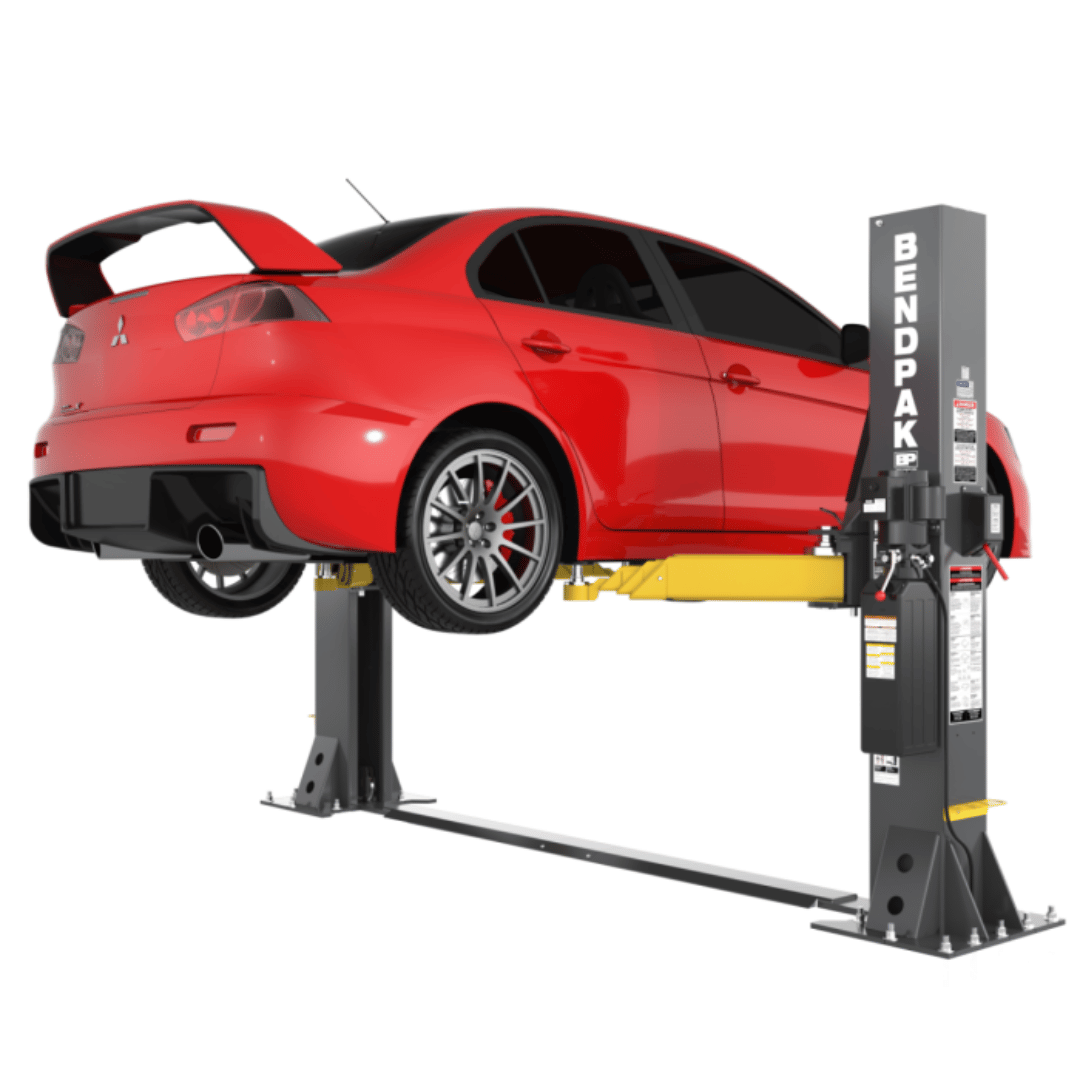

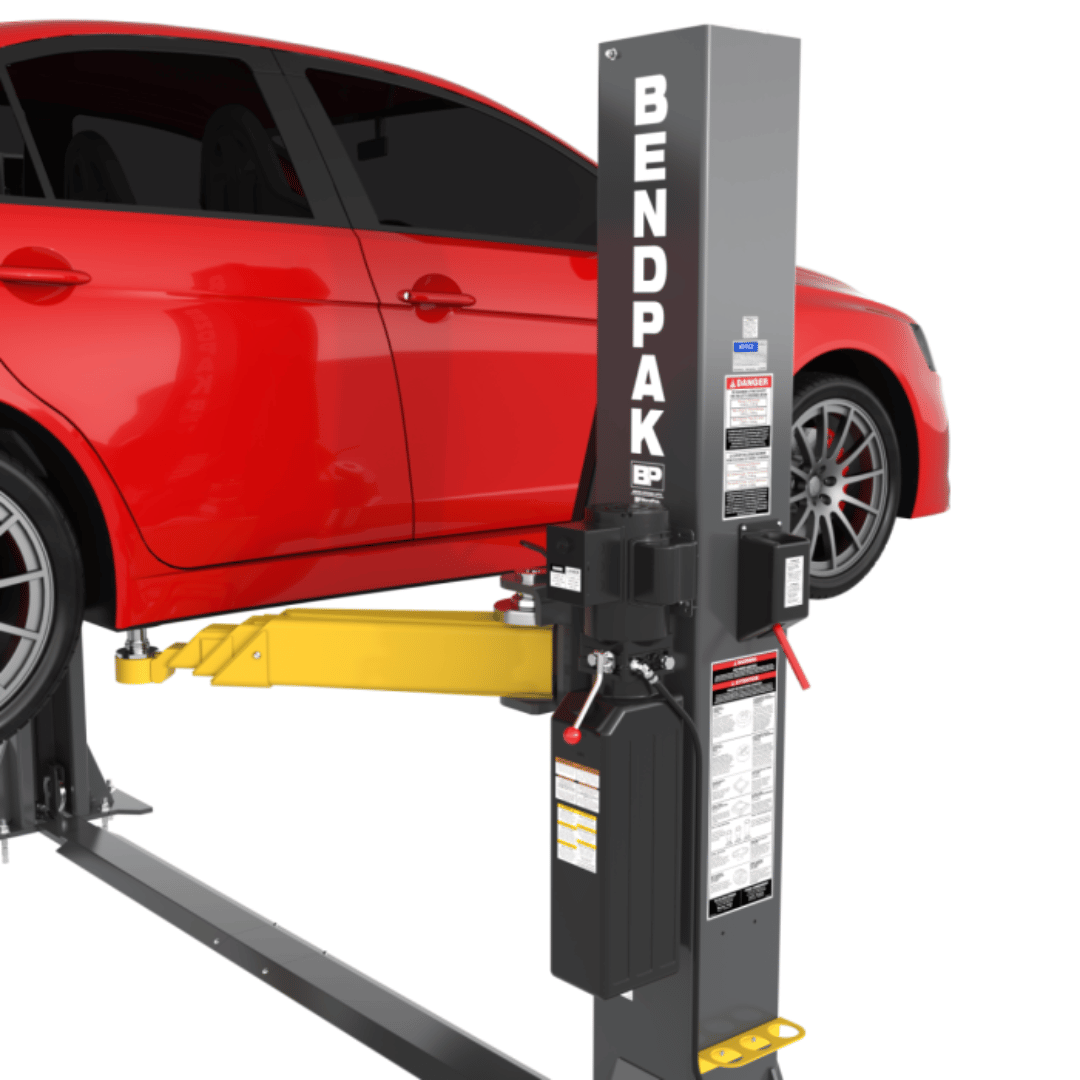

BendPak 10AP-SRT 10,000‐lb. Capacity SHORT-RISE 2 Post Car Lift

The 10AP-SRT represents the future of two-post lifts. As part of the all-new AP Series, this innovative lift is as versatile as it is safe. When tire and wheel service is the name of the game, this is the lift you’re going to want. Whether you’re lifting vehicles symmetrically or asymmetrically, the 10AP-SRT has you covered!

The Ultimate Lift Solution for Tire Pros

At BendPak, we understand that different jobs require different tools. You’re not always going to need a standard lift you can stand under a vehicle, and that’s where the 10AP-SRT comes in. This short-rise, short-column lift is capable of safely handling up to 10,000 lbs. With a max rise of roughly 46 inches, this lift is ideal for tire service as well as detailing. The 10AP-SRT features a compact design which allows it to fit conveniently in shops as well as in low-ceiling garages.

A New Paradigm in Lifting

The AP Series features a ground-breaking design which combines the best attributes of today’s two-post lifts and combines it into a completely fresh approach to car lift engineering. The final result is a lift unlike any other on the market, built to handle tough jobs, heavy loads, and ensure the safety of the vehicle and the operator.

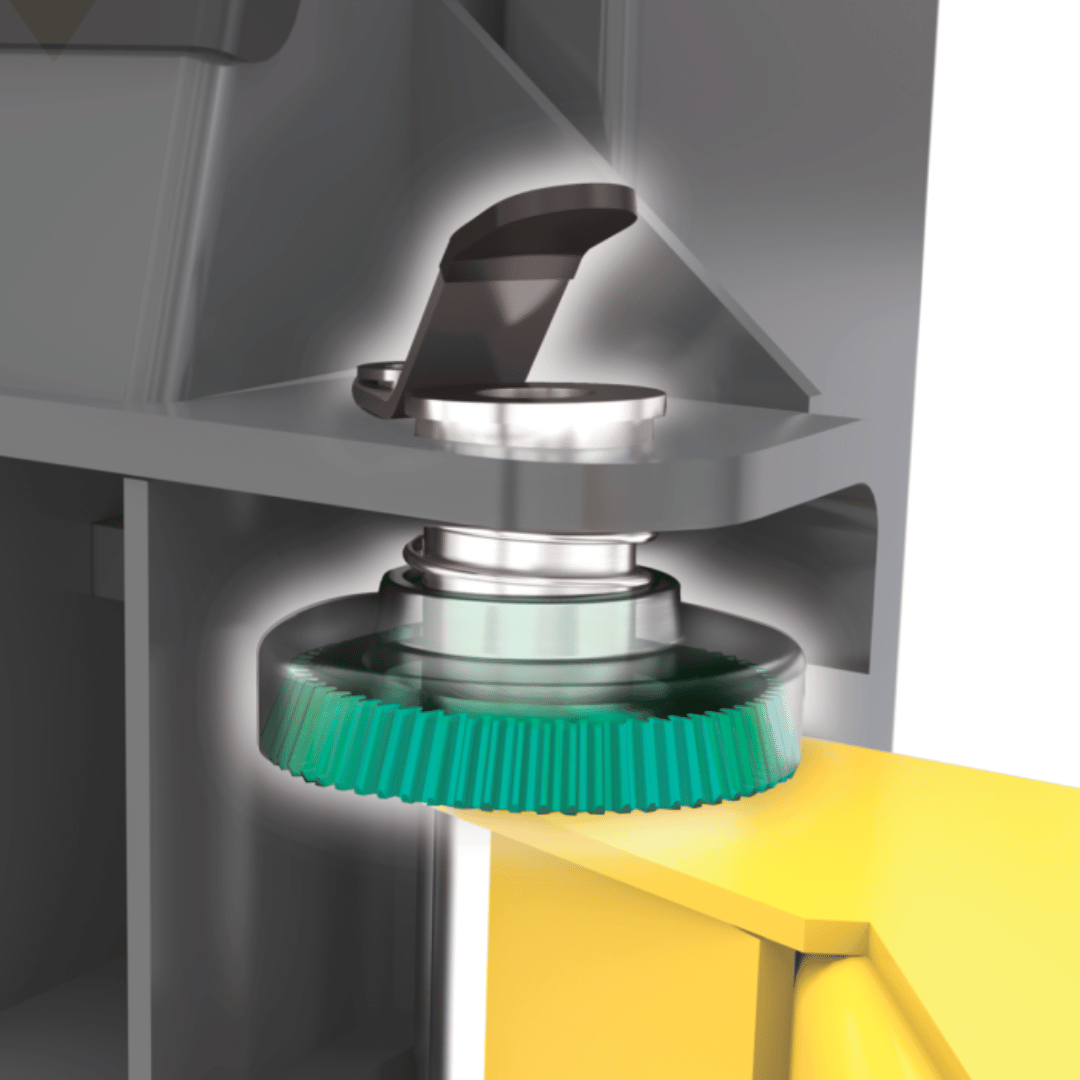

Unparalleled Safety with Automatic Arm Restraint

A significant design feature that makes BendPak’s AP series particularly well-suited for heavy vehicle service is a revolutionary Automatic Swing Arm Restraint System (ASARS) that has been bolstered to withstand these elevated pushing and pulling forces that occur when vehicles are being serviced. With a full 360-degrees of load holding grip, the heavily forged-steel design of this patented and very exclusive arm restraint system secures the lift arms firmly in place with over 2000-pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations. This revolutionary design is an adaptive system that requires minimal operator involvement and delivers unparalleled holding power. A distinctive power-hold design that allows for precise non-shifting action, and a handy quick-release operator lever allowing for the instant release of the clamping pressure.

Triple-Telescoping Nested Swing Arm Design

Revolutionary and patented swing arms are specifically tailored for varying vehicle lifting points. Unlike traditional two-post lift arms, 10AP arms retract shorter and extend farther; offering lift operators a myriad of lift arm positioning options – it’s like having the best of all worlds. The innovative three-stage arms achieve more telescoping movement due to their patented nesting feature that results in greater retraction and farther reach. Inner sliding arm movement is no longer impeded by arm end plates, tube closeouts, or even the arm pivot pin itself. The inner tubes retract fully through the back of the arm assembly end even beyond the arm pin, resulting in more achievable retraction and extension.

Low Profile Arms

BendPak’s exclusive Low-Pro™ swing arms feature telescoping channels that have a shorter profile and a dropped-end pad receiver resulting in better serviceability on lowered chassis-height vehicles. They access hard-to-reach lift points with less hindrance providing increased versatility and less chance of damage to vehicle side skirts, running boards or ground effects. Varying height stackable adapters combined with two stage spin-up screw pads provide greater vertical pad placement for precise and safe vehicle support.
