Atlas Air Force AF7 5HP 80 Gallon Two Stage Air Compressor with Mag...
Product Description

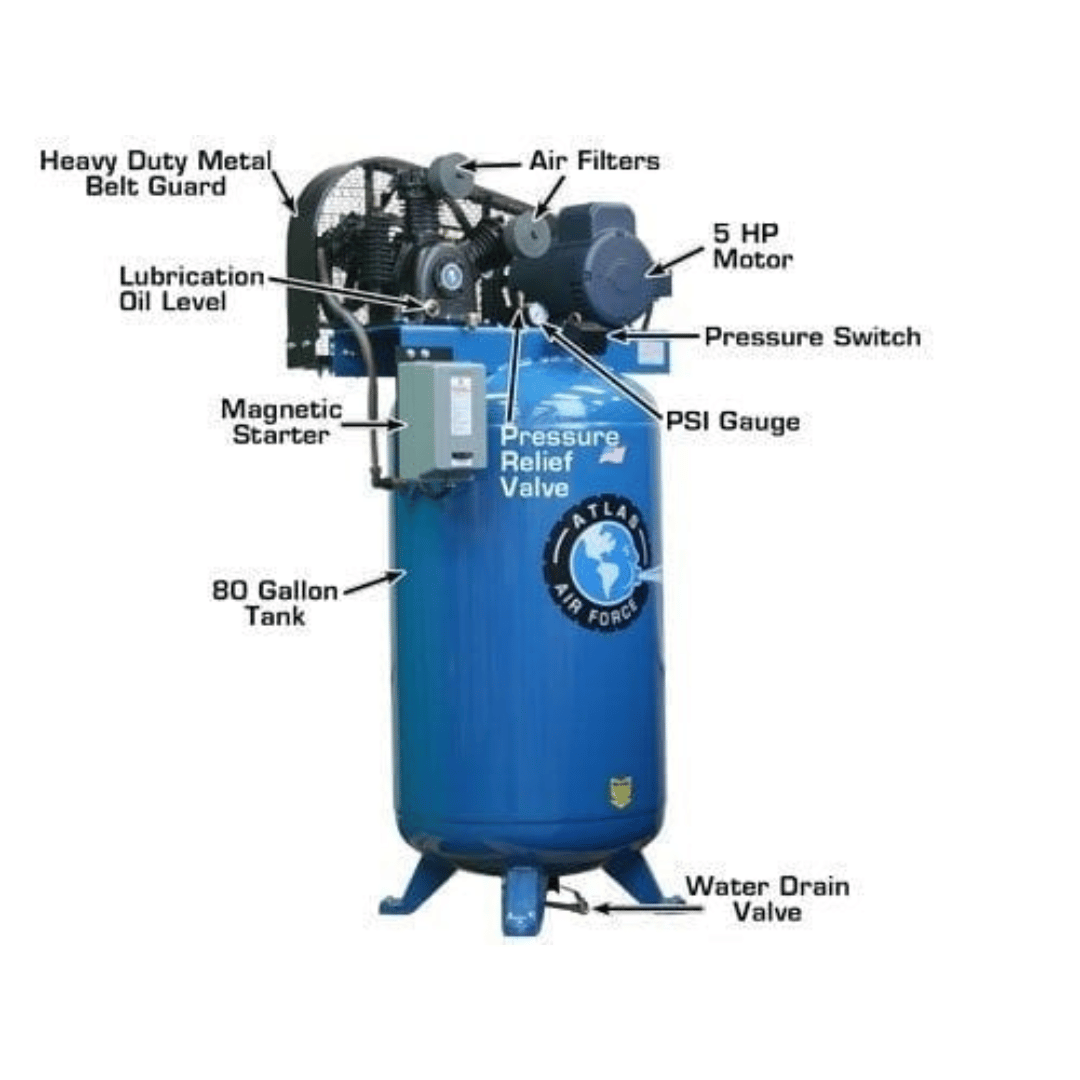

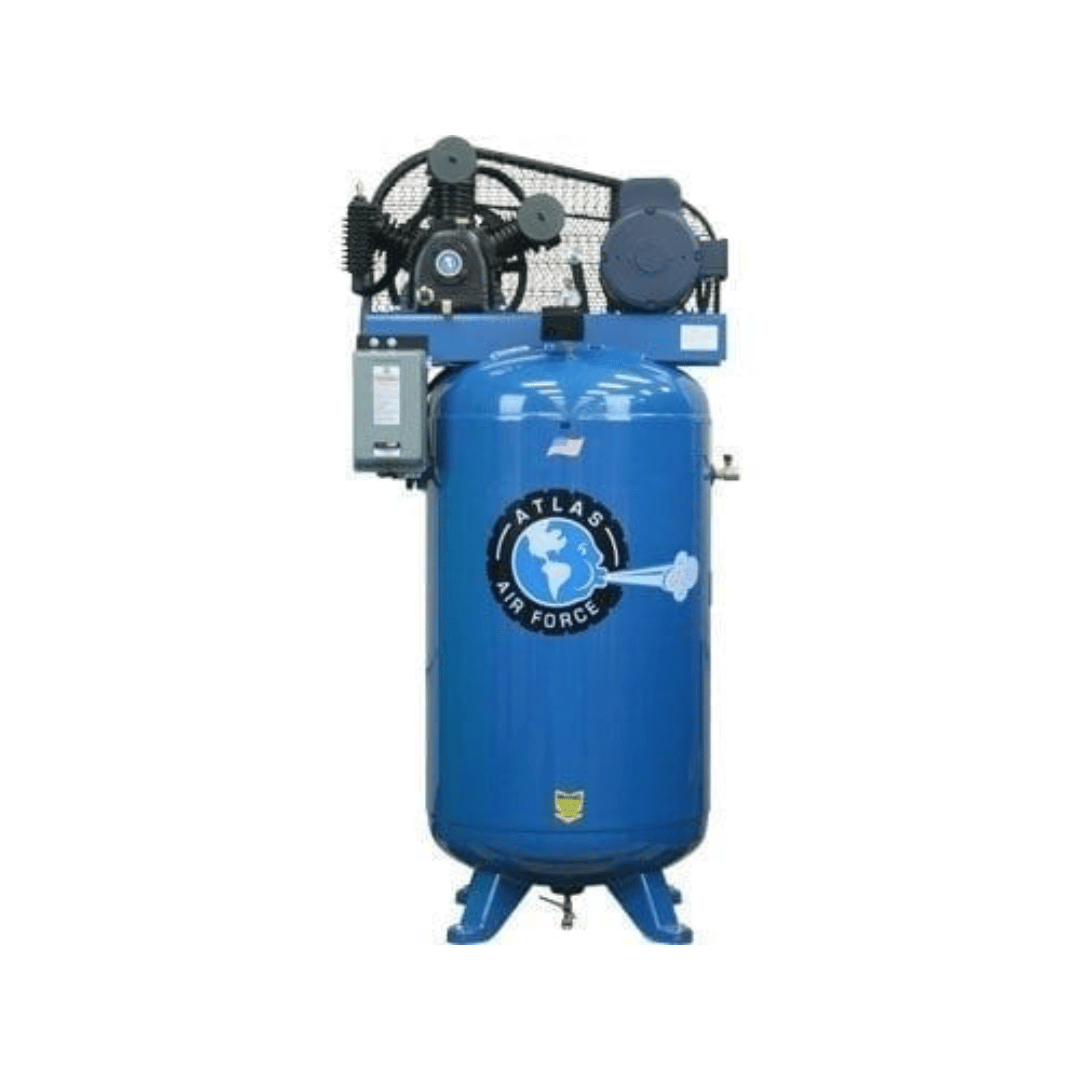

Atlas Air Force AF7 5HP 80 Gallon Two Stage Air Compressor with Magnetic Starter
The Atlas Air Force AF7 is a premium 5 HP air compressor designed for efficiency and durability. Operating on 220 volts single-phase power, this compressor features a low RPM motor and delivers 15.0 CFM at 100 PSI and 14.0 CFM at 175 PSI. It operates within a pressure range of 145-175 PSI, making it ideal for various applications. The 80-gallon vertical tank is made in the USA, ensuring high quality and longevity.
High-Performance and Quiet Operation

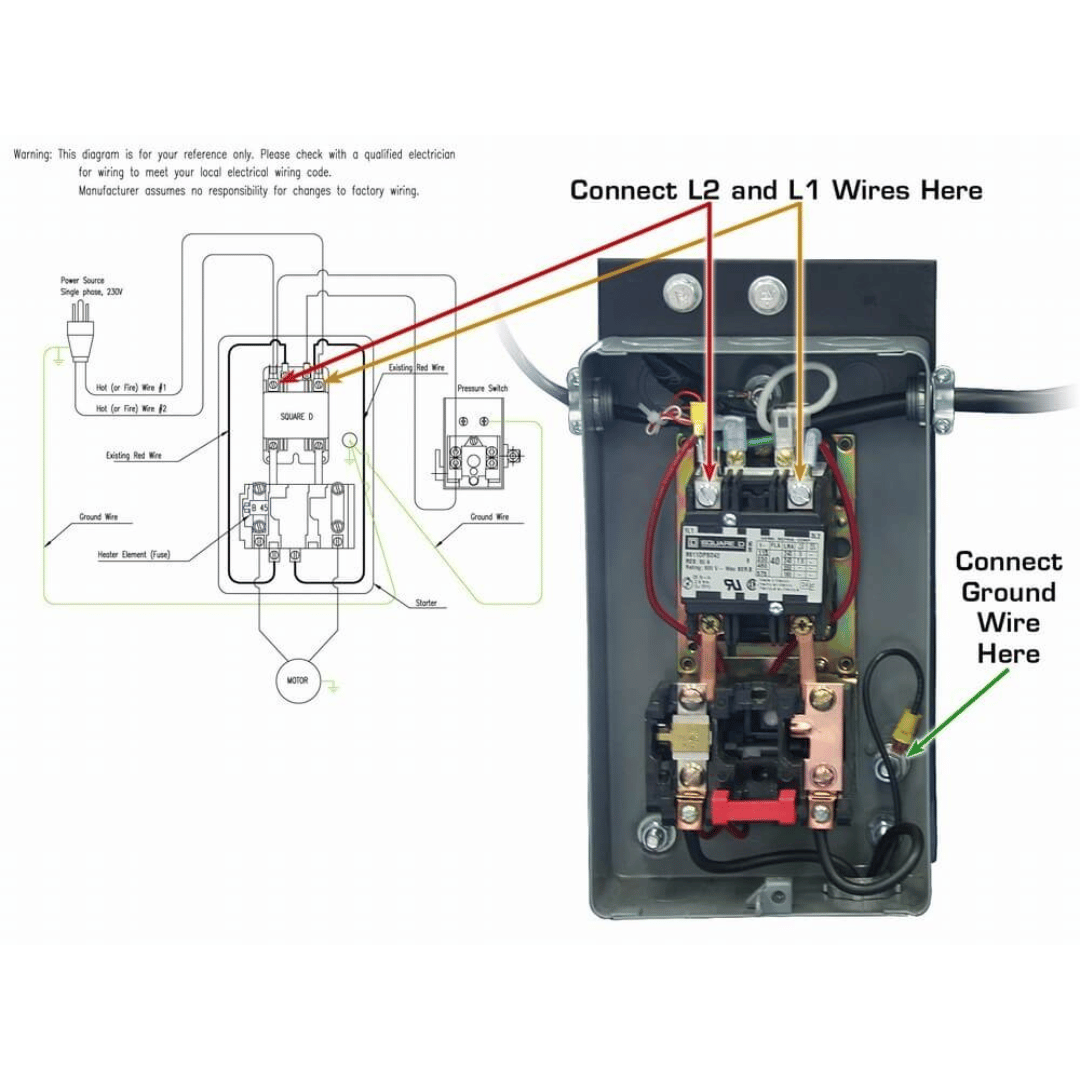

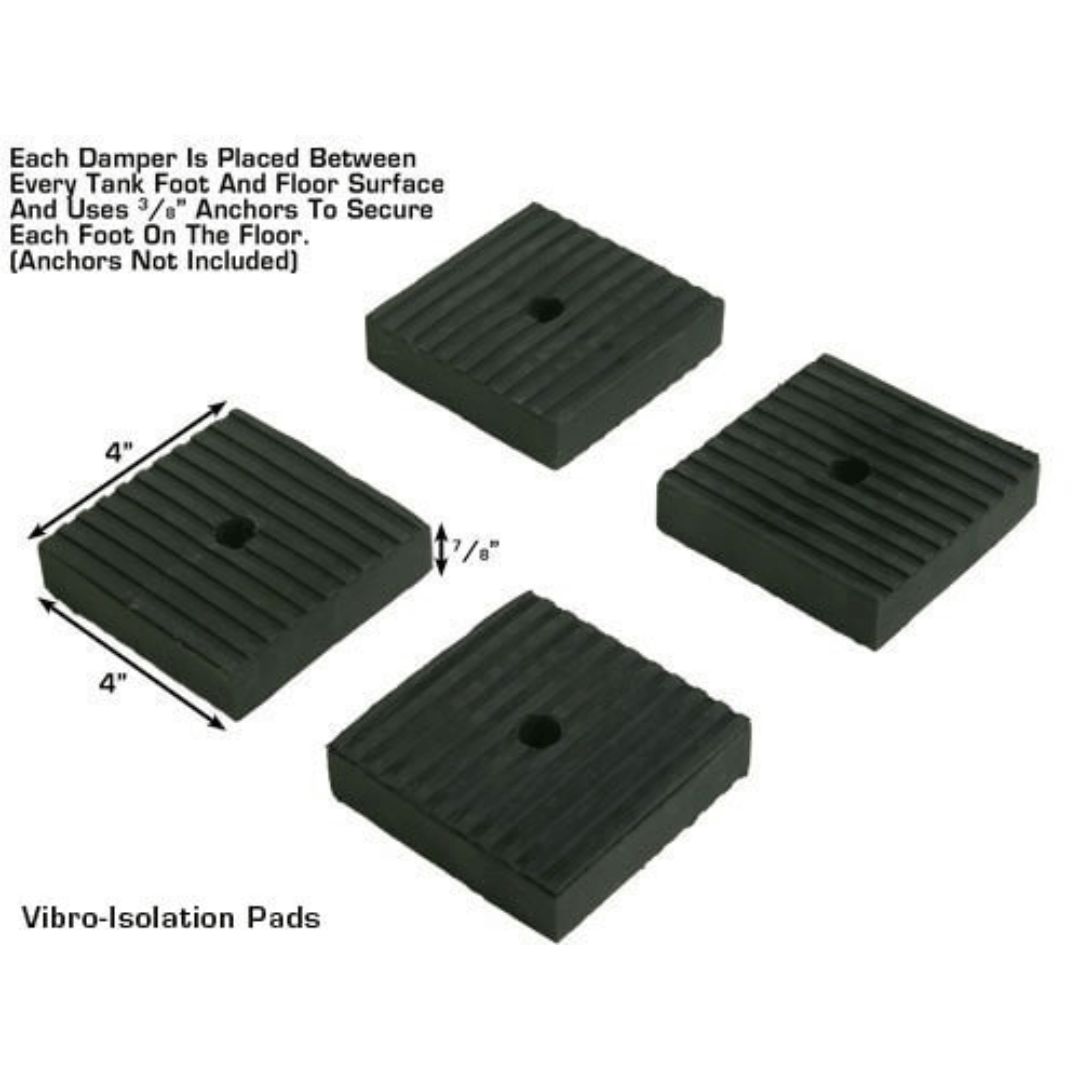

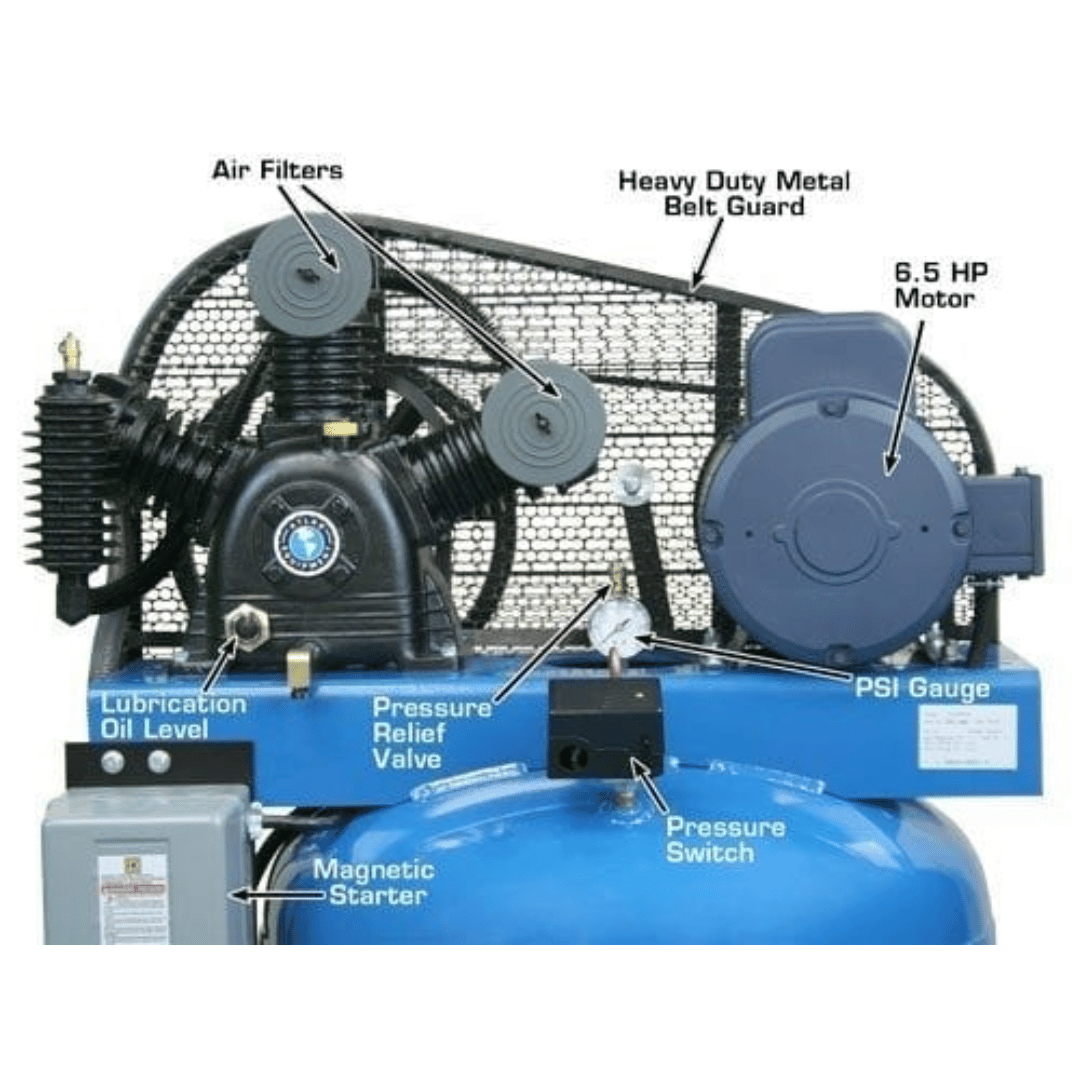

The AF7 includes a CT40 3-cylinder, 2-stage compressor pump, which ensures reliable and powerful performance. Despite its strength, the compressor operates extremely quietly, making it suitable for environments where noise control is important. The included magnetic starter and Vibro-Isolation pads enhance stability and ease of use.
Durable Construction and Additional Features

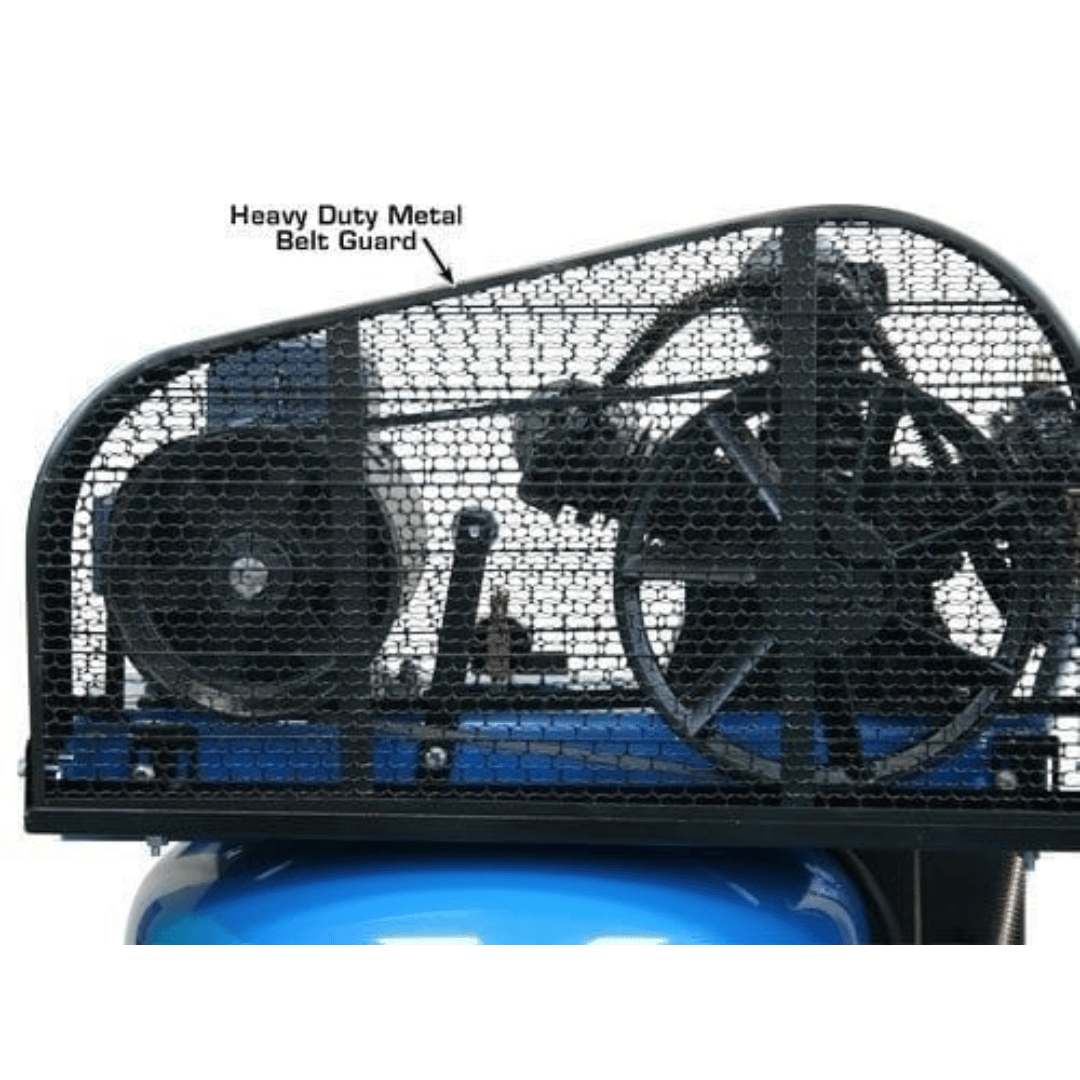

The compressor is built with a heavy-duty metal belt guard and a finned tank inlet tube to reduce water accumulation in the tank. Additional features include a hands-free tank drain extension and a compressor oil drain extension tube, simplifying maintenance and operation. The overall dimensions are L 24 1/2" x W 24" x H 65 7/8", and it weighs 485 lbs.
Key Features:
- Motor: 5 HP, low RPM, 220 volts single-phase
- CFM Delivery: 15.0 at 100 PSI, 14.0 at 175 PSI
- Pressure Setting: 145-175 PSI
- Tank Capacity: 80 gallons (vertical, made in the USA)
- Operation: Extremely quiet with magnetic starter and Vibro-Isolation pads
- Construction: Heavy-duty metal belt guard, finned tank inlet tube, hands-free tank drain extension
The Atlas Air Force AF7 air compressor is a reliable and efficient solution for commercial and industrial air supply needs.
Product Features
- 2-Stage Pump
- 5hp, Low RPM Motor
- 80 Gallon Vertical Tank (Made in the USA)
- Air Output 140-175 PSI
- Extremely Quiet Operation
- Magnetic Starter Included
- Set of Vibro-Isolation Pads Included

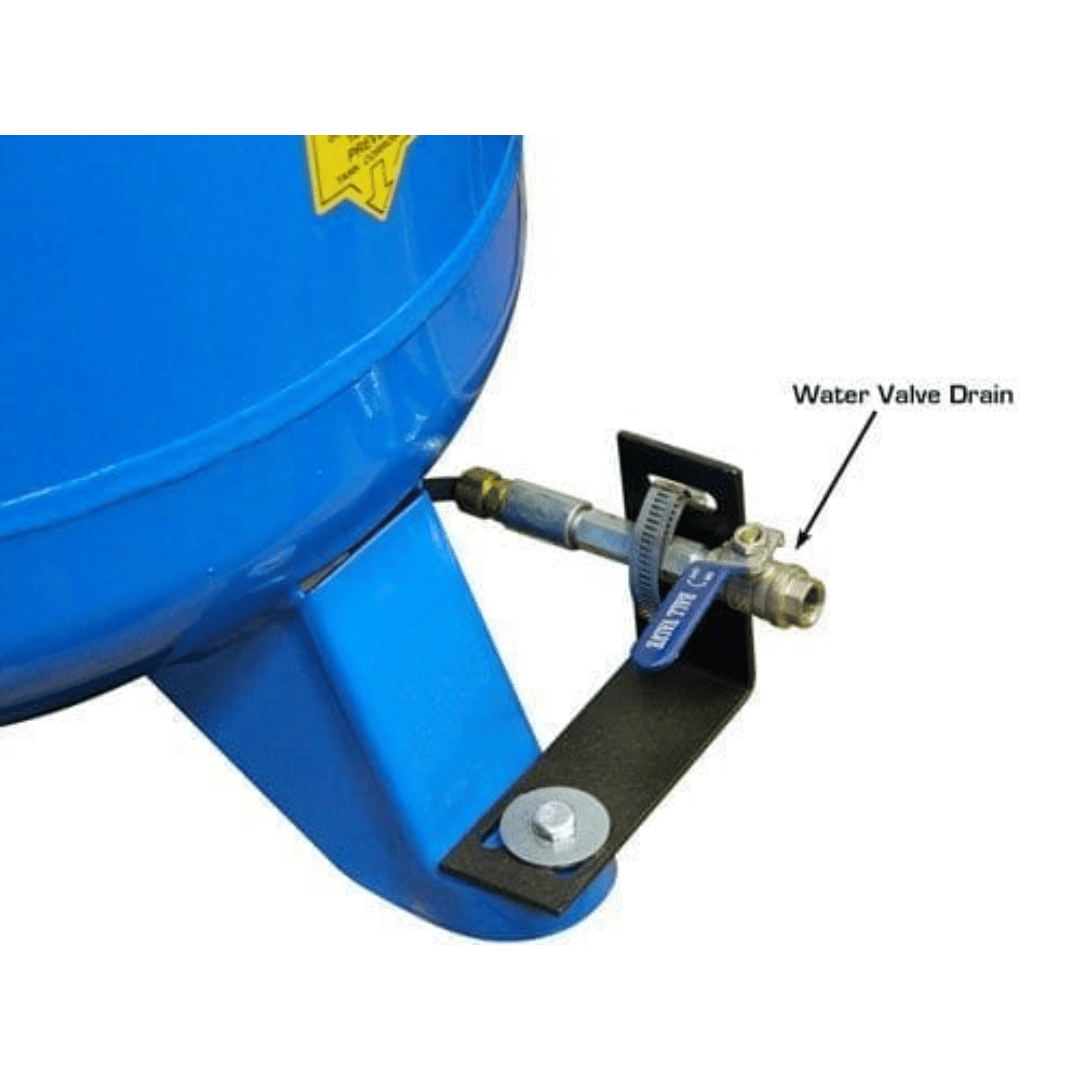

- Hands free tank drain extension
- Compressor oil drain extension tube
- Finned tank inlet tube for reduced tank water accumulation
- Heavy Duty Metal Belt Guard
- Electric: 220volt/1phase
- 1 Year Parts Only Warranty

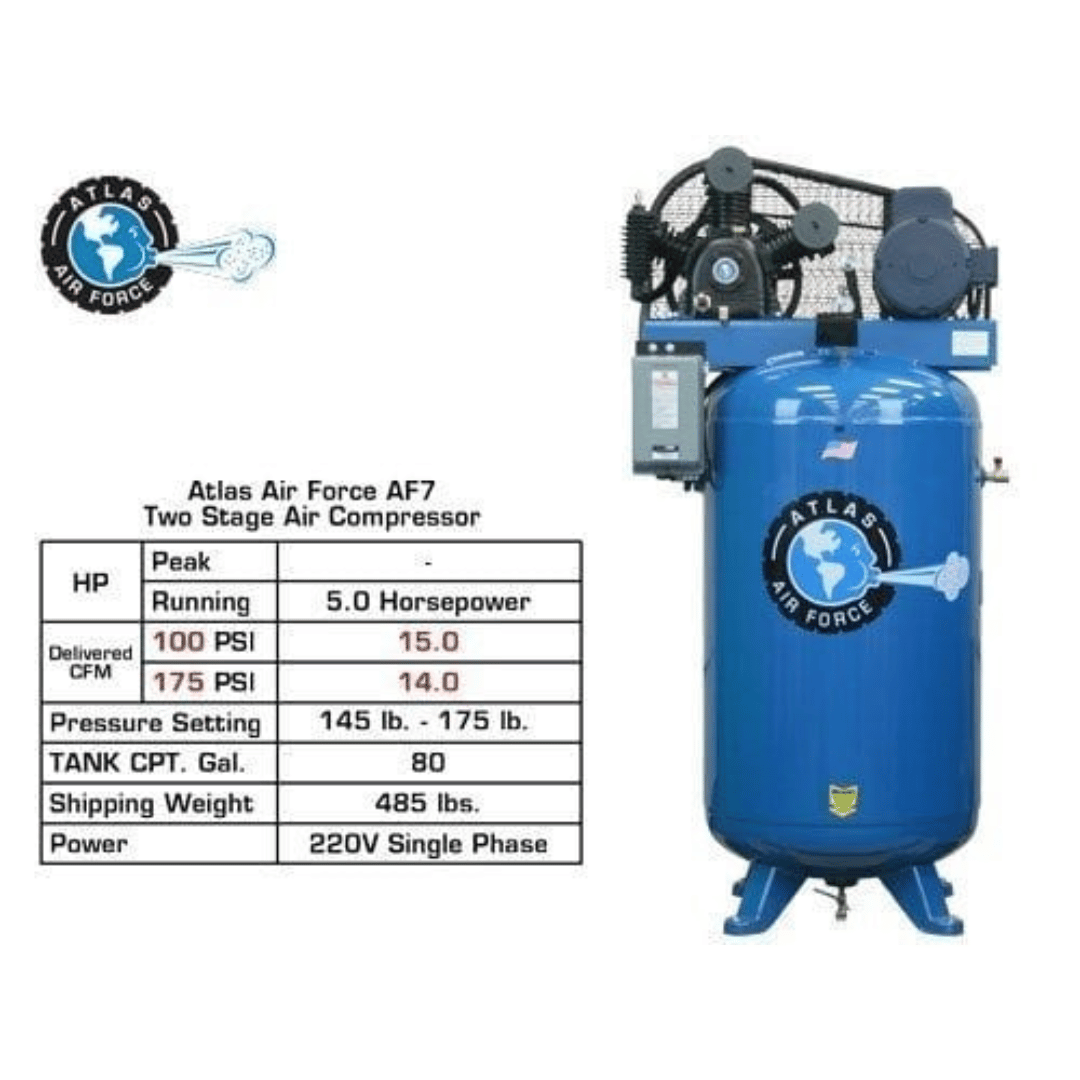

Product Specifications
| Model | Air Force AF7 |
| Motor Running | 5 Horsepower |
| Delivered-CFM 100 PSI | 15.0 |
| Delivered-CFM 175 PSI | 14.0 |
| Pressure Setting | 145-175 PSI |
| Tank Capacity | 80 Gallons |
| Air Outlet Size | 1/2" NPT |

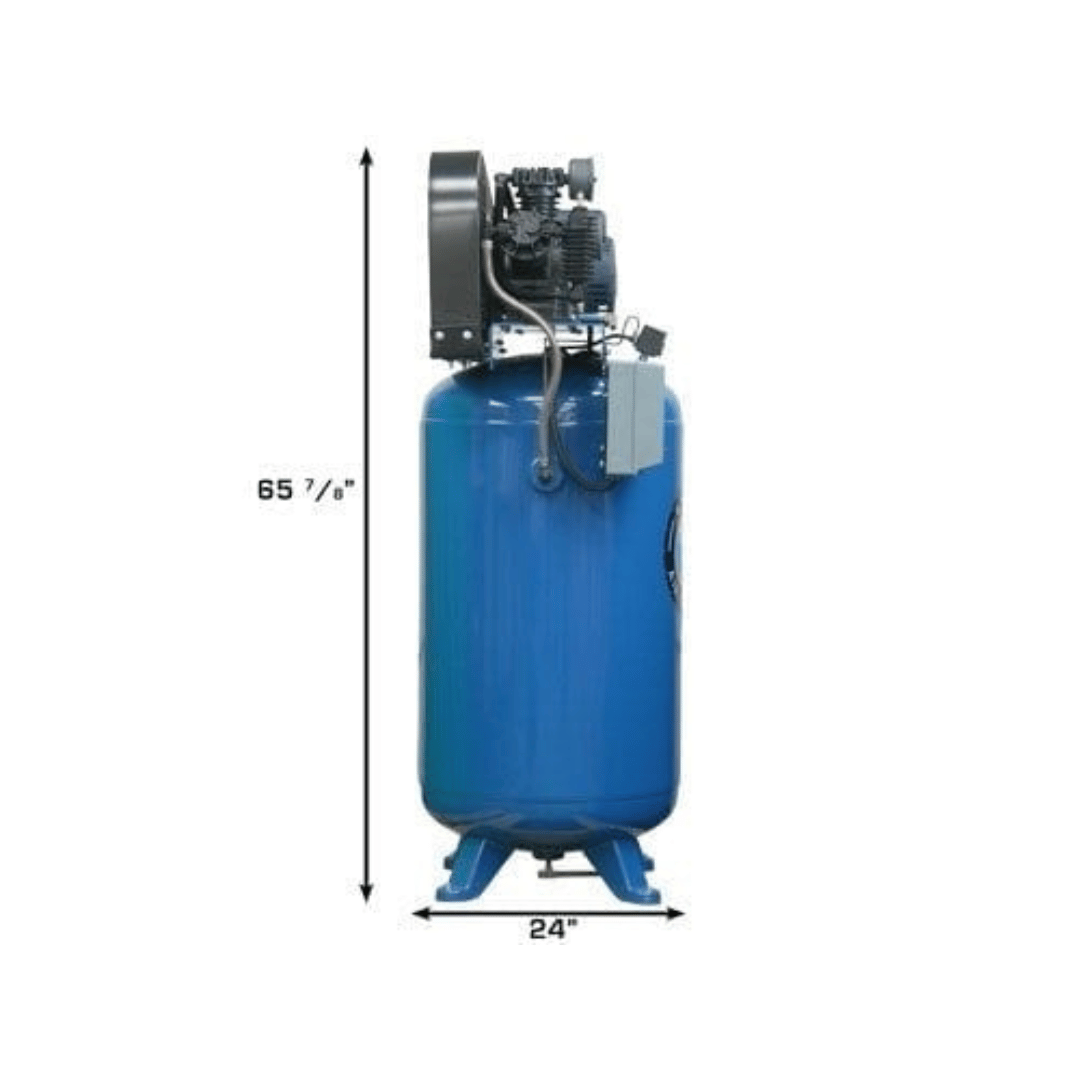

| Overall Dimensions | L 24 1/2" x W 24" x H 65 7/8" |
| Motor Voltage | 220volt, 1PH, 50 amp breaker required |
| Compressor Pump | CT40 3 Cylinder, 2-Stage |
| Shipping Weight | 485 lbs. |
