Atlas Platinum PVL14OF-EXT Open Front Alignment Lift + RJ7000 ALI C...
Product Description
Atlas Platinum PVL14OF-EXT Open Front Alignment Lift + RJ7000 ALI Certified Rolling Jacks Combo
The Atlas® Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments.
The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
The Atlas® Platinum PVL14OF-EXT is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.
This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
This combo package also includes two of the popular ALI Certified Atlas® Platinum RJ7000 Rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Product Features
Platinum PVL14OF-EXT Alignment Lift
- ALI Certified Lift
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Alignment Lift, Includes Built in Slip Plates & Turntables
- Open Front Design for Better Access
- Extra Long Runways
- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish

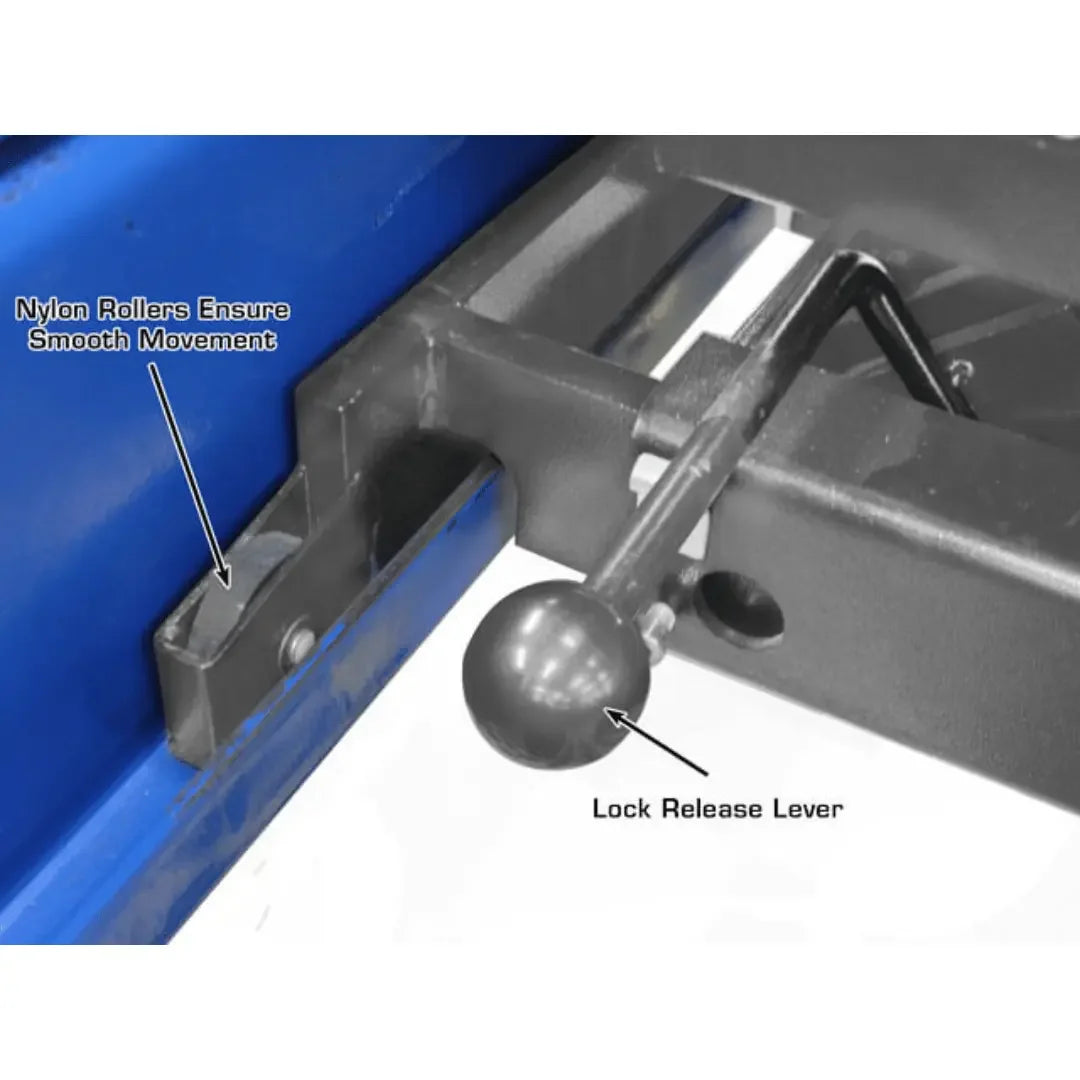

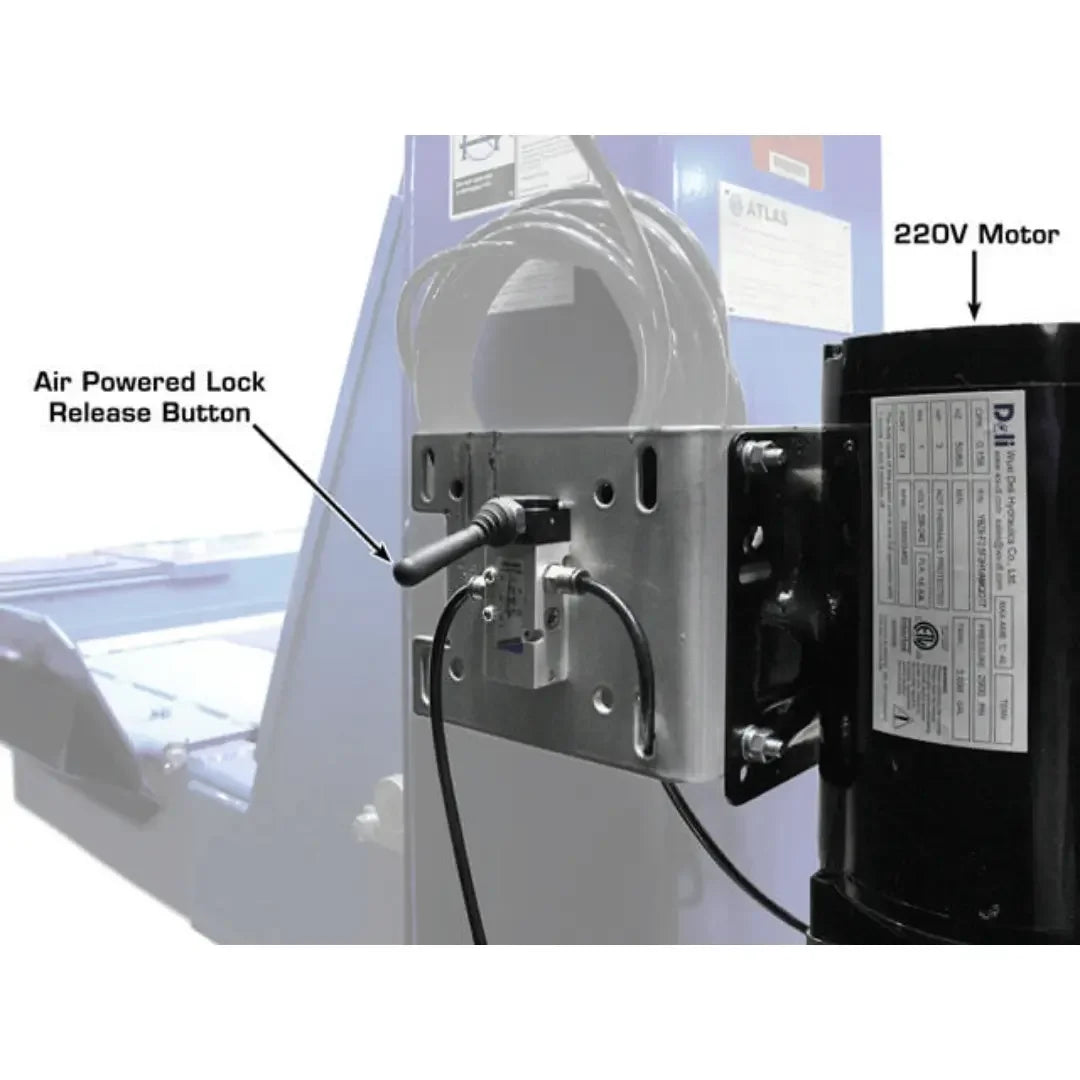

- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 4,462 LB.
- 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty
Platinum RJ7000 Rolling Jack
- 7,000 lb. Capacity
- Air/Hydraulic Operated
- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 1 Year Parts Only Warranty
Product Specifications

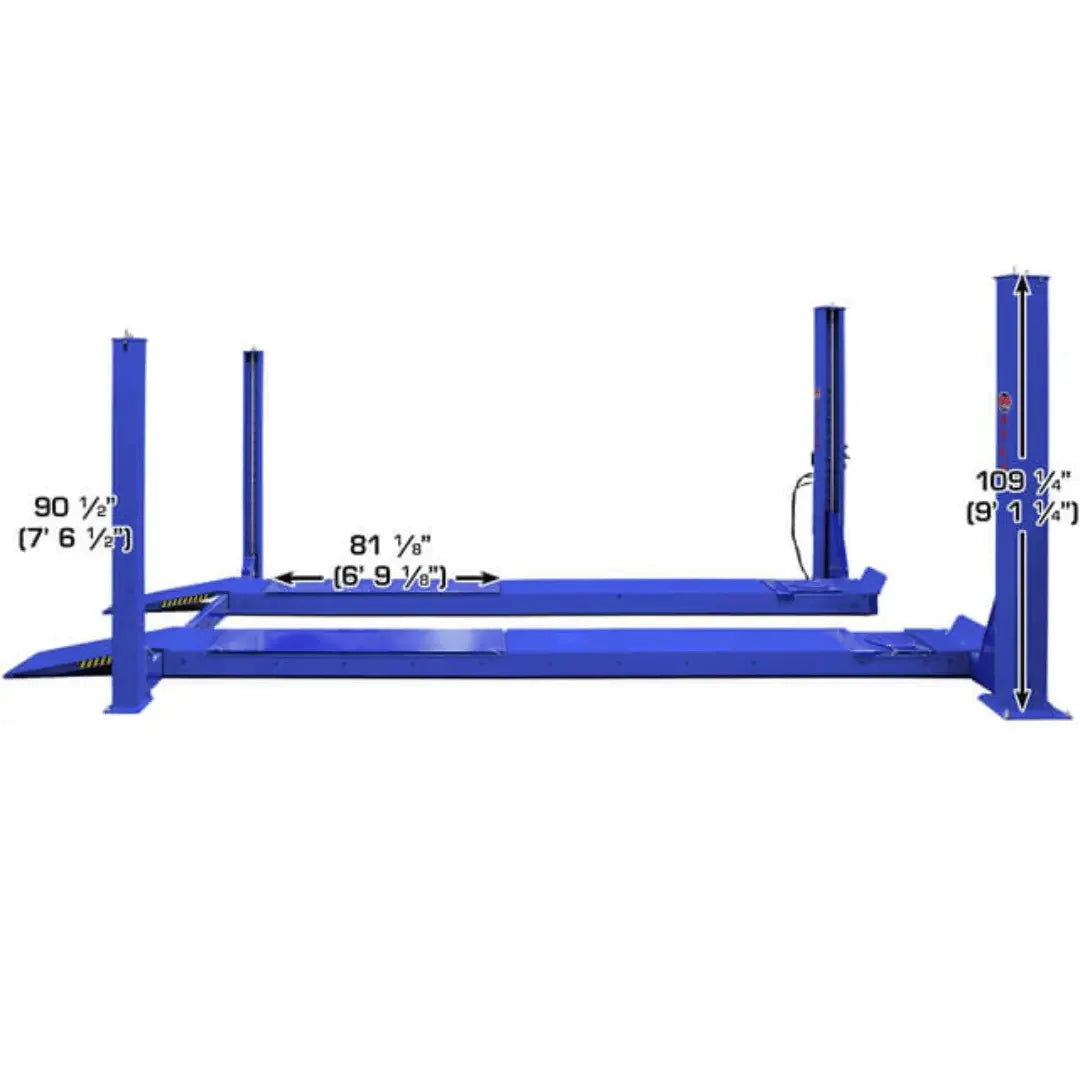

Atlas® Platinum PVL14OF-EXT Specifications
| Capacity | 14,000 lbs. |
| Lifting Height | 73 1/4" (6' 1 1/4") |
| Clearance Under Runways | 66 1/4" (5' 6 1/4") |
| Height Of Columns | 92 1/2" (7' 8 1/2") Rear/109 1/4" (9' 1 1/4") Front |
| Overall Width Of Columns (Without Motor) | 140 1/8" (11' 8 1/8") |
| Overall Width Of Columns (With Motor) | 148 3/4" (12' 4 3/4") |
| Overall Length With Approach Ramp | 272 1/8" (22' 8 1/8") |
| Length Between Columns | 207" (17' 3") |
| Runway Width | 20" |
| Runway Length | 223 1/2" (18' 7 1/2") |
| Runway Thickness | 7" |
| Width Between Runways | 42 3/4" (w/ Rails 39 1/4") |
| Outside Runway To Outside Runway | 83 1/8" (6' 11 1/8") |
| Clearance Between Columns | 116 3/8" (9' 8 3/8") |
| Maximum Wheel Base | 203" (16' 11") |
| Drive Thru | 94 1/2" (7' 10 1/2") |
| Air Requirement | 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement | 220 volt single (1) phase. (A 30 amp breaker is recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Requires a minimum of | 6" of concrete with a 3000 psi. rating |
| Shipping Weight | 4,462 lbs. |

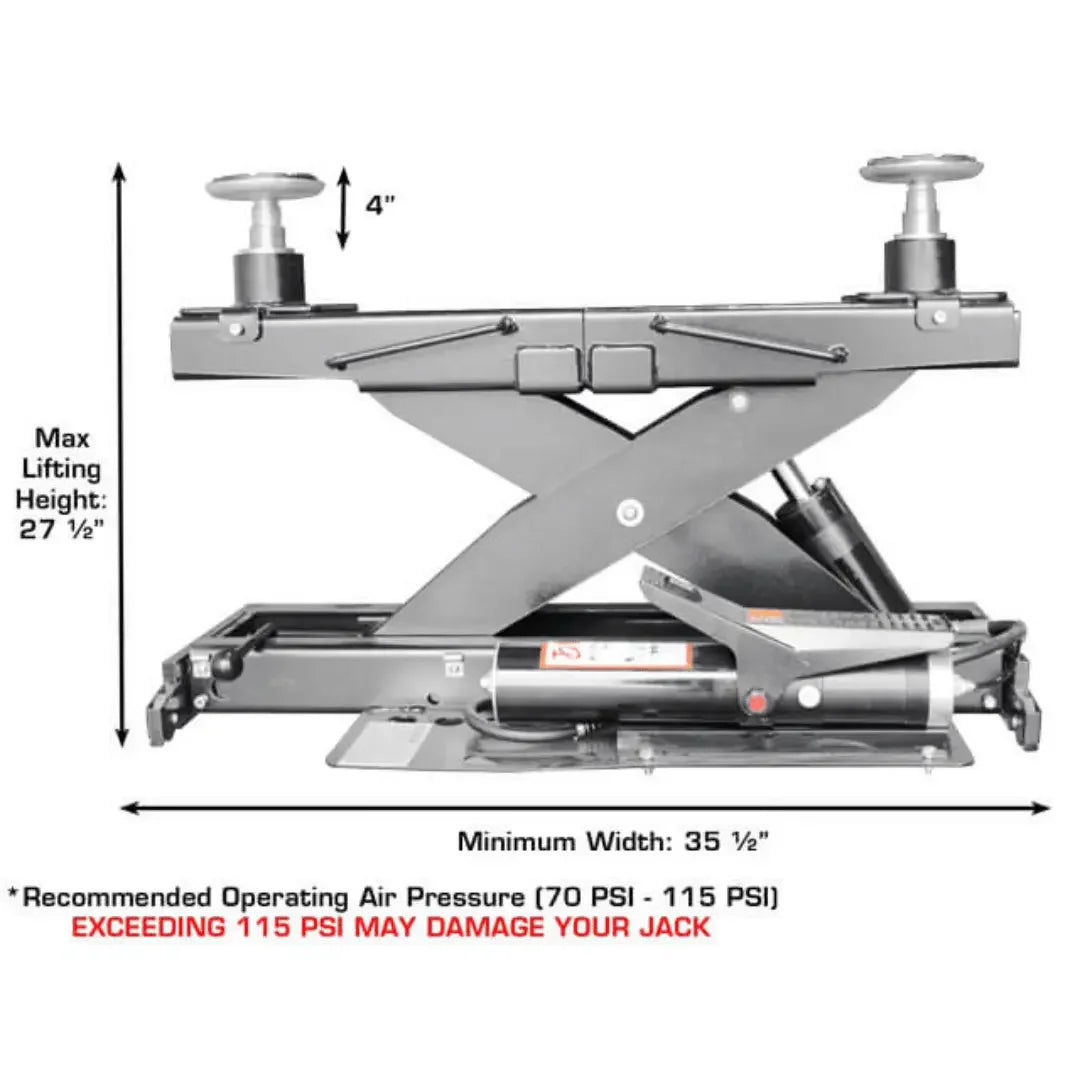

Atlas® Platinum RJ7000 Specifications
| Maximum Capacity | 7,000 lbs. |
| Minimum Width | 36" |
| Maximum Width | 45 1/2" |
| Distance Between Runway Capability | 36" - 45" |
| Minimum Lifting Height | 12 1/2" |
| Maximum Lifting Height (w/ Adapters) | 27 1/2" |
| Double Screw-Up Adapter Pad | 1 1/2" - 4" |
| Air Requirement | 70-115 PSI |
| Shipping Weight | 390 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
