Product Description

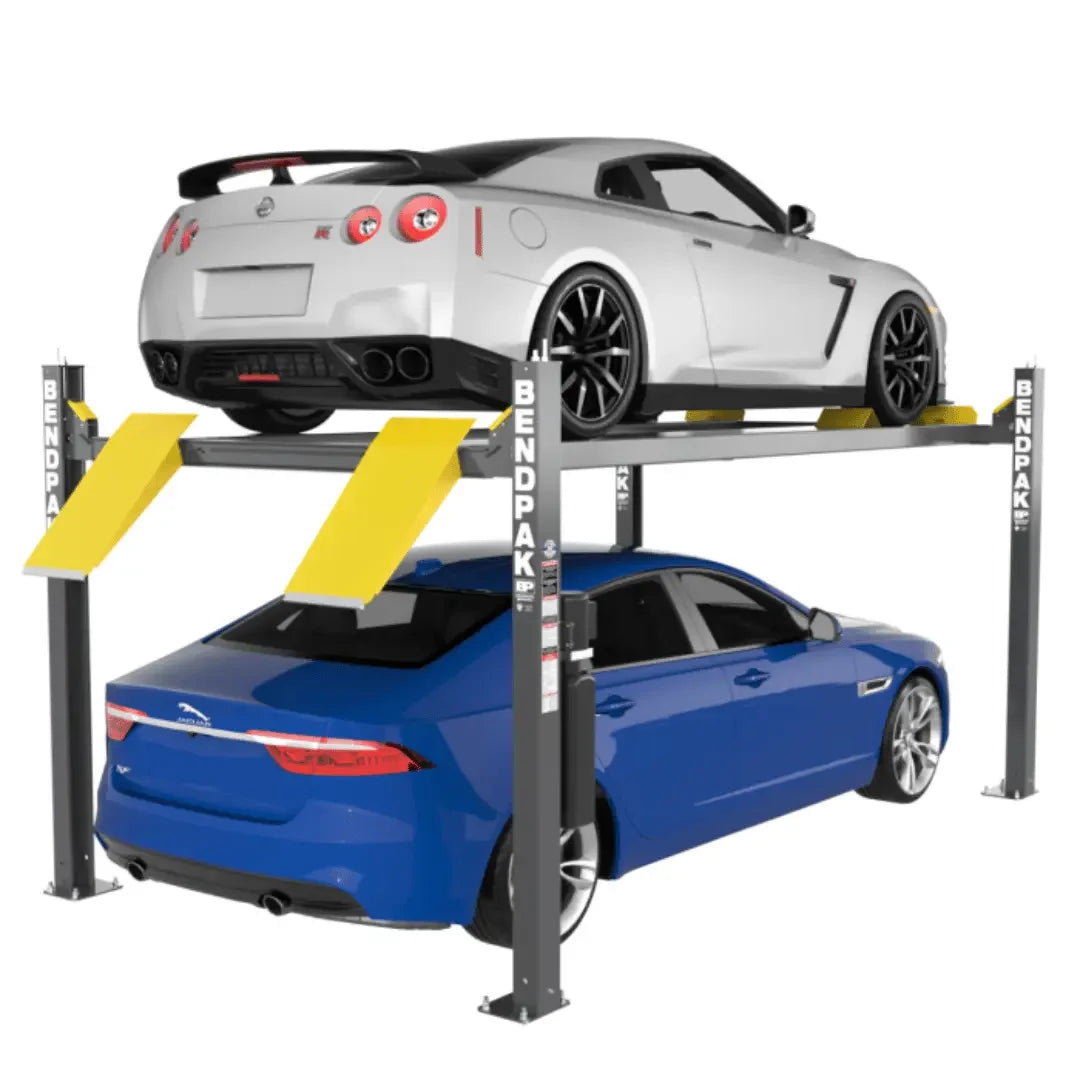

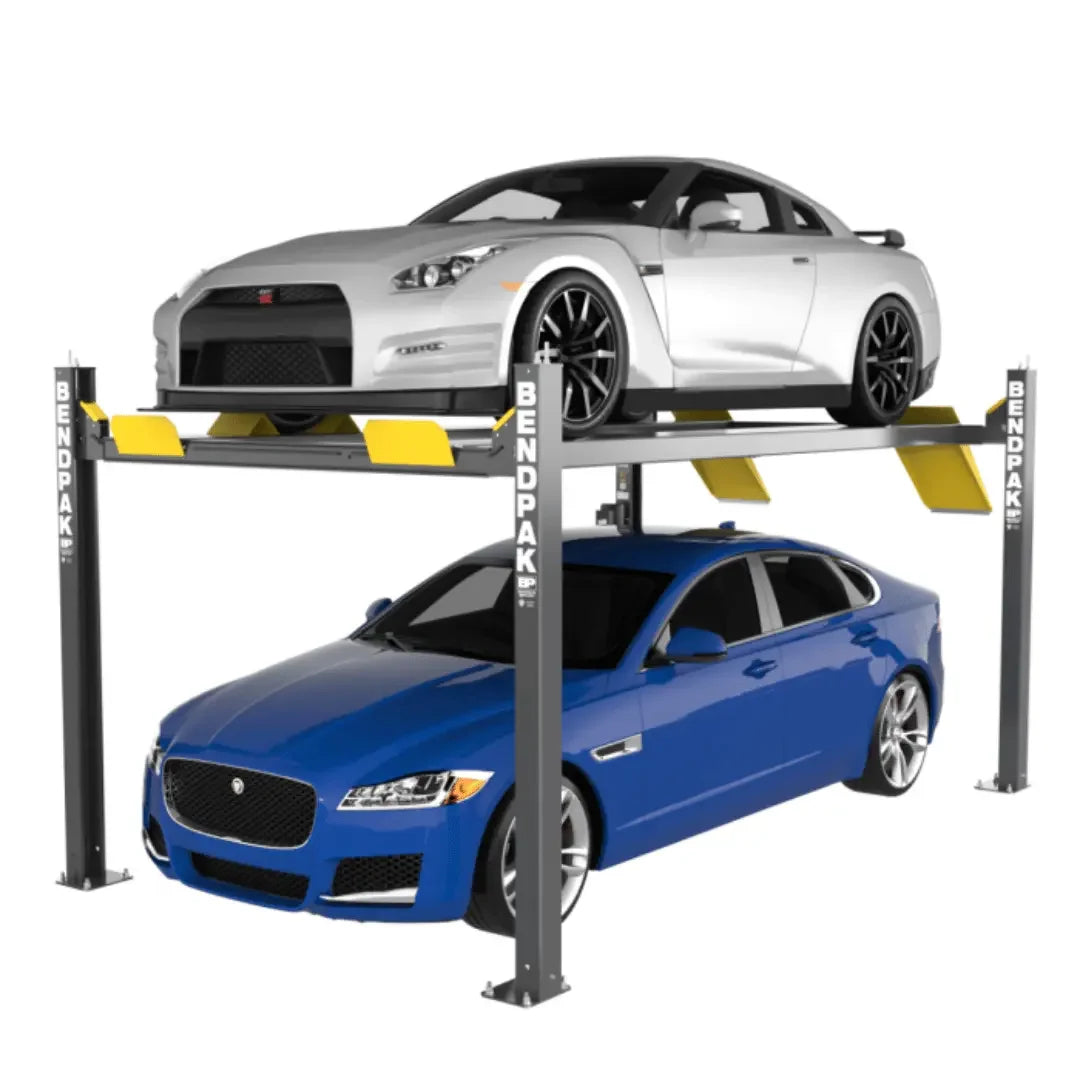

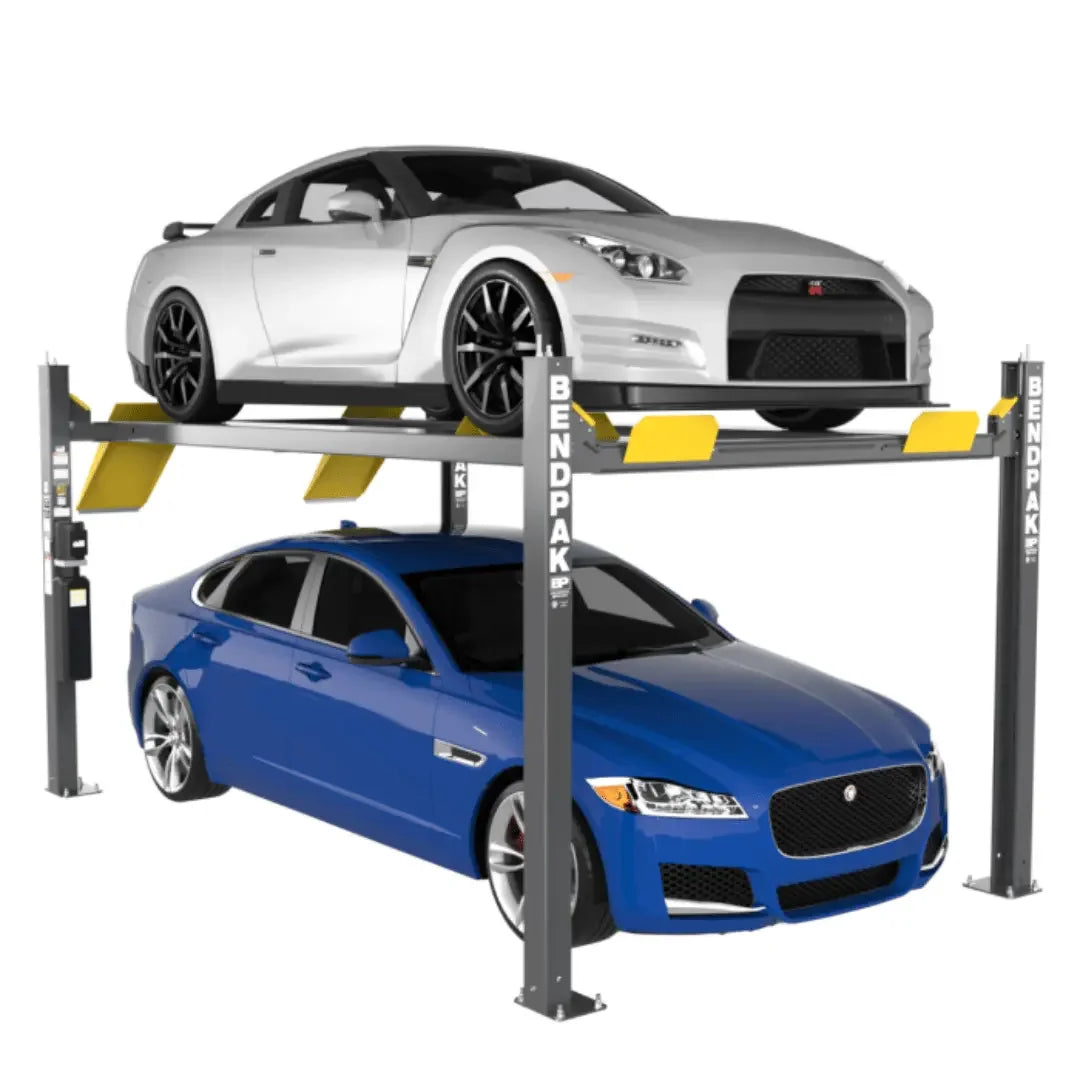

BendPak HD-9EWT 9,000-lb. Capacity / Four-Post Lift / Extra-Wide / High Lift
BendPak’s HD-9EWT is the perfect solution for all your storage needs. This extra-tall and extra-wide lift offers ample overhead clearance and enough side room to easily park light-duty trucks, SUVs, and virtually any low ground-clearance vehicles. With over 6 inches of additional width compared to the HD-9XW, this lift is perfect for wide cars and off-road vehicles.
Built for garages with plenty of space, the BendPak HD-9EWT is perfect for high ceilings and high-rise vehicles. Unlike the narrower HD-9ST four-post lift, the HD-9EWT comfortably accommodates wide-body trucks and SUVs, avoiding concerns about mirror and door scratches. With a substantial 82” rise from the runways, it lifts heavy vehicles higher, providing plenty of room for taller techs to work beneath. Plus, it offers ample space for high-clearance trucks and SUVs, ensuring compatibility with taller vehicles.
Dual-hub cable sheaves are more expensive to manufacture, but they prevent axles, sheaves, and cables from burning out prematurely. The HD-9EWT’s multi-level locking positions ensure that technicians can lock the lift at varied heights, eliminating the need to crouch or reach uncomfortably while performing maintenance. The electric-hydraulic power system allows you to stop, start, and reverse your four-post lift on a dime, with controls within easy reach.
Each four-post lift comes with four lifting cables made from superior-grade stainless steel, rated to handle 14,400 lbs. each. These cables are hidden within the post columns for safety and a streamlined look. The integrated design routes all lifting cables, airlines, safety latches, and sheaves internally, adding to the lift’s sleek appearance.
Safety is a top priority with each and every BendPak lift. Four locks engage simultaneously as the lift is raised, and a backup locking system catches cable slack in the unlikely event of cable failure. Longer approach ramps and low runways make lifting sports cars and other low-standing vehicles easier than ever.
The HD-9EWT is a solid choice for both DIY enthusiasts as well as professional shop owners. The added ceiling clearance is particularly valued in shops, providing ample space for lower-ceiling vehicles. For anyone looking to solve their vehicle storage problems while maximizing their space, the HD-9EWT is the perfect solution.
Product Features
- 9,000-lb. maximum lifting capacity
- Freestanding design
- High-rise
- Better suited for wide cars and off-road vehicles
- Perfect for parking, storage, and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric-hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers

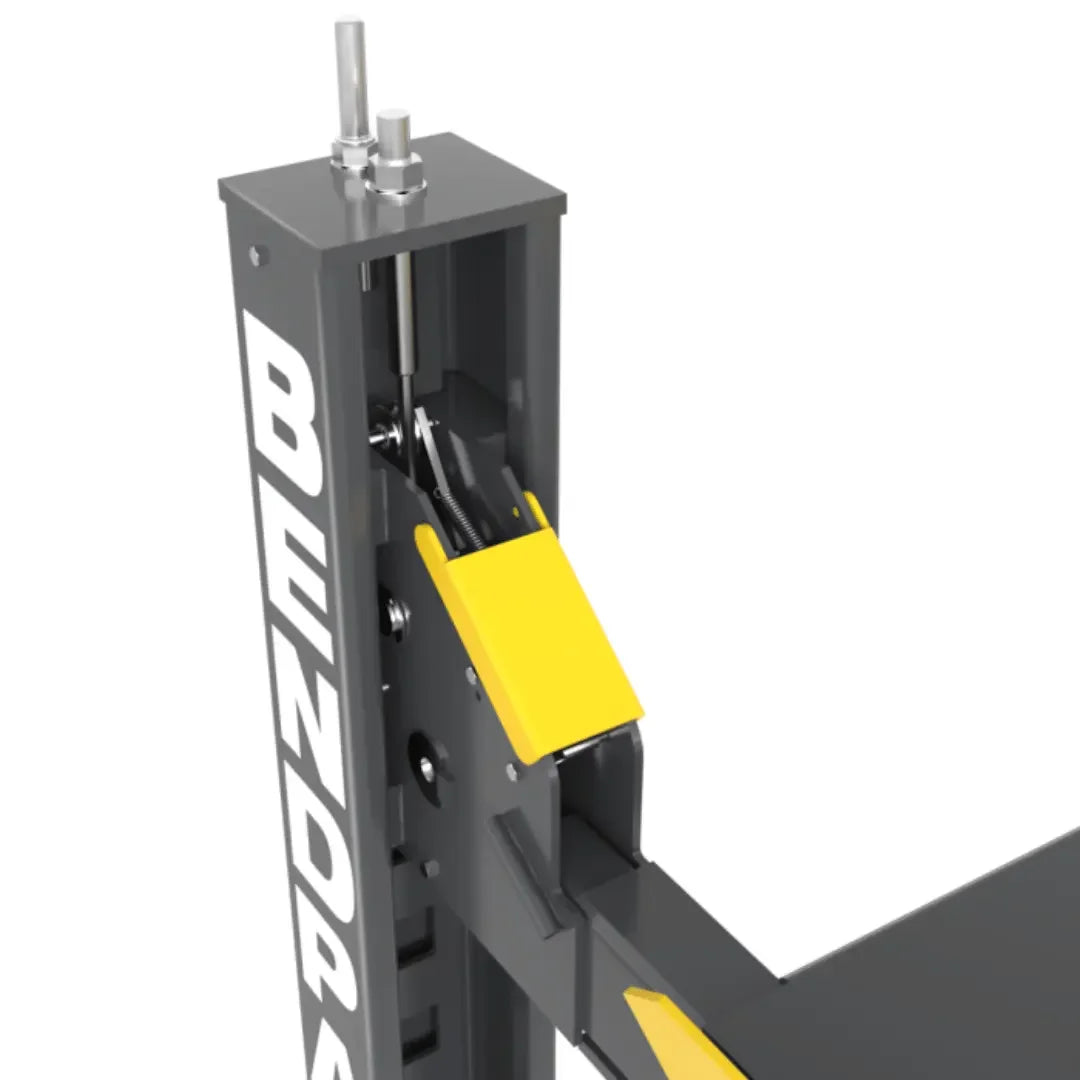

- Multi-position safety locks in each column
- Adjustable safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location

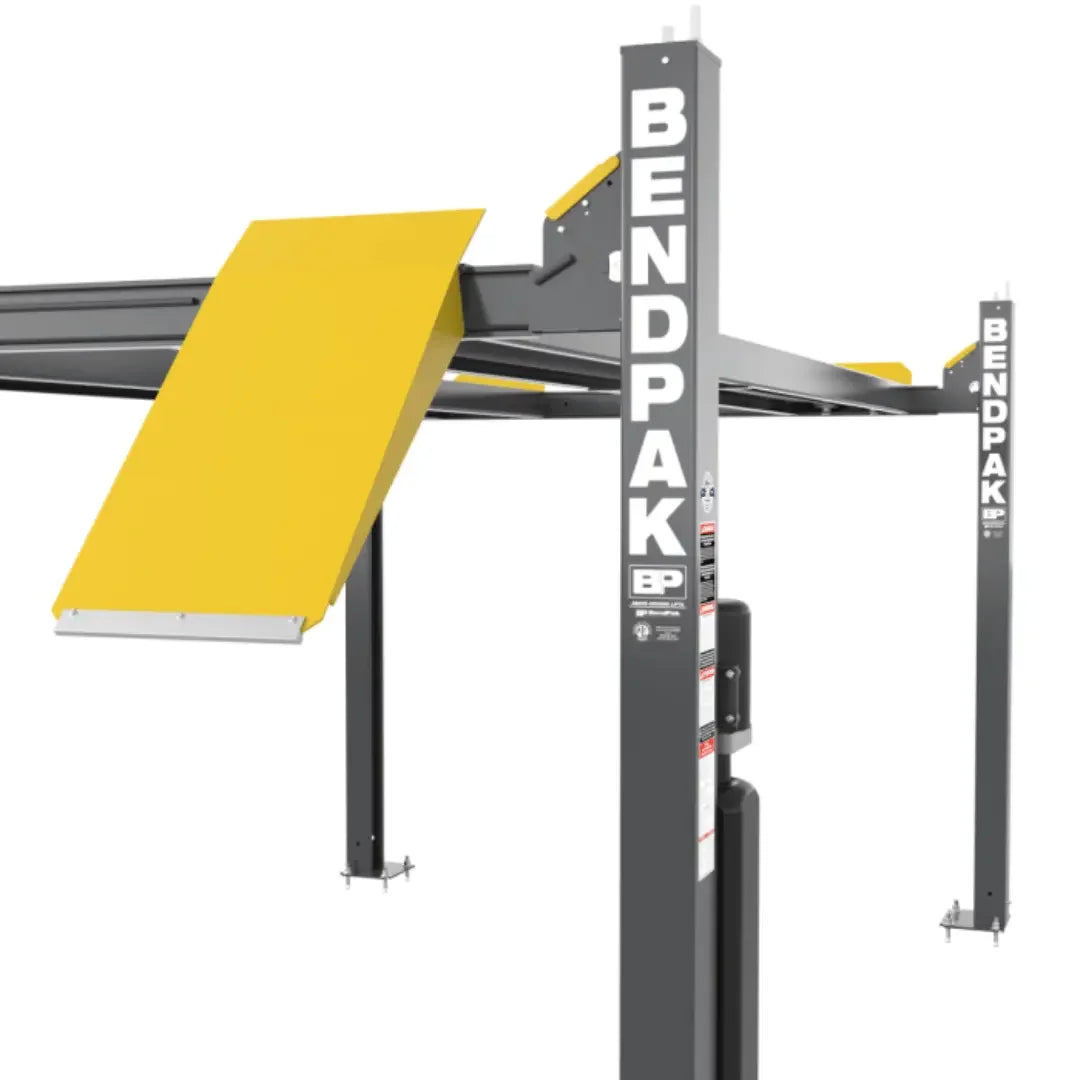

- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles available
Product Specifications
Capacity
| Lifting Capacity: | 9,000 lbs |
| Max. Capacity / Front Axle: | 4,500 lbs |
| Max. Capacity / Rear Axle: | 4,500 lbs |
| A - Min. Runway Height | 4.75 in. / 121 mm |
| B - Max. Rise | 82.165 in. / 2,087 mm |
| C - Max. Lifting Height: | 87 in. / 2,208 mm |
| D - Overall Width ± .125 in. / 3 mm | 117 in. / 2,970 mm |
| E - Outside Length | 198 in. / 5,028 mm |
| F - Overall Length | 224.50 in. / 5,703 mm |
| G - Height of Post | 100 in. / 2,537 mm |
| H - Distance Between Posts | 107 in. / 2,716mm |
| I - Drive-thru Clearance | 93.25 in. / 2,371 mm |
| J - Runway Width | 19 in. / 482 mm |
| K - Runway Length | 182.25 in. / 4,629 mm |
| L - Width Between Runways | 35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX |
| M - Runway Centerline | 57.75 in. – 64.00 in. / 1,468 – 1,626 mm |
| N - Outside Edge of Runways | 76.75 in.- 83 in. |
| Max. Load Operating Pressure | 135 in. / 3,429 mm |
| Min. Wheelbase @ Rated Capacity | 115 in. / 2,921 mm |
| Min. Wheelbase @ 75 Capacity | 95 in. / 2,413 mm |
| Min. Wheelbase @ 25 Capacity | 80 in. / 2,032 mm |
| Locking Positions | 17 spaced every 4 in. / 102 mm |
| Motor | 220 VAC, 60 Hz, 1 Ph (special voltages available upon request) |
