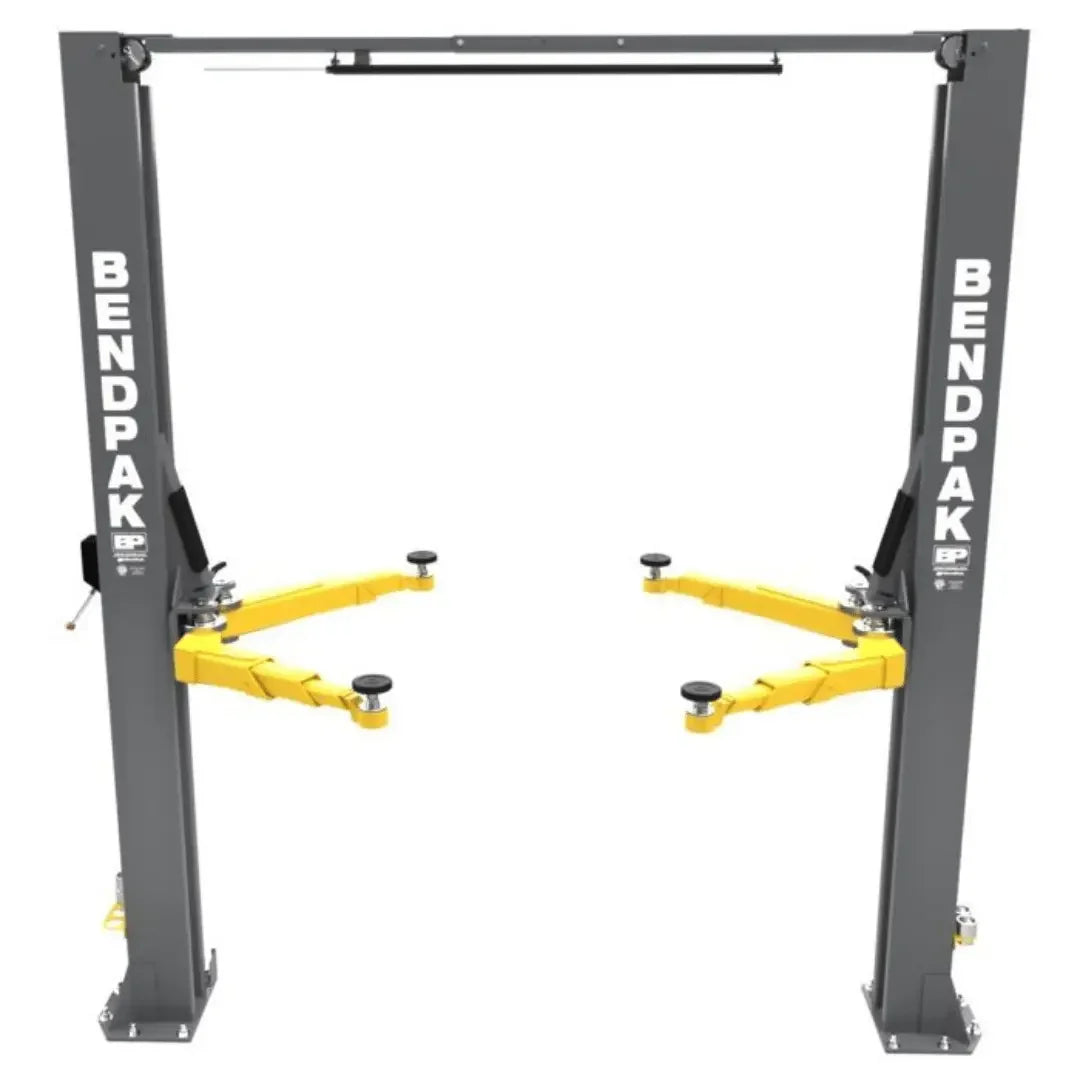

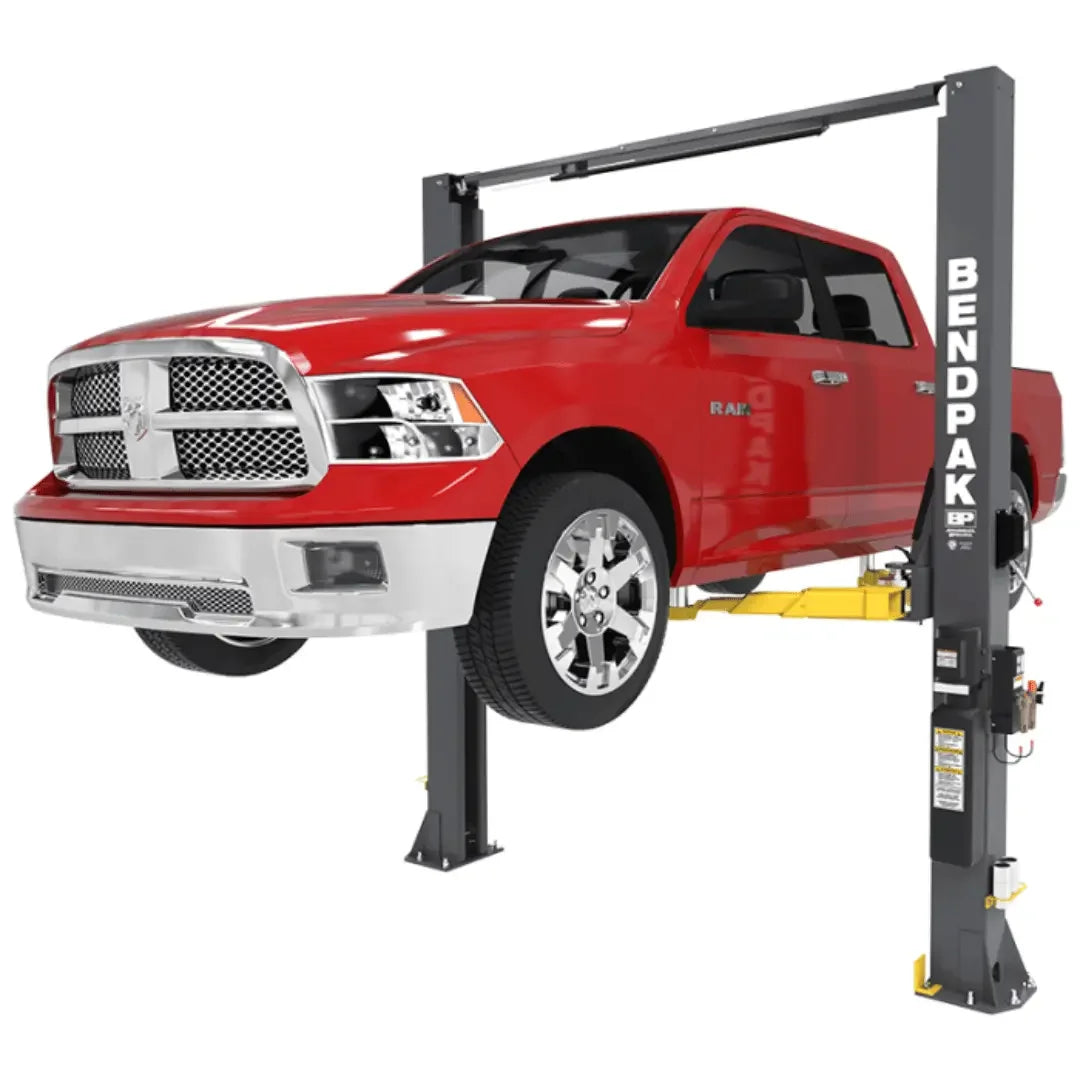

BendPak 10AP Pro Series 10,000‐lb. Capacity 2 Post Car Lift

For professionals who demand nothing but the best, BendPak is proud to introduce the Pro-Series. The AP Pro Series of two-post lifts are the ultimate solution to keeping your business ahead of the curve. Engineered for extreme use and high loads, the AP Pro-Series combines cutting-edge technology with superior safety feature, making it the ideal choice for those who refuse to compromise on quality.

This product is protected by patent in the United States (Patent No. US11820632B2), Canada, China, and other countries where corresponding patent protection has been sought.

At the heart of the AP Pro-Series is the revolutionary Automatic Swing Arm Restraint System (ASARS), an absolute game-changer in vehicle lifting technology. Featuring a robust, forged-steel design, the ASARS offers a complete 360-degree grip with over 2000 -lbs. of load holding force, ensuring absolute stability while preventing unplanned movement during lift operations. This system requires minimal operator intervention, delivering unmatched reliability and ease of use.

The AP Pro-Series versatility is second to none, thanks to its expandable top beam and BendPak’s exclusive Bi-Metric™ arms. These arms can handle virtually any vehicle lifting requirement, whether symmetric or asymmetric. This adaptability, combined with a design that minimizes maintenance costs, significantly boosts your shop's productivity.

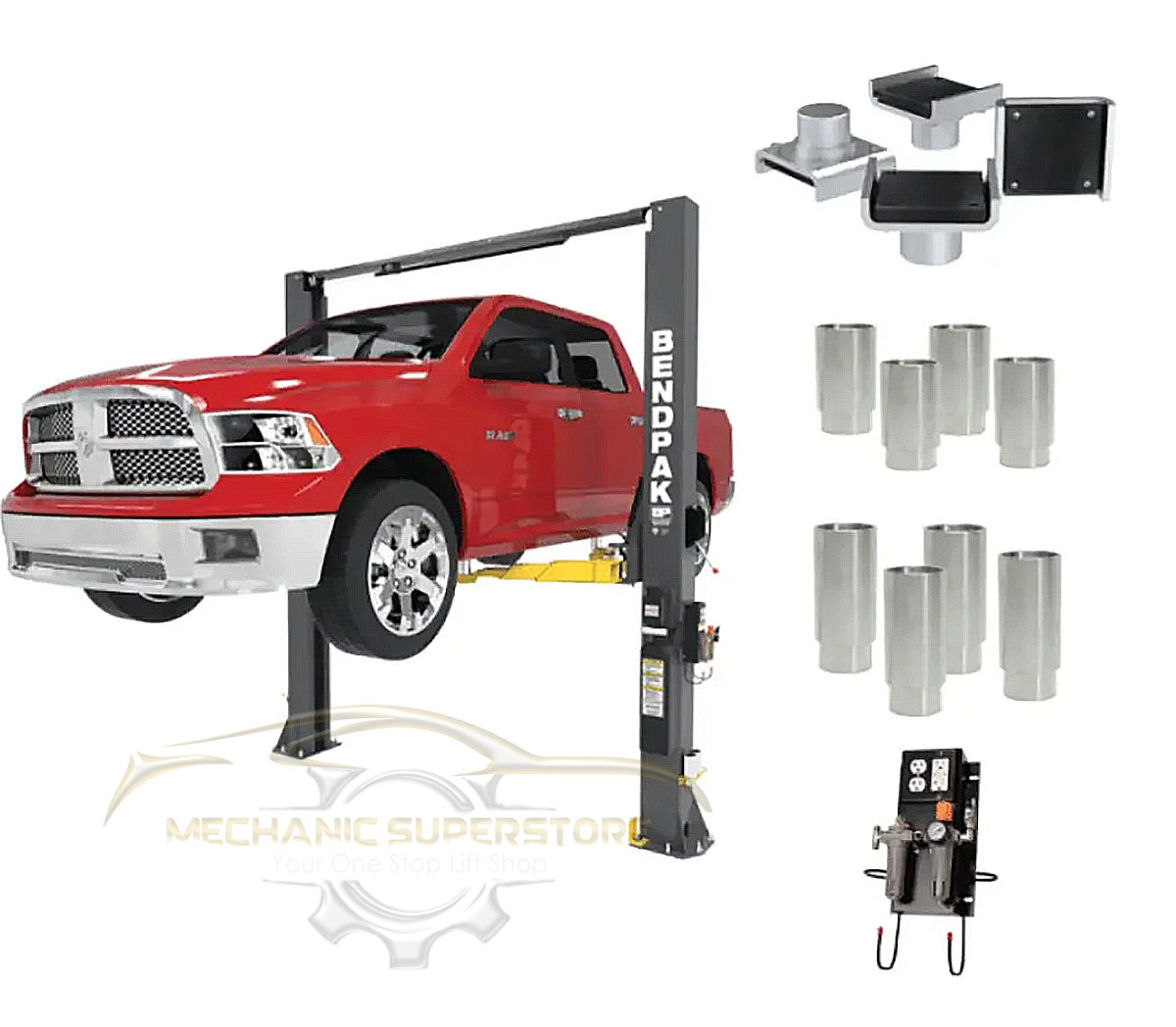

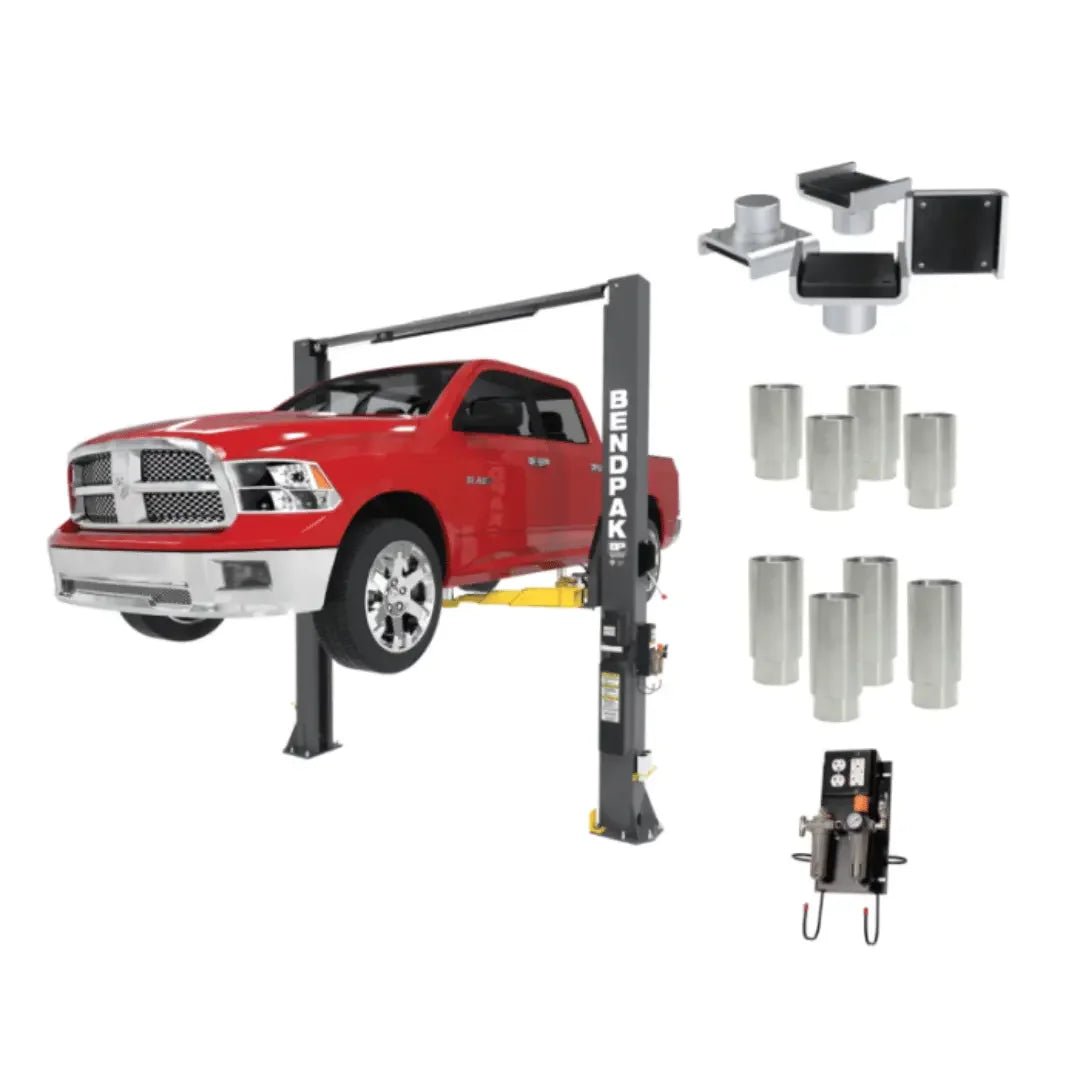

For those working with larger vehicles, the AP Pro-Series includes Frame Cradle Pads and Adapter Pins, providing additional security and versatility for safe lifting. The optional Air-Electric Station enhances your lift's capabilities with industrial-grade air and electric outlets, ensuring your shop is fully equipped for any task.

In an industry like the automotive service industry, you can either follow the competition, or lead it. With BendPak’s Pro-Series, you’ll be set up for success no matter what comes your way. Take your shop to the next level with BendPak and experience the pinnacle of automotive lifting technology.

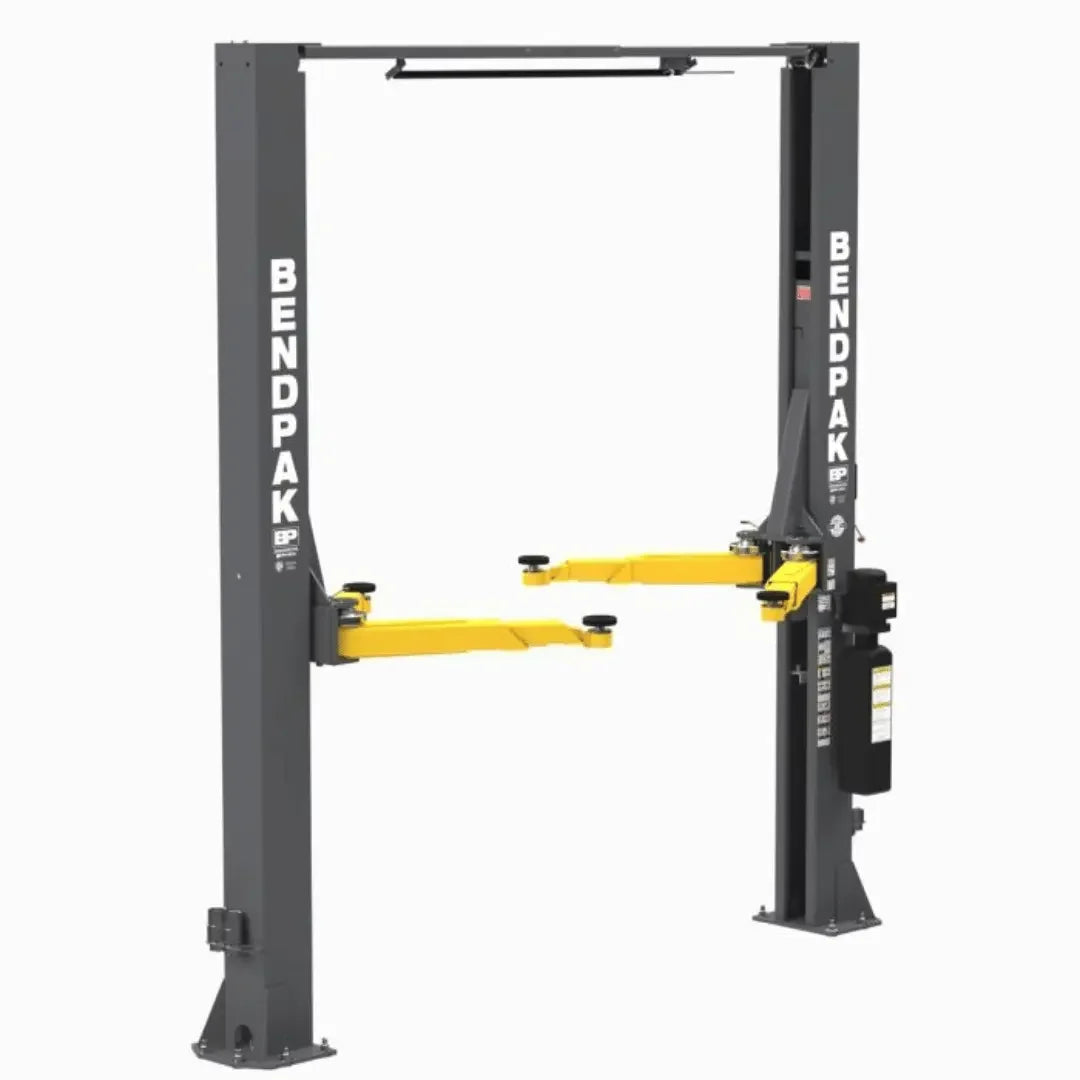

Our 10AP Series offers the convenience of wide or narrow installation wrapped up into one configurable package. This durable, safe, and reliable car lift features an expandable top beam and Bi-Metric™ arms to suit virtually every vehicle lifting requirement – symmetric or asymmetric. The simple, yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity.

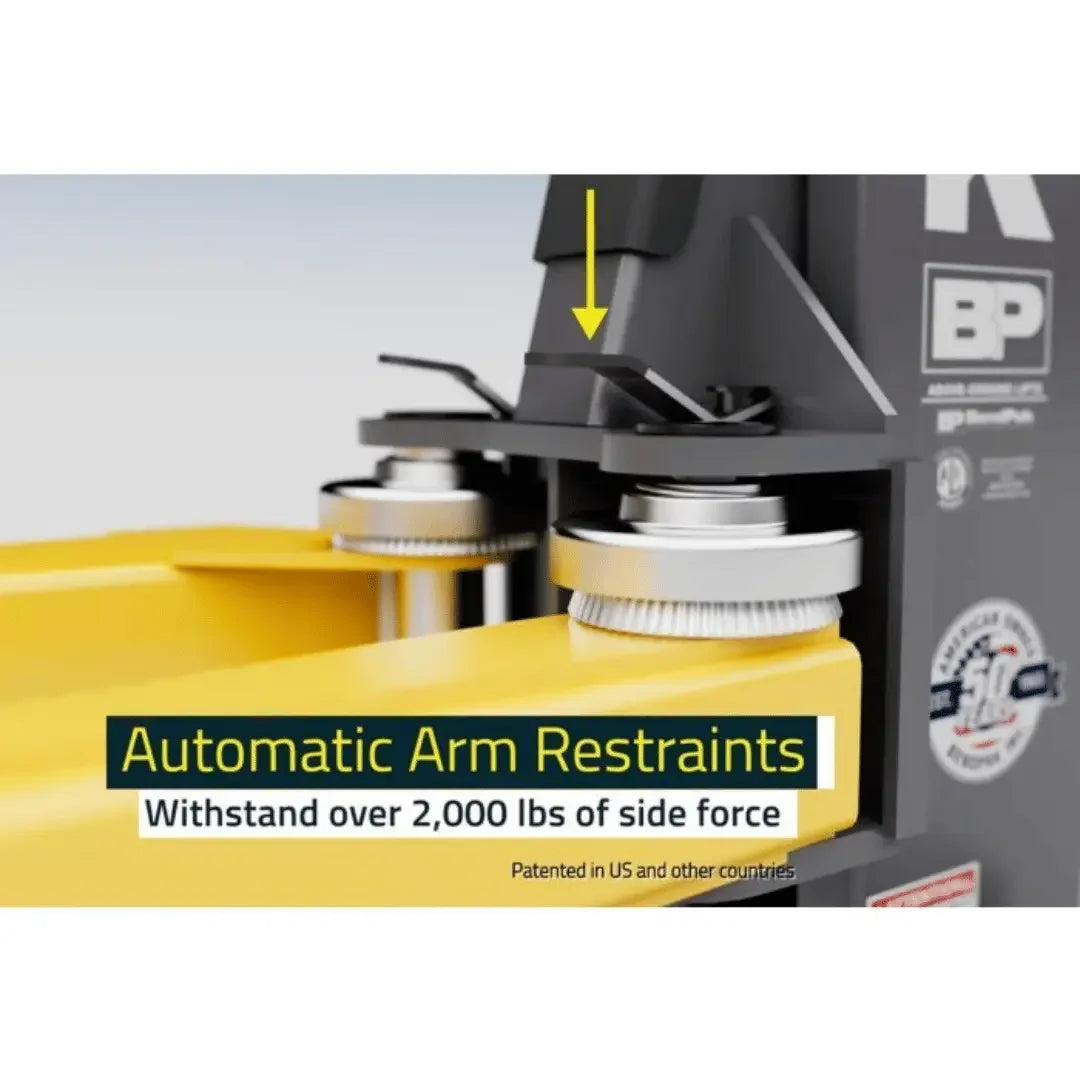

AUTOMATIC ARM RESTRAINT SYSTEM PREVENTS UNPLANNED MOVEMENT

Swing arm restraints have been used for decades on two-post lifts to minimize the chance of arms shifting during vehicle loading and service. However, until now, these systems had a difficult time withstanding the excessive forces applied to them when vehicles suddenly and unexpectedly shifted on the support pads or adapters of the far-reaching swing arms; typically due to improper loading or when heavy drivetrain components are added or removed from elevated vehicles causing an unanticipated transference in the center of balance.

A significant design feature that makes BendPak’s AP series particularly well-suited for heavy vehicle service is a revolutionary Automatic Swing Arm Restraint System (ASARS) that has been bolstered to withstand these elevated pushing and pulling forces that occur when vehicles are being serviced.

With a full 360-degrees of load holding grip, the heavily forged-steel design of this patented and very exclusive arm restraint system secures the lift arms firmly in place with over 2000-pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations. This revolutionary design is an adaptive system that requires minimal operator involvement and delivers unparalleled holding power. A distinctive power-hold design that allows for precise non-shifting action, and a handy quick‑release operator lever allowing for the instant release of the clamping pressure.

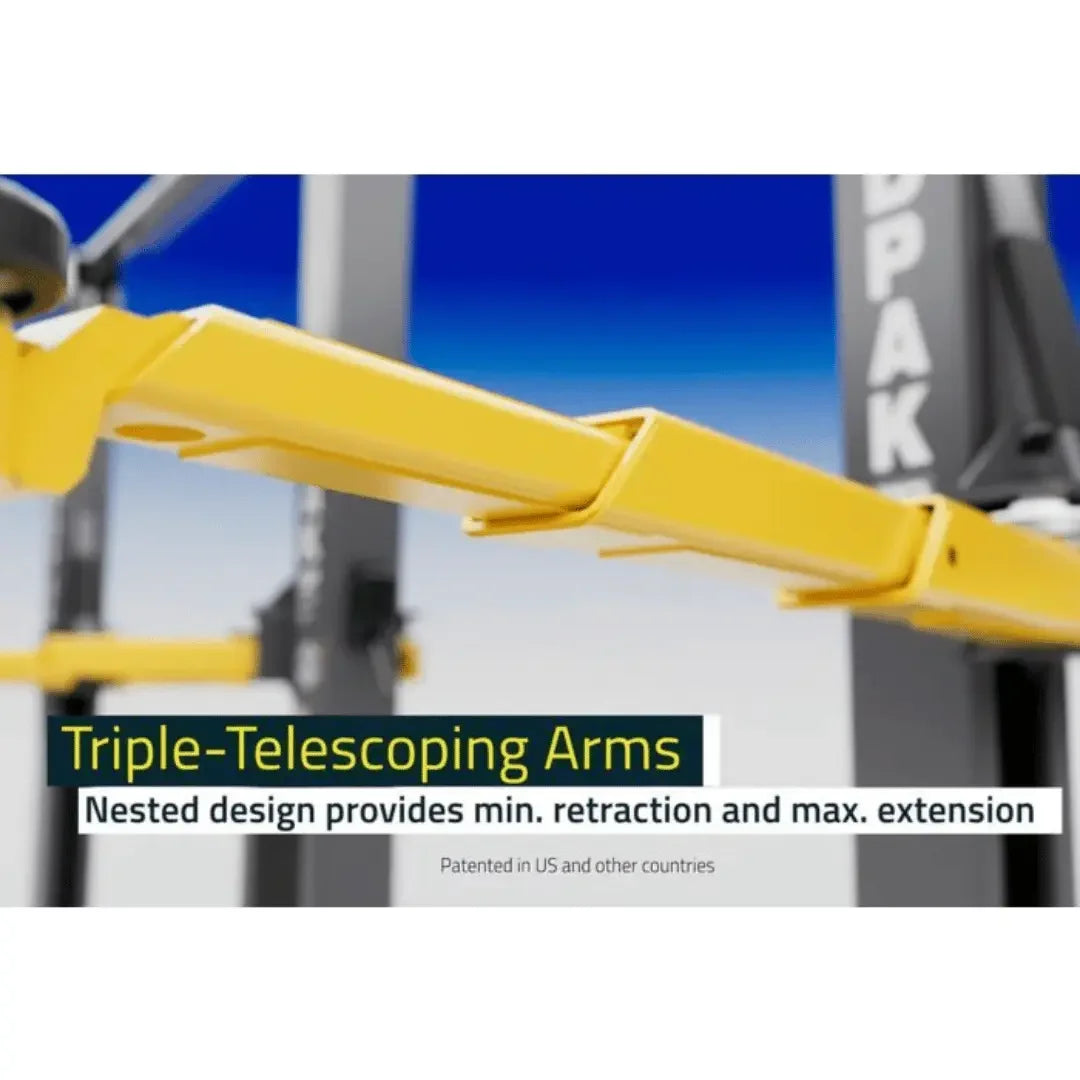

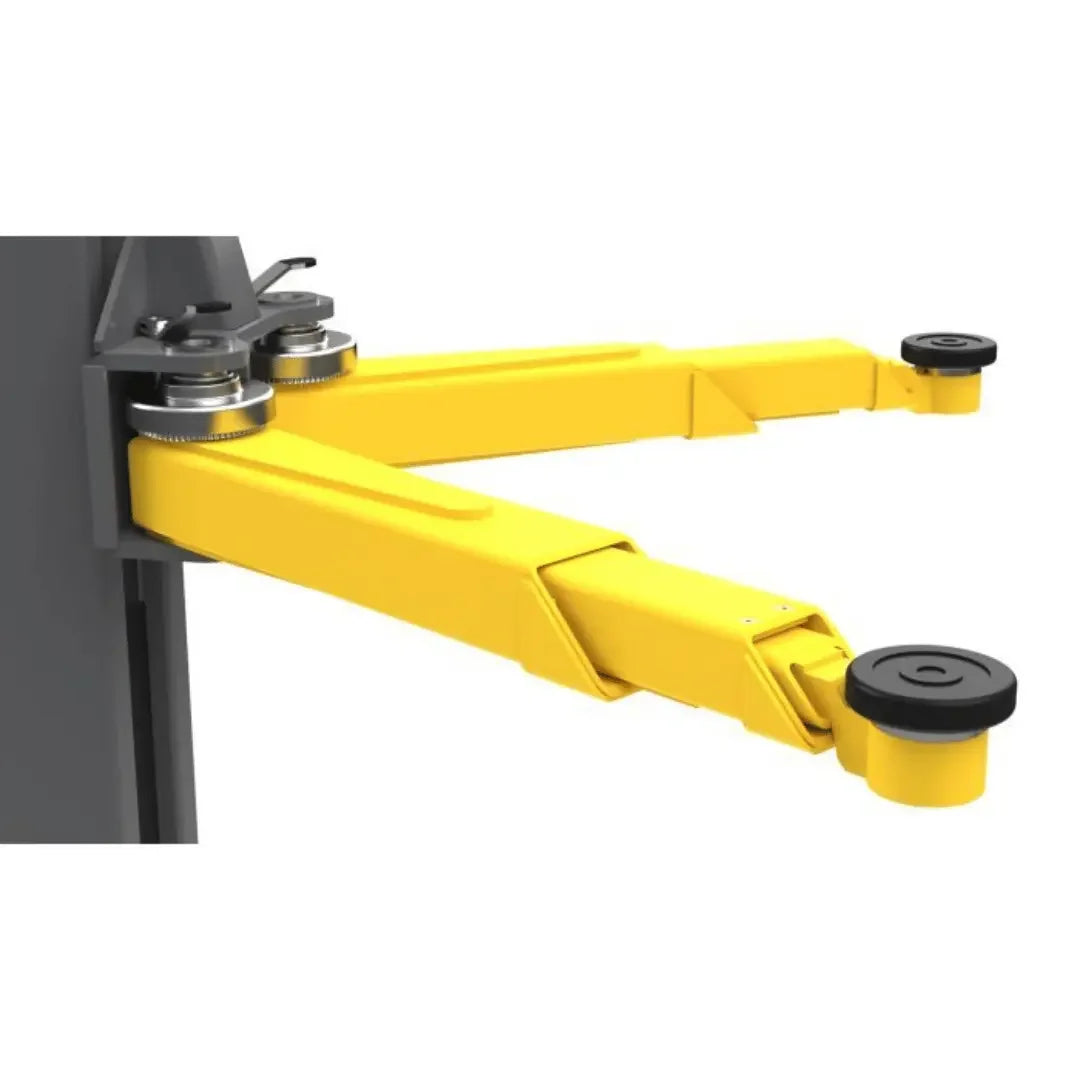

TRIPLE-TELESCOPING NESTED SWING ARM DESIGN

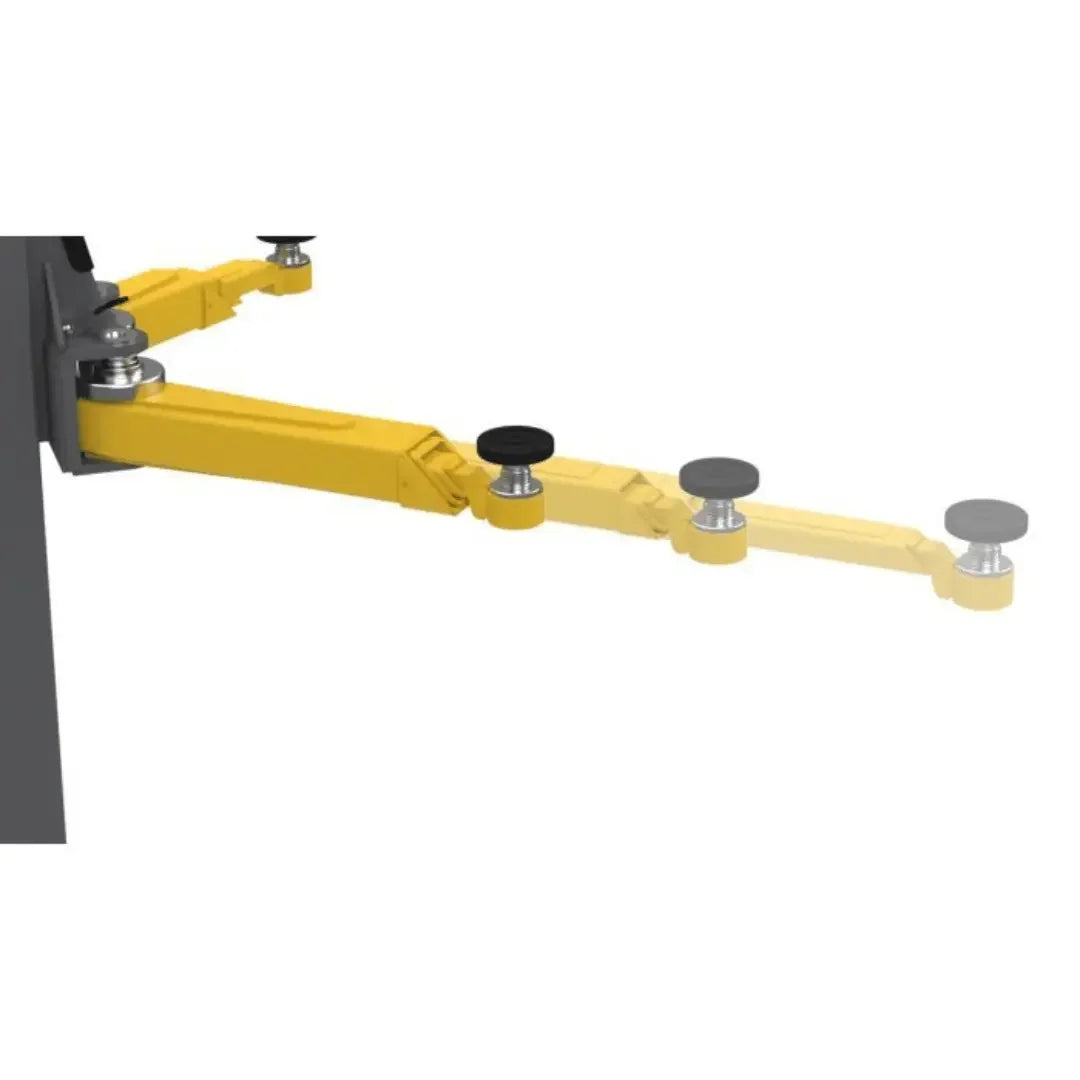

Revolutionary and patented swing arms are specifically tailored for varying vehicle lifting points. Unlike traditional two-post lift arms, 10AP arms retract shorter and extend farther; offering lift operators a myriad of lift arm positioning options ― it’s like having the best of all worlds.

The innovative three-stage arms achieve more telescoping movement due to their patented nesting feature that results in greater retraction and farther reach. Inner sliding arm movement is no longer impeded by arm end plates, tube closeouts, or even the arm pivot pin itself. The inner tubes retract fully through the back of the arm assembly end even beyond the arm pin, resulting in more achievable retraction and extension.​

LOW PROFILE ARMS

BendPak's exclusive Low-Pro™ swing arms feature telescoping channels that have a shorter profile and a dropped-end pad receiver resulting in better serviceability on lowered chassis-height vehicles. They access hard-to-reach lift points with less hindrance providing increased versatility and less chance of damage to vehicle side skirts, running boards or ground effects.

SCREW PADS AND ADAPTERS THAT ADJUST TO YOUR NEEDS

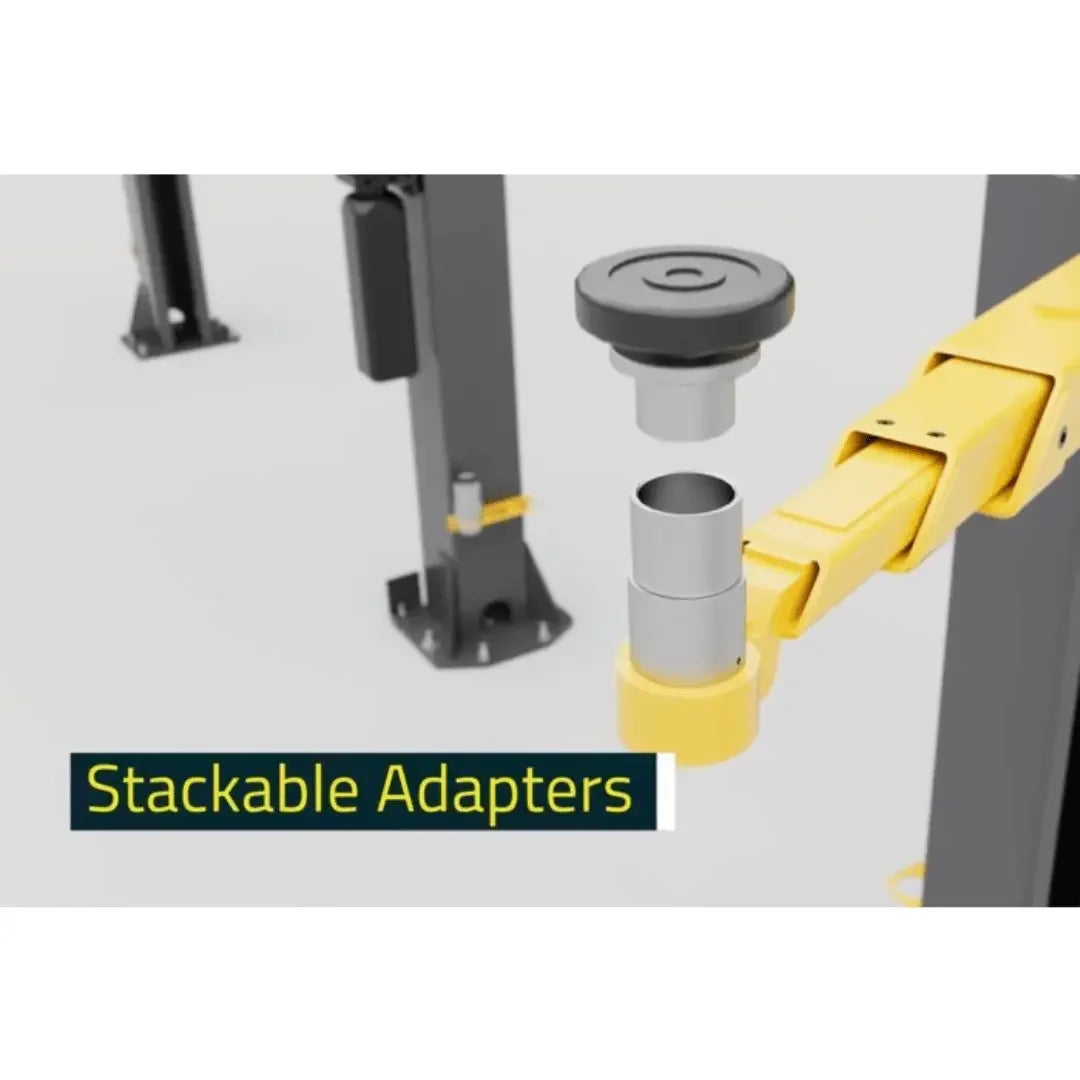

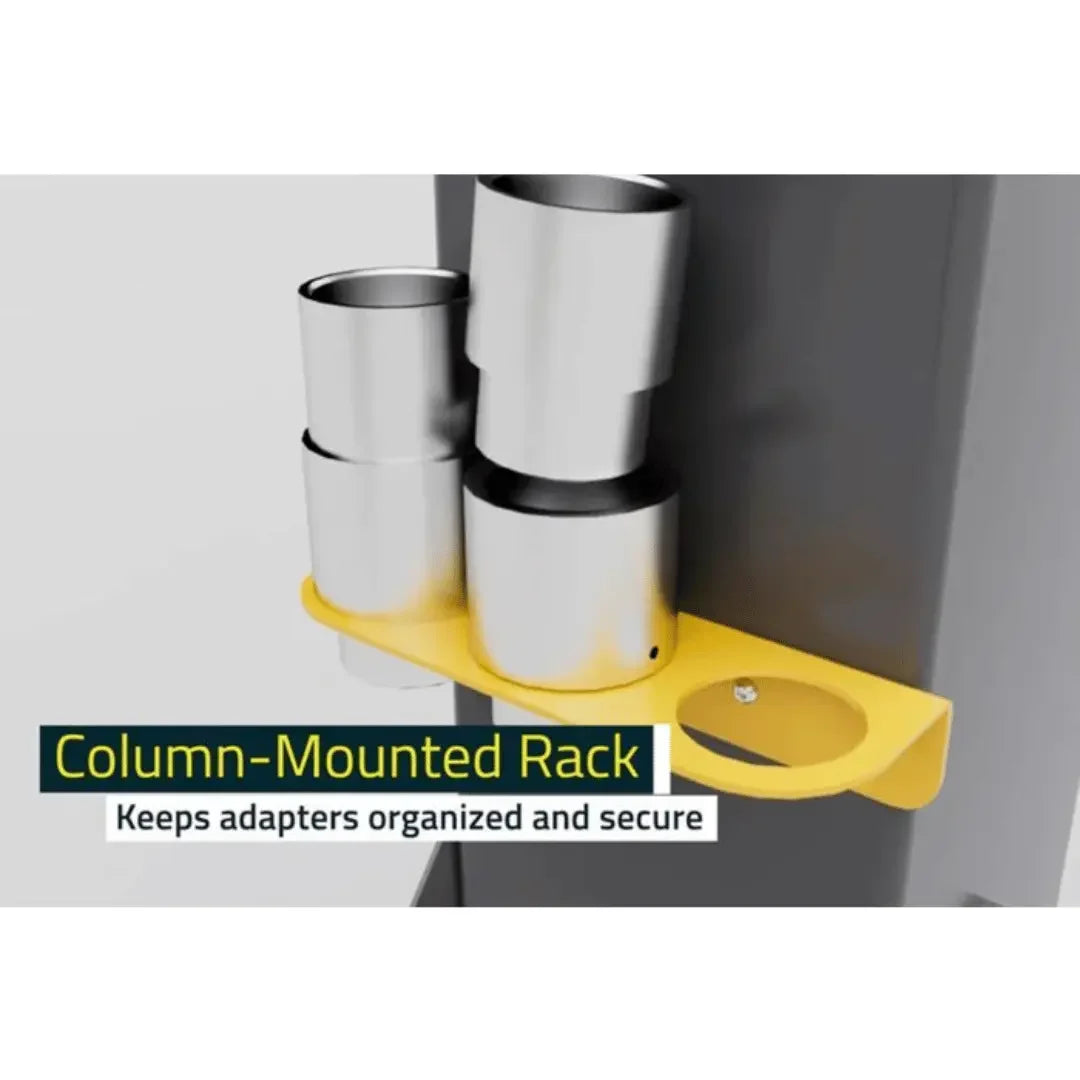

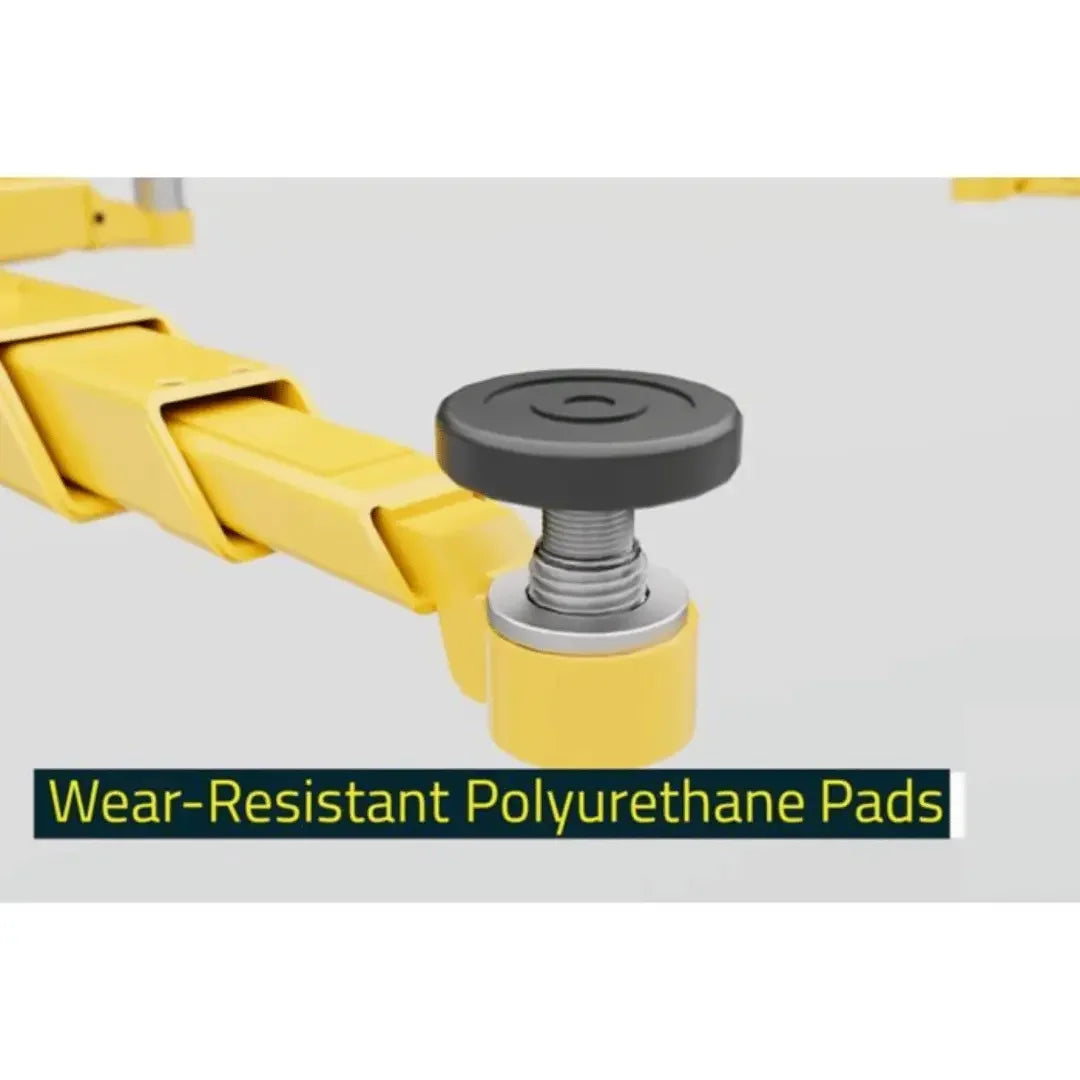

Double-telescoping screw adapters feature gouge and tear-resistant polyurethane pads that can be screwed up or down to ensure level lifting in all conditions. Provides more precise and secure frame engagement, ensuring technician safety. For greater vertical pad placement, we also offer OPTIONAL 2.5” and 5” stackable adapters for precise and safe vehicle support. The drop-in design allows for quick and easy use, and 2 column mounted racks keep the adapters neatly organized and secure.

INNOVATIVE SAFETY LOCK SYSTEM

The patented automatic safety lock system is designed to dramatically improve operator efficiency and safety. The simple yet innovative design ensures automatic safety lock engagement during all lift rising operations, and an ergonomic single-point release allows operators to effortlessly release the safety locks during lift descent ― literally with a push of a single finger. It’s that easy.

BI-METRIC™ SWING ARMS

Exclusive Bi-Metric™ adaptable swing arms give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design gives operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). By not having to switch out arms, you’ll be able to service vehicles faster than ever before.
