Atlas PREMIUM 408SL 4 Post Lift + RJ35 Sliding Jacks Combo

SKU/Product #: ATEATTD-408SL-COMBO-FPD

Atlas

Write a review
$5,699.00 $5,699.00

Free Shipping
7-10 Business Days
Shipping Calculated at Checkout
7-10 Business Days
Power Options
Pick Up and Save
Checkout Today with Financing
12 Month 0% Financing
Pay in 12 Installments of

Shipping Info

At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.

I Have The Equipment To Unload My Order
  • Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.‍Aspects to keep in mind when choosing this option.
  • The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
  • Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
  • You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
  • Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
  • There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
  • In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.

Do you have a hitch trailer to transport your lift? If so, then this might be the best option.

Aspects to keep in mind when choosing this option.

   1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.

   2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.

Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.

You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.

Neither of the above delivery options suits you? Then we have the solution.

We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.

Aspects to keep in mind when choosing this option.

   1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)

   2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).

Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.

Product Description

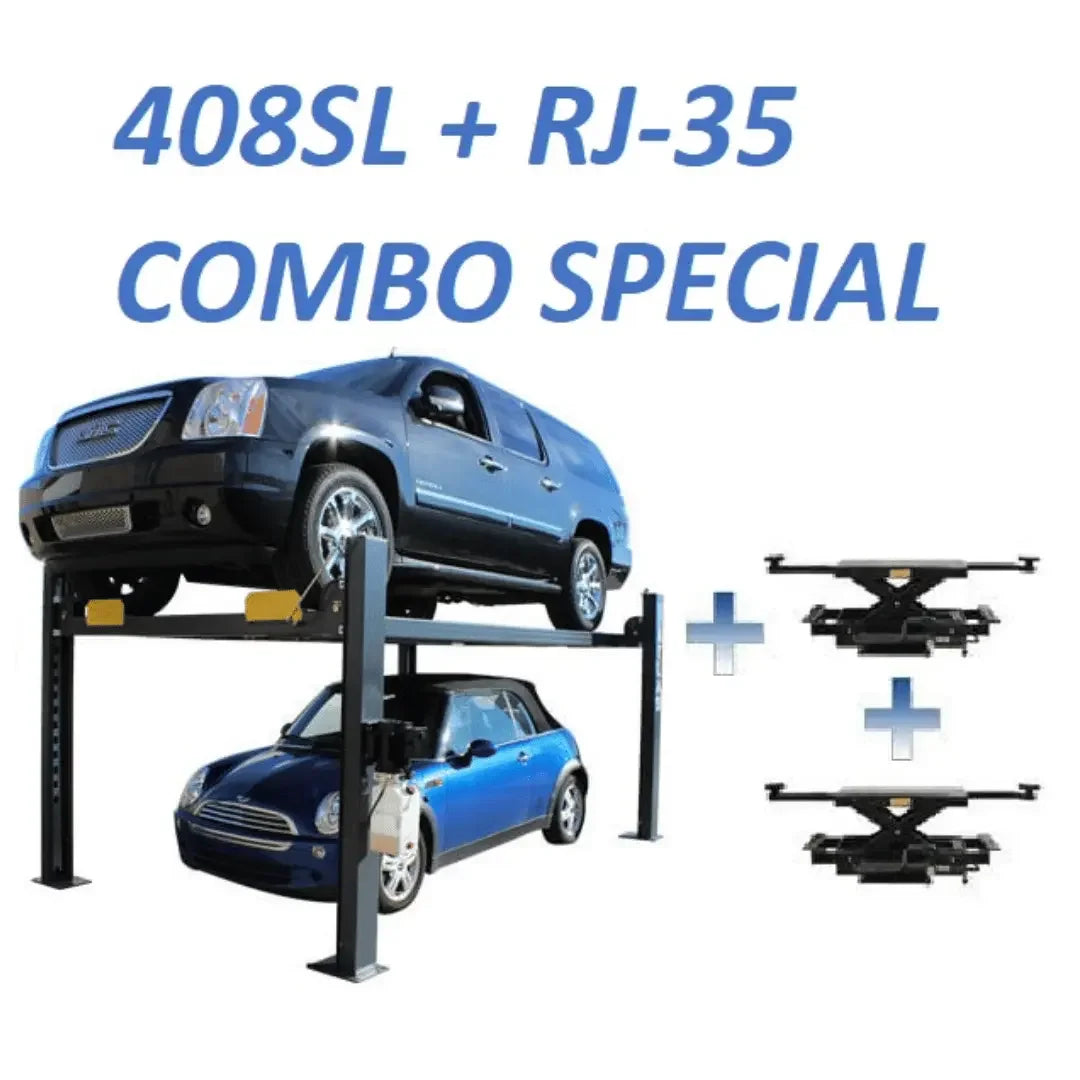

Atlas PREMIUM 408SL 4 Post Lift + RJ35 Sliding Jacks Combo

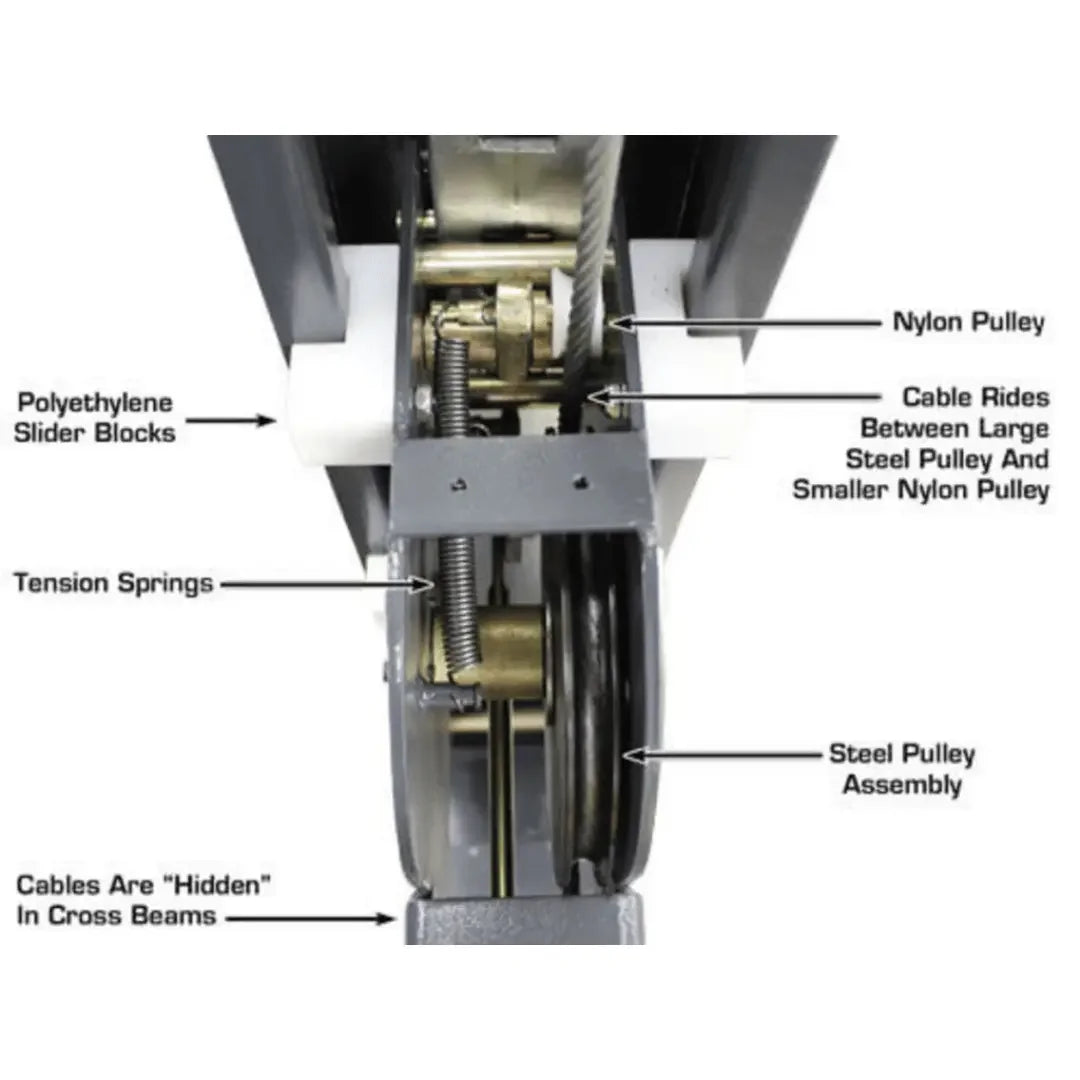

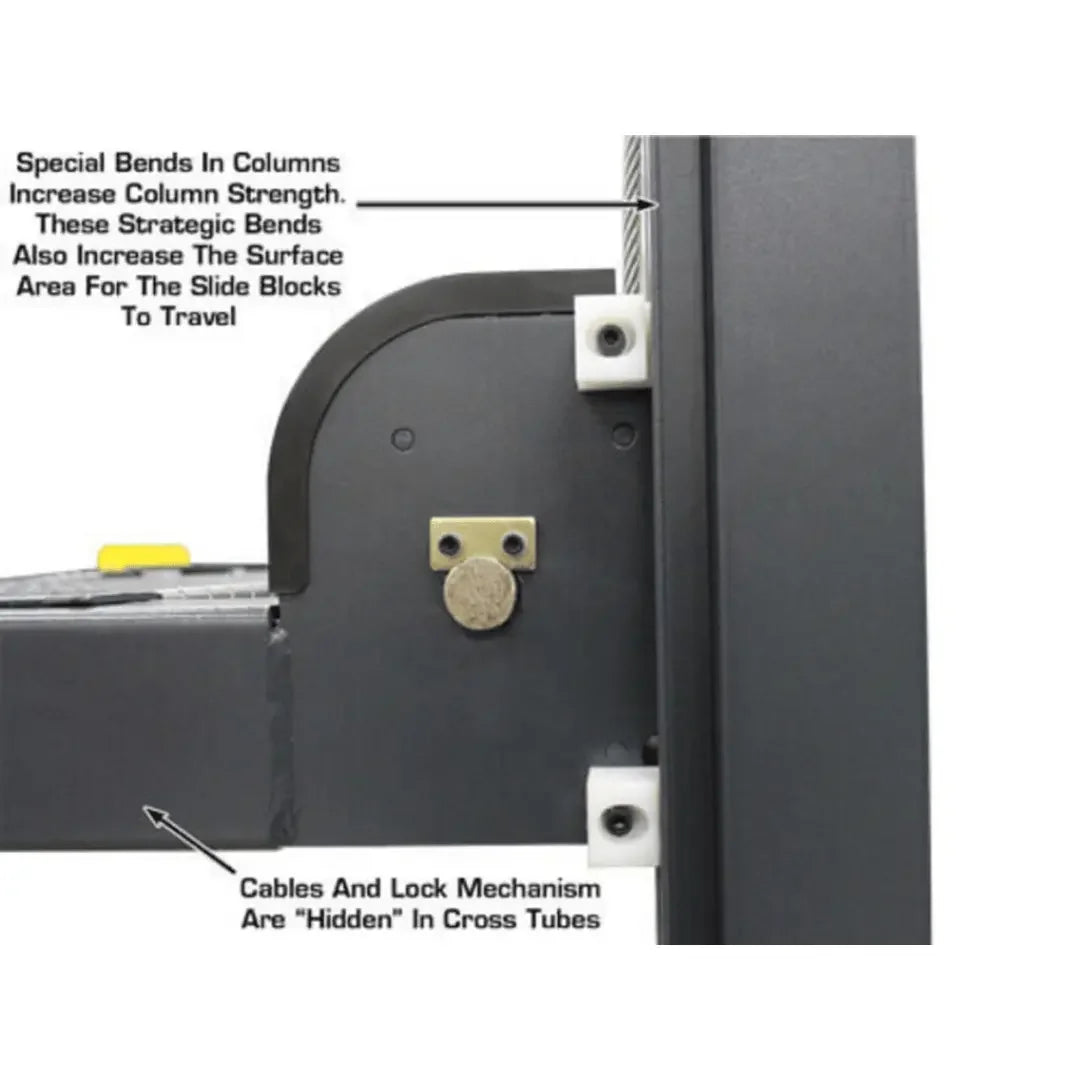

The Atlas® 408SL super deluxe portable vehicle storage lift is designed for those car enthusiasts who demand the absolute best look and superior quality. The 408SL has all the great features of our Atlas® Garage Pro Series 4 post hobbyist lifts, but incorporates many features found only on our Atlas® commercial grade 4-post lifts. All columns incorporate two special bends which help to increase the column strength. These strategic bends also increase the surface area for the slide block to travel. Horizontal cables are “hidden” inside of the cross tubes. Professional grade wheel covers are used to eliminate almost all exposure of cables and the double lock system. The Atlas® 408SL has “more metal” and weighs over 100 lbs. more than other hobbyist lifts based upon the same column and runway configuration.

The Atlas® 408SL is built to the same commercial lift standards as our Atlas® 412 and Atlas® 414 four post lifts, but also offers portability (Caster Kit included).

If you are looking for a lift that stands out from all the other storage lifts sold in the USA, then take a good look at the Atlas® 408SL.

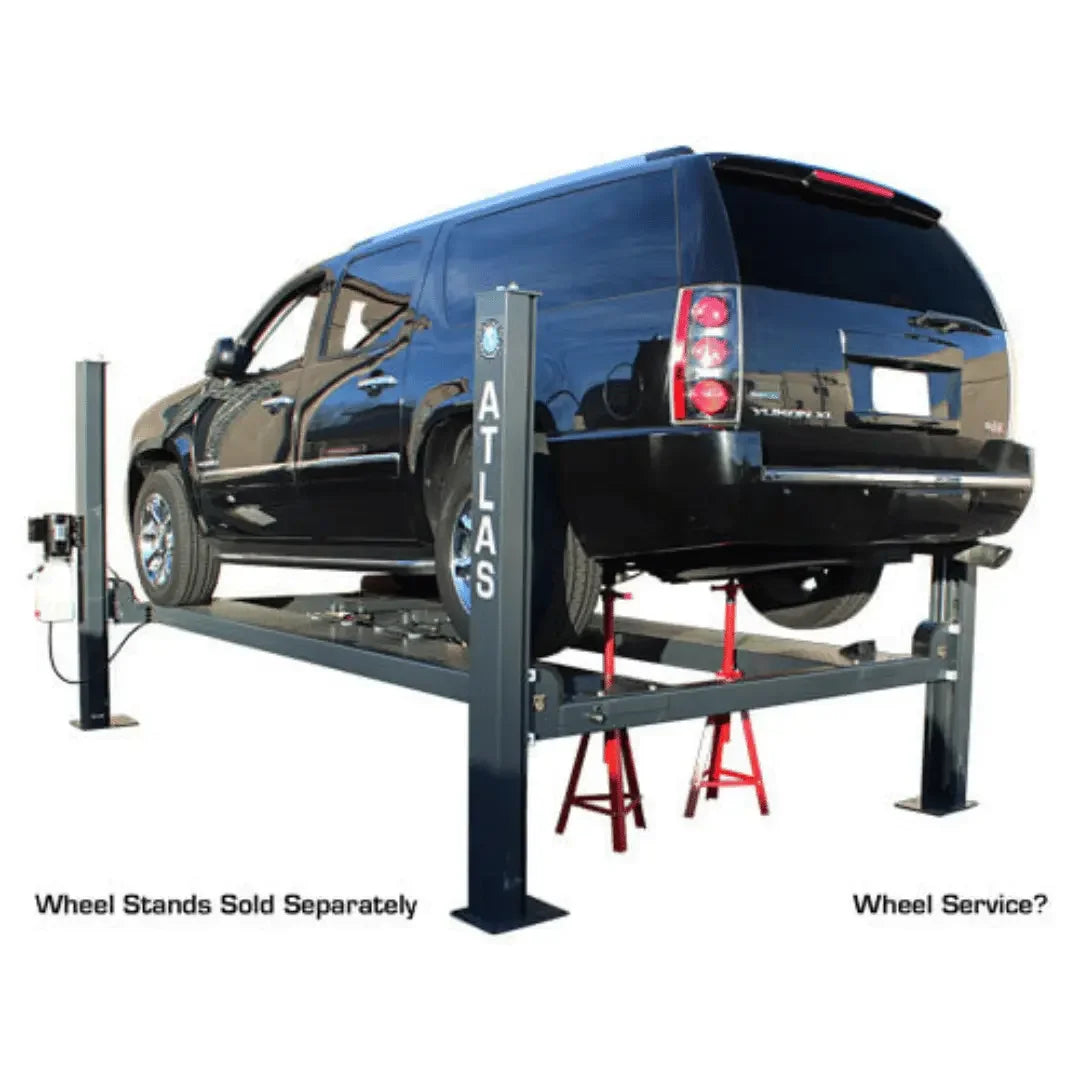

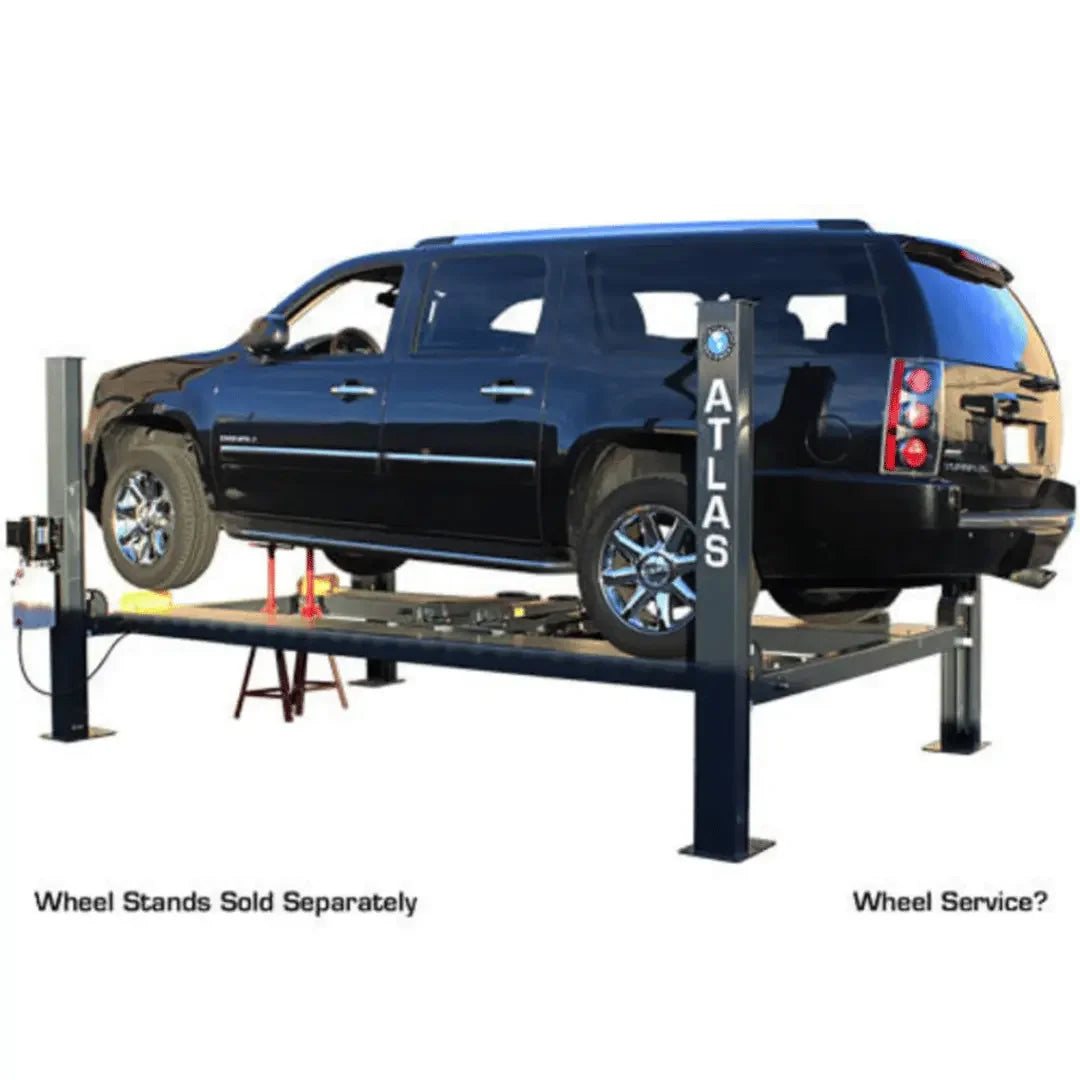

This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to do wheel service and brake work.

Product Features

Deluxe 408SL 4-Post Lift

  • 8,000 lb. Capacity
  • Free Standing/Portable Design
  • Diamond Plated Runways
  • Single point lock release

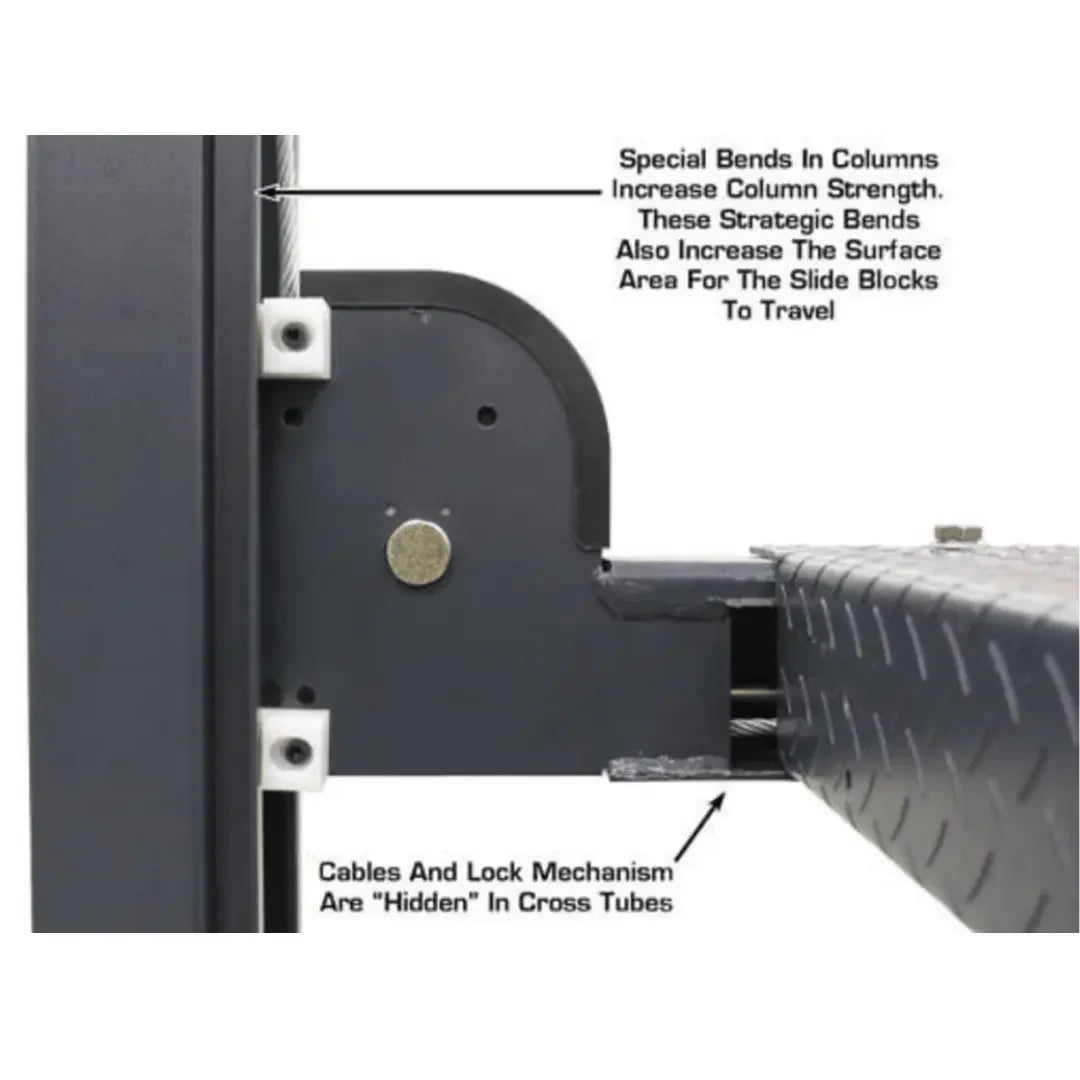

  • Columns incorporate two special bends to increase column strength.
  • Larger Column Size
  • Double Lock Safety System
  • Higher quality powder coating (steel gray color)

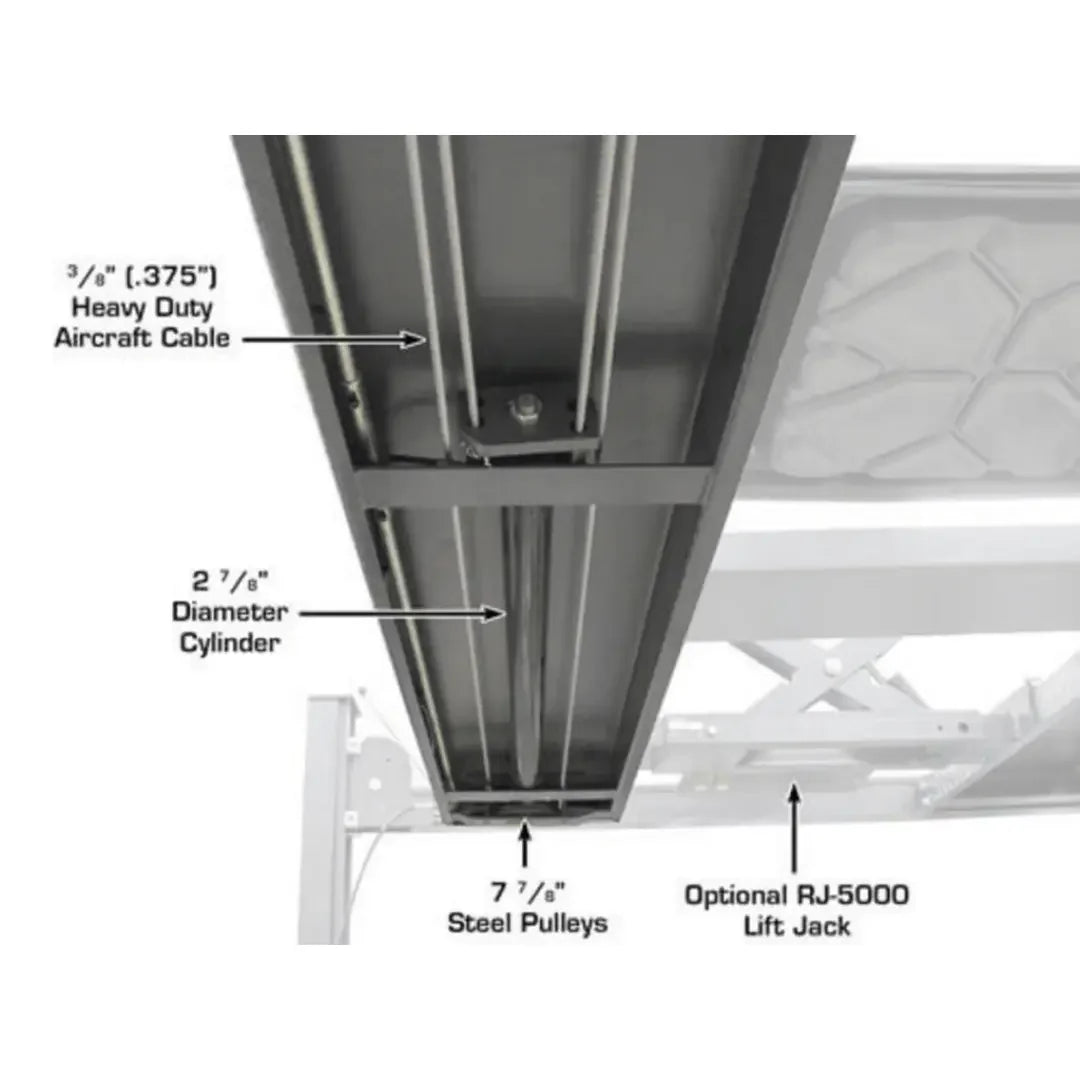

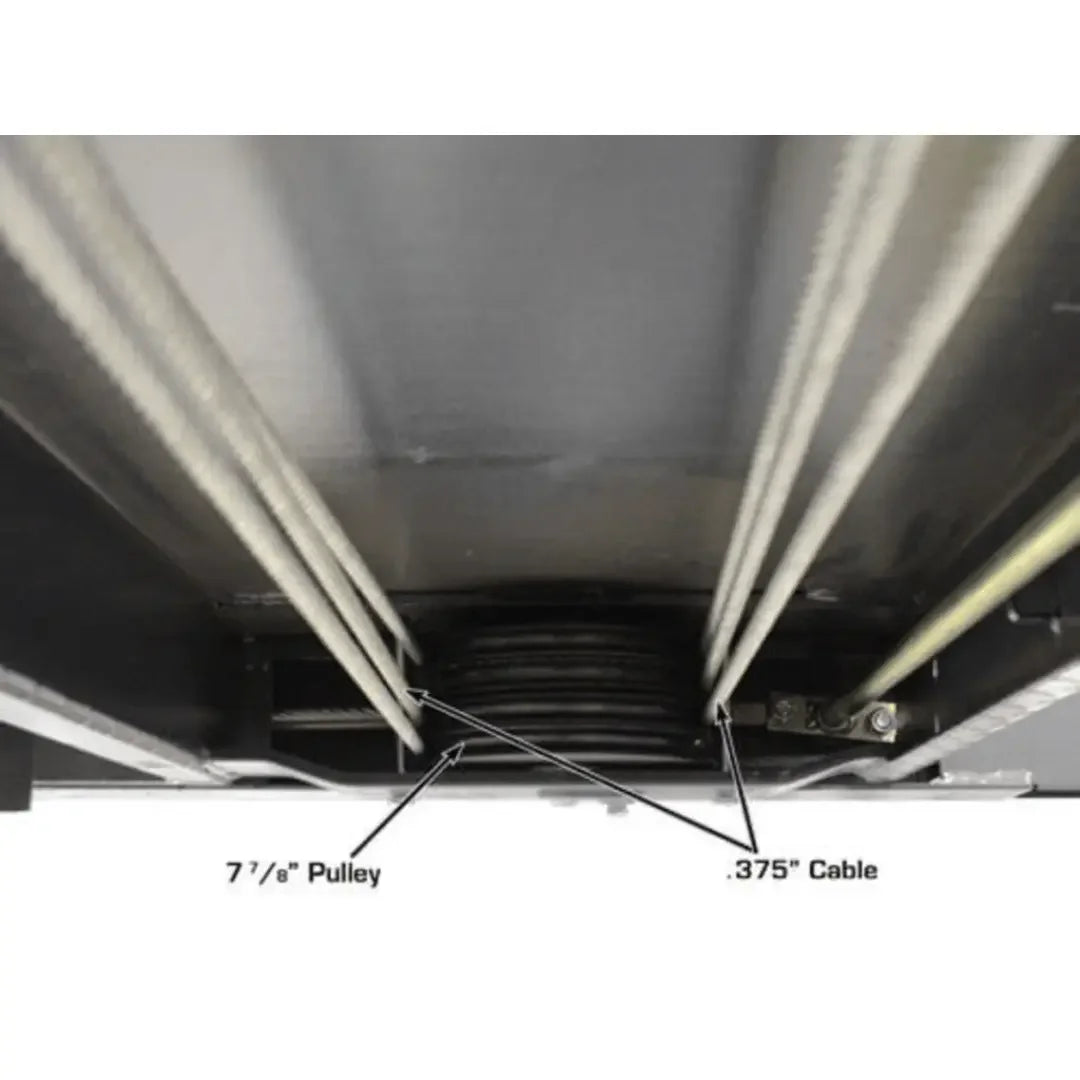

  • Cables hidden in Columns & Cross Tubes
  • Commercial Grade Wear Blocks

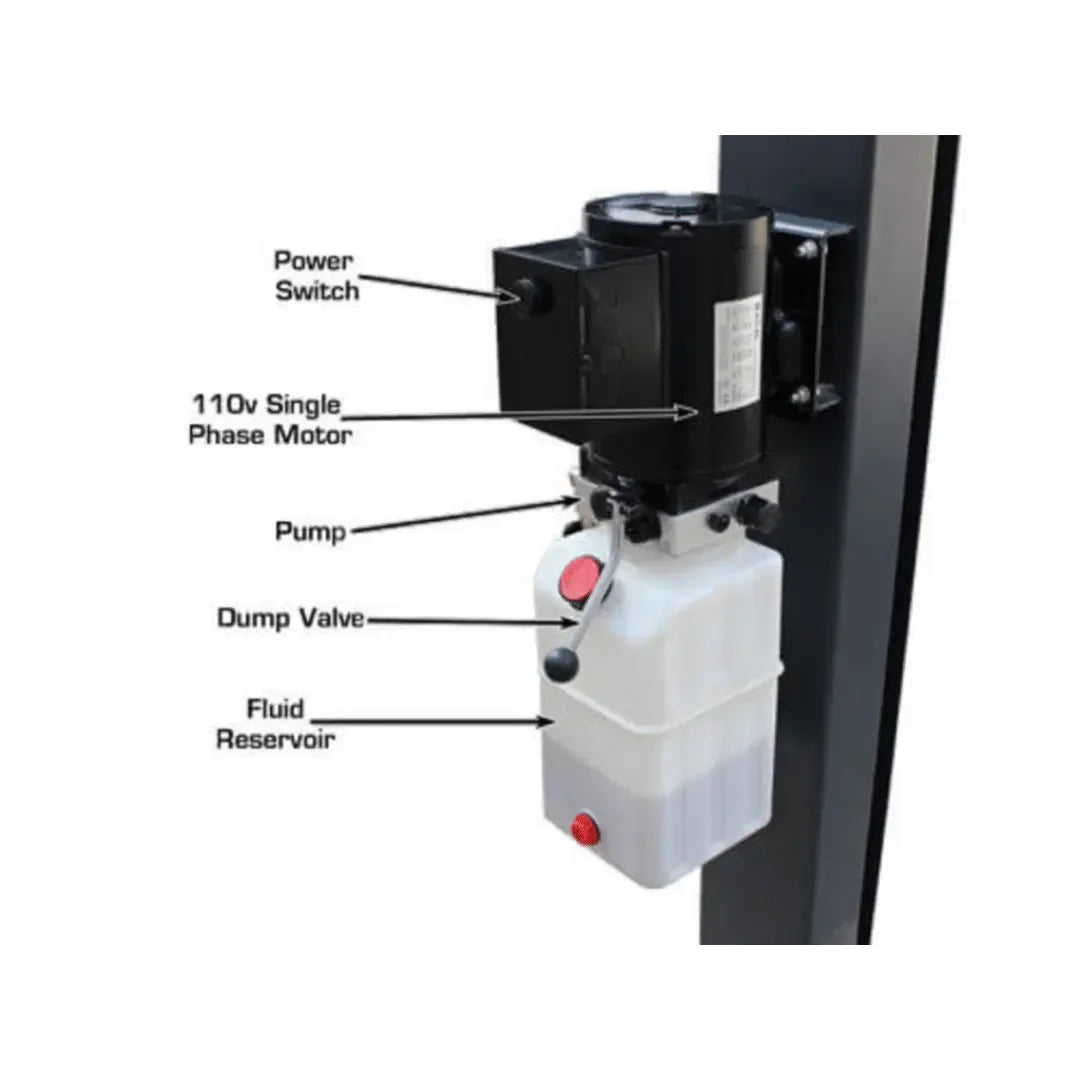

  • Power Unit can be positioned at any corner
  • Wider Access Between Runways

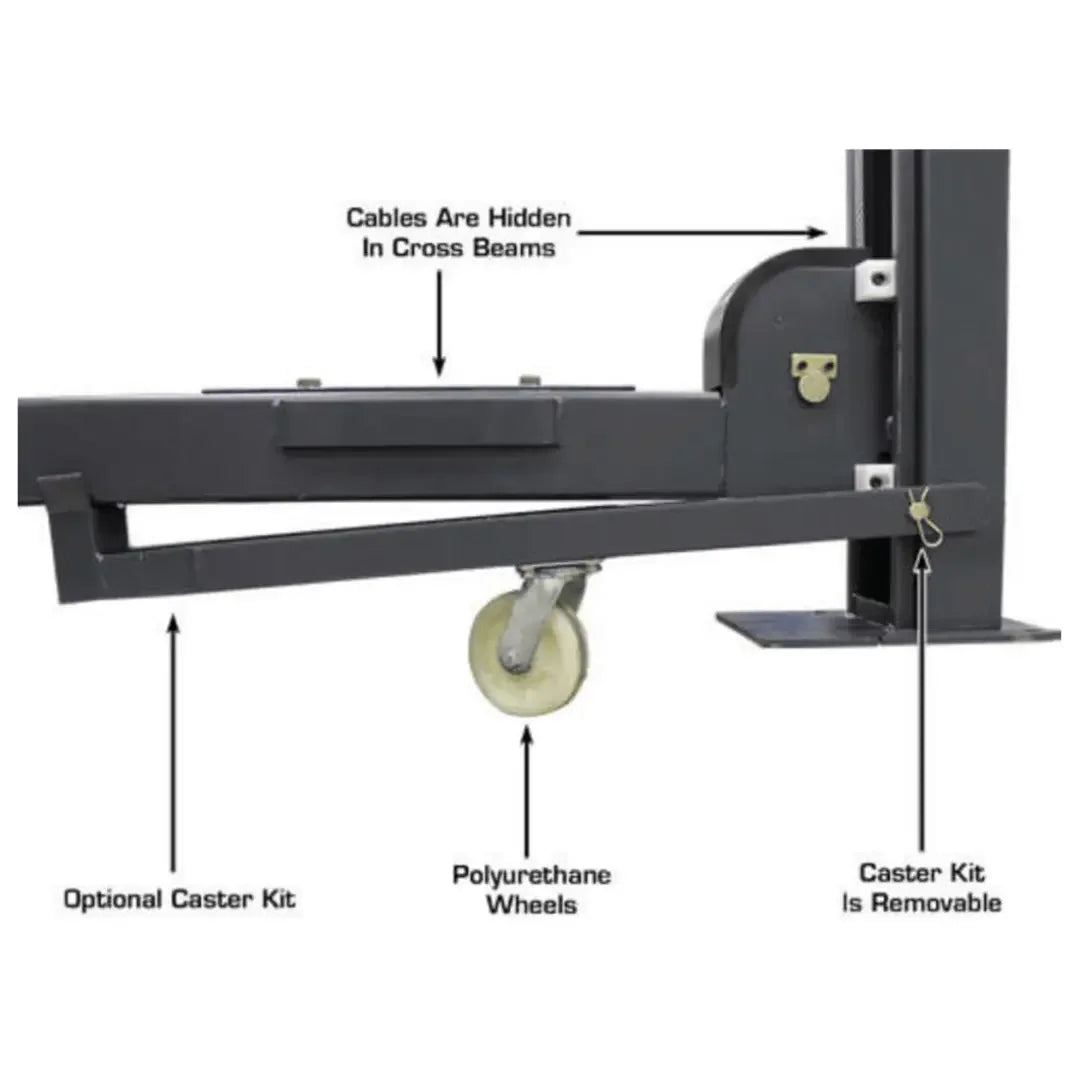

  • Caster Kit With Polyurethane Wheels Included

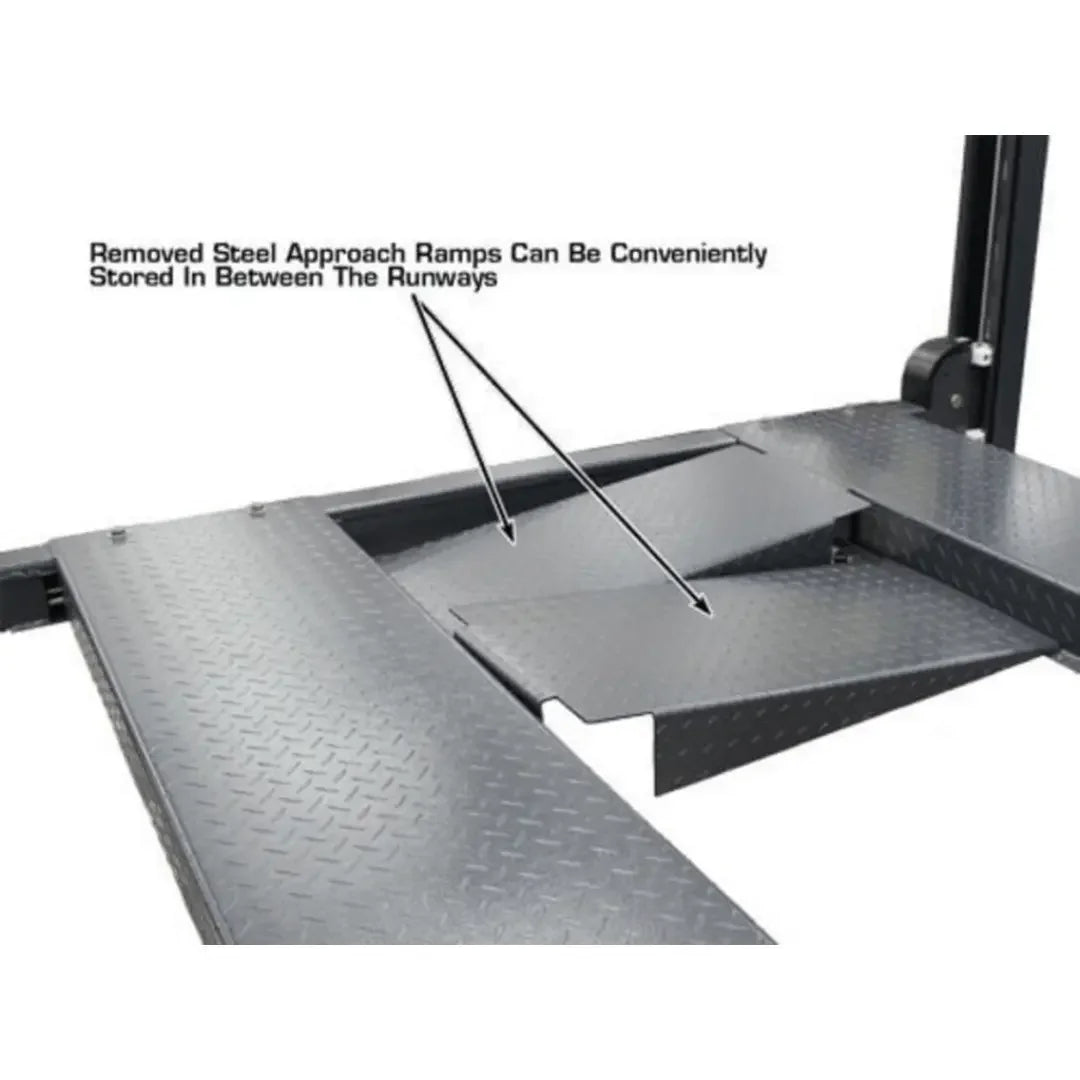

  • Steel Approach Ramps Included

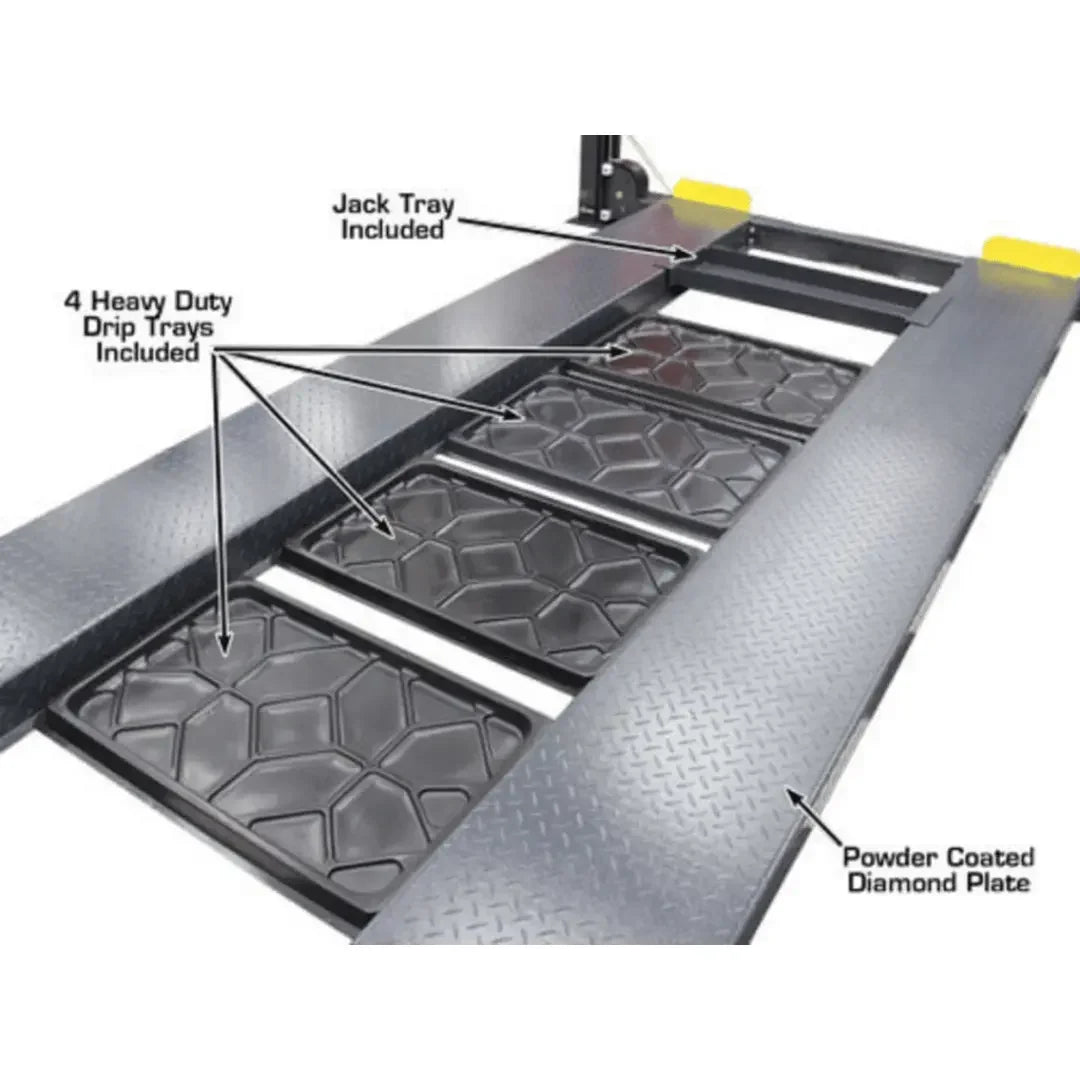

  • Steel Jack Tray Included
  • Four Plastic Drip Trays Included

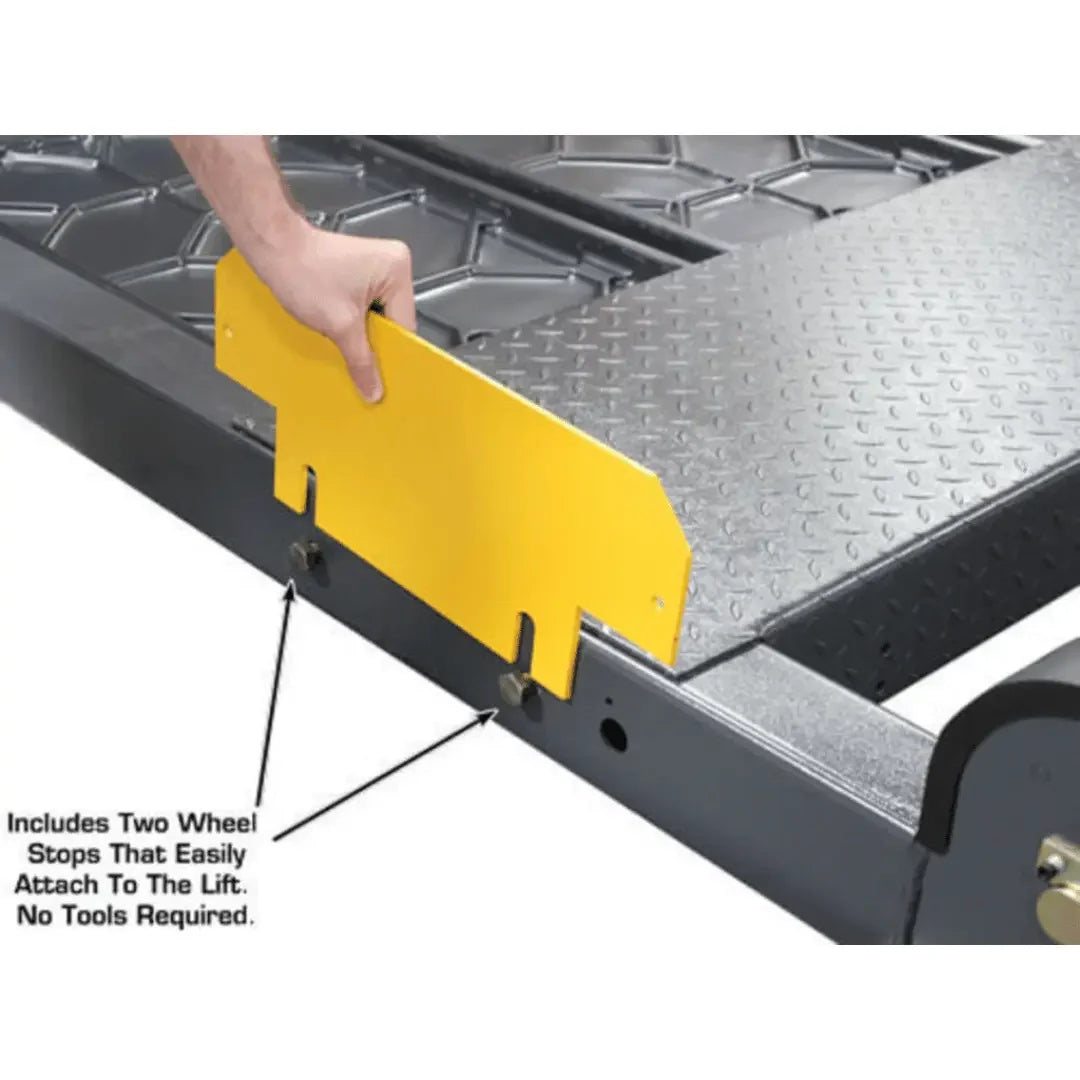

  • Wheel Stops Included
  • Anchor Bolts Optional (Sold Separately)
  • 110volt Electric Operation – PLUG NOT INCLUDED (Requires 30amp Breaker)

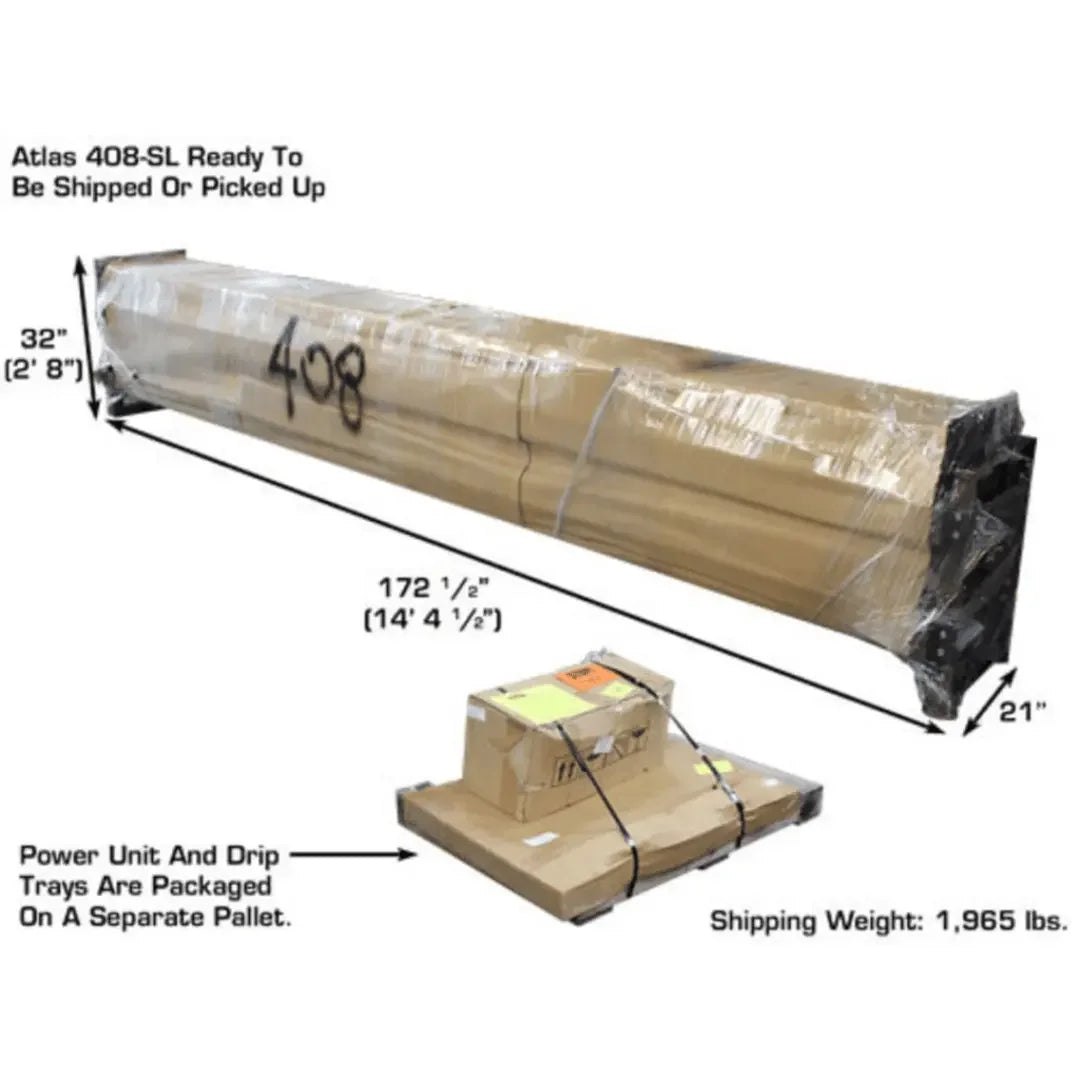

  • Shipping Weight: 1,965 lbs.
  • 2 yr Structural – 2 yr Hydraulic Warranty – Parts Only

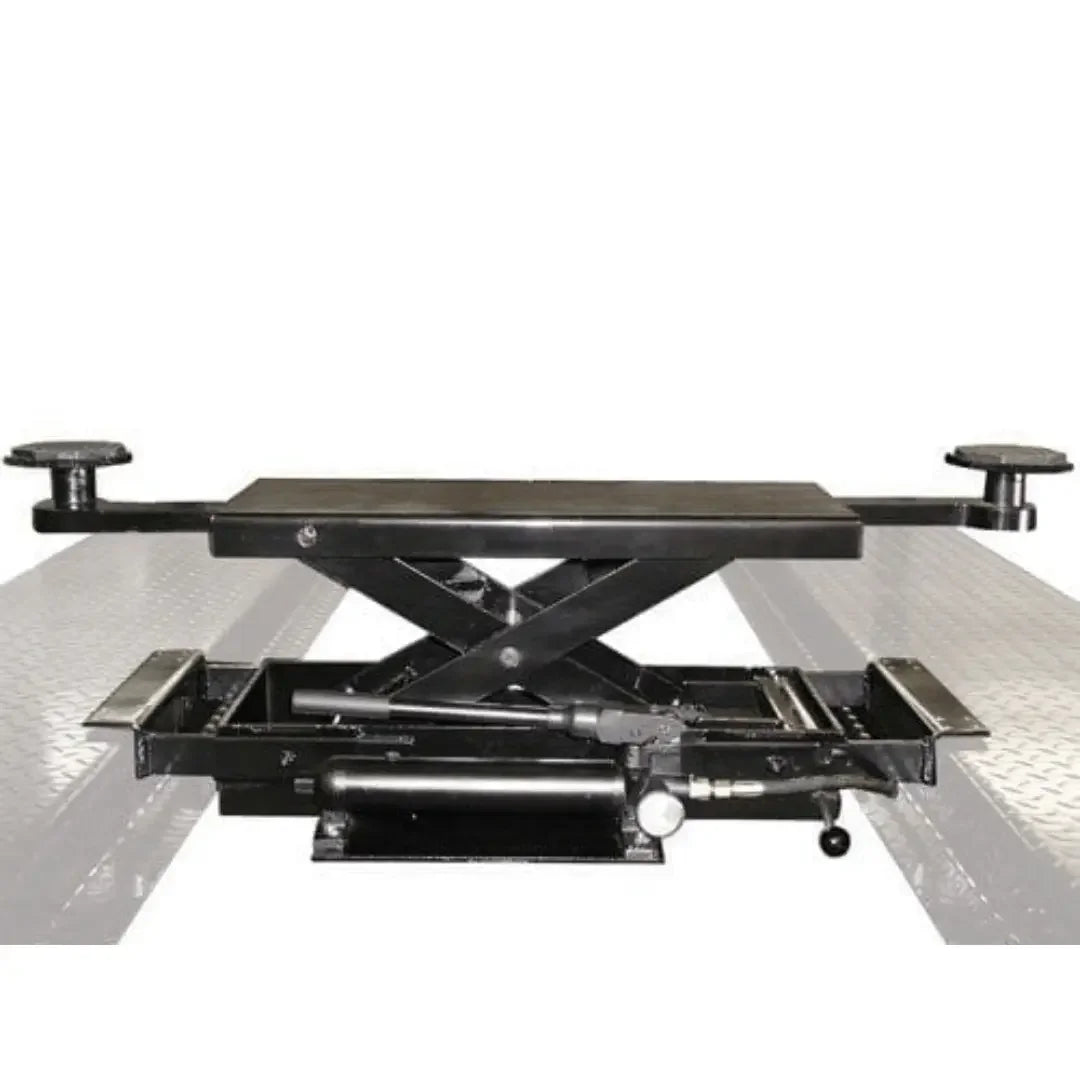

RJ35 Sliding Bridge Jack

  • Sliding Bridge Jack
  • Capacity: 3,500 lbs.
  • Manual, hand pump operated
  • Scissor mechanism allows for level lifting
  • Low Profile, Compact Design
  • Adjustable Width to fit many 4-post lifts
  • Adjustable Lift Arms to reach many lifting points
  • Multiple Safety Lock Positions

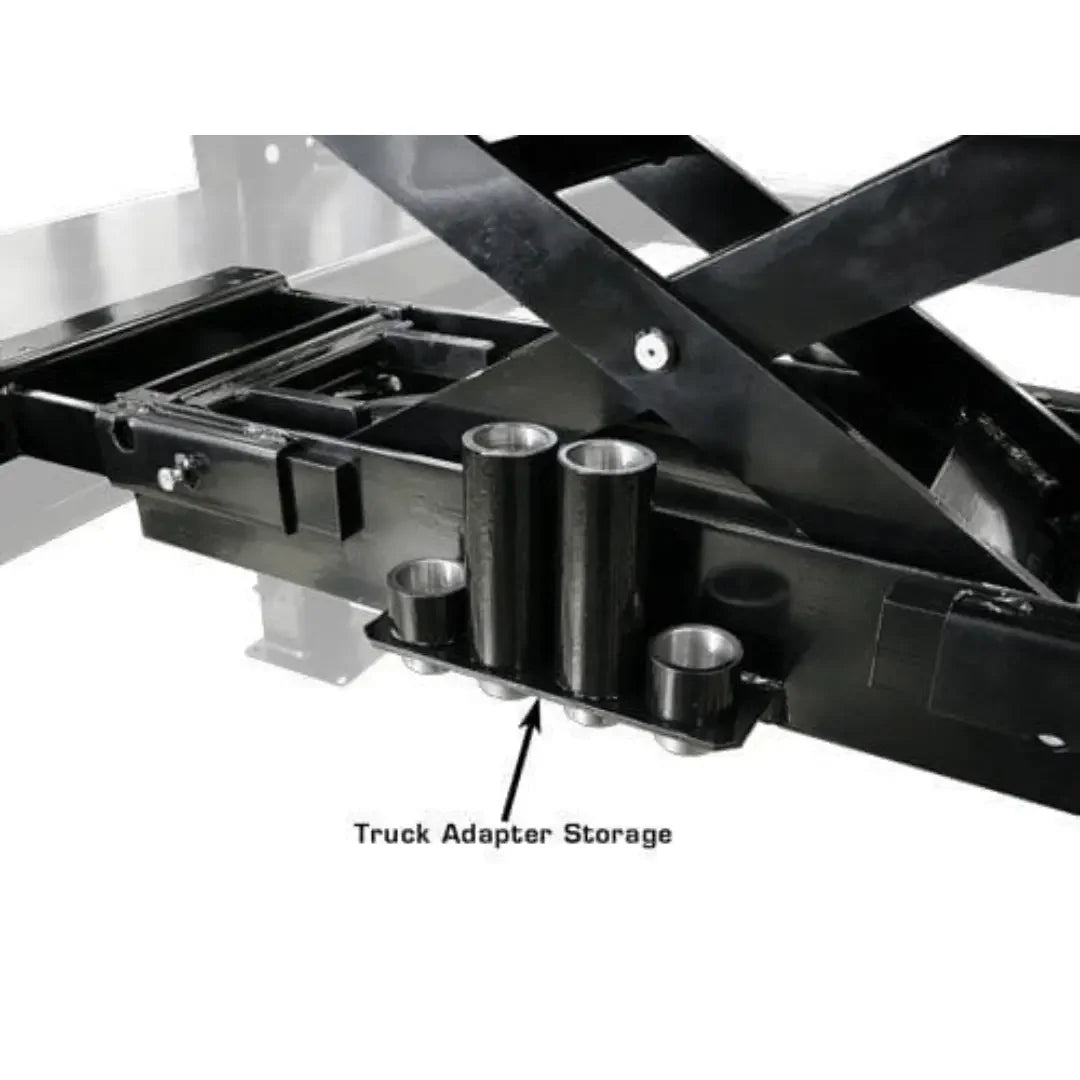

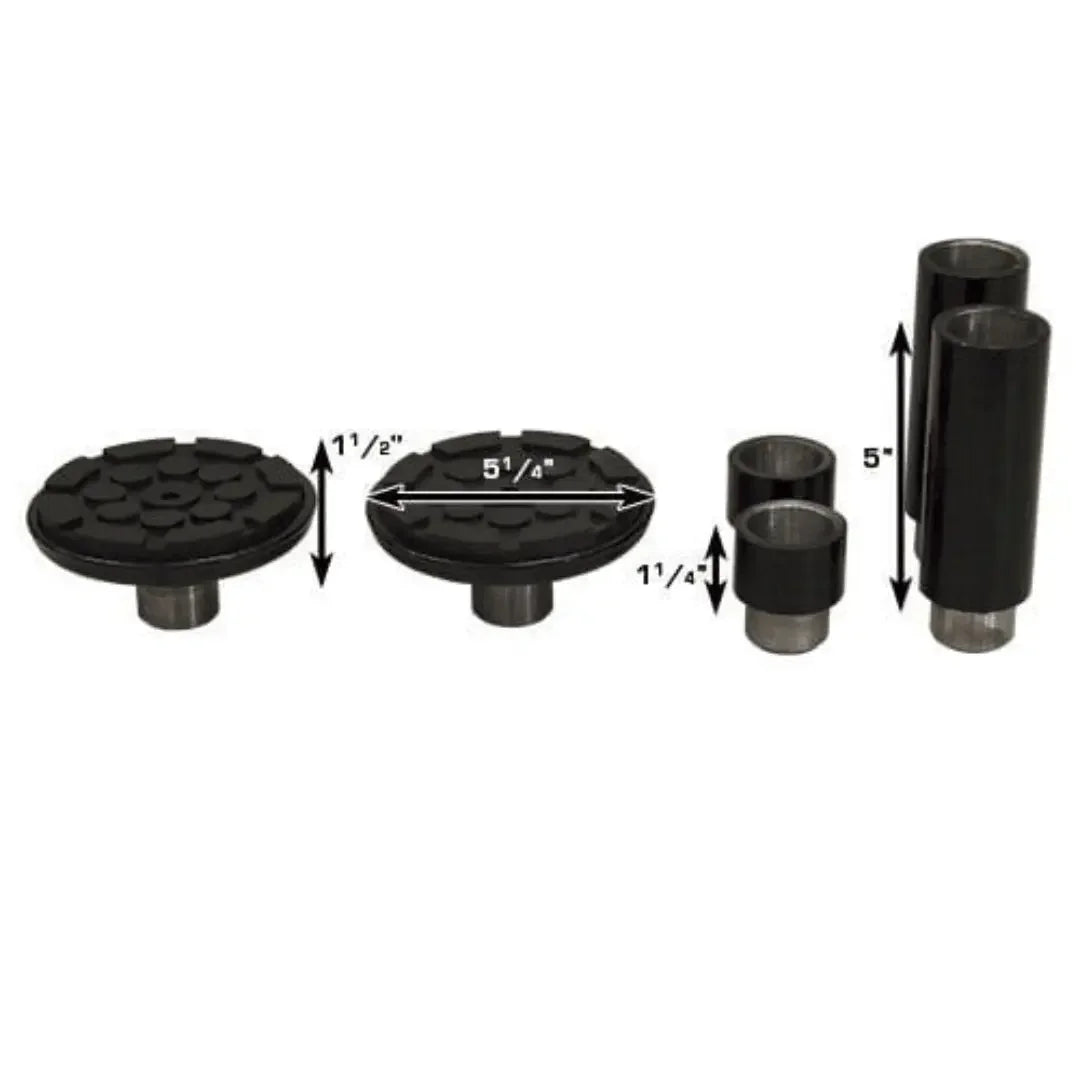

  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty

Product Specifications

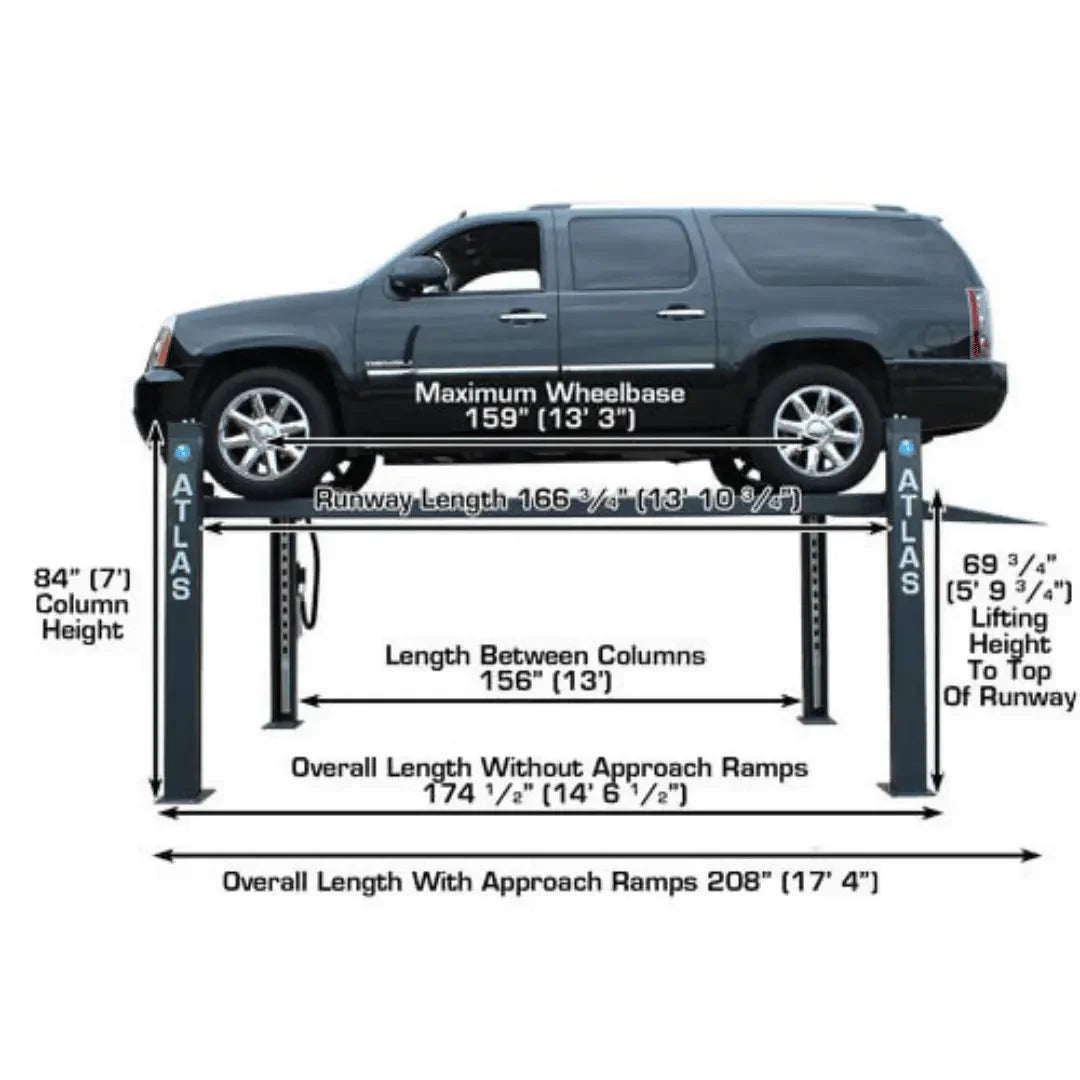

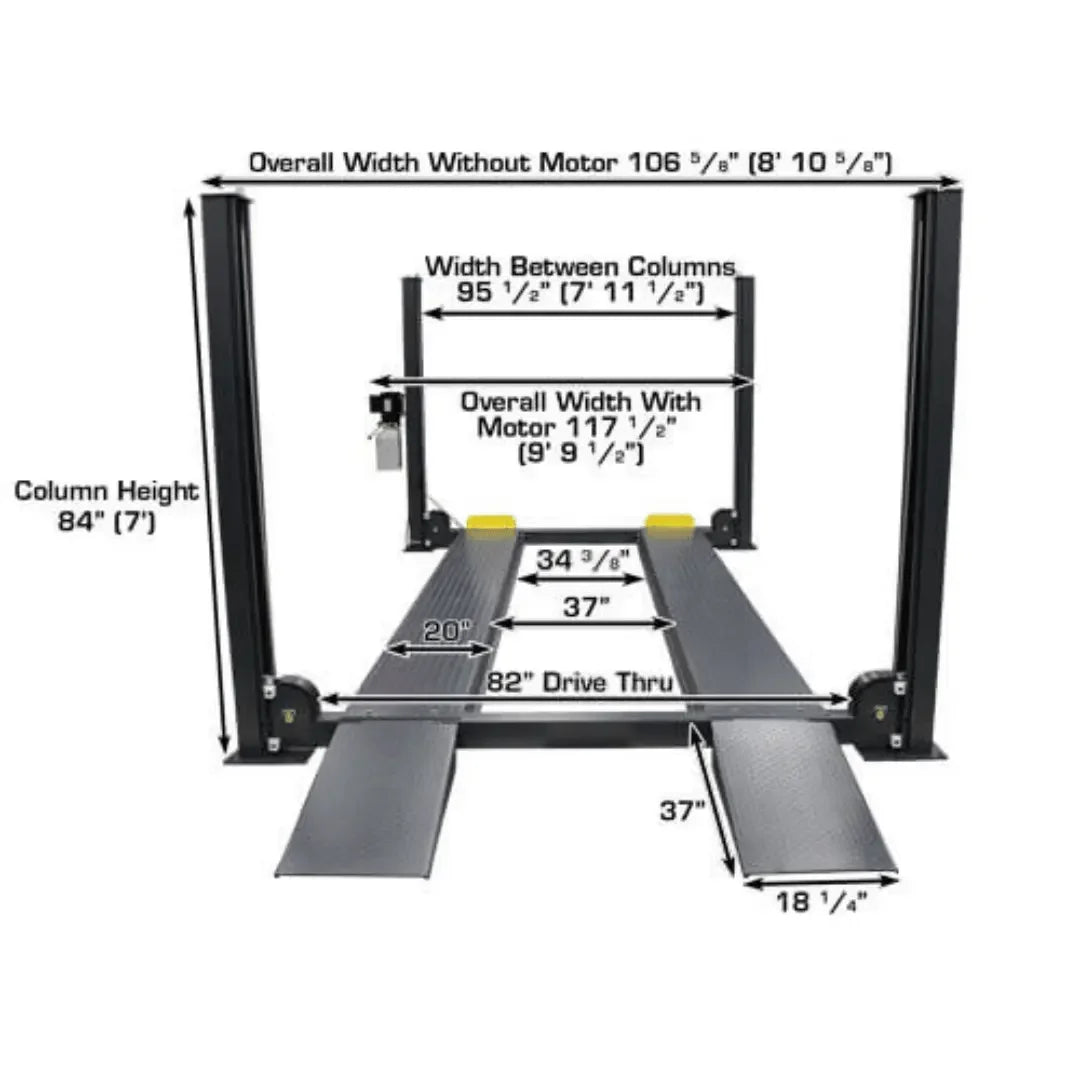

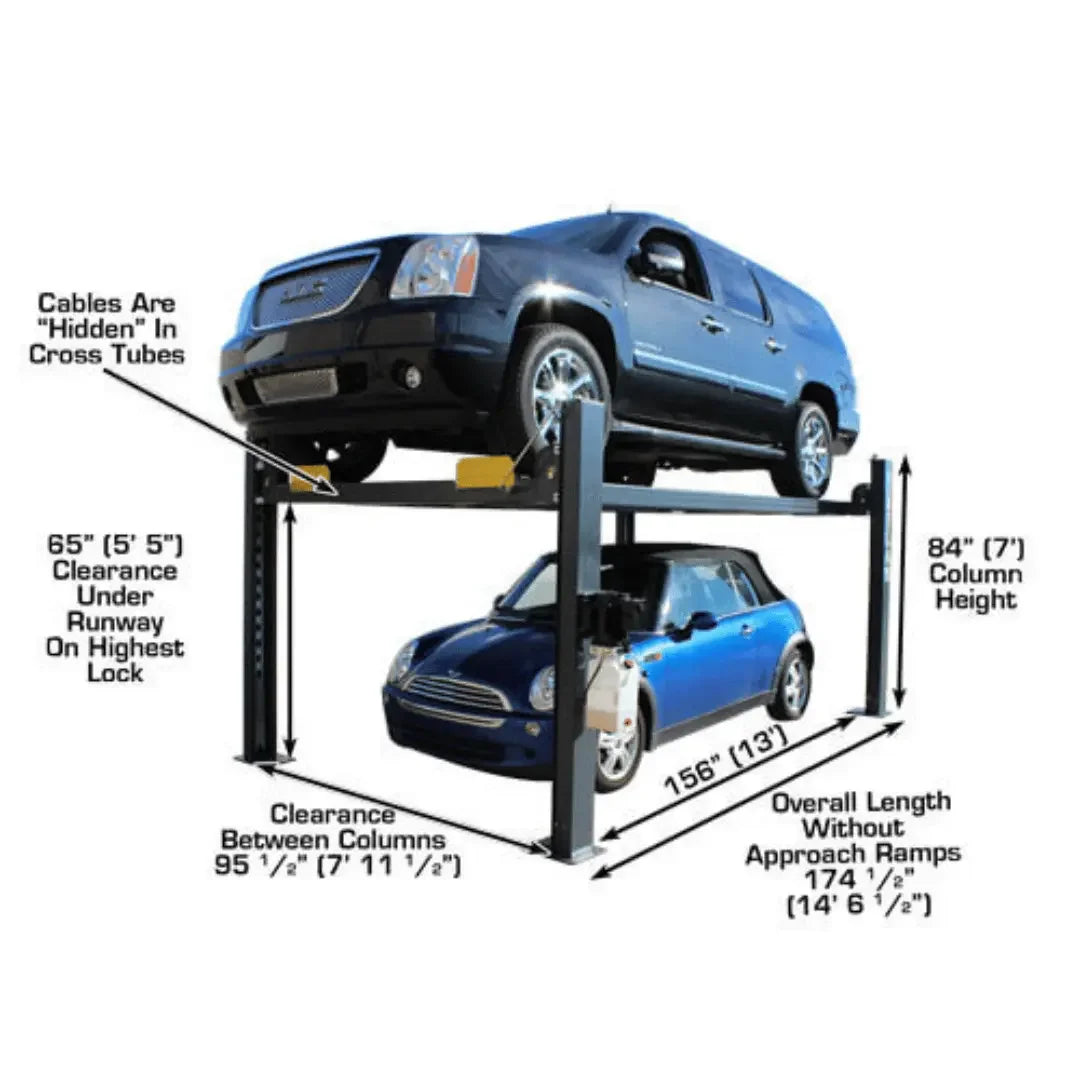

Atlas® Deluxe 408SL Specifications

Capacity 8,000 lbs.
Lifting Height, Top of Runway 70" (5' 10")
Clearance Under Runways 65 1/4" (5' 5 1/4")
Height Of Columns 83" (6' 11")
Overall Width (Without Motor) 109 5/8" (9' 1 5/8")
Overall Width (With Motor) 117 1/2" (9' 9 1/2")

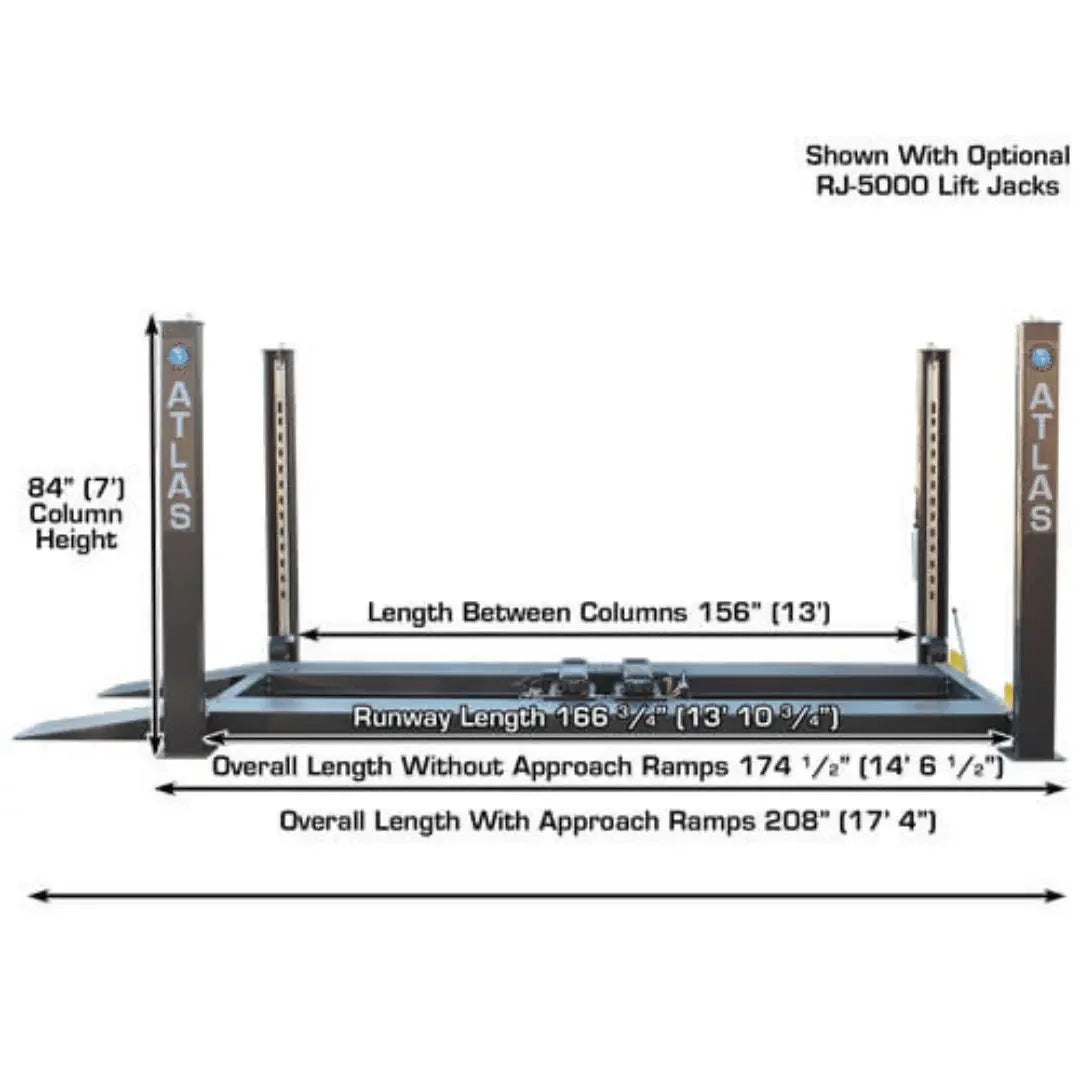

Overall Length With Approach Ramp 205 3/8" (17' 1 3/8")
Length Between Columns 156" (13')
Runway Width 18 3/4"
Runway Length 166 3/4" (13' 10 3/4")
Runway Thickness 4 3/4"
Width Between Runways 37 1/4" w/ Rails 34 3/8"
Outside Runway To Outside Runway 74 3/4" (6' 2 3/4")

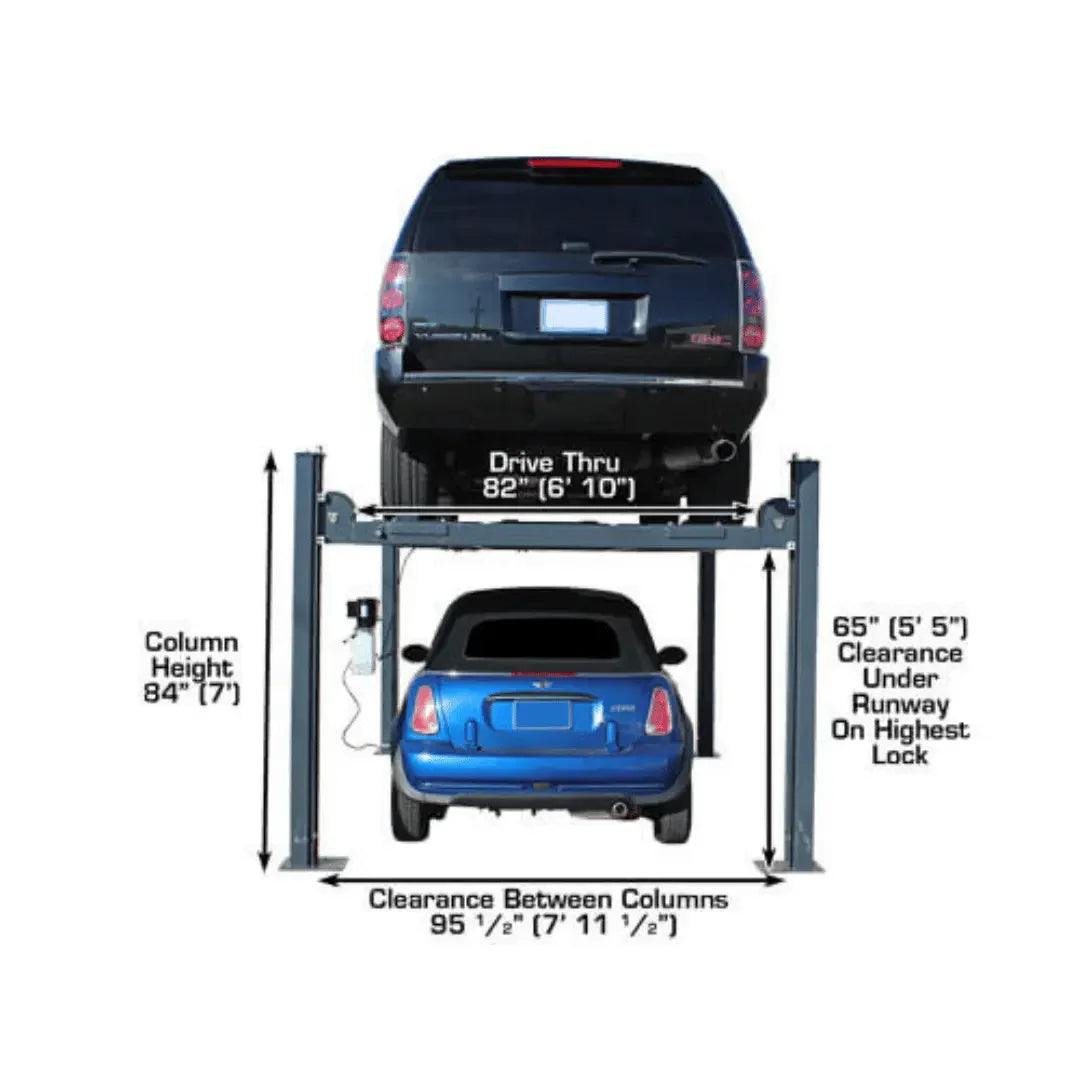

Clearance Between Columns 95 1/2" (7' 10 1/2")
Drive Thru 82" (6' 10")
Motor/Electrical Requirement 110volt, 30 amp breaker required
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,965 lbs.

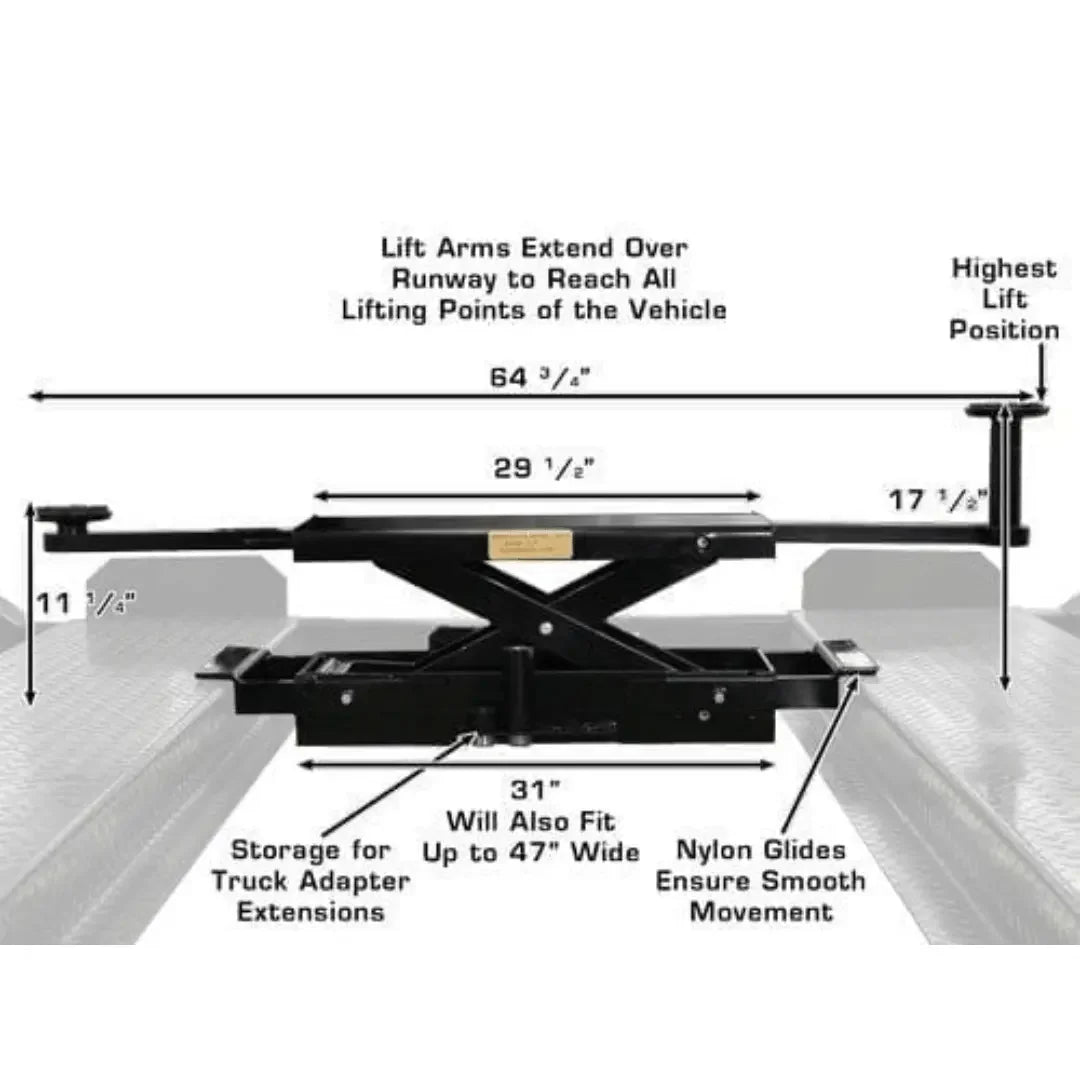

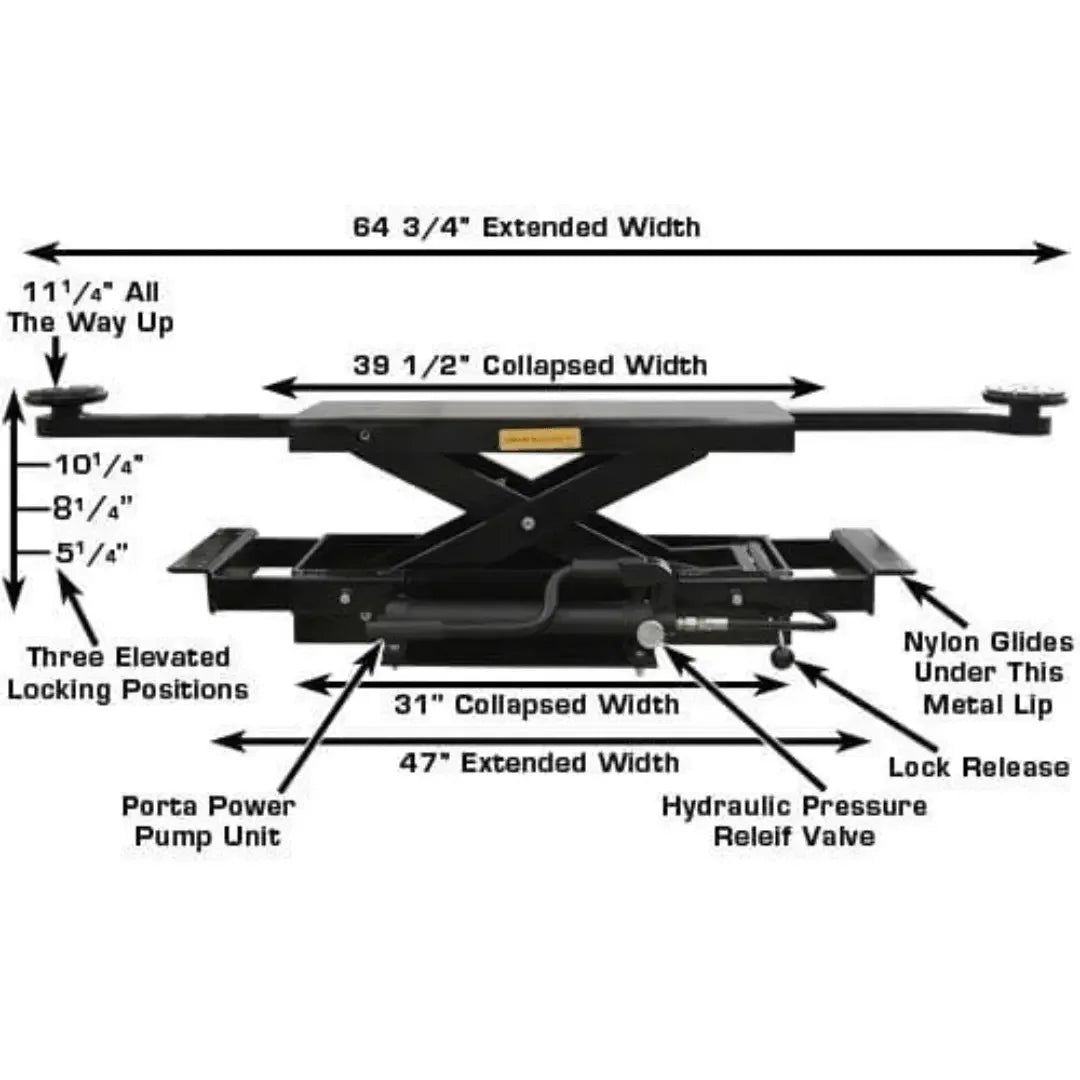

Atlas® PROJACK35 Specifications

Maximum Capacity 3,500 lbs.
Maximum Width 64 3/4" (5' 4 3/4")
Minimum Width 29 1/2" (2' 5 1/2")
Minimum Height with Lift Pad Above Runway 3 1/2" (MAY VARY BY LIFT)
Lift Pad Height Above Arm 1 3/8"
Max Raised height w/o Adapters 11"
Max Raised height w/ Adapters 17 1/4"
Adapter Heights 2 each 1.5", 5"
Arm Hole/Adapter Peg Size 1.5"
Shipping Weight 350 lbs

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743
