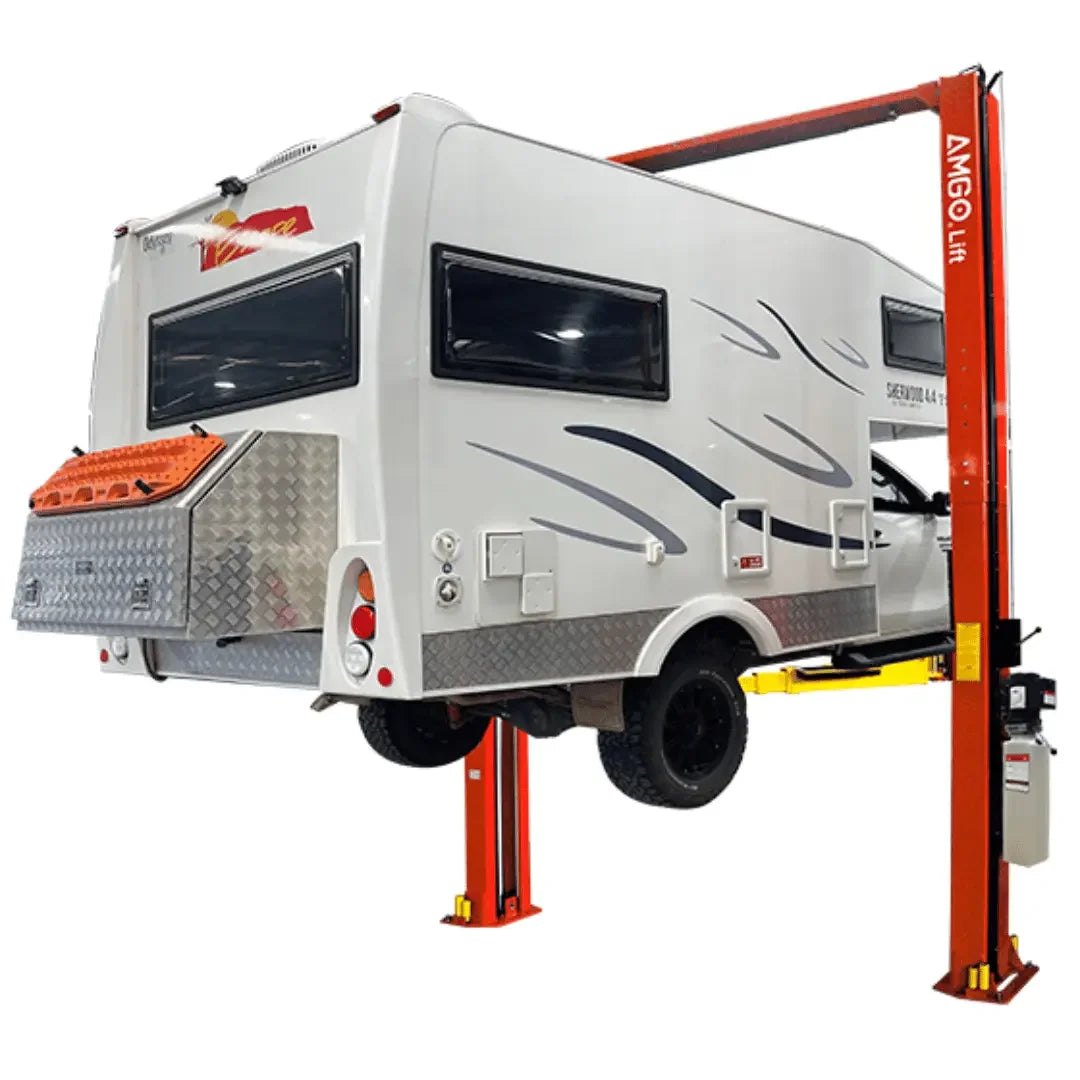

Amgo OH-12 12,000 lb 2 Post Lift

SKU/Product #: OH-12

AMGO Hydraulics



Product Description

AMGO Heavy duty two post lifts are the best choice for heavy duty vehicles or trucks in commercial shops… stronger and higher!

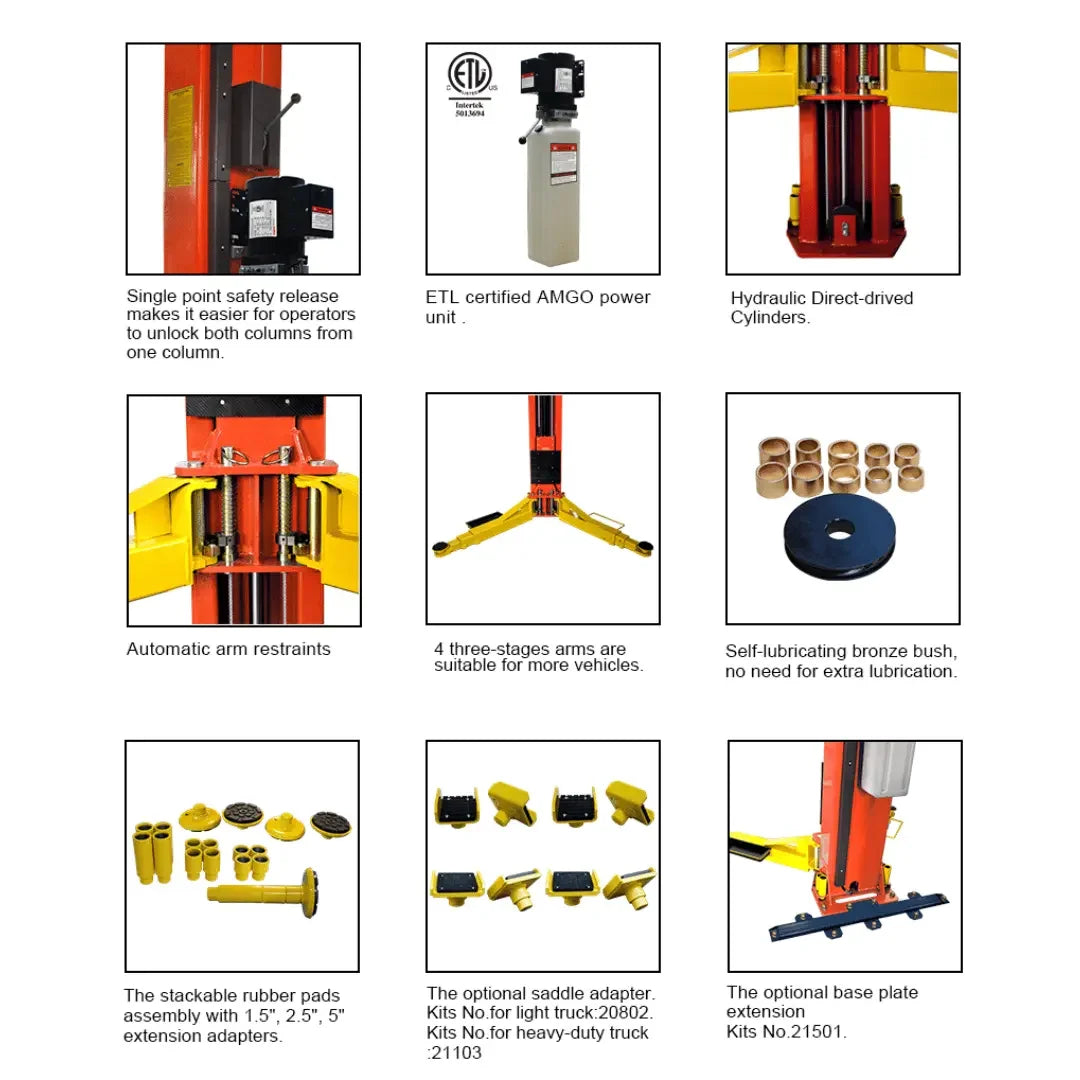

Product Features

  • 12,000 lbs capacity
  • Single-point safety releaser
  • 4 three-stages arms allowing to lift the trucks from short to long wheel base
  • Automatic arm restraints keep the arms locked in their proper positions
  • Self-lubricating UHMW Polyethylene sliders and bronze bushings
  • Adjustable two height setting accommodate varying service ceiling heights
  • Aircraft quality cable is used for synchronization
  • Detachable foot guard and tool tray to allow for a clutter free work spaces
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
  • CE Approved and Certified
  • Meets or exceeds the standards prescribed by European Standard EN-1493

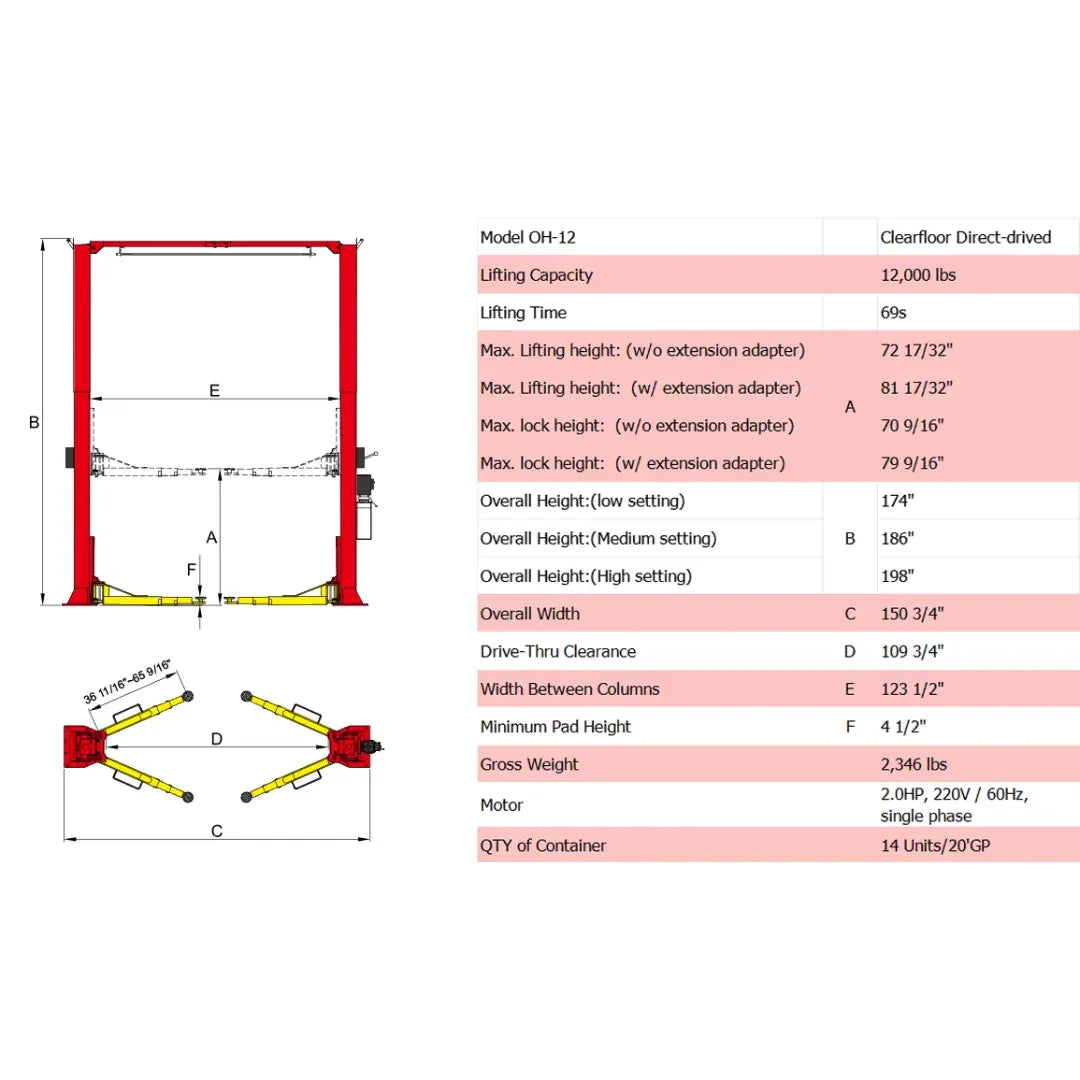

Product Specifications


Lifting Capacity: 12,000 lbs.
Max. Capacity / Front Axle: 6,000 lbs.
Max. Capacity / Rear Axle: 6,000 lbs.


F - Min. Pad Height: 4.5” (0.37 FT.)
Max. Rise (Under Arms) 68.5” (5.7 ft)
A - Max. Lifting Height: 72.5”(6.04 Ft)
Lifting Time: 69 seconds

Outside dimensions

C - Overall Width: 150 3/4" (12.56 ft)
B - Outside Height: 174″/186″/198″ (14.5 ft/15.5 ft/16.5 ft)

Inside Dimensions

E - Width Between Columns: 123.5" (10.29 ft)
D - Drive-Thru Clearance: 109 3/4" (9.14 ft)


Front Arm Reach: (Min) 37.5" (3.12 ft)
Front Arm Reach: (Max) 66 3/8" (5.55 ft)
Back Arm Reach: (Min) 37.5" (3.12 ft)
Back Arm Reach: (Max) 66 3/8" (5.55 ft)

Power Unit

Motor: 2.0HP/220V/60Hz, Single Phase


Weight: 2,317 lbs.

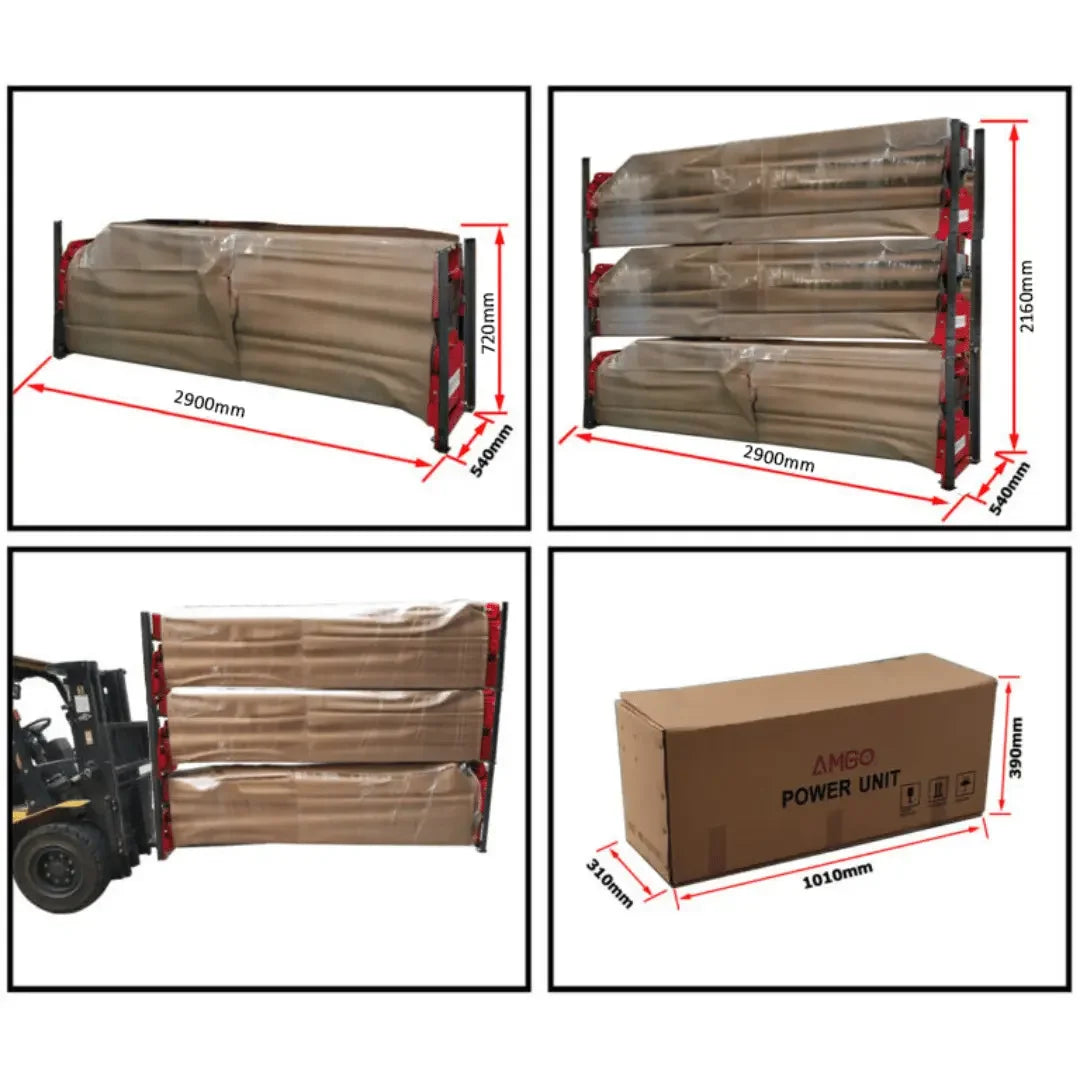

Dimensions (LxWxH): 114" x 22" x 42"

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Kalamazoo, MI / Dallas, TX / Temecula, CA.

Call, text, or chat with us if you have questions. 866-774-7743
