Product Description

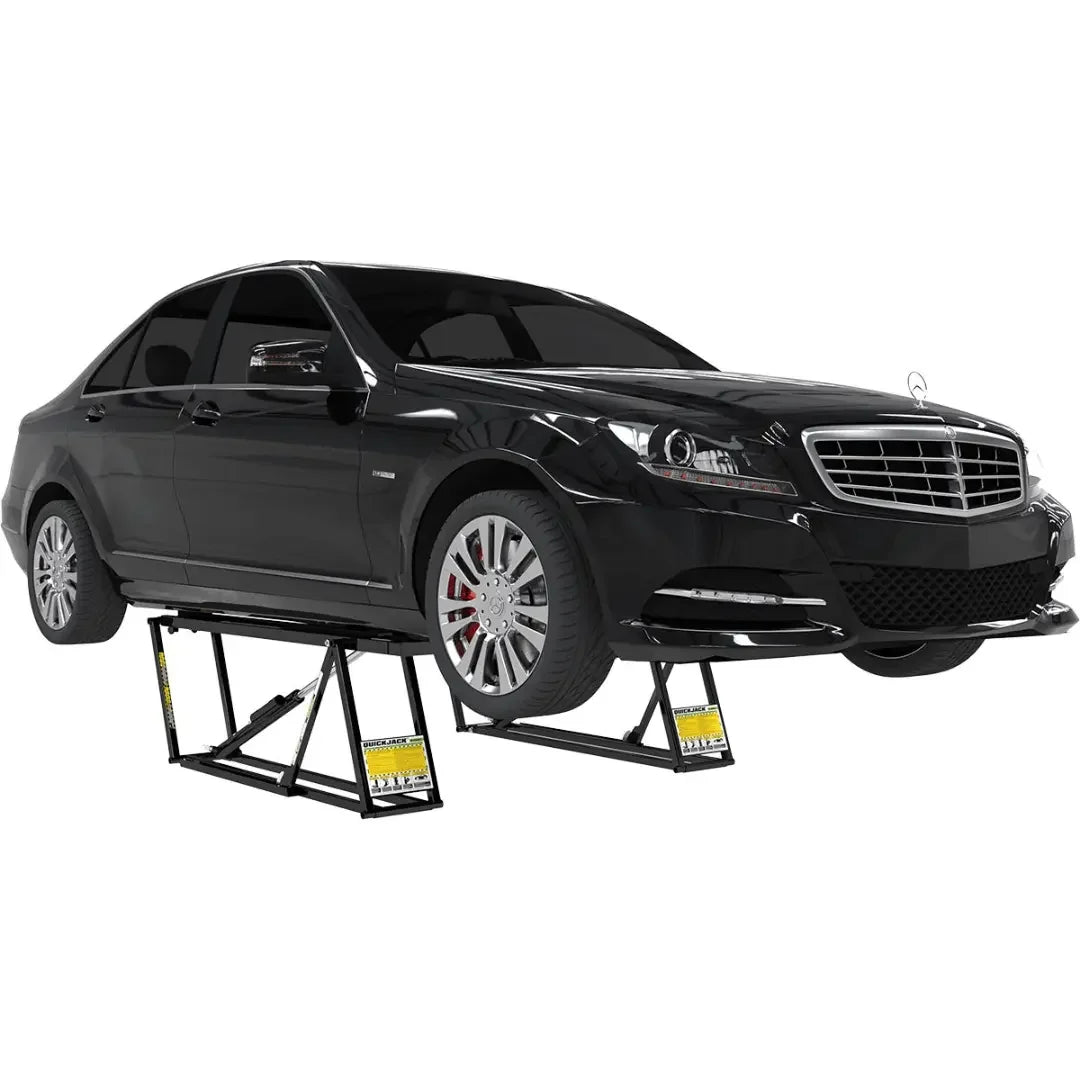

QuickJack 5000TL 5000 lbs. Portable Car Lift
5000TL portable car lift adds an extra 3" bringing the lifting height to an impressive 24 inches. This enhancement increases access to the undercarriage of the vehicle and provides an overall increase to your comfort and capability.
5000TL Portable Car Lift System
QuickJack is constantly improving and evolving to fit your automotive needs in the garage or on the track. 5000TL is the highly-anticipated sequel to the most popular automotive tool to ever hit the home garage or auto repair shop. With the ability to lift an extra 3-inches, 5000TL portable car lift provides more room to tackle every repair and maintenance task on vehicles weighing up to 5,000-lbs.
Through superior engineering and design, we've been able to produce an extra 3-inches of lifting height without sacrificing the overall dimensions that has made QuickJack a must-have in your garage. 5000TL still has an impressive 3" lowered height, 70" overall length, and 11" overall width.
Automatic safety locks
Features dual-position automatic safety locks on each TL frame. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.
Increased lifting height
QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.
One-handed operation
By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during lifting.
Accessories to increase versatility
Most QuickJack accessories were developed from customer suggestion and need. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.
Product Features
- Automatic safety locks
- Increased lifting height
- One-handed operation
- Accessories to increase versatility
Product Specifications
Lifting capacity
Lifting capacity | 5,000 lbs. (2,268 kg) |
Lowered height
A - Frame only | 3" (76 mm) |
B - With 2" block | 3.5" (89 mm) |
Lifting height
D - With 2" block | 21" (521 mm) |
E - With 3" block | 22" (546 mm) |
F - Max. height | 24" (616 mm) |
G - With adapters | 24" (597 mm) |
H - With adapters + pin | 26.75" (673 mm) |
Lift point spread
I - Maximum | 60" (1,524 mm) |
J - Minimum | 37" (940 mm) |
Frame dimensions (ea.)
K - Width | 11" (278 mm) |
L - Length | 70" (1,778 mm) |
A - Height | 3" (76 mm) |
Weight | 78 lbs. (35 kg) |
Other specs
Time to full rise | 30 seconds |
Power unit weight | 15 lbs. (7 kg) |
Shipping dimensions (ea. frame) | 73.5" (L) x 15.25" (W) x 5" (H) (1,869 mm x 385 mm x 129 mm) |
Shipping weight | 240 lbs. (109 kg) |
