Product Description

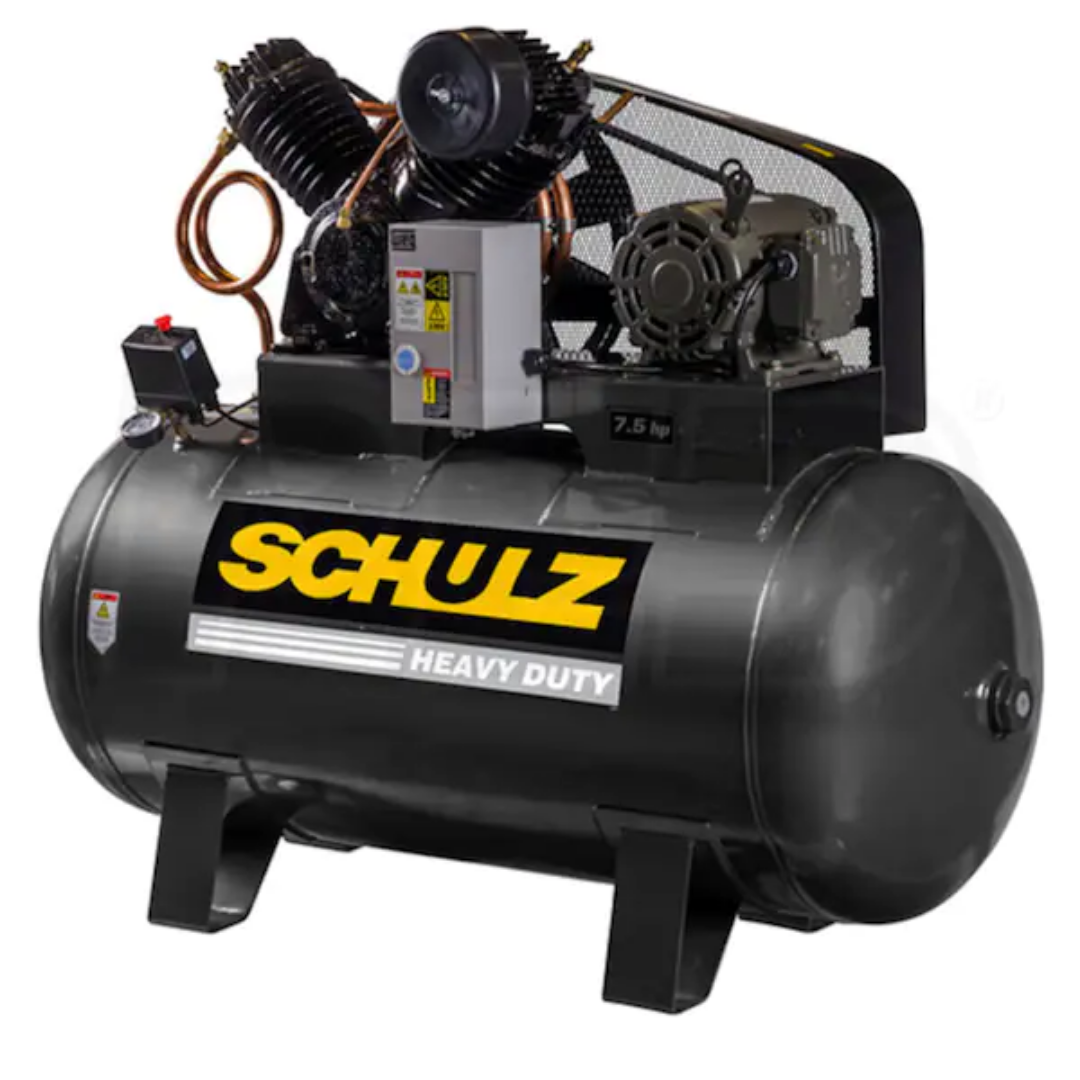

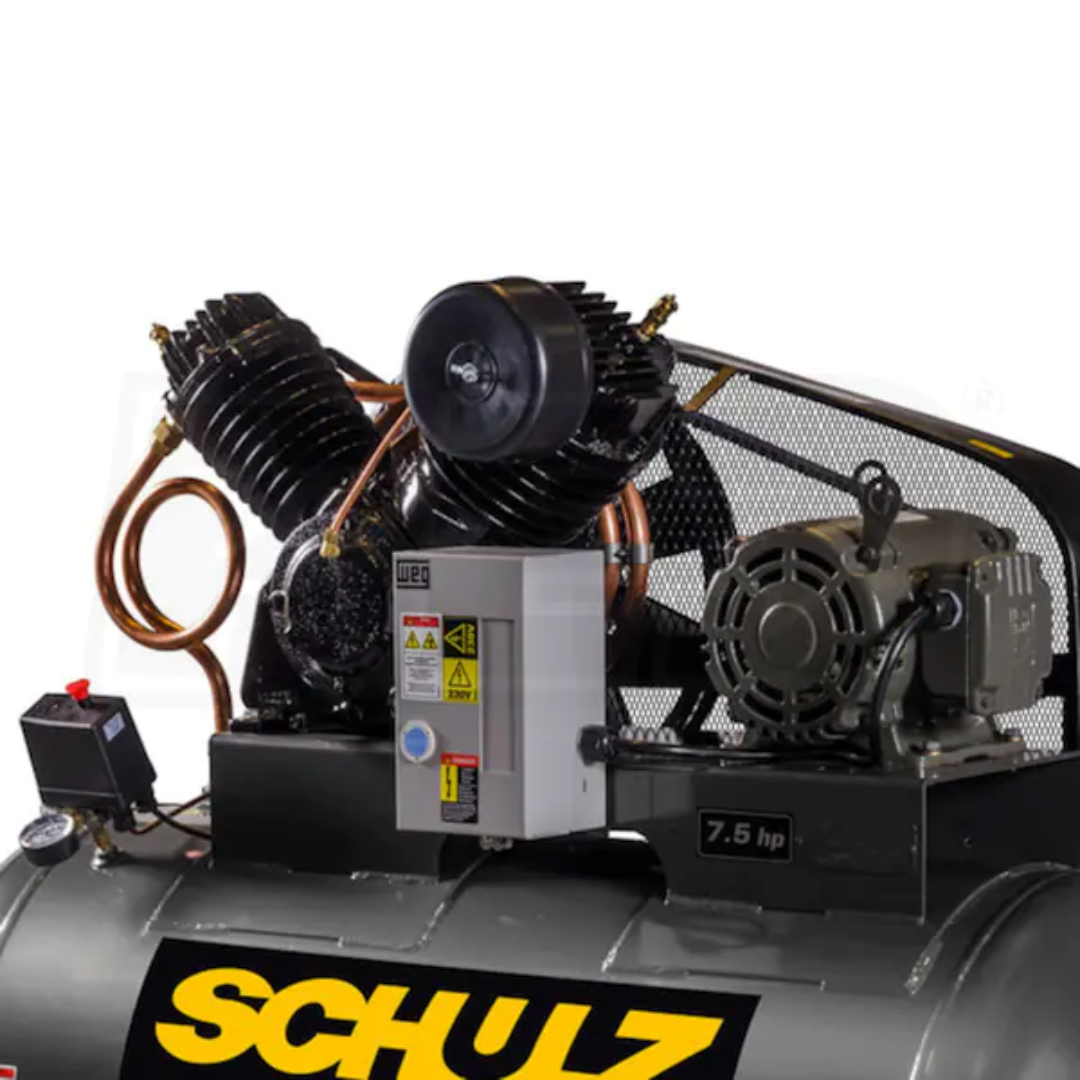

Schulz 7580HV30X-3 V-Series 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
The Schulz 7580HV30X-3 V-Series air compressor is a powerhouse designed for demanding industrial applications. Featuring a 7.5 HP motor and operating on 230 Volt AC three-phase power, it delivers an impressive 29 CFM at 175 PSI. This two-stage, oil-lubricated compressor boasts a solid cast iron pump, ensuring longevity and reliable performance.
With its 80-gallon vertical tank, the Schulz 7580HV30X-3 provides ample capacity for extended use, reducing the need for frequent refills. The pump is belt-driven and includes an oil sight glass for easy maintenance. The durable construction is complemented by a pressure gauge and ASME certification, ensuring safety and compliance with industry standards.
This air compressor is perfect for heavy-duty tasks in automotive shops, manufacturing facilities, and other industrial environments. For optimal installation and performance, consult a certified electrician. The Schulz 7580HV30X-3 comes with a one-year warranty for both consumer and commercial use, providing peace of mind and reliable service.

Product Features
- WEG Electric Motor
- V-Series Cast Iron Pump
- Oversized Main Bearings
- Swedish Steel Valves
- CNC Machined Components
- Notched Belts Standard
- Powder Coated Components
- 1 Year Unit With 2 Year Pump Warranty

Product Specifications
General Information
Product Category | Air Compressor - Stationary |
Motor
Voltage | 230 Volt AC |
Phase | Three Phase |
Magnetic Starter | Yes |
Amp Draw | Consult Certified Electrician |
Recommended Breaker | Consult Certified Electrician |
Engine
HP | 7.5 |
Pump
CFM | 30 |
CFM Rated @ | 175 PSI |
Pump Material | Solid Cast Iron |
Max PSI | 175 PSI |
Oil Sight Glass | Yes |
Pump Type | Two-Stage |
After Cooler | Yes |
Pump Drive | Belt Drive |
Oil Type | Oil Lubricated |
Oil System | Splash Lubricated |
Pump Low Oil Shut-off | No |
Tank
Tank Size | 80 Gallons |
Tank Outlet | 1/2 Inch |
Electronic Drain Valve | No |
Tank Orientation | Horizontal |
Accessories
Pressure Gauge | Yes |
Air Dryer | No |
Overview
Weight | 553 Pounds |
Certification | ASME |
Consumer Warranty | 1 Year |
Commercial Warranty | 1 Year |
Product Length | 56 Inches |
Product Width | 23 Inches |
Product Height | 45 Inches |
Power Type | Electric |
